$9.00 – $10.00
16-pin configuration for USB 2.0 transmission
DIP (through-hole) design ideal for high-strength mechanical mounting
Wide 8.45mm body with strong shell locking feature
Rated for up to 5A current (supports fast charging)
Salt spray tested for enhanced corrosion resistance (≥ 24 hours)L94V-0)

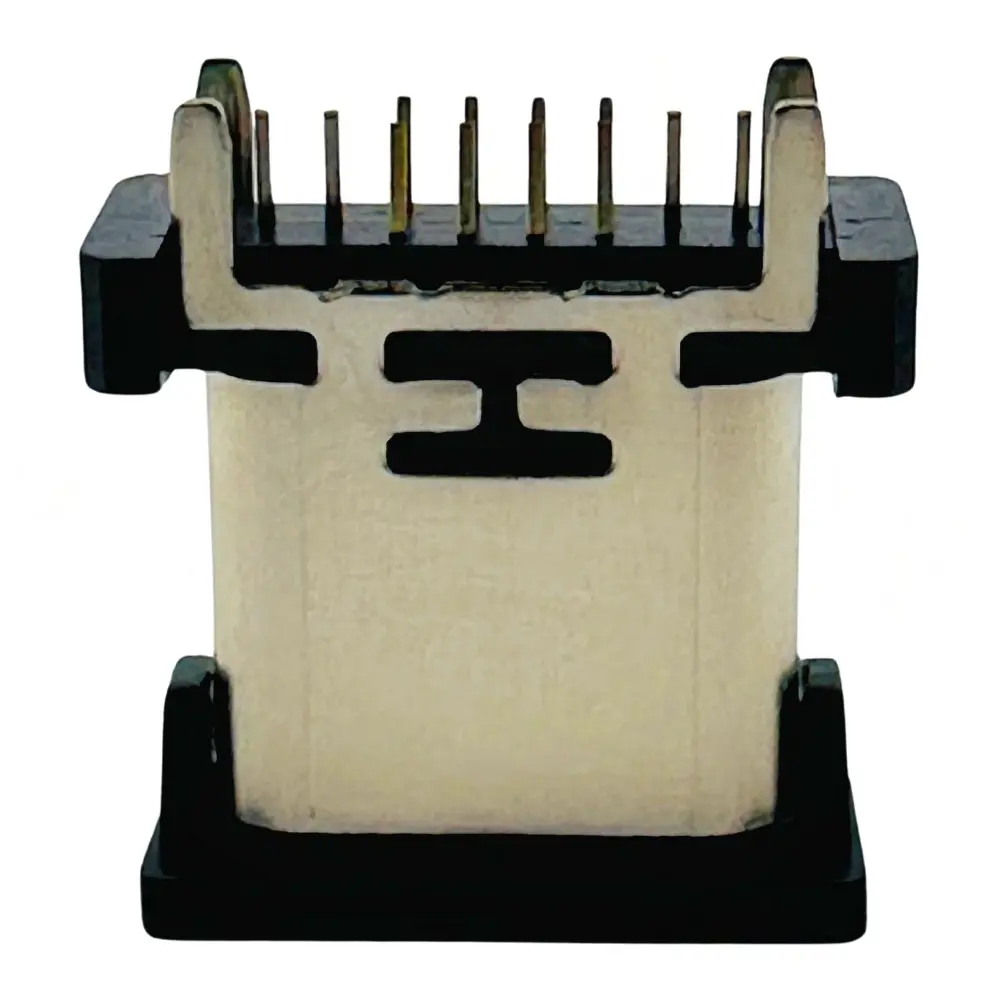

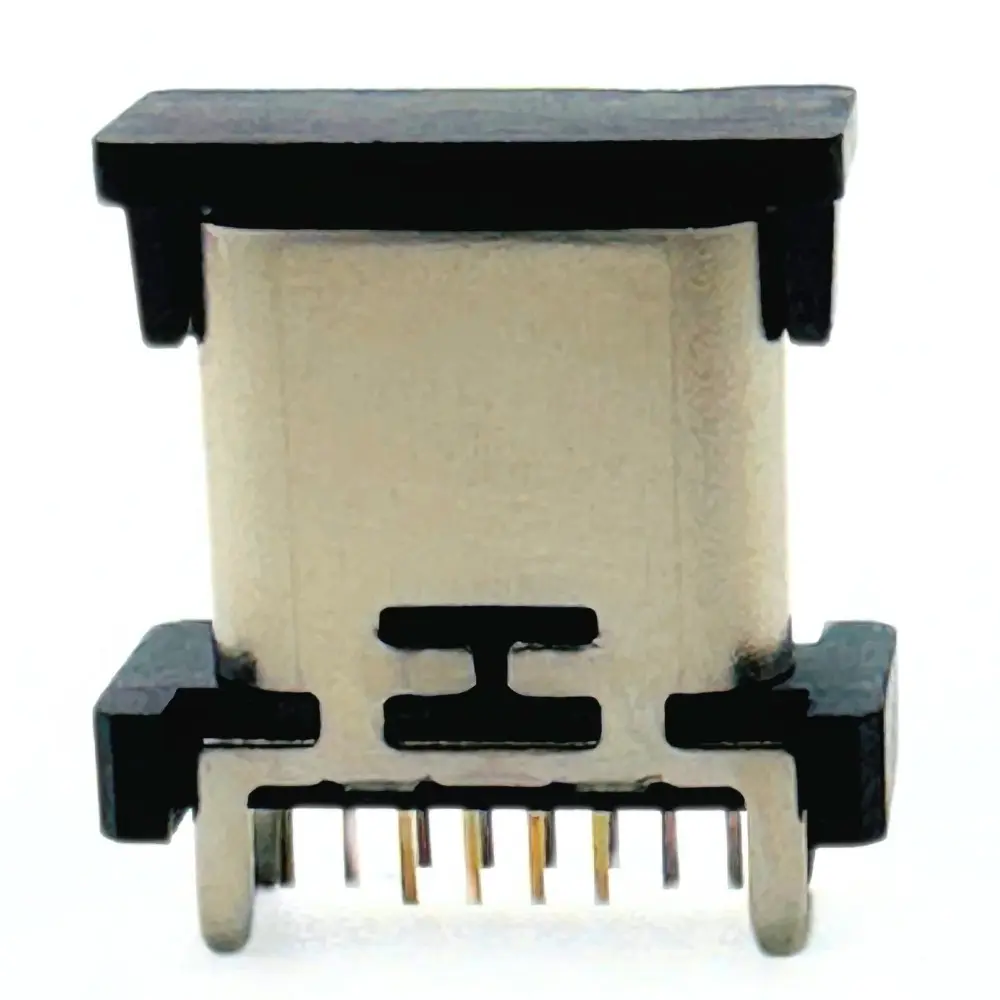

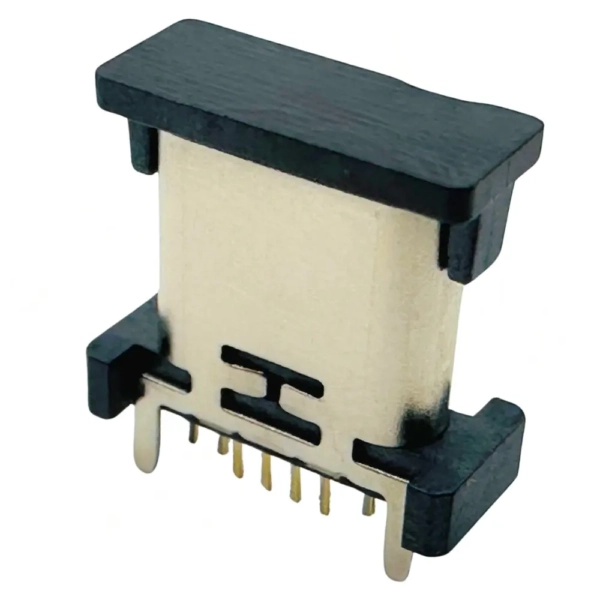

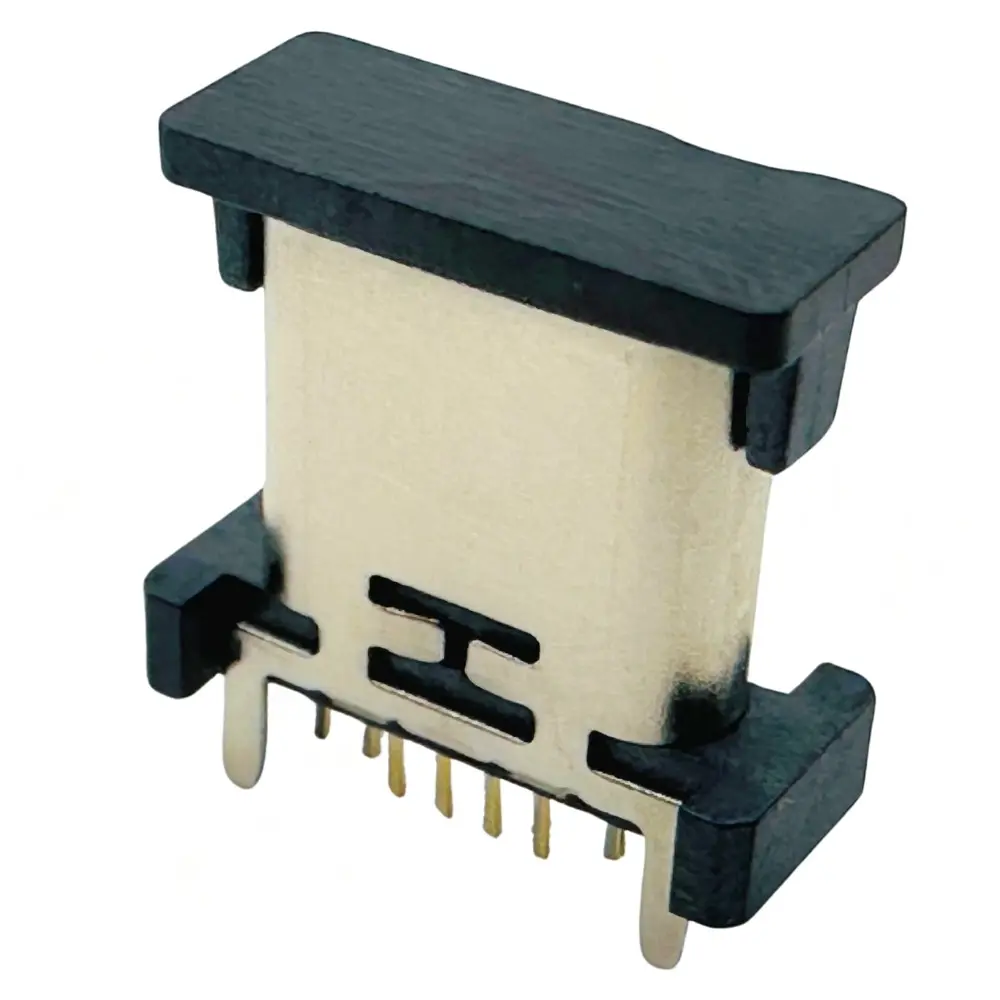

Discover the ultimate solution for your PCB integration needs with our USB 2.0 Type-C 16-pin female connector. Designed with a DIP (Dual In-Line Package) vertical mount and fitted with reliable through-hole pins, this connector guarantees a robust anchoring option suitable for various applications. Whether you are designing a new device or upgrading existing technology, the powerful features of this connector ensure optimal performance and durability.
This USB 2.0 connector features a unique 16-pin configuration tailored for reliable data transmission. The DIP design allows for high-strength mechanical mounting, making it perfect for projects where stability is a critical factor. With a wide 8.45mm body and a strong shell locking feature, this connector is engineered to withstand demanding environments and maintain connections under varying conditions.
Not only does this USB 2.0 Type-C female connector support fast charging with a rating of up to 5A current, but it has also been rigorously tested for corrosion resistance. Salt spray tested for duration of 24 hours (L94V-0), it is prepared to handle harsh conditions while maintaining reliable functionality. This is essential for applications where longevity and operational reliability are imperative.
Choose our USB 2.0 Type-C 16-pin female connector for a dependable, cost-effective solution in your PCB projects, assuring both performance and longevity in every unit.
| 1. General | |||
| Status | Active | Category | USB Connector |
| Part number | DW-MUB-CF016797-XX TR-01 | Description | USB Type-C Receptacle, Horizontal DIP, 16PIN, 9.3 Height, Black Insulator |
| Application | Wire-to-Board /Cable-to-Board | Comments | – |
| Component Type | Receptacle | Product Name | USB Type-C |
| USB Version | USB 2.0 Type-C | Type | Type-C |
| Keywords | USB 2.0 Type-C Connector, Female USB Type-C, Horizontal Mount, DIP Type, Through-Hole Type-C, 16PIN USB Connector, Signal & Power Connector | Circuit Application | Power & Signal |
| 2. Electrical | |||
| Current – Maximum | 3.5A Max | Grounding to Panel | Yes |
| Shielded | Yes | Shield Type | Full Shield |
| Voltage – Maximum | 30V AC | Contact Resistance | 50mΩ Max |
| Insulation Resistance | 100MΩ | Dielectric Withstanding Voltage | 100V AC |
| 3. Physical | |||
| Circuits (Loaded) | 16 | Circuits (Maximum) | 16P |
| Color – Housing | Black | Durability (Mating Cycles Max) | 10,000 |
| Flammability | UL94V-0 | Gender | Female / Receptacle |
| Keying to Mating Part | Yes | Lock to Mating Part | Yes |
| Material – Contact | Copper Alloy | Plating on soldering area | Gold |
| Plating on contact area | Gold | Material – Housing | LCP UL94V-0 |
| Mounting Style | DIP (Through-Hole) | Connector Mounting Type | Board Mount |
| Number of Rows | 2 | Net Weight | – |
| Packaging Type | Tape and Reel | Orientation | Vertical |
| PCB Retention | Yes | Vacuum Pick-up Cap | Yes |
| Polarized to Mating Part | Yes | Temperature Range – Operating | -30°C to +85°C |
| Waterproof / Dustproof | No | Number of Mount legs | 4 |
| Pitch – Termination Interface | 0.5 mm | Ports | 1 |
| Termination Interface Style | Vertical | PCB Thickness (Recommended) | 8mm |
| 4. Classification Reflow Soldering Profile | |||
| Preheat Temperature Min | Ts(min) = 150°C | Preheat Temperature Max | Ts(max) = 200°C |
| Preheat Time (Ts min to max) | ts = 60–120 seconds | Ramp-up Rate (Ts to Tp) | 3°C/second max. |
| Liquidous Temperature | TL = 217°C | Time Above TL | tL = 60–150 seconds |
| Peak Package Body Temp | Tp ≤ TC (see table below) | Time within 5°C of Tp | tp = 20–30 seconds |
| Ramp-down Rate (Tp to TL) | 6°C/second max. | Time 25°C to Peak Temp | 8 minutes max. |
| 5. Package Classification Reflow Temperature (TC) | |||
| Properties | Volume mm³ <350 | Volume mm³ 350–2000 | Volume mm³ >2000 |
| PB-Free Assembly — Package Thickness < 1.6 mm | 260°C | 260°C | 260°C |
| PB-Free Assembly — Package Thickness 1.6–2.5 mm | 260°C | 250°C | 245°C |
| PB-Free Assembly — Package Thickness > 2.5 mm | 250°C | 245°C | 245°C |
| Weight | 1 kg |
|---|---|
| Dimensions | 12 × 9 × 2 cm |
| TEST | A4444, B84444, A94444, B94444 |
