$9.00 – $10.00

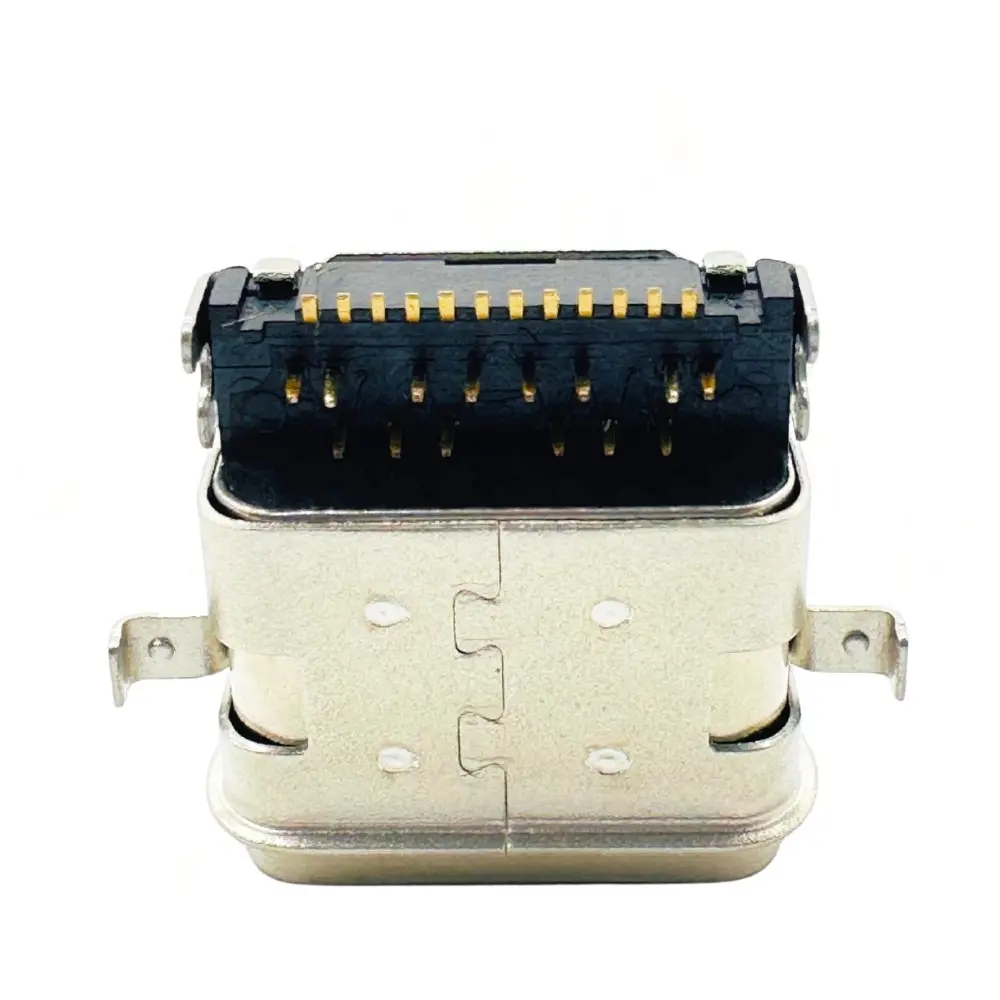

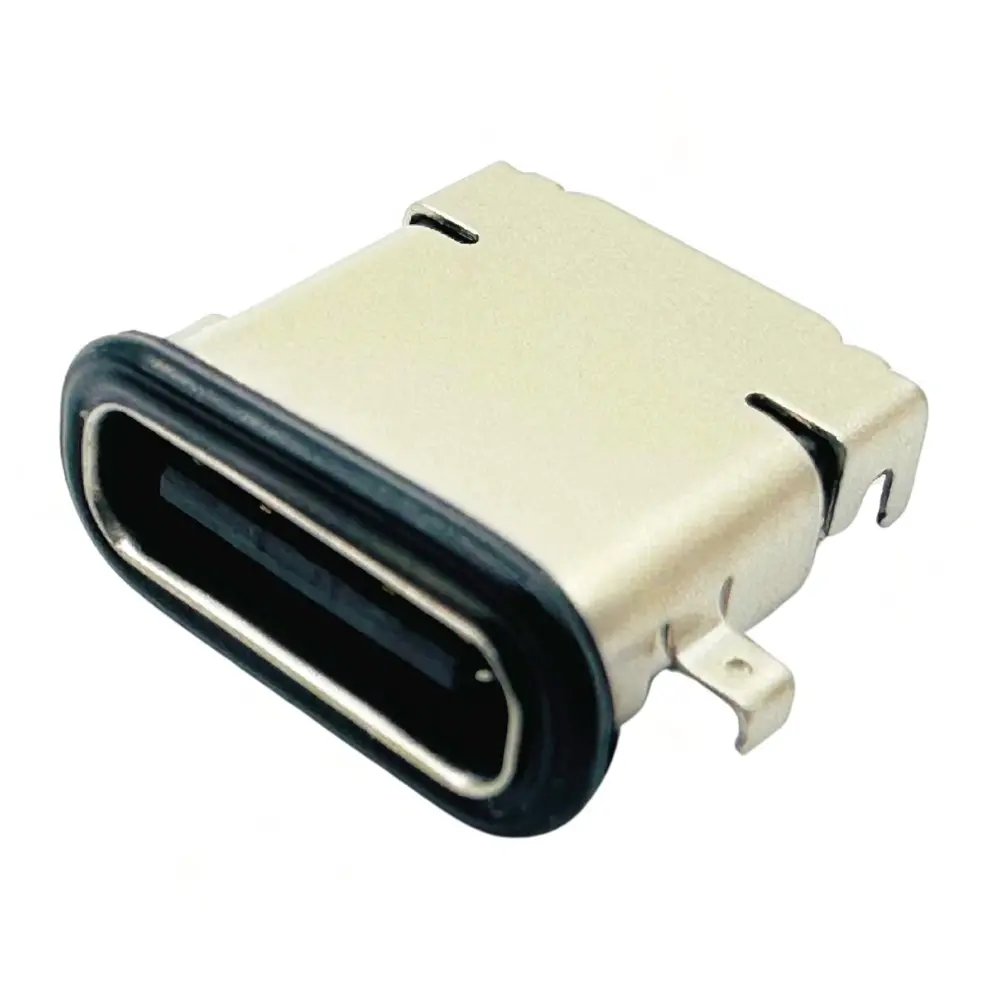

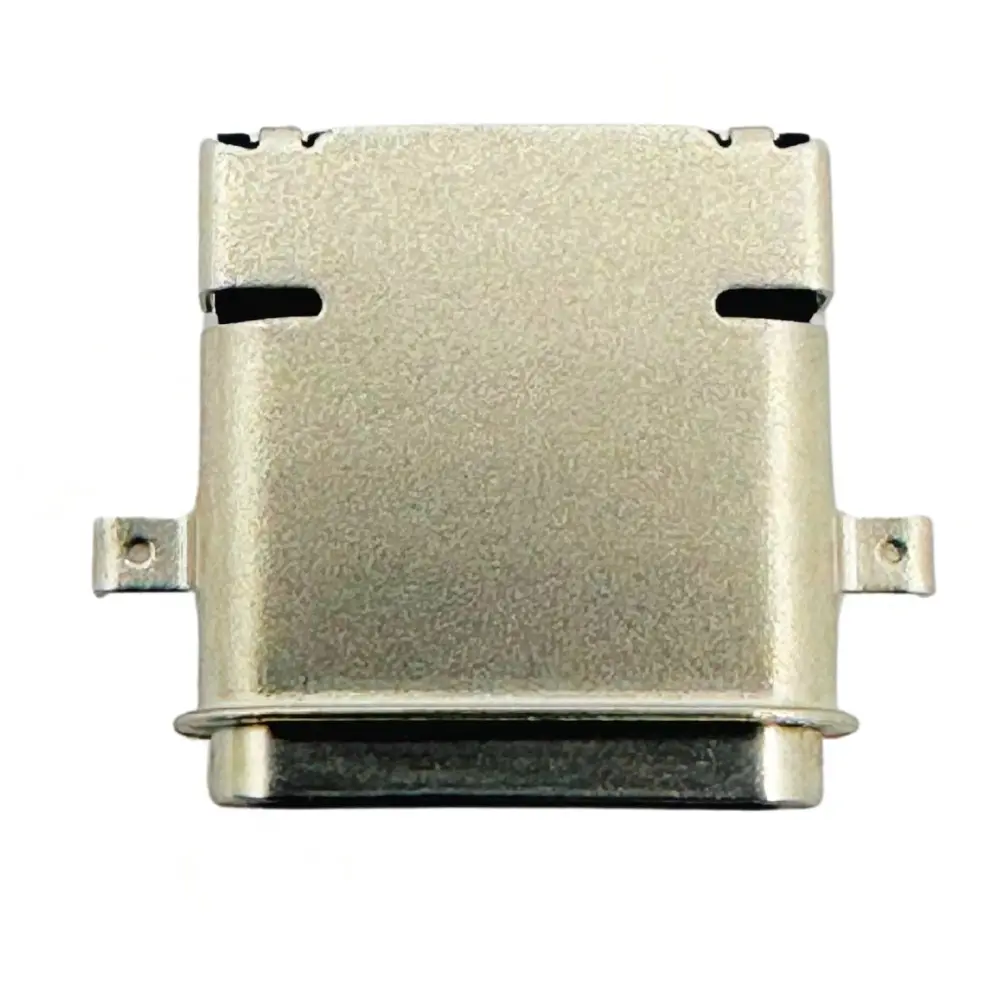

Fully compliant 24Pin USB-C interface (USB 3.1 Gen 1/2 capable)
IPX7 waterproof sealing with silicone gasket included
Laser welding and multiple grounding terminals for EMI protection
High durability: 10,000+ mating cycles
Optimized for rugged, outdoor, and sealed enclosures
Introducing the fully compliant 24Pin USB-C interface connector designed with the most demanding applications in mind. This USB 3.1 Gen 1/2 capable connector features a robust IPX7 waterproof sealing, meaning it can withstand moisture and dust exposure while maintaining peak performance. Whether you’re dealing with outdoor communication devices, marine equipment, or industrial handhelds, this connector promises resilience in the face of nature’s challenges.
Crafted with a shell made from stainless steel and nickel plating, this connector not only guarantees high durability but also protects against corrosion. The terminals are made from phosphor bronze and can be customized with various gold plating options (ranging from 3μ” to 30μ”), ensuring excellent conductivity and longevity. The housing is constructed from high-temperature LCP with a UL94V-0 rating, which makes it perfect for use in high-stress environments. Additionally, the included silicone sealing gasket complies with IPX7 standards, providing an added layer of protection against water ingress.
This connector is not just limited to one use case; it’s optimized for rugged, outdoor, and sealed enclosures making it perfect for waterproof consumer electronics, automotive infotainment systems, and rugged laptops/tablets. It is built to accommodate up to 10,000 mating cycles, ensuring reliability and ease of use over time. Additionally, you can trust that this connector aligns with European standards meeting EU RoHS, REACH SVHC, and low-halogen requirements for safer use across various applications.
Investing in the 24Pin USB-C interface connector means choosing a product that prioritizes both performance and longevity. Make the smart choice for your devices and ensure they equip themselves with a connector that stands the test of time and environmental challenges.
| 1. General | |||
| Status | Active | Category | USB Connector |
| Part number | DW-MUB-CF024325-XXTR-01 | Description | USB 3.1 Type-C Waterproof, DIP Type, Height: 9.65mm, CL4-03-20181 |
| Application | Wire-to-Board /Cable-to-Board | Comments | IPX7 Rated |
| Component Type | Receptacle | Product Name | USB Type-C |
| USB Version | USB 3.1 Type-C | Type | Type-C |
| Keywords | USB 3.1 Type-C, Waterproof, Vertical Mount, DIP, CL4-0.30 | Circuit Application | Power & Signal |
| 2. Electrical | |||
| Current – Maximum | 5A (Pins A4/B4/A9/B9) | Grounding to Panel | Yes |
| Shielded | Yes | Shield Type | Full Shield |
| Voltage – Maximum | 20V DC | Contact Resistance | 40mΩ Max (After Test) |
| Insulation Resistance | 100MΩ Min @ 250V | Dielectric Withstanding Voltage | 100V AC |
| 3. Physical | |||
| Circuits (Loaded) | 24 | Circuits (Maximum) | 24P |
| Color – Housing | Black | Durability (Mating Cycles Max) | 10,000 |
| Flammability | UL94V-0 | Gender | Female / Receptacle |
| Keying to Mating Part | Yes | Lock to Mating Part | Yes |
| Material – Contact | Copper Alloy | Plating on soldering area | Gold |
| Plating on contact area | Gold | Material – Housing | high tempurater |
| Mounting Style | through-Hole and surface | Connector Mounting Type | Board Mount |
| Number of Rows | 2 | Net Weight | – |
| Packaging Type | Tape and Reel | Orientation | Vertical |
| PCB Retention | Yes | Vacuum Pick-up Cap | Yes |
| Polarized to Mating Part | Yes | Temperature Range – Operating | -40°C to +80°C |
| Waterproof / Dustproof | Yes (IPX7) | Number of Mount legs | 4 |
| Pitch – Termination Interface | 0.50 mm | Ports | 1 |
| Termination Interface Style | Right Angle | PCB Thickness (Recommended) | 8mm |
| 4. Classification Reflow Soldering Profile | |||
| Preheat Temperature Min | Ts(min) = 150°C | Preheat Temperature Max | Ts(max) = 200°C |
| Preheat Time (Ts min to max) | ts = 60–120 seconds | Ramp-up Rate (Ts to Tp) | 3°C/second max. |
| Liquidous Temperature | TL = 217°C | Time Above TL | tL = 60–150 seconds |
| Peak Package Body Temp | Tp ≤ TC (see table below) | Time within 5°C of Tp | tp = 20–30 seconds |
| Ramp-down Rate (Tp to TL) | 6°C/second max. | Time 25°C to Peak Temp | 8 minutes max. |
| 5. Package Classification Reflow Temperature (TC) | |||
| Properties | Volume mm³ <350 | Volume mm³ 350–2000 | Volume mm³ >2000 |
| PB-Free Assembly — Package Thickness < 1.6 mm | 260°C | 260°C | 260°C |
| PB-Free Assembly — Package Thickness 1.6–2.5 mm | 260°C | 250°C | 245°C |
| PB-Free Assembly — Package Thickness > 2.5 mm | 250°C | 245°C | 245°C |
| Weight | 1 kg |
|---|---|
| Dimensions | 12 × 9 × 2 cm |
| TEST | A4444, B84444, A94444, B94444 |
