Original price was: $99.00.$39.00Current price is: $39.00.
Supports 2.5 Gigabit Ethernet (2.5 Gbps) speeds,
Low-Profile,reduced vertical height
Improved Signal Integrity
EMI/RFI Suppression
Electrical Isolation
Simplified PCB Design & Space Savings
The Megnetic Jack 2.5G Base-T is designed to elevate your network connectivity. With its cutting-edge technology, this low-profile model ensures a stable and high-speed connection that meets the demands of modern networking environments. Experience seamless performance whether you’re gaming, streaming, or working from home.

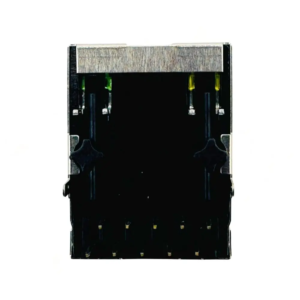

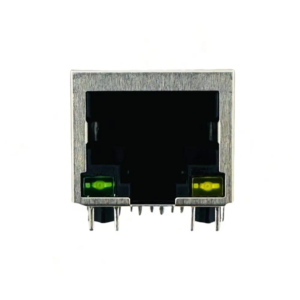

This low-profile jack features a thoughtfully designed tab-down through-hole installation, making it incredibly easy to set up. Gone are the days of complicated installations! Simply connect the jack to your network environment and enjoy the enhanced performance without the hassle. Its LED indicator ensures you’re informed of the connection status in real-time, allowing for quick troubleshooting when needed.
Constructed from top-quality materials, the Megnetic Jack 2.5G Base-T is built to last. The robust design protects against wear and tear, ensuring a long lifespan even in demanding environments. Its low-profile design not only helps to maintain a neat appearance but also promotes improved airflow, reducing the risk of overheating components. Optimizing your network setup has never been this efficient!
Upgrade to the Megnetic Jack 2.5G Base-T today, and redefine the way you experience connectivity with reliability and durability that you can trust.
| 1. Basic Information | |||
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-D2.5G01583-XX TP-XX | Description | Modular Jack, 1×1, Shielded, Tab-Down, With Bi-Color LEDs (Green/Yellow), DIP Type. |
| Product Name | RJ45 Connector | Magnetic | Yes |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 16.00mm | Height | 13.45mm |
| Length | 21.10mm | Installed height | 15.05mm |
| Material Metal surface contact area (top layer) | Gold | Material Metal surface contact area (middle layer) | Nickel |
| Material Metal surface soldering area (bottom layer) | Nickel | Material Metal surface soldering area (top layer) | Gold |
| Insertion force per signal contact | 23 N Max | Extraction force per signal contact | 23 N Max |
| Customs tariff number | 85366930 | Country of origin | CN |
| Product Properties / Physical | |||
| Field | Value | Field | Value |
| Color – Housing | Black | Orientation 方向 | Right angle Vertical (side entry) |
| Positions / Loaded Contacts | 8P10C | Lightpipes/LEDs | Yes (Green & Yellow) |
| Packaging | Tray | Termination Interface | Through Hole |
| Port Configuration | 1×1 | Inverted / Top Latch | No |
| Durability (mating cycles max) | 750 | Material – Resin | PBT UL94V-0 |
| Jack Height | 13.45 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Gold | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.27 mm |
| PCB Thickness – Recommended | 1.57 mm | Key Words | RJ45 Connector, Single port RJ45 Jack, Modular Jack, DIP Type RJ45 Connector, Shielded RJ45 Connector, Vertical RJ45 Jack, PCB Mount RJ45 Connector, RJ45 Connector with LED, Ethernet RJ45 Jack |
| Pitch – Termination Interface | 2.54 mm | POE+ | No |
| W/O; EMI | Yes | Latch / Tab orientation | Tab-Down |
| Electrical | |||
| Current – Maximum per Contact | 0.5A | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC (RMS) | Operating Temperature | -40°C to +85°C |
| Insulation resistance | ≥500MΩ | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | WAVE | Classification temperature Tᵣ | 260°C |
| Weight | 1 kg |
|---|---|
| Dimensions | 12 × 9 × 2 cm |
