$39.00
Built-in magnetic components simplify PCB design.
Integrated LEDs indicate network status clearly.
Suitable for wave soldering with high-temp durability.
Compact design supports space-saving layouts.
Gold-plated contacts ensure stable transmission.

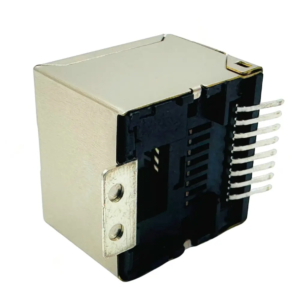

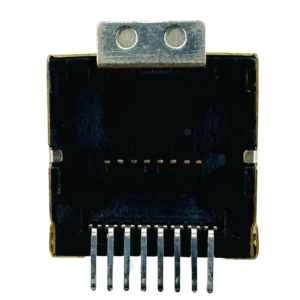

Introducing our state-of-the-art 1-port Modular RJ45 connector jack, meticulously designed for reliable networking performance. With its advanced 8P8C pin layout, this through-hole DIP type connector is perfect for both professional and personal use. It features a vertical tab-up orientation, providing a compact footprint that measures 21.35mm in length, 13.6mm in height, and 15.95mm in width. Whether you’re upgrading your existing infrastructure or setting up a new network, this modular jack is an essential component.
What sets our RJ45 modular jack apart is the dual LED indicators, which provide clear visual feedback. The green LED signals a successful link, while the yellow LED indicates activity, ensuring you are always informed about your network’s status. This feature not only enhances usability but also assists in troubleshooting, making network management simpler and more efficient.
Built for performance, our RJ45 modular jack is equipped with gold-plated phosphor bronze terminals, ensuring reliable signal quality and minimizing contact resistance to ≤50mΩ. With a terminal pitch of 2.54mm, this jack supports wave soldering with a maximum temperature of 260°C for up to 55 seconds, making it suitable for high-volume assembly operations. It is rated for 125V AC and boasts an impressive insulation resistance of ≥500MΩ, designed to withstand a wide operating temperature range of -40°C to 85°C. With a mechanical durability rated for up to 750 cycles, this jack promises longevity and consistent performance in demanding environments.
| Modular RJ45 connector Basic information | |||
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-D001179-01TR-01 | Description | Modular Jack, Vertical, Low Profile, Shielded, Top Entry, Surface Mount, 8P8C, Tape Reel |
| Product Name | Modular Jack 8/8 | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 15.85mm | Height | 12.90 mm |
| Length | 15.60 mm | Installed height | 13.90 mm |
| Data pin length | N/A | ||
| Material Metal surface contact area (top layer) | Gold | Material Metal surface contact area (middle layer) | Nickel |
| Material Metal surface soldering area (middle layer) | Nickel | Material Metal surface soldering area (top layer) | Gold |
| Insertion force per signal contact | < 20.00 N | Extraction force per signal contact | < 20 N |
| Customs tariff number | 85366930 | Country of origin | CN |
| Product Properties / Physical | |||
| Color-Housing 塑胶颜色 | Black | ||
| Positions / Loaded Contacts | 8P8C | Orientation 朝向 | Vertical (Top Entry) |
| Packaging | Reel | Lightpipes/LEDs | None |
| Port Configuration | 1 x 1 | Termination Interface Style | Surface mount |
| Durability (mating cycles max) | 750 | Inverted / Top Latch | No |
| Flammability | 94V-0 | Material – Resin | High Temperature Thermoplastic |
| Jack Height | 12.90 mm | Material – Metal | Brass, Phosphor Bronze |
| Material – Plating Termination | Tin | PCB Retention | Yes |
| Net Weight | Pitch – Mating Interface | 1.02mm | |
| PCB Thickness – Recommended | 1.57mm | Key Words | RJ5 Jack, Internet Jack, Modular Jack,PCB RJ45 Jack,RJ45 Connector,RJ45 Socket Connector,Vertical RJ45 Jack |
| Pitch – Termination Interface | 1.27mm | POE+ | None |
| EMI | None | Latch / Tab orientation | |
| Modular RJ45 connector Electrical | |||
| Current – Maximum per Contact | 1.5A | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC (RMS) | Operating Temperature | -0°C to +70°C |
| Insulation resistance | ≥500MΩ | Storage Temperature | -10°C to +40°C |
| Lead-Free Process Capability | WAVE | Classification temperature Tc | 260 °C |
| Weight | 1 kg |
|---|---|
| Dimensions | 12 × 9 × 2 cm |
1-port RJ45 modular jack with LED indicators, 8P8C pin layout, through-hole DIP type. Vertical tab-up orientation with a compact footprint: 21.35mm length × 13.6mm height × 15.95mm width. Equipped with dual LEDs (green/yellow) for link/activity indication. Gold-plated phosphor bronze terminals provide reliable signal performance. Terminal pitch 2.54mm; supports wave soldering (max 260°C for 55s). Rated for 125V AC, insulation resistance ≥500MΩ, contact resistance ≤50mΩ. Mechanical durability: 750 cycles, operating temp: -40°C to +85°C.
