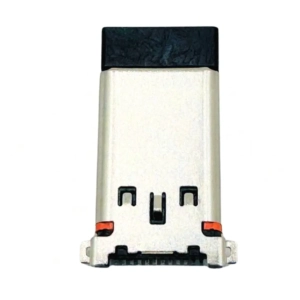

USB Type-C 12Pin SMT Plug Compact design with only 2.68mm profile height for space-sensitive layouts. 12-pin high-speed interface supporting up to 3A current. Reversible orientation and robust mechanical stability for repeated mating
The USB Type-C 12Pin SMT Plug is engineered for precision and performance, making it an essential component for a wide range of applications. This reversible plug ensures easy and efficient PCB mounting, providing a secure mating force and an accurate layout that reduces errors and enhances reliability.
Designed with a slim profile of just 2.68mm, this USB Type-C plug is perfect for space-sensitive layouts. Its 12-pin high-speed interface supports an impressive current of up to 3A, ensuring fast and reliable data transmission without compromising on power delivery. Whether you’re working with consumer electronics, mobile devices, or chargers, this plug meets the demands of modern technology.
Crafted from high-quality materials, the USB Type-C SMT 12-Pin Plug features housing made from LCP UL94V-0 (Orange) and contacts plated with C7025 gold. The shell is composed of SUS304 stainless steel with a nickel underplating, ensuring durability and longevity. Additionally, the Gold EMI/Mid Plate constructed from SUS304 with a 10μ” nickel plating provides excellent shielding against electromagnetic interference.
This versatile plug is not only compatible with various mobile devices and data transmission modules but is also designed to meet strict industry standards, including EU RoHS, REACH SVHC, and Low-Halogen requirements. Trust Dragon Well Electronics Co., Ltd for a reliable USB Type-C solution that seamlessly integrates into your products, reinforcing your commitment to quality and sustainability.
| 1. General | |||
| Status | Active | Category | USB Connector |
| Part number | DW-MUB-CM012380-TR-02 | Description | USB Type-C Plug, 24PIN, SMT Type, Mid-Mount, Cable Type |
| Application | wire to board /Cable-to-Board | Comments | RoHS Compliant |
| Component Type | Plug | Product Name | USB Type-C |
| USB Version | USB Type-C Gen 2 | Type | Type-C |
| Keywords | USB Type-C Plug, USB Type-C Connector, USB-C connector, USB TYPE, I/O Connector | Circuit Application | Power & Signal |
| 2. Electrical | |||
| Current – Maximum | 5.0A | Grounding to Panel | Yes |
| Shielded | Yes | Shield Type | Stainless Steel, Full Shield |
| Voltage – Maximum | 5V | Contact Resistance | ≤40mΩ (VBUS & GND), ≤50mΩ (Others) |
| Insulation Resistance | ≥1000MΩ | Dielectric Withstanding Voltage | 100V AC for 1 Minute |
| 3. Physical | |||
| Circuits (Loaded) | 24 | Circuits (Maximum) | 24P |
| Color – Housing | Black | Durability (Mating Cycles Max) | 10,000 Cycles |
| Keying to Mating Part | Yes | Gender | Male / Plug |
| Material – Contact | Copper Alloy, Gold Plated | Plating on soldering area | Gold Flash, Au over Ni |
| Material – Housing | High Temp Plastic UL94V-0 | Connector Mounting Type | SMT |
| Mounting Style | Mid-Mount SMT | Net Weight | – |
| Packaging Type | Tape & Reel | Orientation | Right Angle |
| PCB Retention | Yes | Vacuum Pick-up Cap | – |
| Polarized to Mating Part | Yes | Temperature Range – Operating | -25°C to +85°C |
| Waterproof / Dustproof | No | Number of Mount legs | 2 |
| Pitch – Termination Interface | 0.50 mm | Ports | 1 |
| Termination Interface Style | Right Angle | PCB Thickness (Recommended) | 0.8mm |
| 4. Classification Reflow Soldering Profile | |||
| Preheat Temperature Min | Ts(min) = 150°C | Preheat Temperature Max | Ts(max) = 200°C |
| Preheat Time (Ts min to max) | ts = 60–120 seconds | Ramp-up Rate (Ts to Tp) | 3°C/second max. |
| Liquidous Temperature | TL = 217°C | Time Above TL | tL = 60–150 seconds |
| Peak Package Body Temp | Tp ≤ 260°C | Time within 5°C of Tp | tp = 20–30 seconds |
| Ramp-down Rate (Tp to TL) | 6°C/second max. | Time 25°C to Peak Temp | 8 minutes max. |
| 5. Package Classification Reflow Temperature (TC) | |||
| Properties | Volume mm³ <350 | Volume mm³ 350–2000 | Volume mm³ >2000 |
| PB-Free Assembly — Package Thickness < 1.6 mm | 260°C | 260°C | 250°C |
| PB-Free Assembly — Package Thickness 1.6–2.5 mm | 260°C | 250°C | 245°C |
| PB-Free Assembly — Package Thickness > 2.5 mm | 250°C | 245°C | 245°C |
| Weight | 1 kg |
|---|---|
| Dimensions | 12 × 9 × 2 cm |
| TEST | A4444, B84444, A94444, B94444 |
