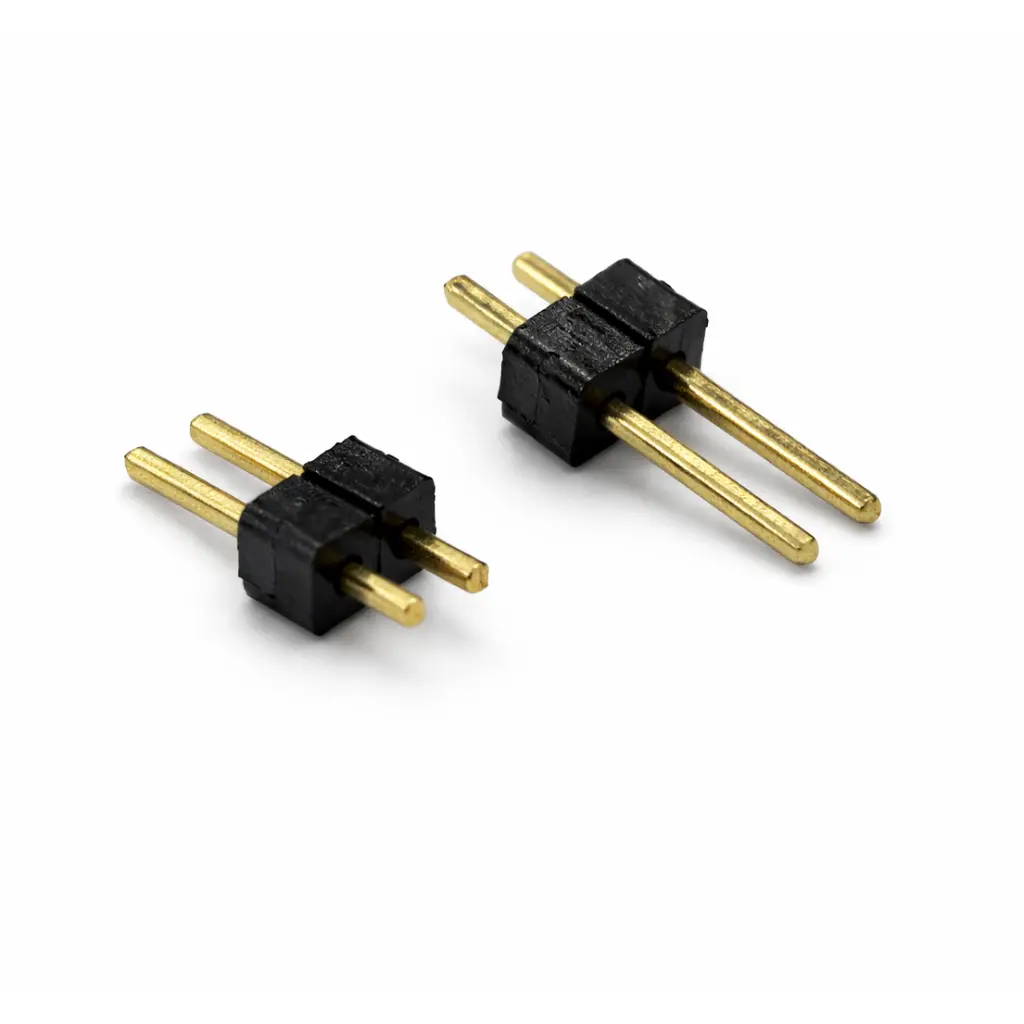

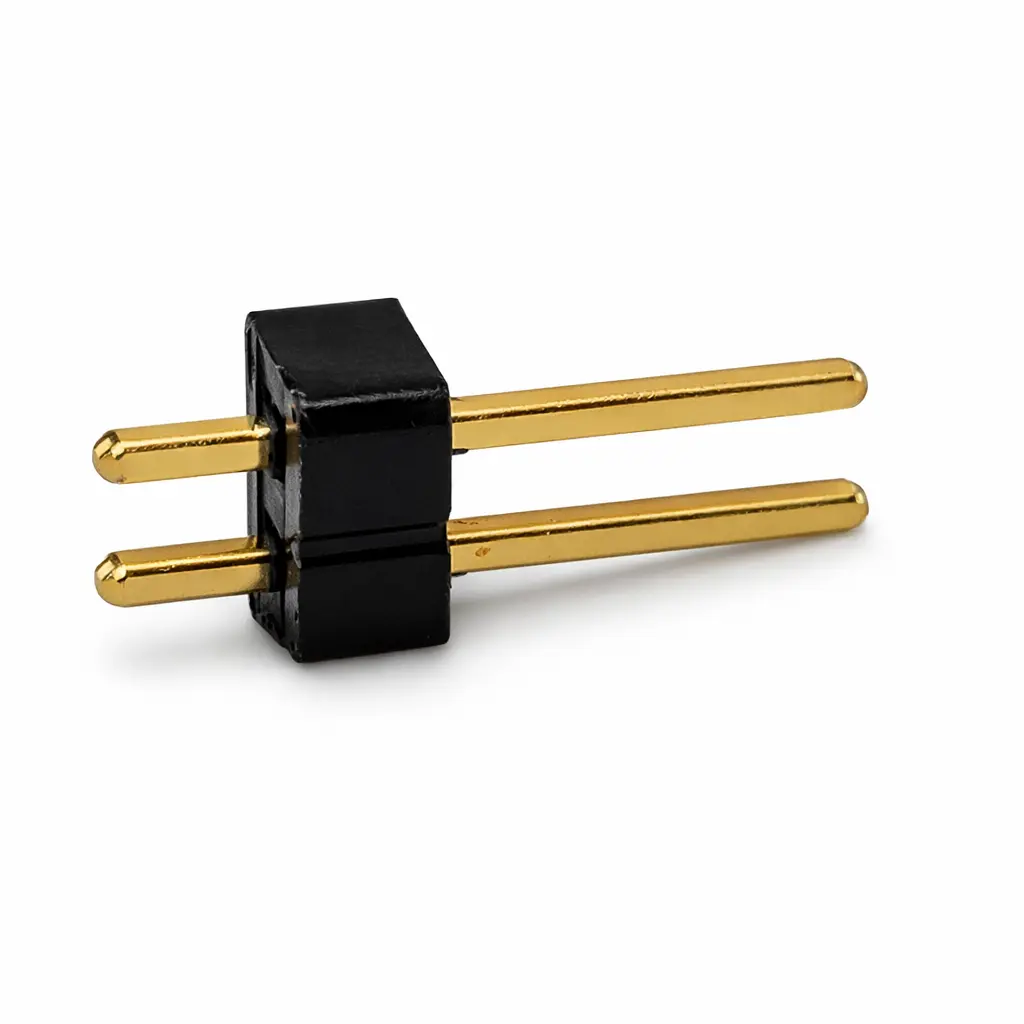

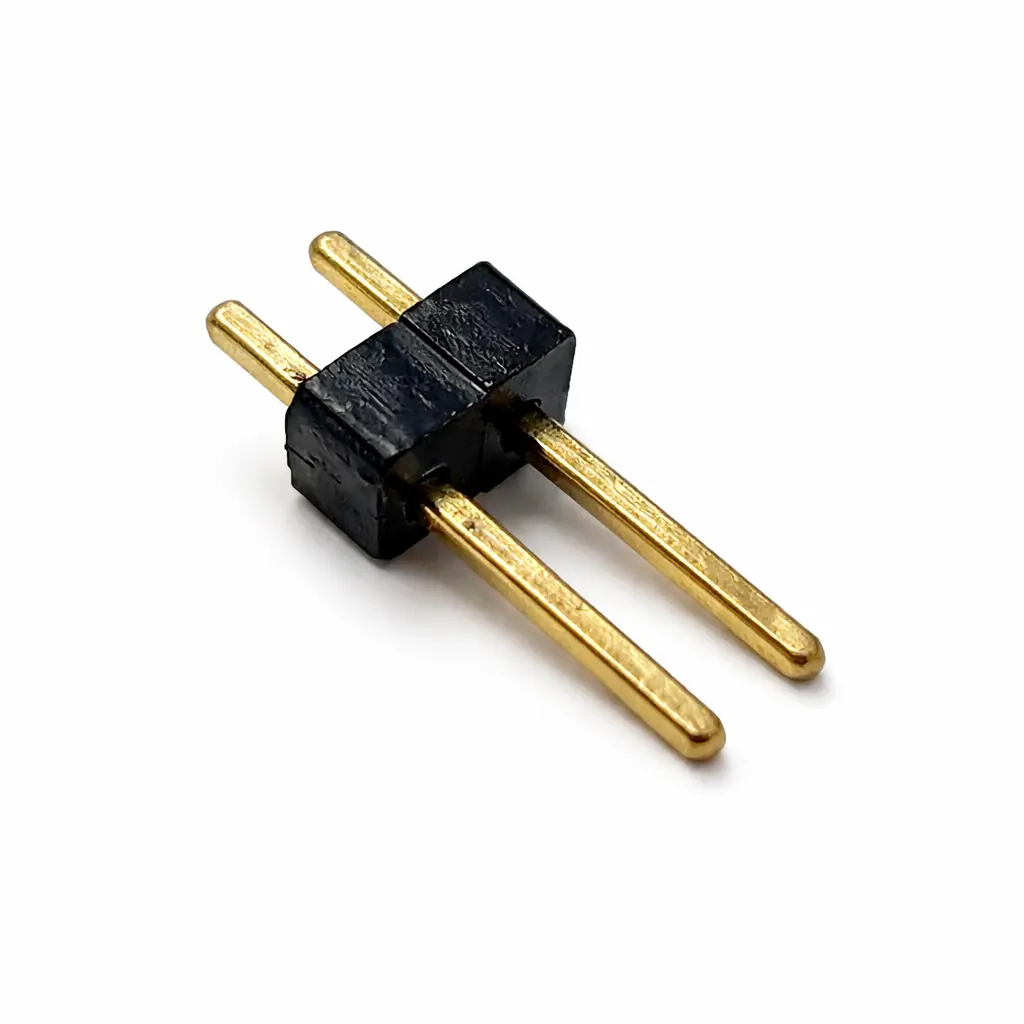

This 1.0mm single row through-hole pin header is built for high-density signal and low-current power interconnects in compact PCB layouts where mechanical strength and solder joint reliability are critical. The drawing specifies 1.00 ±0.05mm pitch, Ø0.50mm recommended PCB holes, and 0.30mm square pins formed from phosphor bronze to support stable mating with corresponding sockets. The header uses a UL94V-0 polyester/PA6T insulator body (1.5mm base thickness shown) to maintain alignment during wave/hand soldering and to improve positioning on tight-pitch boards. Electrical performance is rated at 0.5A, with 500MΩ minimum insulation resistance, 200VAC dielectric withstand, and 40mΩ max contact resistance, operating from -40°C to +105°C. Available in multiple pin counts (n) using the drawing’s length formulas for positions/contacts.
Fine-pitch debug/programming headers on embedded boards
Compact communication modules using PTH soldering
Industrial control PCBs where mechanical retention is important
Board-to-board or cable-to-board pin/socket connections in tight spaces
Prototypes and test fixtures requiring small-pitch header footprints
1.00mm pitch single-row DIP header for dense through-hole layouts
0.30mm square phosphor bronze pins for consistent mating & spring contact engagement
Pin length per drawing: 7.5 ±0.2mm mating / 3.0 ±0.2mm tail
Electrical: 0.5A, 40mΩ max, 500MΩ min, 200VAC withstand
UL94V-0 polyester/PA6T insulator, stable alignment during soldering
Recommended PCB: Ø0.50 holes on 1.00mm pitch (±0.05 tolerance)
1.0mm pitch single row through-hole pin header with 0.30mm square phosphor bronze pins for compact PCB connections. Designed for secure PTH soldering with 0.5A rating and UL94V-0 insulator material.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | A1100PHWV-1×02PIN-1.5 | Description | 1.00mm Pitch Pin Header, Single Row, DIP Type, Through-Hole, mm Height, 7.5mm Total Length |
| Application | Signal, Board-to-Board, Wire-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount Connector | UPC | N/A |
| Keywords | Pin Header, Single Row Pin Header, Through-hole Pin Header, Straight Pin Header, PCB Mount Connector, Electronic Connector | Connector & Contact Terminates to | Printed Circuit Board |
| Electrical | |||
| Rated Voltage | 200V AC | Current Rating | 0.5A |
| Contact Resistance | ≤40mΩ Max | Insulation Resistance | ≥500MΩ Min |
| Dielectric Withstanding Voltage | 200V AC | Norm | N/A |
| Physical | |||
| Breakaway | No | Circuits (Number of Positions) | Variable (nPIN) |
| Circuits (Maximum) | Based on nPIN | Color – Housing | Black |
| Durability (mating cycles max) | N/A | Flammability | UL 94V-0 |
| Glow-Wire Capable | No | Lock to Mating Part | No |
| Material – Metal | Phosphor Bronze | Material – Plating Mating | Not specified |
| Material – Plating Soldering Area | Not specified | Material – Resin | Polyester PA6T (UL 94V-0) |
| Metal Shape & Form | Square Pin 0.30mm | Number of Rows | 1 |
| Connector Orientation | Vertical / Straight | Packaging Type | N/A |
| PCB Locator | No | PCB Retention | No |
| PC Tail Length | 3.0mm ±0.2 | Pitch – Mating Interface | 1.00mm |
| Plating min – Mating | N/A | Plating min – Termination | N/A |
| Polarized to Mating Part | No | Polarized to PCB | No |
| Shrouded | No | Stackable | No |
| Operating Temperature | -40°C to +105°C | Termination Interface Style | Through Hole |
| Square Terminal Post & Tail Dimension | 0.30mm SQ | PCB Mount Retention | W/O |
| PCB Mount Alignment | W/O | Connector Mounting Type | Through Hole |
| PCB Thickness (Recommended) | 1.00mm | Row-to-Row pitch | N/A |
| Height of connector above PCB | 7.5mm ±0.2 | ||
| Solder Process Data | |||
| Max-Cycle | N/A | Max-Duration | N/A |
| Lead-Free Process Capability | N/A | Max-Temp | N/A |
