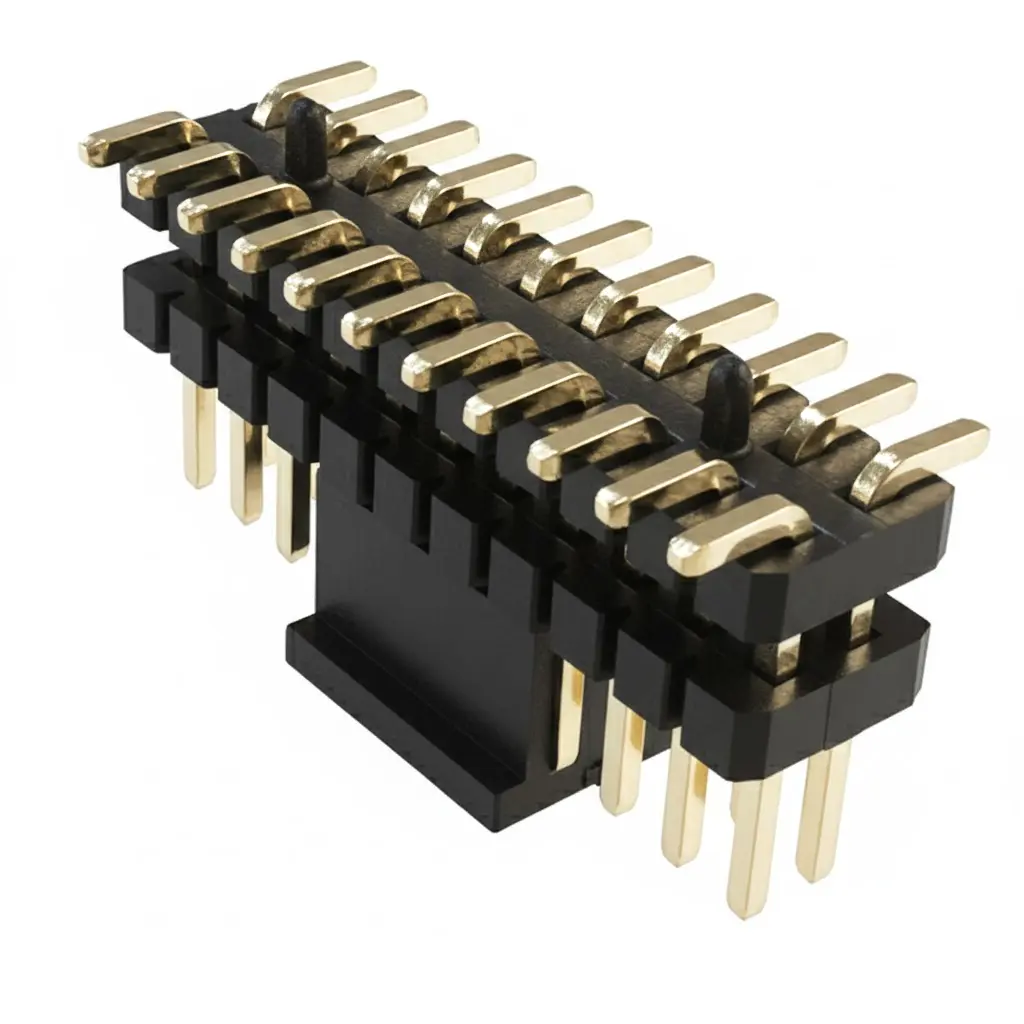

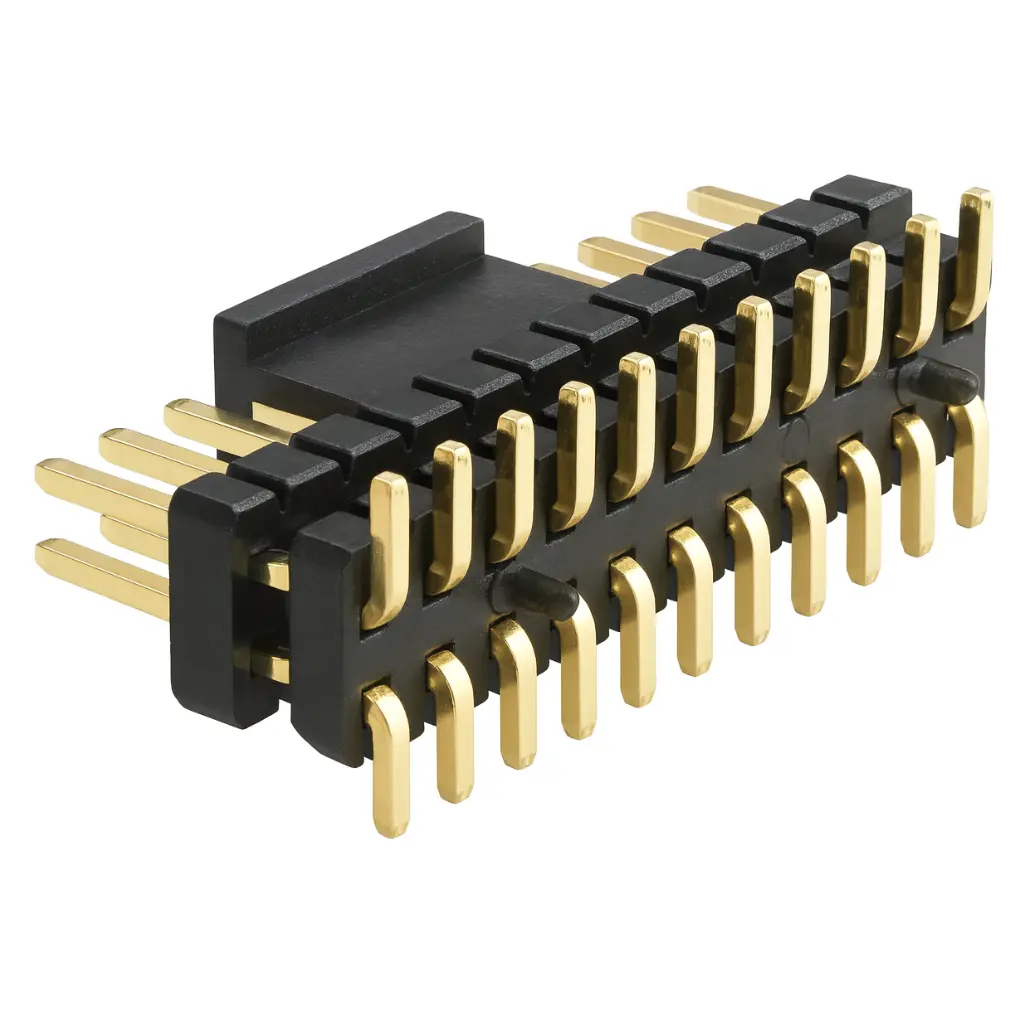

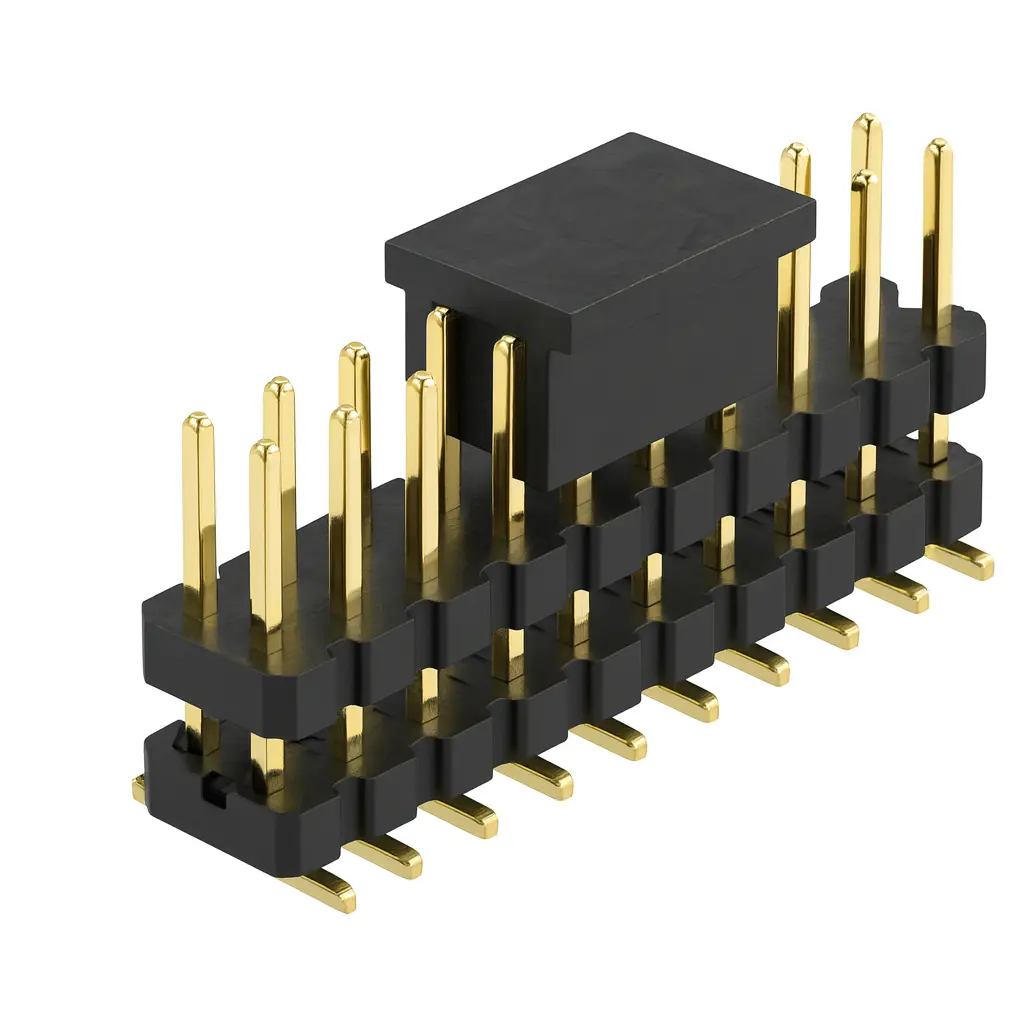

1.27mm dual row SMT pin header with post is a fine-pitch board-to-board connector designed for dense signal routing in modern electronic assemblies. This 1.27mm dual row SMT pin header with post uses two rows of square pins (0.40mm × 0.40mm) on a 1.27mm centerline spacing, providing a compact footprint while maintaining robust mechanical strength. The vertical 180° orientation and locating post (Ø0.80mm) ensure accurate alignment to the PCB during placement and reflow, reducing positional drift and solder-bridge risk.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-PH-2127319WV22P-01TR-01 | Description | 1.27mm Pitch Dual Row Pin Header, SMT Type, 3.4mm Base Height, Gold Plated Contacts, Tape & Reel Packaging |
| Application | Board-to-Board, Signal, Wire-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount connector | UPC | — |
| Keywords | Board-to-Board connector, PCB Mount Header, Pin Header, SMT Pin Header, Header connector, Dual Row Pin Header, Surface Mount Pin Header, Right Angle Pin Header, Electronic Connector | Connector & Contact Terminates to | Printed Circuit Board |
| Electrical | |||
| Rated Voltage | AC 500V | Current Rating | 2.0A |
| Contact Resistance | ≤20mΩ Max | Insulation Resistance | ≥1000MΩ Min |
| Dielectric Withstanding Voltage | AC 500V | Norm | EIA-364C |
| Physical | |||
| Breakaway | No | Circuits (Number of Positions) | 19 |
| Circuits (Maximum) | 100 (series option) | Color – Housing | Black |
| Durability (mating cycles max) | 100 | Flammability | UL94V-0 |
| Glow-Wire Capable | No | Lock to Mating Part | No |
| Material – Metal | Brass | Material – Plating Mating | Gold |
| Material – Plating Soldering Area | Au/Ni | Material – Resin | PA6T+30%GF |
| Metal Shape & Form | Square Pin | Number of Rows | 2 |
| Connector Orientation | Vertical / Straight | Packaging Type | Tape & Reel |
| PCB Locator | No | PCB Retention | No |
| PC Tail Length | 3.40mm ±0.15 | Pitch – Mating Interface | 1.27mm |
| Plating min – Mating | 0.76μm (30μ”) | Plating min – Termination | 0.76μm |
| Polarized to Mating Part | No | Polarized to PCB | No |
| Shrouded | Yes | Stackable | No |
| Operating Temperature | -40° to +105°C | Termination Interface Style | Surface Mount |
| Square Terminal Post & Tail Dimension | 0.40mm | PCB Mount Retention | W/O |
| PCB Mount Alignment | W/O | Connector Mounting Type | PCB Mount |
| PCB Thickness (Recommended) | 1.6mm | Row-to-Row pitch | 1.27mm |
| Net Weight | — | Height of connector above PCB | 3.40mm |
| Solder Process Data | |||
| Max-Duration | 5~10 sec | Lead-Free Process Capability | IR-Reflow |
| Max-Cycle | 1 | Max-Temp | 260°C ±5°C |
