$0.00

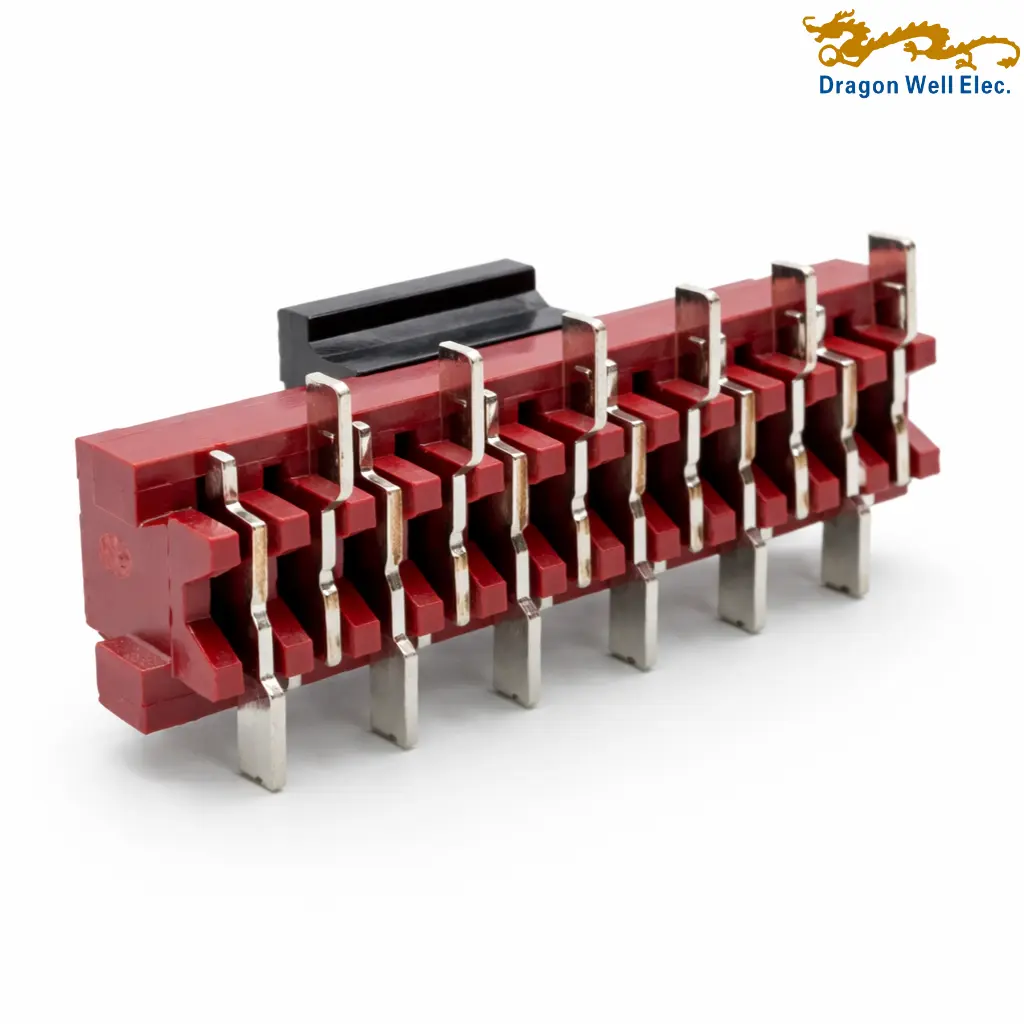

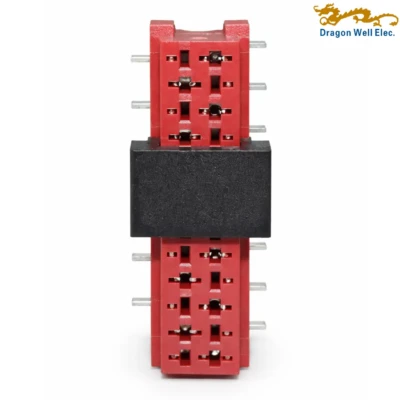

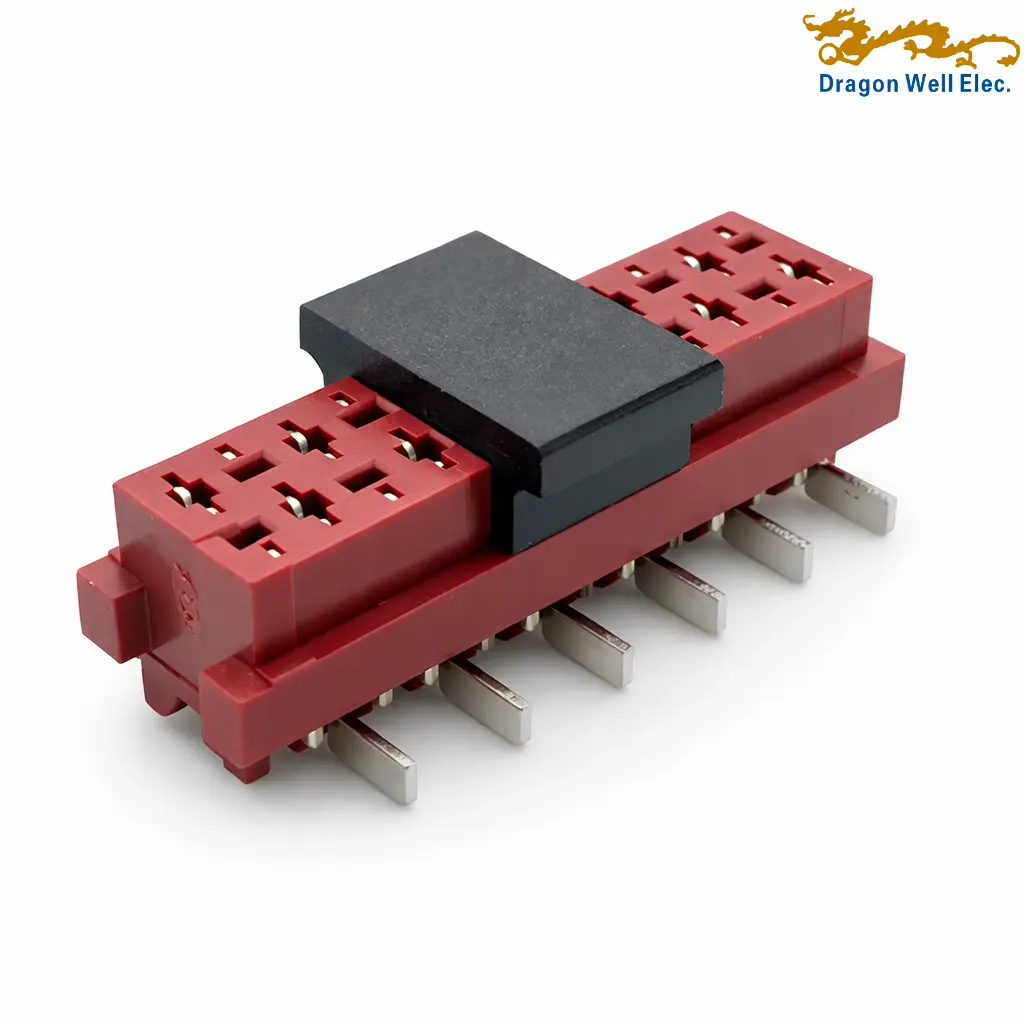

1.27mm dual row vertical SMT micro match female header with shrouded design, 5.00mm height, and phosphor bronze contacts for reliable PCB connection.
Product Applications
Industrial control boards, embedded systems, communication modules, consumer electronics, signal transmission assemblies, board-to-board connection, wire-to-board PCB connection
Product Highlights
1.27mm pitch, dual row female header, vertical 180 degree orientation, SMT mounting, micro match connector design, shrouded structure, 5.00±0.15mm body height, 7.30±0.25mm side width, phosphor bronze contacts, Sn over Ni plating, Polyester UL94V-0 insulator, 1.0A rated current, operating temperature -40°C to +105°C
1.27mm micro match female SMT type connector is designed according to the drawing for compact and reliable PCB connection in fine-pitch electronic applications.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-FH-2127636WVNP-XXTR-01 | Description | 1.27mm Micro Match Female -SMT Type |
| Application | Signal, Board-to-Board, Wire-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount Connector | UPC | N/A |
| Keywords | Female Header, 1.27mm Pitch, Dual Row, Surface Mount, Vertical Header, Micro Match, PCB Mount Connector, Electronic Connector | Connector & Contact Terminates to | N/A |
| Electrical | |||
| Rated Voltage | N/A | Current Rating | 1.0A |
| Contact Resistance | 20mΩ Max | Insulation Resistance | 1000MΩ Min |
| Dielectric Withstanding Voltage | 500V AC/DC | Norm | N/A |
| Physical | |||
| Breakaway | N/A | Circuits (Number of Positions) | N/A |
| Circuits (Maximum) | 26 | Color – Housing | N/A |
| Durability (mating cycles max) | N/A | Flammability | UL94V-0 |
| Glow-Wire Capable | N/A | Lock to Mating Part | N/A |
| Material – Metal | Phosphor Bronze | Material – Plating Mating | Sn Over Ni |
| Material – Plating Soldering Area | N/A | Material – Resin | Polyester (UL94V-0) |
| Metal Shape and Form | N/A | Number of Rows | 2 |
| Connector Orientation | Vertical / Straight | Packaging Type | Tape Reel |
| PCB Locator | N/A | PCB Retention | N/A |
| PC Tail Length | N/A | Pitch – Mating Interface | 1.27mm |
| Plating min – Mating | N/A | Plating min – Termination | N/A |
| Polarized to Mating Part | N/A | Polarized to PCB | N/A |
| Shrouded | Yes | Stackable | N/A |
| Operating Temperature | -40°C to +105°C | Termination Interface Style | Surface Mount |
| Square Terminal Post & Tail Dimension | N/A | PCB Mount Retention | N/A |
| PCB Mount Alignment | N/A | Connector Mounting Type | SMT |
| PCB Thickness (Recommended) | N/A | Row-to-Row pitch | 1.50mm |
| Height of connector above PCB | 5.00±0.15 | ||
| Solder Process Data | |||
| Max-Cycle | N/A | Max-Duration | 10s |
| Lead-Free Process Capability | N/A | Max-Temp | 260°C ±5°C |
