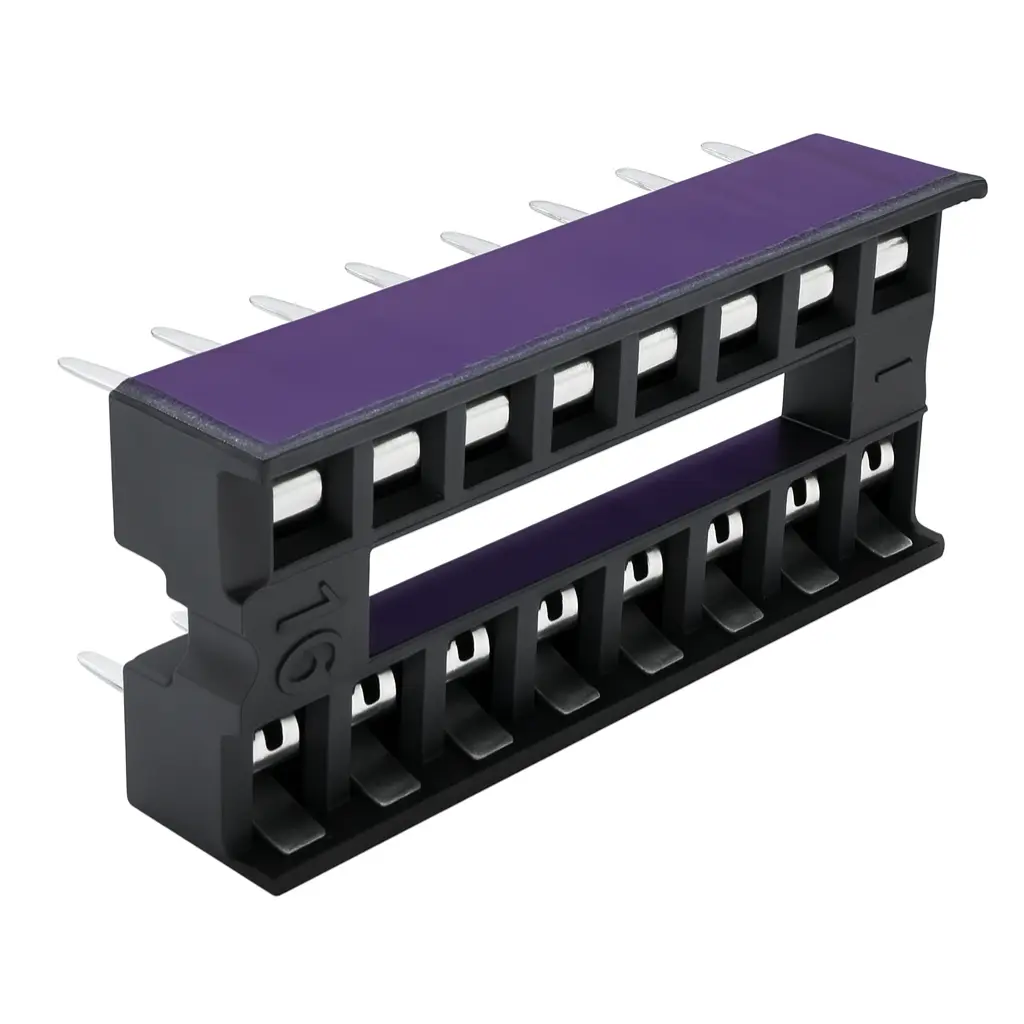

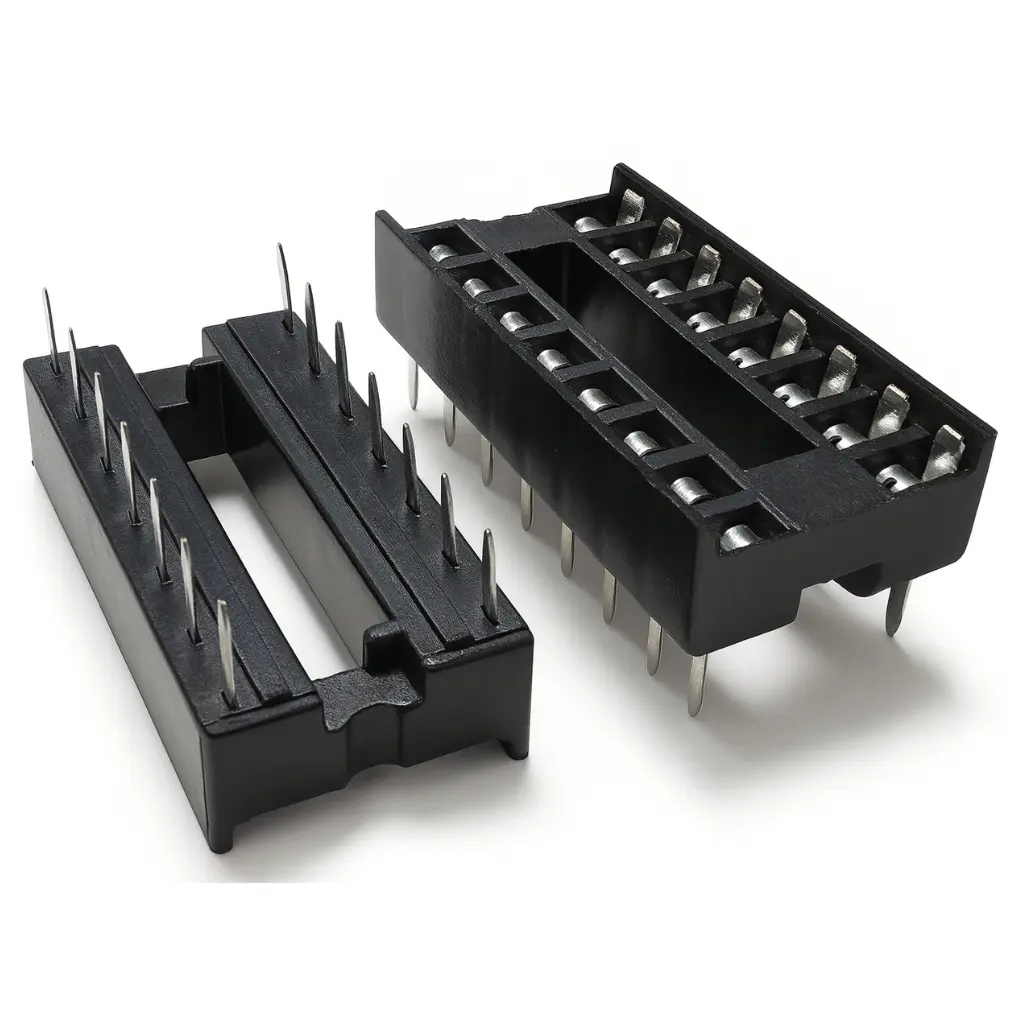

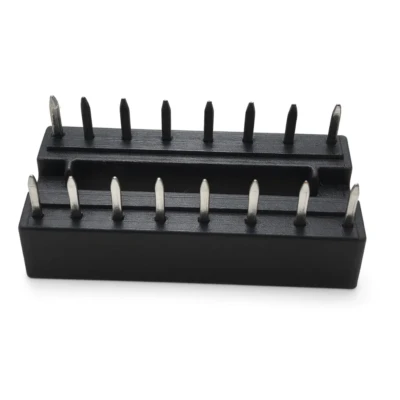

2.54mm DIP dual row IC socket connector for standard 2.54mm DIP devices, featuring tin-plated phosphor-bronze dual-beam contacts and a UL94V-0 PBT housing for reliable, serviceable IC mounting on through-hole PCBs.
Applications:
DIP IC socketing on microcontroller and logic boards
Industrial control modules and field-serviceable equipment
Prototyping, testing and programmable device platforms
PCB designs requiring replaceable or upgradable ICs
Highlights:
Dual-row 2.54mm pitch IC socket, 2×NP style per drawing
Tin-plated phosphor-bronze dual-beam contacts for secure retention
Electrical ratings: 1A/contact, ≤30mΩ contact resistance, ≥1000MΩ insulation, 500V AC/DC dielectric withstand
PBT + 20% GF UL94V-0 housing; operating range –55°C to +105°C
Through-hole pins (~2.54mm length) suited to wave soldering
Fully RoHS, REACH SVHC and low-halogen compliant
2.54mm DIP dual row IC socket connector is a dedicated dual-inline package (DIP) receptacle designed for secure IC retention, easy replacement and rework on standard 2.54mm-pitch PCBs. This 2.54mm DIP dual row IC socket connector follows the drawing title “2.54双列IC座 2*NP”, providing two parallel rows of contacts on a 2.54mm grid for popular microcontrollers, logic and memory devices.
| General | |||
| Status | Active | Category | PCB Sockets / IC Sockets |
| Series | S225431CS-2*NP-2.54 | Description | 2.54mm Dual Row IC Socket, DIP Type, Tin Plated Contacts, Through-Hole, Phosphor Bronze |
| Application | Board-to-Board, IC Mounting | Component Type | Socket Assembly |
| PCB Connector Type | IC Socket | UPC | — |
| Keywords | PCB Connector, IC Socket, Dual Row Socket, 2.54mm Socket, Through-hole IC Socket, DIP Socket, Electronic Connector | Connector & Contact Terminates to | Printed Circuit Board |
| Electrical | |||
| Rated Voltage | 500V AC/DC | Current Rating | 1.0A |
| Contact Resistance | ≤30mΩ Max | Insulation Resistance | ≥1000MΩ Min |
| Dielectric Withstanding Voltage | 500V AC for 1 min | Operating Temperature | -55°C to +105°C |
| Physical | |||
| Pitch – Mating Interface | 2.54mm | No. of Rows | 2 |
| Material – Metal | Phosphor Bronze | Material – Plating | Tin |
| Material – Insulator | PBT+20%GF UL 94V-0 | Termination Style | Through-Hole |
| Contact Layout | Dual Inline | Socket Height | 8.1mm |
| Socket Width | 5.1mm | Terminal Pin Diameter | 0.6mm |
| Polarized | No | Stackable | No |
| Packaging Type | Tray | Mounting Type | DIP (Through Hole) |
| Operating Temp | -55°C to +105°C | Durability | ≥100 mating cycles |
| Solder Process Data | |||
| Max-Duration | 10 seconds | Lead-Free Process Capability | Wave |
| Max-Cycle | 1 | Max-Temp | 260°C ±5°C |
