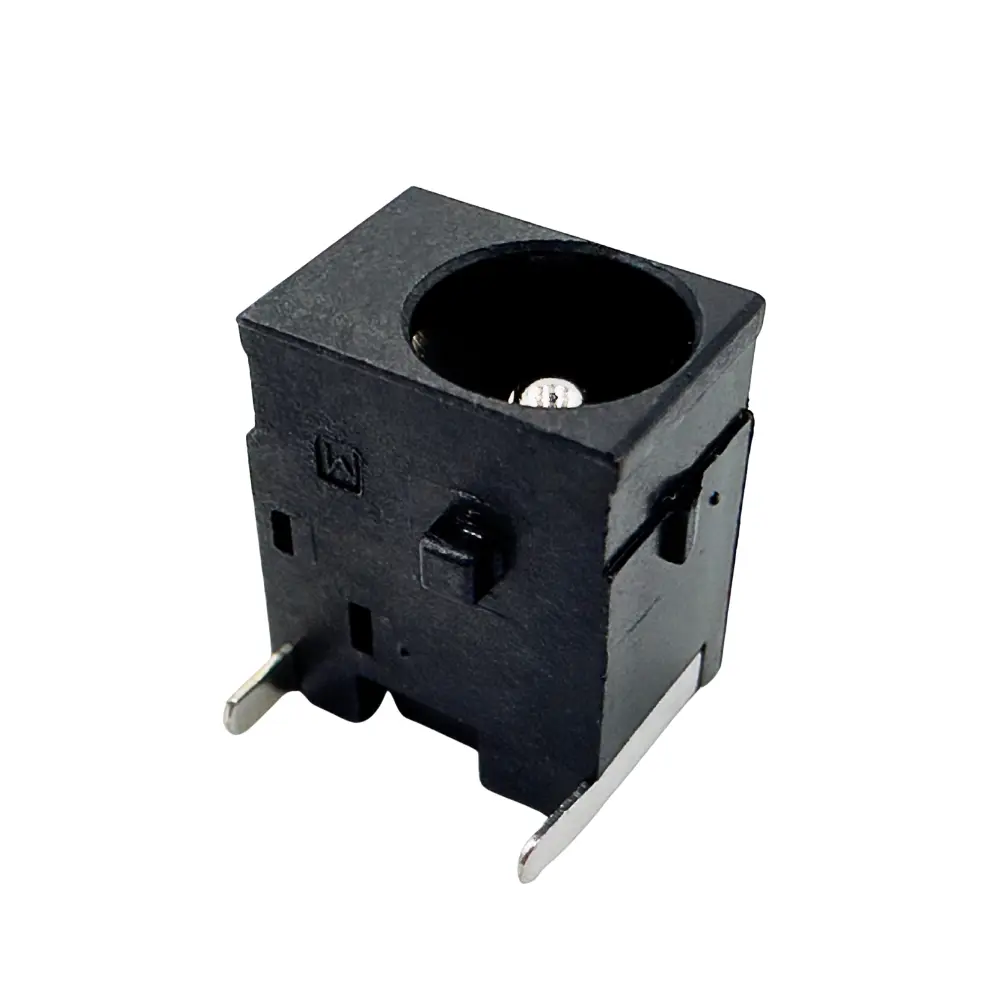

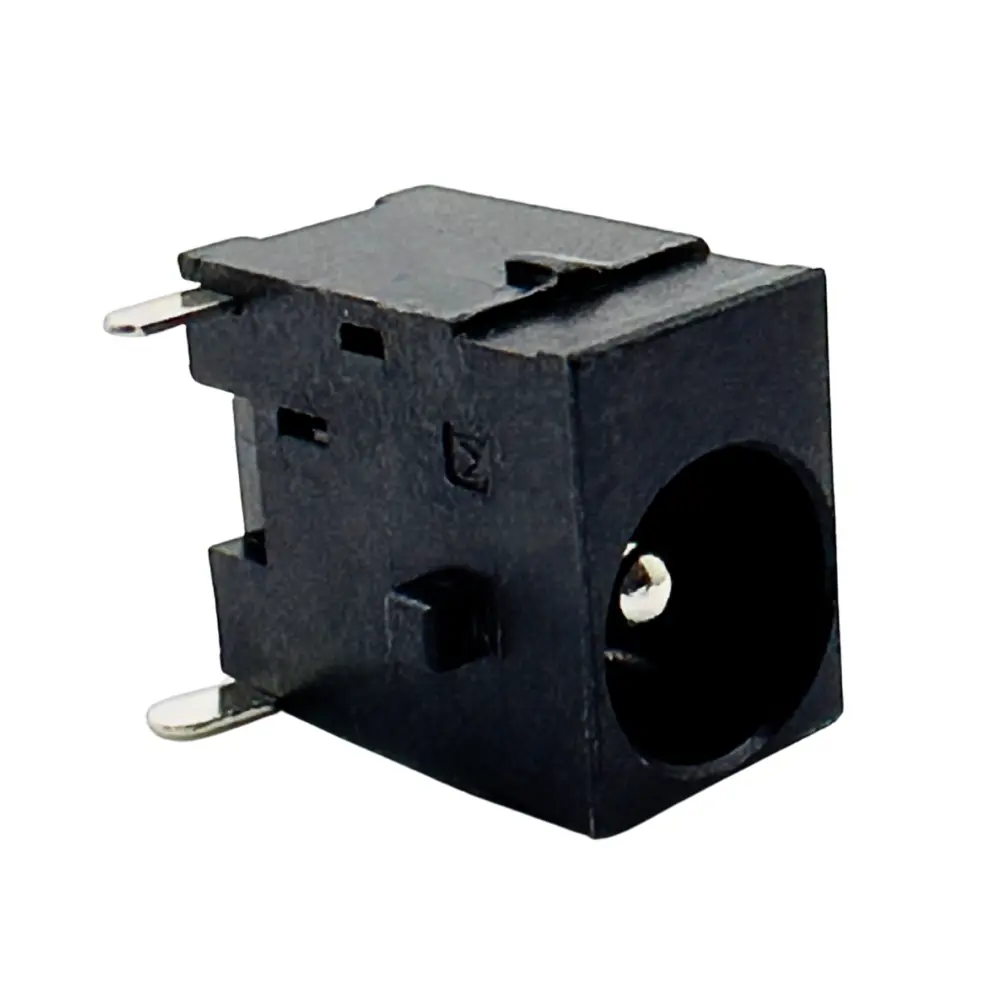

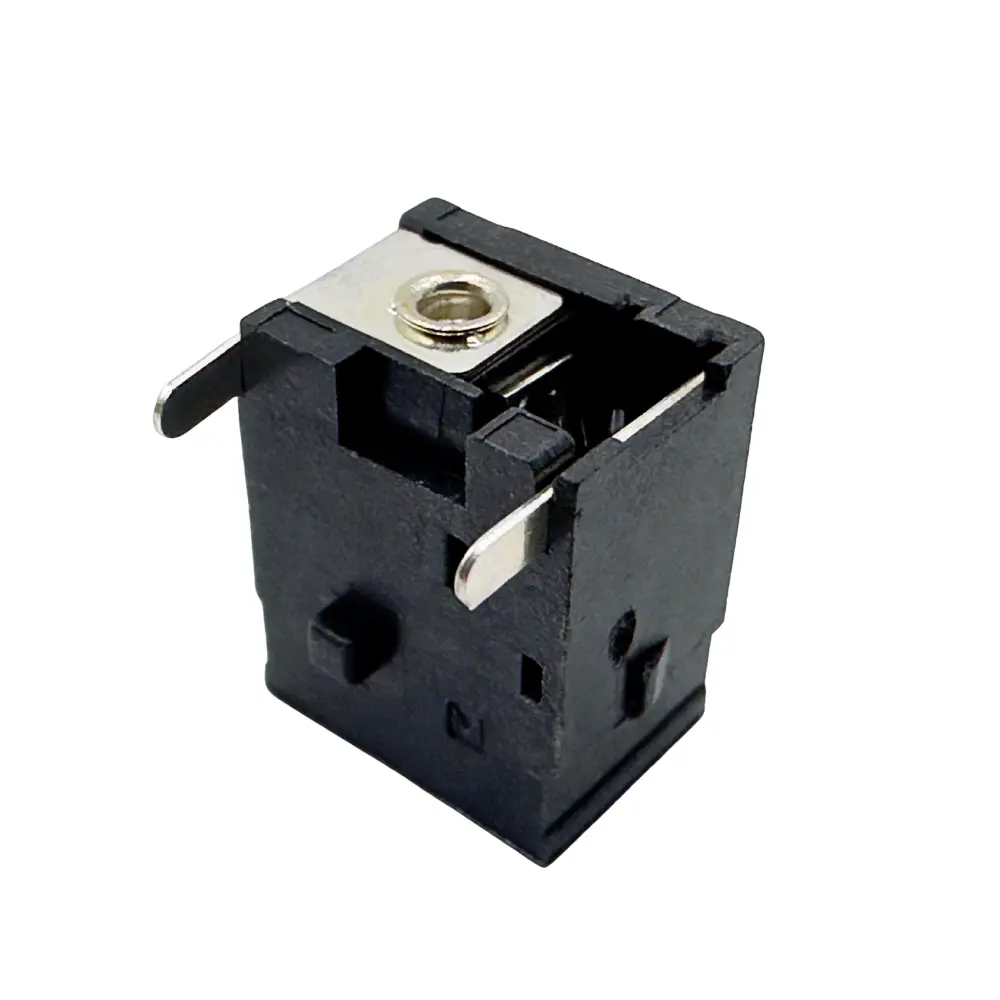

DC Power Jack 6.0 mm OD, right-angle through-hole designed for reliable DC input in compact electronics. It features a right-angle, through-hole configuration (side entry) for edge-of-PCB mounting.
Highlights: 30 V / 3 A rating; right-angle THT posts for strong retention; 6.0 mm OD barrel with 1.65 / 2.0 / 2.5 mm pin options; qualified to ≥5,000 cycles; RoHS compliant.
Applications: Set-top boxes, routers/gateways, monitors, instruments, POS terminals, small appliances.
DC Power Jack 6.0 mm OD, right-angle through-hole DW-DJ-D0440-02-XX-X is a board-edge power inlet for compact electronics that require a durable barrel-plug interface. The connector uses a side-entry, right-angle THT structure so soldered posts carry cable-pull loads directly into the PCB, improving mechanical retention compared with SMT-only parts.
| 1. General | |||
| Connector System | DC Power Jack | Connector & Housing Type | Jack |
| Terminates To | PCB (Through-Hole) | Number of Positions | 3 Pins (Ø1.65 / Ø2.0 / Ø2.6) |
| PCB Mount Orientation | Right Angle | Circuit Application | Power |
| Status | Active | Rated Voltage | 30V DC |
| 2. Electrical | |||
| Rated Current | 3A | Contact Resistance | 50 mΩ Max (Initial), 80 mΩ Max (After 5000 cycles) |
| Insulation Resistance | ≥100 MΩ (at 500V DC, 1 min) | Dielectric Withstand Voltage | 500V AC RMS, 1 min |
| Durability | 5000 Cycles Min | Operating Temperature | -40°C ~ +85°C |
| 3. Physical | |||
| Housing Material | PA9T UL94V-0, Black | Terminal Material | Copper Alloy (t=0.30) |
| Terminal Plating | Ni over 30U” | Barrel / Inner Diameter | Ø2.0 ±0.05 mm (ID), Ø6.0 mm (OD), Ø7.3 mm (barrel ref) |
| Dimensions (L×W×H) | 11.5 × 9.5 × 10.2 mm | Mounting Type | Board Mount, Through-Hole |
| PCB Retention | None | Packaging | Tape Reel (1-PAST), PE Bag (2-PAST) |
