Dual Port RJ45 Jack (1×2, LEDs, shielded, through-hole DIP) for reliable Ethernet in routers, switches & industrial gear. View specs & request a quote.
For related options, see our RJ45 connectors portfolio. If you’re evaluating multiple densities, check our dual port RJ45 jack range. Need samples or drawings? Contact our team.

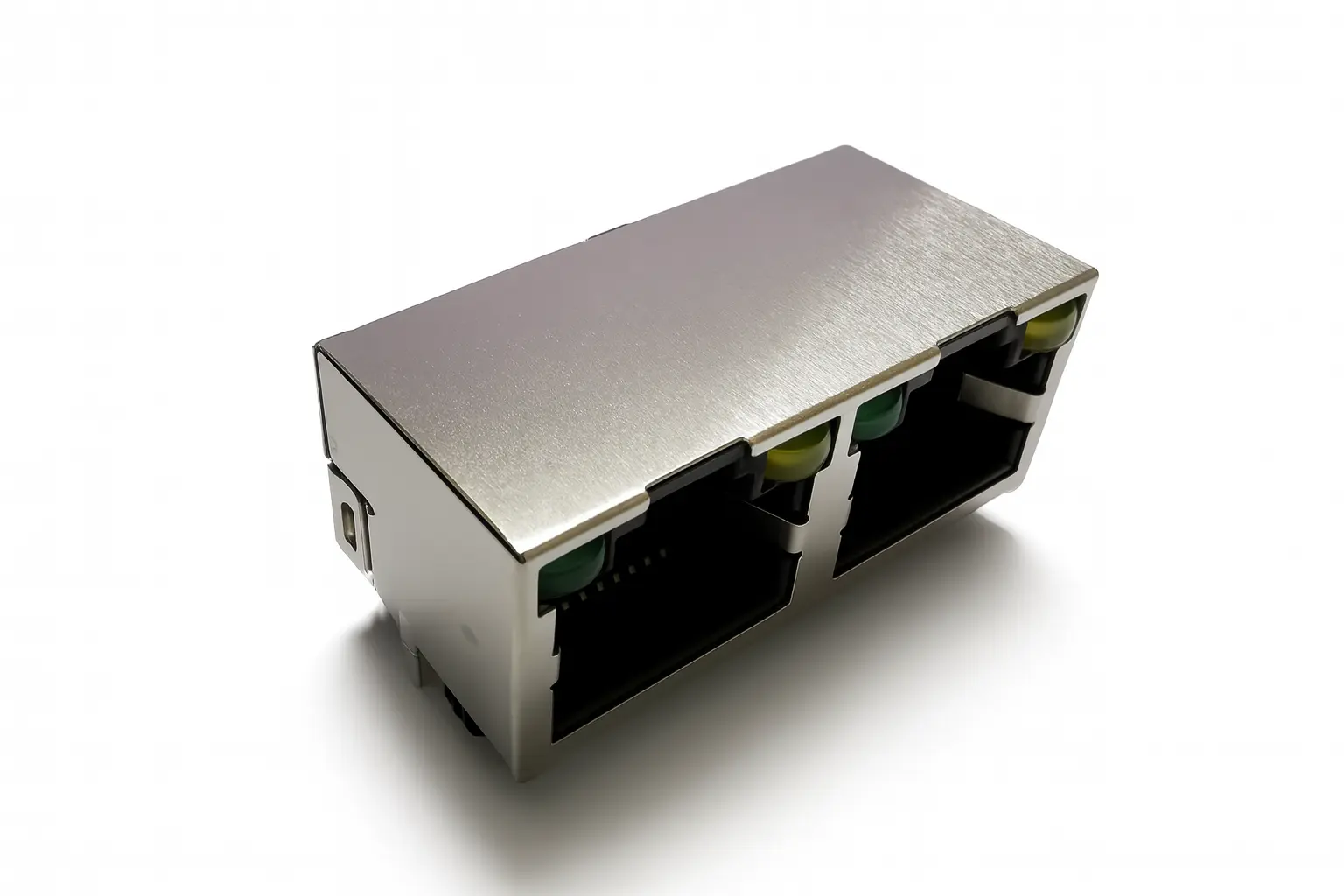

The Dual Port RJ45 Jack from Dragon Well Electronics Co., Ltd. delivers compact, reliable Ethernet connectivity for space-constrained boards that still need professional diagnostics. This 1×2 (dual port) 8P8C modular design integrates link/activity LEDs per port, uses a through-hole DIP footprint for secure PCB retention, and features a shielded metal housing to help control EMI in demanding environments. Part No. E56C08032645 is engineered for consistent performance and long service life across networking, telecom, and industrial devices.
Why choose this Dual Port RJ45 Jack for your design?
When front-panel space is tight, a Dual Port RJ45 Jack lets you place two Ethernet connectors in one footprint. You gain denser I/O without sacrificing serviceability. Integrated LEDs simplify bring-up and field diagnostics, while the shielded housing helps reduce interference in high-speed systems. The through-hole DIP pins provide strong mechanical anchoring for industrial applications and products that see frequent cable insertions.
Key Features & Benefits (Dual Port RJ45 Jack)
Standards-aligned design: Interfaces aligned with IEC 60603-7 and TIA-1096 requirements.
1×2 modular layout (8P8C): Two ports in a single footprint to save PCB and panel space.
Integrated LEDs per port: Link/Activity indicators improve testability and in-service visibility.
Through-hole DIP, tab-down: Robust mechanical retention and easy PCB assembly.
Shielded metal housing: Helps control EMI and supports stable Ethernet signaling.
Durable contact system: Built for a long service life and consistent connectivity.
Technical Overview
Electrical & Mechanical
- Interface: RJ45 (8P8C), dual port (1×2) configuration
- LEDs: Link/Activity, one set per port
- Mating life: Designed for repeated insertions (extended service life)
- Orientation: Tab-down for low-profile front-panel layouts
Materials
- Shell: Shielded metal housing (tin-plated) to reduce EMI susceptibility
- Contacts/terminals: Copper alloy with selective gold on mating area for signal integrity
Mounting & Layout
- Through-hole DIP (THT) pins for strong anchoring and reliable solder joints
- Compact dual-port footprint supports dense board designs
Need detailed dimensions or the PCB land pattern for the Dual Port RJ45 Jack? Contact for a drawing or sample.
Applications & Use Cases
Compact devices requiring clear LED diagnostics and a rugged connector
Enterprise/SMB routers and switches needing front-panel dual Ethernet
Telecom base stations and access equipment
Industrial control systems, PLCs, and HMIs
Compliance & Reliability
Dragon Well Electronics (est. 2007) designs and manufactures precision interconnects for global brands. Our products are built under robust quality systems and align with major environmental requirements such as RoHS, REACH SVHC, and Low-Halogen. The Dual Port RJ45 Jack follows accepted interface standards (IEC 60603-7, TIA-1096) for broad ecosystem compatibility.
Compare: Dual Port RJ45 Jack vs. Two Single Ports
Cost of assembly: One part to place and solder (THT wave or selective) can streamline production.
Board & panel efficiency: A dual port footprint simplifies mechanical alignment and saves front-panel real estate.
Wiring & service: LEDs are co-located and easy to view; fewer holes and cutouts simplify enclosure design.
Why Dragon Well
Global service: Responsive quoting and logistics to keep your build moving.
Engineering support: From concept to mass production footprints, samples, customization.
Consistent quality: Strict process control for plating, assembly, and testing.
Frequently Asked Questions (FAQ)
Q1: Does this Dual Port RJ45 Jack include magnetics or PoE support?
A1: This version integrates LEDs but does not include magnetics. PoE depends on your complete PHY/magnetics/power design; our team can advise compatible modules.
Q2: What does “tab down” mean?
A2: The latch tab faces downward in typical panel mounting, enabling lower-profile cable routing and better strain relief.
Q3: Can LED colors be customized?
A3: Yes, LED color options are available per project. Check with sales/engineering for current options and MOQs.
Q4: Is the Dual Port RJ45 Jack RoHS compliant?
A4: Yes. It is designed to meet RoHS, REACH SVHC, and Low-Halogen requirements.
