$1.39
The Quad Port Gigabit LAN Transformer delivers high-speed 10/100/1000Base-T performance with full POE+ capability. Designed for density, this 88-Pin magnetics module provides crucial signal integrity, noise suppression, and electrical isolation for multi-port networking applications.
Highlights:
Applications:

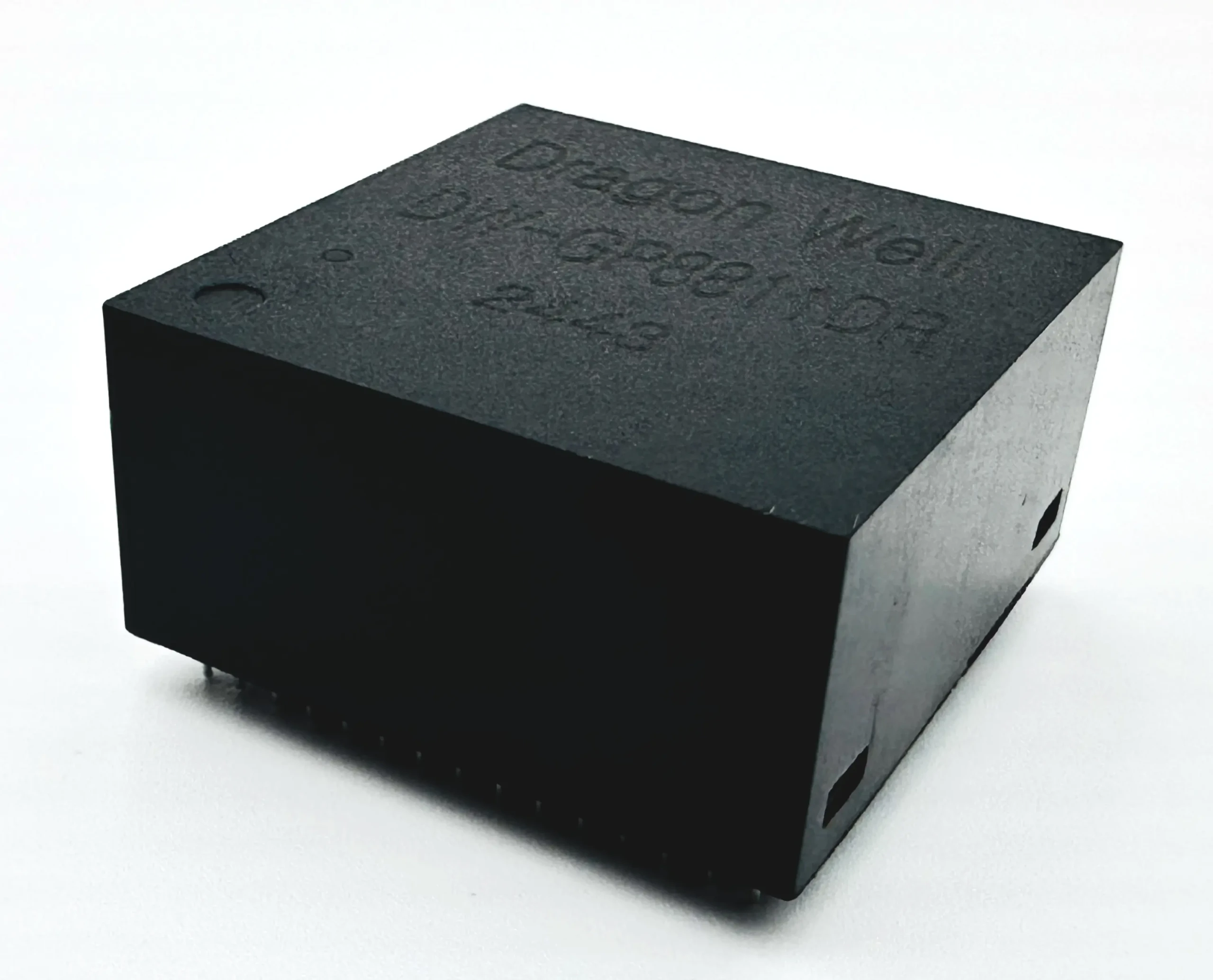

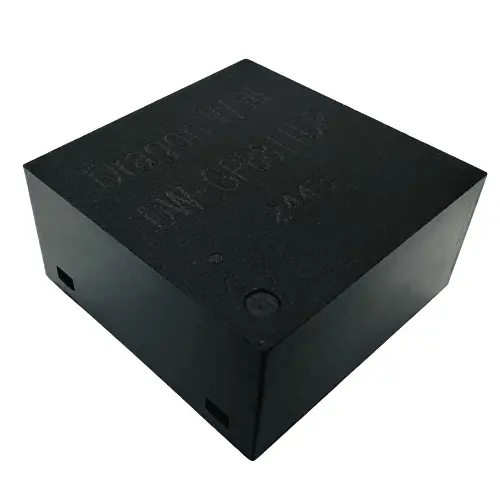

LAN Transformers, Quad Port Gigabit | 1000Base-T, POE+ 88Pin
I. Uncompromised Gigabit Performance
This Quad Port Gigabit LAN Transformer is the backbone for your high-density networking switch or device. It ensures stable, high-speed 10/100/1000Base-T data transmission by providing superior isolation and common-mode noise suppression. This guarantees robust signal integrity across all four channels, preventing data errors and maximizing network throughput.
II. Advanced POE+ Power Delivery
Engineered for the modern Power over Ethernet standard, this transformer supports full POE+ (IEEE 802.3at) power delivery. This feature allows your device to supply up to 30W of power per port to external devices (like IP cameras or access points) over the data cable, dramatically simplifying wiring and reducing installation costs for your customers.
III. High Density and Integration

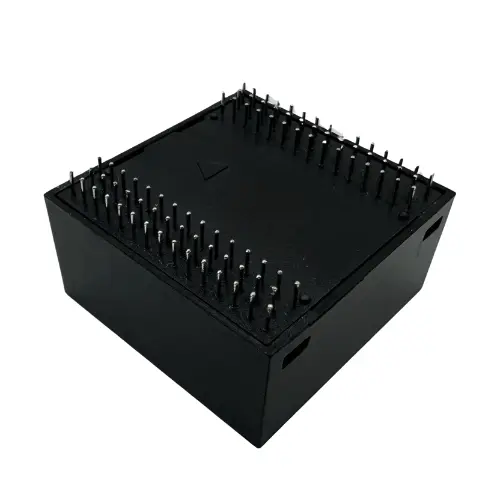

The Quad Port design consolidates four separate Ethernet magnetic circuits into one compact, 88-Pin module , saving valuable PCB space and reducing complexity in multi-layer board routing. The encapsulated design ensures high reliability and durability, maintaining performance in demanding operating environments.
| 1. General | |||
| Status | Active | Category | 1000 BASE-T Lan Transformers |
| Series | DW-GP8811DR | Description | 1000 BASE-T Lan Transformers 88Pin Quad Port Througth-Hole With snap-fit feature Module structure |
| PCB Mount Orientation | Vertical | Product Name | Lan Transformers |
| Port | Quad Port | Key Words | lan transformers, transformer lan, lan magnetic transformer, lan transformer circuit, lan isolation transformer, poe lan transformer |
| 2. Electrical | |||
| Current Rating (A) (Max) | Hi-POT (Vrms) | 1500 | |
| Tums Ratio (±5%), TX | 1CT: 1CT | Tums Ratio (±5%), RX | 1CT: 1CT |
| OCL(uH Min) @100KHz.0.1V With 8mA DC Bias | 350 | Base-T | 100/1000 Base-T |
| 3. Physical | |||
| Storage Temperature Range | -10°C to +85°C | Termination Interface Style | Through-Hole |
| Operating Temperature Range | 0°C to +70°C | Packaging Type | Tube |
| Net Weight | Product Width (mm) | 29.3 | |
| Product Height (mm) | 14.2 | Product Length (mm) | 29.1 |
| Circuits (Loaded) | 88Pin | POE+ | YES |
