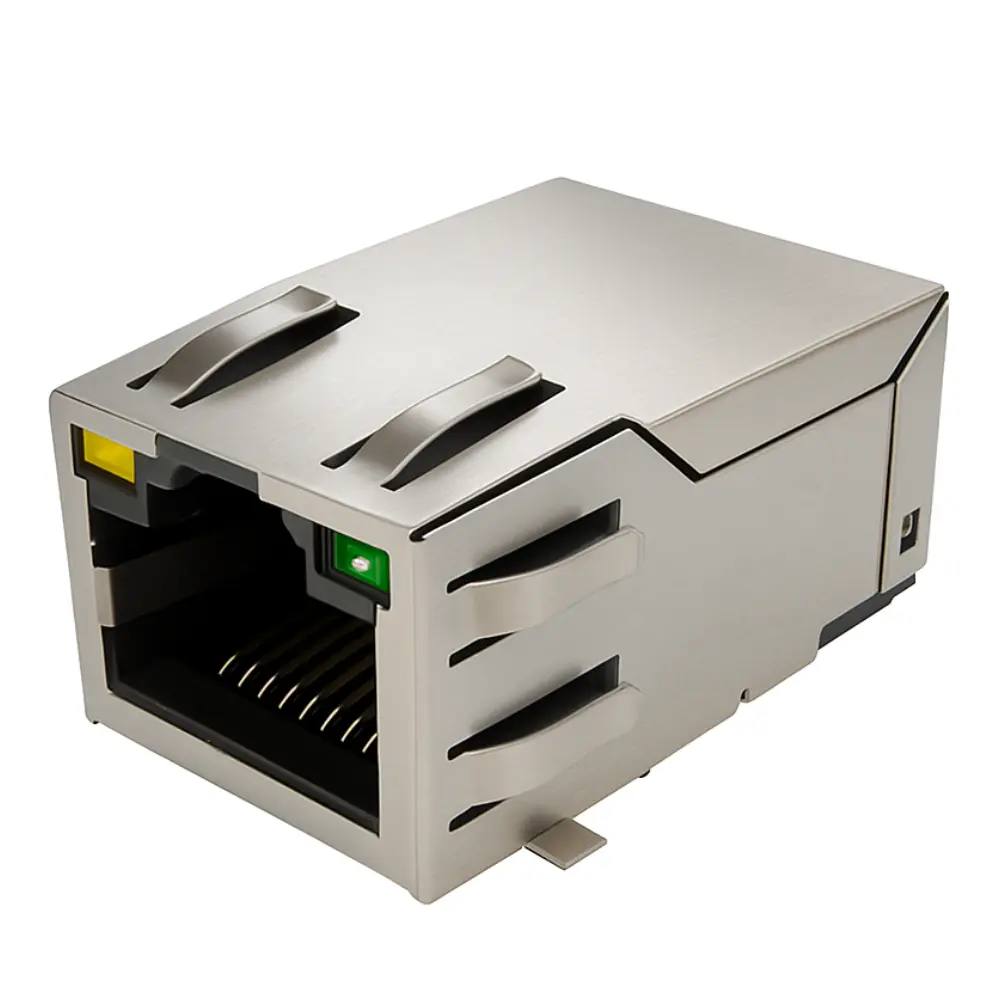

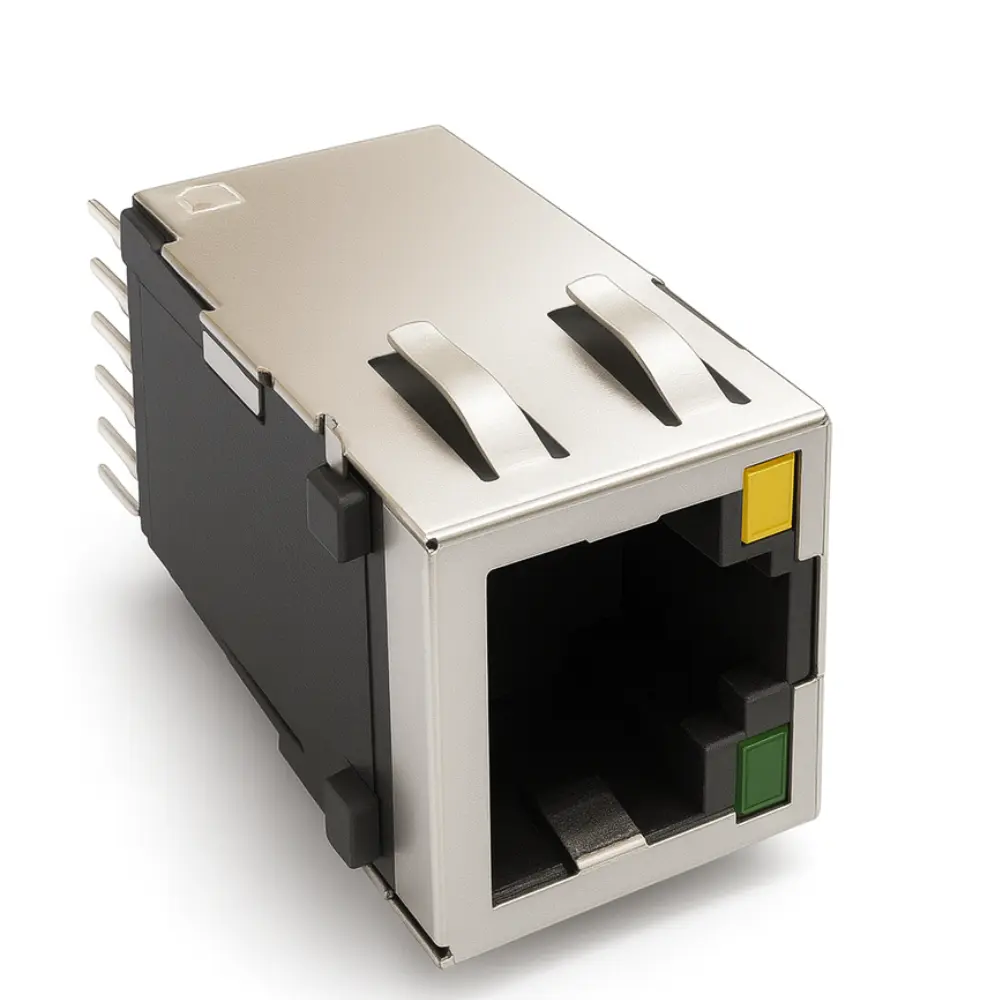

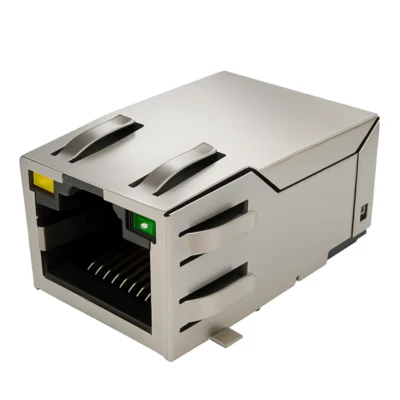

Magnetic RJ45 Jack 10/100 SMT, DW-RJ45-SM01203-01TP-04 is a high-performance 10/100Base-T solution for a single-port application. The shielded, SMT design provides superior EMI protection and a low-profile footprint for modern PCB layouts. Featuring integrated Yellow/Green LEDs and a Tab-Up orientation, this right-angle connector simplifies your design and provides clear network status. It’s built for durability and is ideal for high-density applications.
Applications:
Product Highlight:

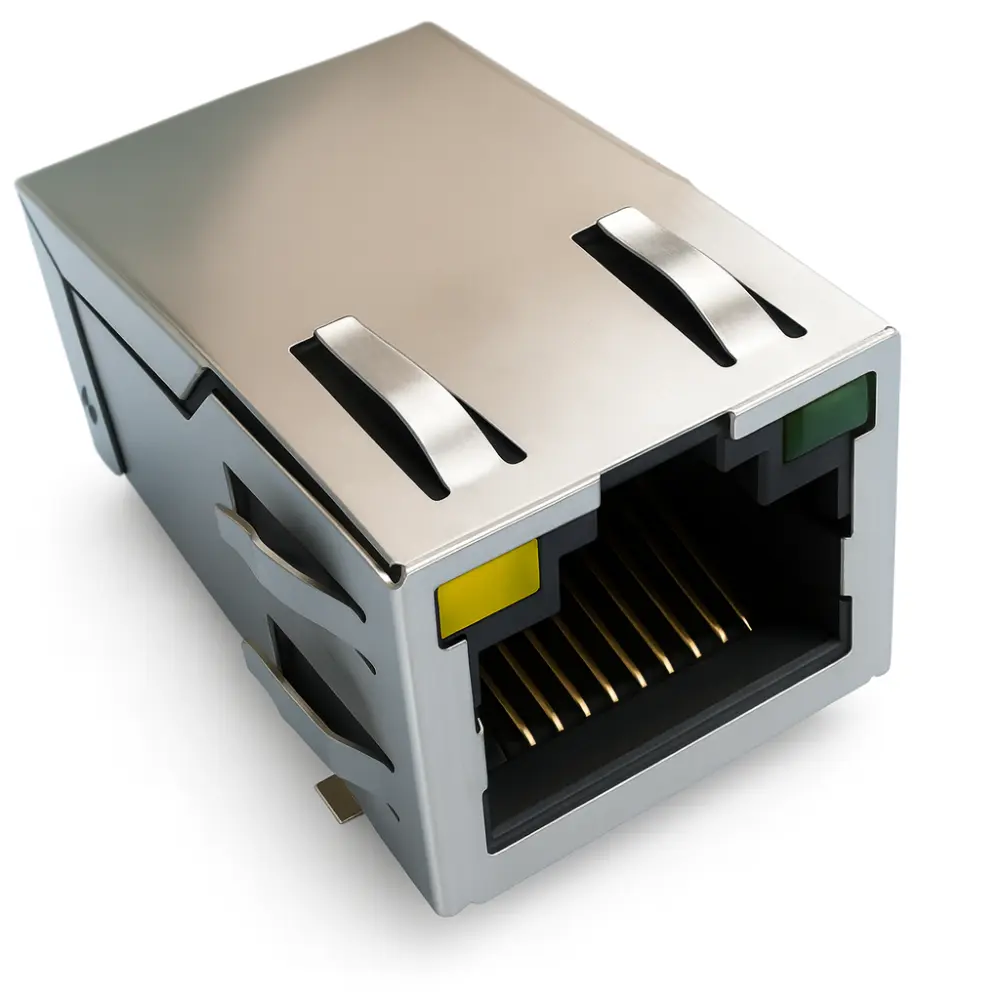

Magnetic RJ45 Jack 10/100 SMT 1×1 Port, Shielded with EMI, With LED, Tab-Up, 8P10C, Tab-Up, Right angle
| 1. Basic Information | |||
| Status | Active | Category | Magnetic Jacks | RJ45 with Integrated Magnetics 10/100 BASE-T |
| Part Number | DW-RJ45-SM01203-01TP-04 | Description | Magnetic RJ45 Jack Surface mount 10/100Base-T 1×1 Port, Shielded, With LED, Tab-Up, 8P10C, 750 cycles min, Right angle |
| Product Name | Magnetic RJ45 Jack Surface mount 10/100Base-T | Magnetic | Yes |
| Component Type | PCB Jack | Power over Ethernet (PoE) | No |
| Type | Socket | Lead time (Days) | 15 |
| Width | 16.10 mm | Height | 13.61 mm |
| Length | 25.40 mm | Installed height | 13.61 mm |
| Material (Metal surface contact area top layer) | Gold / Au | Material (Metal surface contact area middle layer) | Nickel / Ni |
| Material (Metal surface soldering area) | Tin / Sn | Material (Metal surface soldering area top layer) | Nickel / Ni |
| Mating Force | 25N Max | PCB Retention | Yes |
| Customs tariff number | 8536901100 | Country of origin | China |
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation | Right angle (Side Entry) |
| Positions / Loaded Contacts | 8P8C | Lightpipes/LEDs | Yes (Green + Yellow) |
| Packaging | T&R | Termination Interface | surface Mount |
| Port Configuration | 1×1 | Material – Resin | LCP UL94V-0 |
| Durability (mating cycles max) | 750 | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Tin | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.02 mm |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 JACK, Magnetic RJ45 10/100 Base, Surface Mount RJ45 Connector, Vertical RJ45 Connector, Shielded RJ45 Connector, With LED RJ45 Connector |
| Pitch – Termination Interface | 1.02 mm | POE+ | No |
| EMI | Yes | Latch / Tab orientation | Tab-Up |
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC | Operating Temperature | -40°C to +85°C |
| Insulation resistance | 500MΩ Min | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | Re-flow | Classification temperature, T₍C₎ | 260°C |
