$0.81

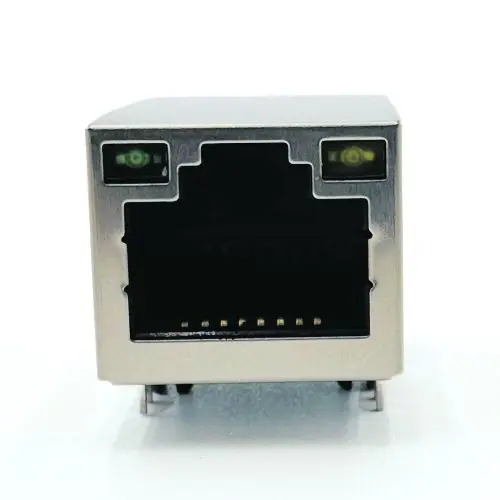

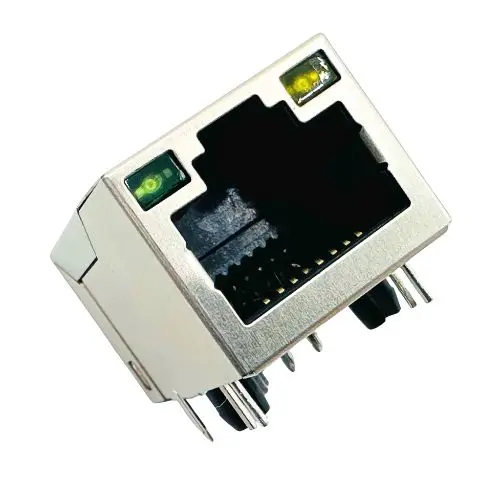

Magnetic RJ45 Jack 10/100Base-T is engineered for reliable Ethernet connectivity.
Its THT, right-angle design is optimized for a secure PCB fit, while the integrated
magnetics and shielded housing provide essential electrical isolation and EMI protection.
This 8P8C connector is equipped with LED indicators for network link/activity status and
boasts a minimum durability of 750 mating cycles, ensuring long-term performance in your product.
Applications:
Products Highlights:
Magnetic RJ45 Jack 10/100Base-T 1×1 Port, Shielded, With LED, Tab-Up, THT, 8P8C, Right angle,750 cycles min
| 1. Basic Information | |||
| Status | Active | Category | Magnetic Jacks | RJ45 with Integrated Magnetics 10/100 BASE-T |
| Part Number | DW-RJ45-DM01813-06TP-02 | Description | Magnetic RJ45 Jack 10/100Base-T 1×1 Port, Shielded, With LED, Tab-Up, THT, 8P8C, 750 cycles min, Right angle |
| Product Name | RJ45 Magnetic Connector | Magnetic | Yes |
| Component Type | PCB Jack | Power over Ethernet (PoE) | No |
| Type | Socket | Lead time (Days) | 15 |
| Width | 15.95 mm | Height | 13.60 mm |
| Length | 21.35 mm | Installed height | 13.60 mm |
| Material (Metal surface contact area top layer) | Gold /Au | Material (Metal surface contact area middle layer) | Nickel / Ni |
| Material (Metal surface soldering area) | Tin /Sn | Material (Metal surface soldering area middle layer) | Nickel / Ni |
| Mating Force | 23N Max | PCB Retention | Yes |
| Customs tariff number | 8536901100 | Country of origin | China |
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation | Right Angle (Side-Entry) |
| Positions / Loaded Contacts | 8P8C | Lightpipes/LEDs | Yes (Left: Green, Right: Yellow) |
| Packaging | Tray | Termination Interface | Through Hole |
| Port Configuration | 1×1 | Material – Resin | PBT UL94V-0, Black |
| Durability (mating cycles max) | 750 | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Tin | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.27 mm |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 JACK, Magnetic RJ45 10/100 Base, Shielded RJ45 Connector, Through-Hole RJ45 Connector, RJ45 Connector with LED, Magnetic RJ45 Connector |
| Pitch – Termination Interface | 1.27 mm | POE+ | No |
| EMI | Yes | Latch / Tab orientation | Tab-Up |
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC | Operating Temperature | -40°C to +85°C |
| Insulation resistance | 500MΩ Min. | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | WAVE | Classification temperature, TC | 260°C |
| Weight | 15 kg |
|---|---|
| Dimensions | 33 × 33 × 23 cm |
