Introduction: Compact Power Meets Reliable Performance
In today’s compact electronic devices, the Mini USB Type B connector remains a dependable standard for data transfer and power delivery. Dragon Well Electronics Co., Ltd. introduces the DW-MUB-S10091-XX TR-01, a high-quality Mini USB connector designed to balance mechanical strength, compact size, and signal reliability. Built for manufacturers seeking dependable performance, this connector ensures secure mating cycles, excellent solderability, and long-term durability.
Product Overview

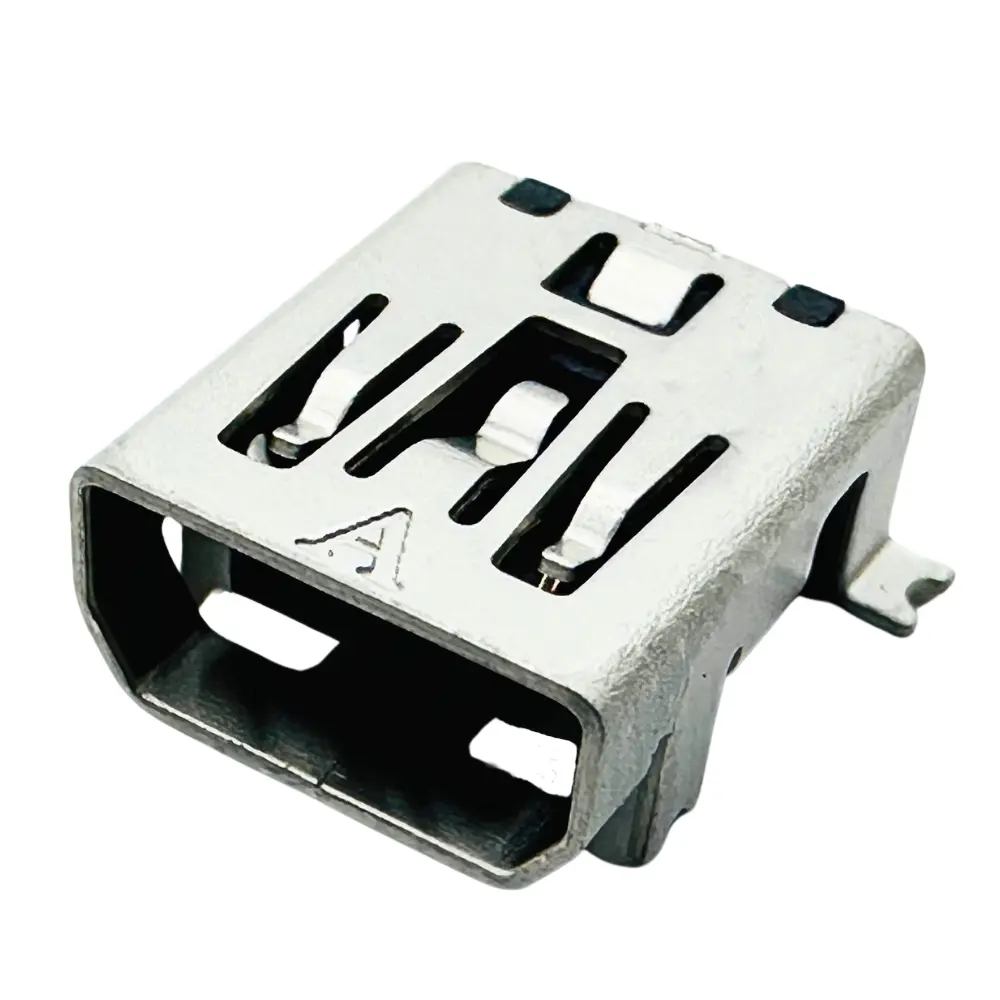

The DW-MUB-S10091-01 TR-01 Mini USB Type B connector features a 5-pin interface, combining surface-mount (SMT) and through-hole (DIP) soldering. This hybrid configuration enhances mechanical retention on the PCB while supporting automated assembly processes.
- Connector Type: Mini USB Type B
- Mounting Type: SMT + DIP hybrid
- Pin Count: 5 pins
- Rated Current: 1.0 A
- Contact Resistance: ≤ 50 mΩ
- Insulation Resistance: ≥ 100 MΩ at 100 V DC
- Durability: ≥ 5,000 mating cycles
- Operating Temperature: −30 °C to +80 °C
- Material: LCP UL94V-0 housing; phosphor-bronze contacts with gold plating
Superior Mechanical Design
The connector’s reinforced shell structure and precise locking mechanism prevent accidental unplugging during use. The gold-plated contacts ensure stable signal transmission and corrosion resistance, critical for high-duty applications such as handheld devices, automotive modules, and communication instruments.
Its 7.2 mm × 9.8 mm compact profile supports space-saving PCB layouts while providing firm retention strength thanks to dual grounding tabs and reinforced solder legs.
Electrical and Durability Advantages
Designed for 1.0 A rated current and up to 100 V AC insulation, the DW-MUB-S10091-01TR-01 ensures consistent performance even in harsh environments. With a contact durability of 5,000 cycles, it delivers exceptional reliability in products that require frequent plug-unplug operations.
The low contact resistance (≤ 50 mΩ) contributes to minimal power loss and stable connectivity — essential for high-speed data transfer and clean power supply in portable electronic devices.
Gold-Plating Options for Enhanced Conductivity
Dragon Well provides multiple terminal plating options to fit varied design needs:
- 01 – Gold Flash Plating
- 02 – 3 µin Gold Plating
- 03 – 5 µin Gold Plating
- 15 – 15 µin Gold Plating
- 30 – 30 µin Gold Plating
These choices allow OEMs to balance cost and conductivity, ensuring each application meets its reliability target.
Typical Applications
- Digital cameras & handheld devices
- GPS modules & automotive dashboards
- Medical electronics
- Portable communication systems
- Consumer electronics
Why Choose Dragon Well Connectors
With over 15 years of experience in connector manufacturing, Dragon Well Electronics Co., Ltd. specializes in OEM & ODM production of USB, RJ45, and board-to-board connectors. Certified under ISO9001, ISO14001, and IATF16949, our products comply with RoHS 2.0 & REACH, ensuring safety, reliability, and environmental protection.
Each Dragon Well connector undergoes strict quality inspection, from molding to plating, to guarantee stable performance and long service life.
Extended Section
Beyond its robust physical design, the DW-MUB-S10091-01 TR-01 Mini USB Type B connector stands out for its versatility in integration. Its SMT + DIP hybrid construction simplifies PCB assembly while reducing rework rates for OEMs. The connector supports stable data transfer between portable devices, diagnostic tools, and embedded systems where space and endurance are critical. Dragon Well’s strict process control—from precision stamping to automated inspection—ensures consistent performance across high-volume production. For engineers and procurement teams seeking dependable miniature connectors, this Mini USB Type B model delivers the perfect combination of compact form, high-current capacity, and long-term reliability, making it an excellent choice for next-generation electronic devices.
Conclusion: A Reliable Mini USB Solution
The DW-MUB-S10091-01 TR-01 Mini USB Type B connector is a durable and efficient interconnect solution engineered for precision electronics. With a blend of stability, flexibility, and customizable plating, it’s an ideal choice for brands prioritizing premium connectivity and product longevity.
For specifications or samples, visit www.dw-tek.com || www.cndragonwell.com or contact Dragon Well’s sales team for OEM/ODM collaboration.
