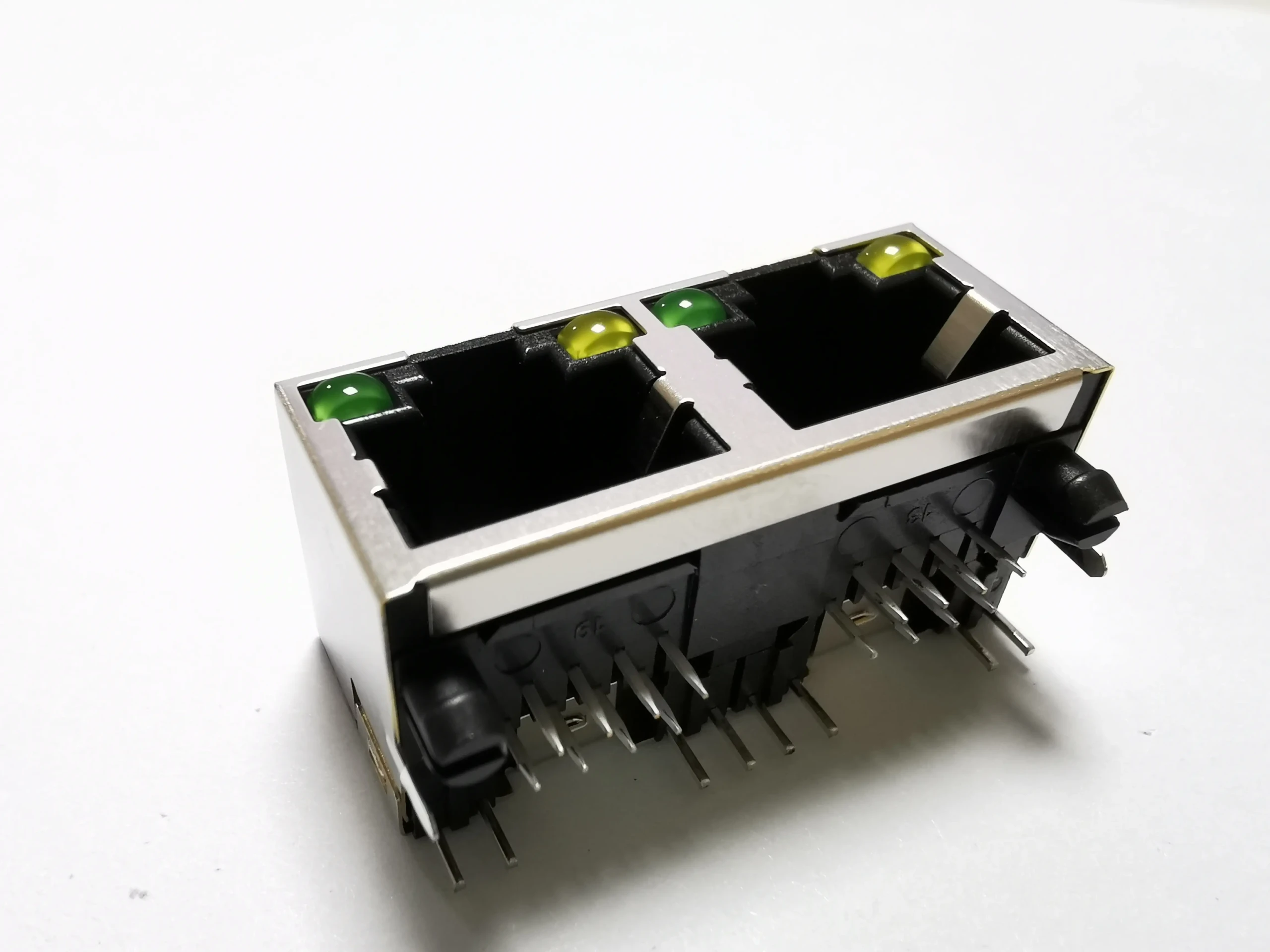

At Dragon Well Electronics Co., Ltd., (DW-TEK.COM) we design connectors that meet the demands of today’s fast-moving digital world. Our Dual-Port DIP Type Modular RJ45 Jack (Part No. E56C08032645) delivers reliable Ethernet connectivity in a compact, durable form.
This 1×2 (dual-port) 8P8C modular jack integrates LED indicators for link and activity status, ensuring easy diagnostics in networking devices. With a tab-down DIP through-hole design, it is simple to mount on PCBs and ideal for compact layouts. The connector is shielded with 2.0mm tin-plated brass for effective EMI protection, while phosphor bronze terminals with selective gold plating provide secure, long-lasting connections. Built for 750 mating cycles, it guarantees extended durability and stable performance.
Key Features
Dual-port RJ45 with integrated LEDs
Through-hole DIP mounting for PCB applications
Shielded brass housing for EMI control
Standards compliant: IEC-60603-7 and TIA-1096
Applications
Perfect for routers, switches, telecom base stations, industrial control systems, and compact devices requiring dual RJ45 ports with LED indicators.
Dragon Well Reliability
Founded in 2007, Dragon Well brings nearly 18 years of experience in designing and manufacturing precision connectors. With compliance to RoHS, REACH SVHC, and Low-Halogen requirements, our products meet global standards while delivering innovation and reliability.
