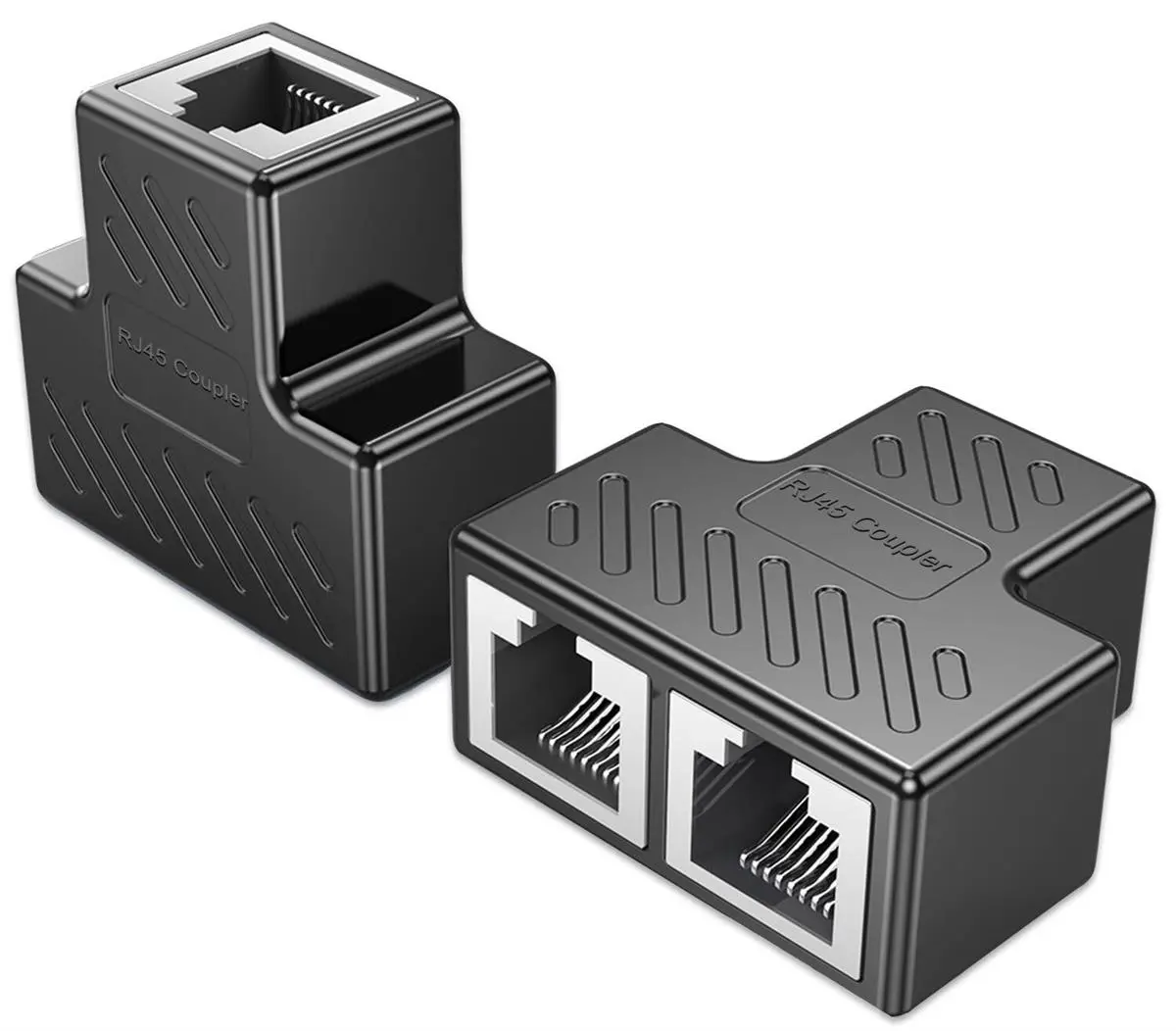

In the way silent revolutions change how we power and connect the digital world, single innovation stands out for its elegant simplicity and transformative power. The POE RJ45 connector – unceremoniously sturdy workhorse that can make smart cities, luxury smart homes and cutting-edge wearable technologies – represents one of the most complex forms and functions of modern engineering.
Alchemy of power and data
Power execution of Ethernet (POE) technology was once impossible: power and high-speed data are transferred to network devices via standard cat cables. But the real magic happens in the terminal – the RJ45 connector. Far from simple plastic and metal components, modern Poe connectors are a must: Must:
- Maintain perfect 10Gbps+ data transmission under electromagnetic interference
- Maintain up to 90W of power delivery without thermal degradation (IEEE 802.3BT)
- Withstand more than 50 mating cycles while maintaining contact integrity
- Implement IP67-level environmental sealing in a compact form
The Secret Propulsion Machine of Luxury Technology
For high-end applications with a blend of aesthetics and performance, POE connectors address the fundamental tension between visible infrastructure and minimalist design:
-
Smart building lighting
Now, high-end lighting systems like the Lutron feature, like the Lutron feature, use POE to create cableless lighting designs, with each fixture becoming an addressable node. Dragon Well’s shielded RJ45 connector with gold-plated contacts ensures zero interference with the DMX512 lighting control signal. -
Boutique retail ecosystem
The luxury flagship store deploys thousands of POE-connected sensors for climate control, inventory tracking and interactive displays. Our 24AWG compatible connectors maintain perfect conductivity during expansion cable operation to support 4K digital signage. - High fashion wearable devices
Emerging smart fabrics integrate LED arrays and biometric sensors, relying on miniature driver connectors weighing less than 0.5g. Our patented nano-latch technology allows reliable flexible material connections without compromising overhang or texture.
Dragon difference
What separates a high-quality POE solution from a commodity connector is lowered to three key elements:
Materials Science
Our proprietary beryllium copper alloy contacts have 15% higher conductivity than standard phosphate copper, while our high temperature liquid crystal polymer (LCP) shells maintain dimensional stability at 105°C – essential for POE++ applications.
Contact geometry
Through computational fluid dynamics modeling, we optimized the 8P8C contact alignment, which lost 3.2db of the insertion loss compared to the standard RJ45S, which is a decisive advantage in a 2.5GBASE-T installation.
Power Optimization
Our SMART detection PIN configuration automatically negotiates the power budget via PSE (Power Procurement Equipment), thus preventing overload in sensitive audio-visual devices.
Beyond the Wires: Infrastructure Revolution
The true elegance of POE lies in the energy savings of its infrastructure:
- Single rod is simple: Combining power, data and control signals in a CAT6A operation
- Zero voltage safety: SELV (Safety Ultra Low Voltage) design eliminates electric risk
- Dynamic allocation: Intelligent power management meter from 15W to 90W per device
This triple link makes POE essential in high-value installations that are not commercially available – from top-floor luxury home theatre to luxury yacht control systems.
The luxury connectivity of the future
When IEEE developed 802.3bt single-pair POE, delivering 100W on simplified cables, Dragon Well led the following transition:
- SPE (Single-pair Ethernet) connector: 60% smaller footprint is perfect for wearable integration
- Heat dissipation design: Graphene-reinforced shell reduces operating temperature by 11°C
- AI-driven predictive maintenance: Connectors with embedded microsensors monitor contact resistance in real time
The invisible advantage
In an era of invisible infrastructure for advanced experiences, the POE RJ45 connector represents the ultimate paradox: its invisible components directly related to its value. By eliminating power, reducing cable chaos and achieving seamless device integration, they form the nervous system of the ideal environment.
At Dragon Well, we have designed POE solutions to meet the strict standards of accepting perfect customers. Every gold-plated contact, every precise housing, every nano-coated insulator represents our commitment to fading into technology excellence.
For the architects of tomorrow’s luxury experience: When your vision needs to call for power and data perfectly and harmoniously, conversations begin not only with understanding what the connectors do, but also with what they can achieve. Let’s explore what excellent connectivity can be achieved when performance is uncompromisingly matched by elegance.
(Explore our next generation POE solutions or develop custom connectors for your professional application requirements)
