$0.42

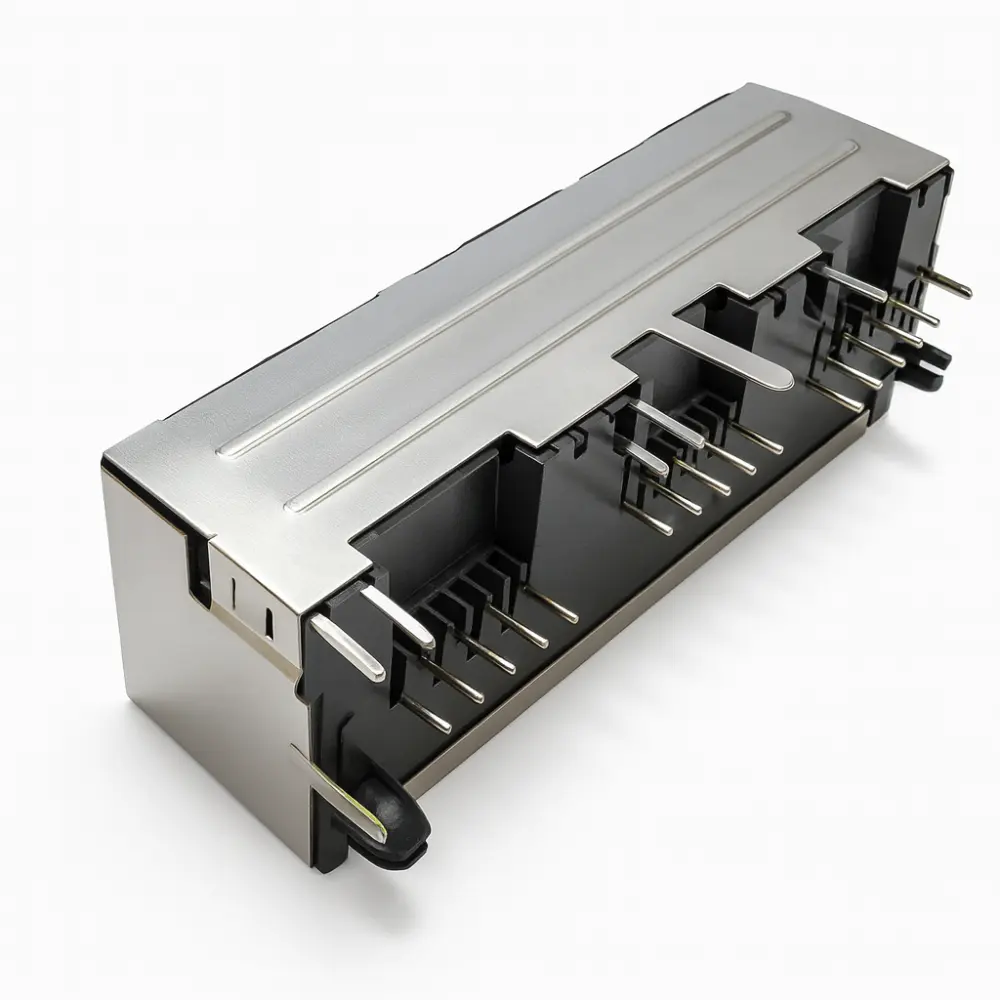

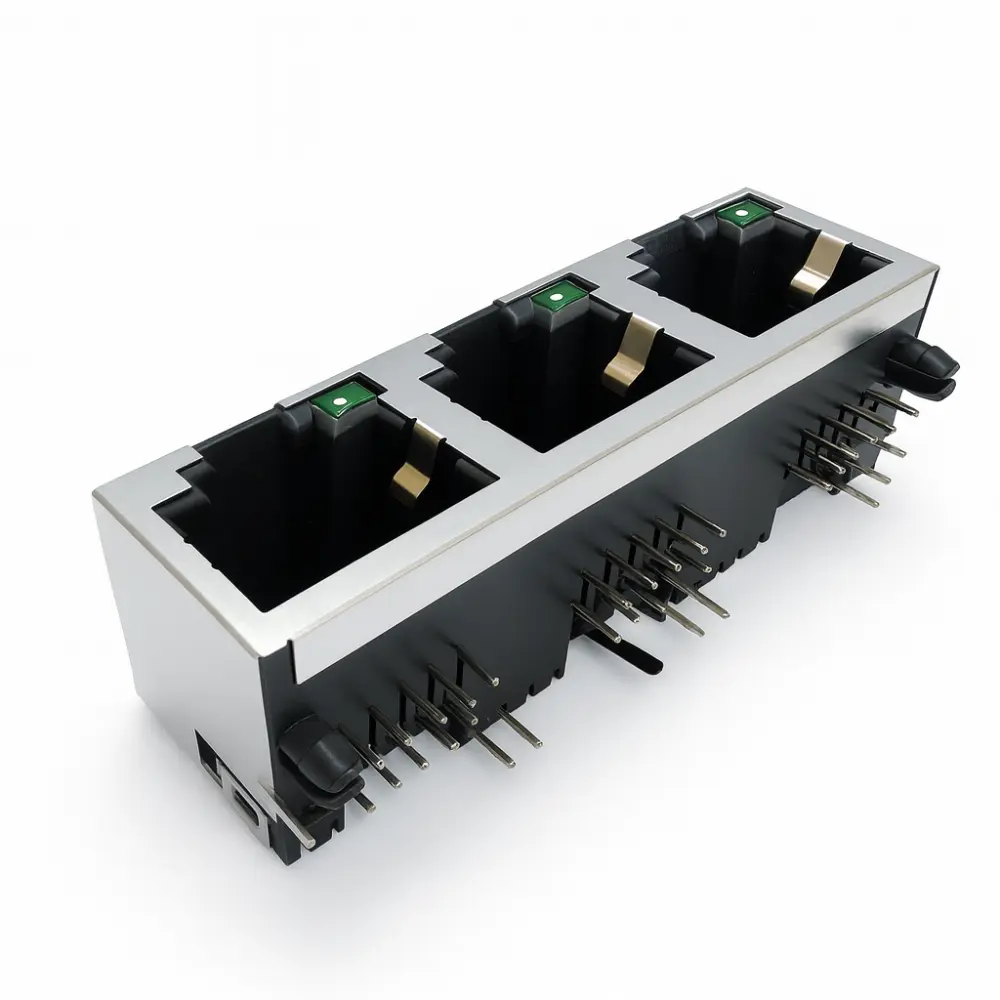

RJ45 1×3 Shielded Modular Jack – Industrial-Grade Tab-Up DIP with LEDs
Key Features at a Glance:
1×3 RJ45 8P8C, tab-up orientation; compact inline layout
Integrated yellow/green LEDs per port (3.2 × 2.0 mm; 2.54 mm pitch)
Nickel-plated shield for robust EMI suppression and chassis ground
PA46 UL94V-0 housing/insert/back plate (black) for thermal stability
Ø0.46 mm phosphor-bronze contacts; finishes 3/6/15/30 µin Au, Sn-Ni, Ni
Wave-solder friendly DIP tails; retention ≥1 lb / ≥10 lbs (pre/post)
Electrical: 125 VAC, 1.5 A, ≤30 mΩ, ≥1000 MΩ, 1000 VAC 1 min
Environmental: −40~+85 °C; RoHS compliant
Highlights: Space-saving multi-port connector with integrated diagnostics; rugged shielded construction; consistent wave-solder performance; standardized 1.02 mm signal pitch and Ø1.80 mm peg holes simplify PCB design.
Applications: Switches and hubs • Network interface cards (NICs) • Routers and gateways • Embedded/industrial SBCs • POS and controllers requiring compact, shielded RJ45 with LED indication and durable DIP assembly.
RJ45 1×3 Shielded Modular Jack – Industrial-Grade Tab-Up DIP with LEDs is a triple-port, tab-up 8P8C connector built for compact LAN panels that need strong EMI protection and visual status. Each port integrates left yellow and right green LEDs (3.2 × 2.0 mm devices on 2.54 mm pitch) so link and activity are visible without extra PCB real estate.
| 1. Basic Information | |||
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-D00305-01TP-01 | Description | RJ45 3 Port DIP Type, Tab-Up, 8P8C With Single-Color LEDs (Green/Yellow), |
| Product Name | RJ45 3-Port W/LED Tab-Up | Magnetic | No |
| Component Type | PCB Jack | Lead time | 7~15 days |
| Type | Socket | Height | 13.10 mm |
| Width | 48.00 mm | Installed height | 14.70 mm |
| Length | 15.70 mm | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface contact area top layer) | Phosphor Bronze | Material (Metal surface soldering area top layer) | Phosphor Bronze |
| Material (Metal surface soldering area) | Nickel | PCB Retention | 10 lb min |
| Mating Force | _ | Country of origin | CN |
| Customs tariff number | 85366930 | ||
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation 方向 | Right Angle (THT) |
| Positions / Loaded Contacts | 8P8C | Lightpipes/LEDs | Yes (Green & Yellow) , W/O |
| Packaging | Tray | Termination Interface | DIP |
| Port Configuration | 3×1 | Inverted / Top Latch | No |
| Durability (mating cycles max) | 750 | Material – Resin | PA46 UL94V-0 |
| Jack Height | 13.10 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Gold | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.02 mm |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 Connector, Shielded RJ45, LED RJ45, 3-Port RJ45, DIP RJ45, Network Connector,Ethernet Connector,RJ45 PCB Connector,Ethernet RJ45 Connector |
| Pitch – Termination Interface | 1.02 mm | POE+ | No |
| EMI | Yes | Latch / Tab orientation | Tab-Up |
| 3. Electrical | |||
| Current – Maximum per Contact | 0.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC | Operating Temperature | -40°C to +85°C |
| Insulation resistance | 1000MΩ | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | WAVE | Classification temperature, T₍c₎ | 260°C |
1×3 8P8C, tab-up, shielded DIP with LEDs tight impedance control and board-level validation for low EMI, clear link/act, and drop-in compatibility with mainstream LAN PHYs.
