In our invisible architecture that connects the world, data flows like digital electricity, and an inconspicuous component is the key gateway: the RJ45 Connector Basics. While your attention may cause dazzling displays and sleek devices, this eight-pin Marvel curates the behind-the-scenes symphony of the Ethernet network, powering everything from luxury smart homes to precision automotive systems.
Connected anatomy

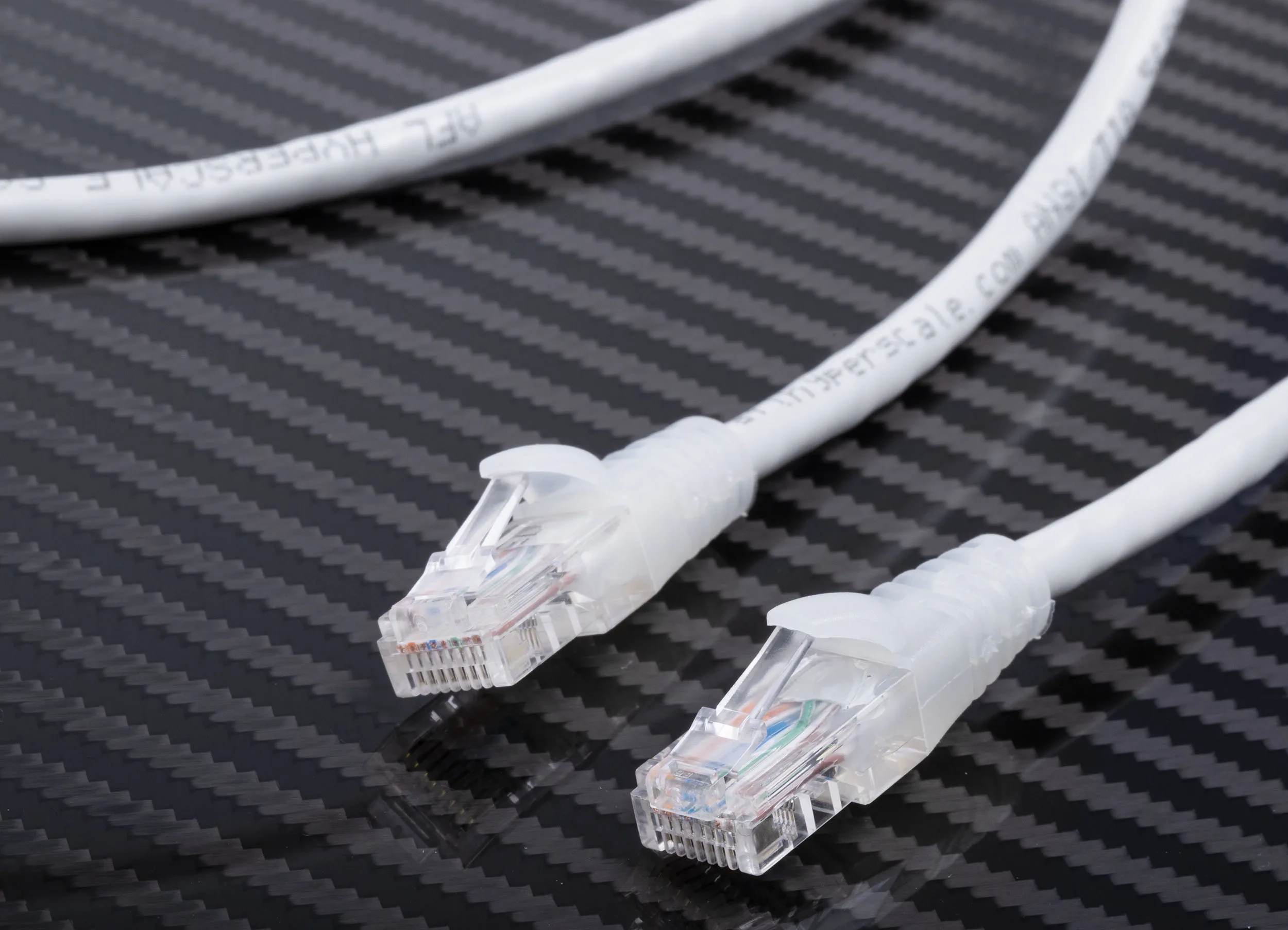

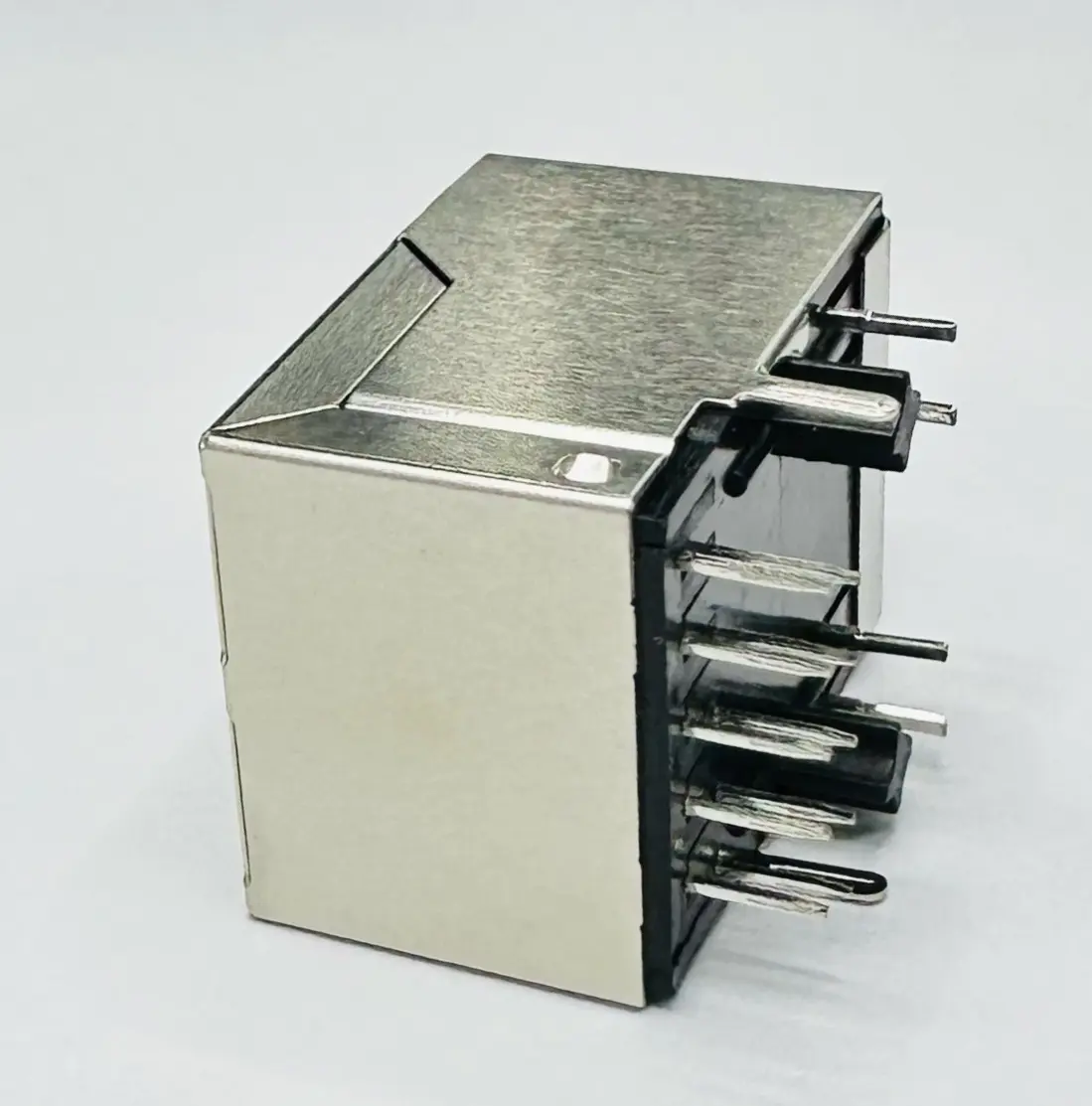

The RJ45 (registered jack 45) is similar to an evolutionary telephone jack, with eight gold-plated contacts arranged in a modular plastic interface. Unlike its RJ11 telephone cousin (with 4-6 contacts), the extended capacity of the RJ45 can simultaneously perform two-way data transmission – the necessity of modern high-speed communication. The internal structure of the connector reveals engineering ballet:
-
- Gold plated pins: 8 microscopic precise contact resists corrosion and ensures over 10,000 mating cycles
-
- Transparent strain relief: Enhance cable integrity with visible wire alignment
-
- Lock the tab: Audible click to confirm the secure physical connection
-
- PIN allocation diagram: Follow the T568A or T568B wiring standards (B dominates commercial applications)
The hierarchy of performance
Not all RJ45 connectors are equal. At Dragon Well Electronics, we designed connectors optimized for specific cable categories:
| category | bandwidth | Data rate | Application Solution |
|---|---|---|---|
| cat5e | 100 MHz | 1 Gbps | Basic smart home system |
| CAT6 | 250 MHz | 10 Gbps* | 4K media streaming, gaming rig |
| cat6a | 500 MHz | 10 Gbps | Deluxe Family Theater, VR Settings |
| cat7 | 600 MHz | 10 Gbps | Server room, automotive Ethernet |
| cat8 | 2 GHz | 40 Gbps | Data center, 8K production studio |
*Maximum 55 meters
Our aerospace-grade connectors for automotive customers maintain signal integrity even under extreme vibrations (operating from -40°C to 105°C), while our golden fever version eliminates packet loss in high-end media rooms.
Termination Art
Precise termination separates reliable connections from intermittent headaches. Our field engineers recommend:
-
- Stripping away cleverly:Exposed 1.5″ Twisted pairs of scratch-free conductors
-
- Strategic arrangements: Follow the T568B sequence (white/orange, orange, white/green, blue, white/blue, green, white/brown, brown)
-
- Perfect trim: Flush the wires to 0.5″ Before insertion
-
- Firmly crimped: Apply 30-35 pounds of pressure with ratchet tool
-
- Thorough test: Verify all 8 connections to the cable authenticator
Expert Tip: Our proprietary quick lock connector eliminates guesswork using color-coded insert channels and laser etched wiring diagrams.
Beyond the Basics: When Excellence Is Crucial
Consider the smart room system at the Venice resort – a 7,000 RJ45 connection that controls everything from automatic curtains to champagne coolers. Or Bentley’s latest Continental GT, the shielded CAT7 connector handles infotainment and driver assistance without EMI interference from the 650hp engine. These scenarios require the design of Dragon Well-compliant connectors:
-
- 24μ gold plating: 3 times thicker than standard oxidation resistance
-
- Fluorescent polymer insulators: Stable dielectric constant at MHz frequency
-
- Multi-point contact spring: Maintain 100N normal force across the thermal cycle
-
- 360° EMI shield: Laser welding stainless steel barrier
Connection to the future
As 5G-powered IoT proliferation and 8K video become the standard in a luxury environment, we are pioneering:
-
- AR-EAGMENT Termination Guide: Smart glasses covering wiring schematic
-
- Nanocoated connector: Self-cleaning contacts repel dust/moisture
-
- POE++ Support: CAT6A+ 90W power delivery on PD devices
-
- Quantum security variants: Embedded encryption at the hardware level
From the vineyards of the smart irrigation system in Napa Valley to the climate-controlled shoe archives of Milan collectors, our connectors ensure that the foundation remains invisible but reliable when excellence is not negotiable.
At Dragon Well Electronics, we redesigned what seems to be simple components through 214 iterative prototypes, because in a world chasing wireless fantasy, the wired backbone remains the most reliable nervous system of civilization. When your smart mirror flashes with life, your car HUD will show the shaver-emitted navigation, or your private movie stream is flawless – this is 18 years of connector science silently enabled perfection.
Find out why Cisco trusts our connectors for 92% of enterprise switches, and why custom clients specify the location of dragons for installations. “Good enough” It is an architectural heresy. The difference is not only in specifications – what is certain is that when you ask for zero compromise, your connection goes beyond the commodity state to become functional art.
