Introduction
RJ45 connector series make it possible for billions of devices to join Ethernet networks every day. From the front panels of switches and routers to structured cabling, wall plates and patch cords, these compact 8P8C connectors carry critical data and power that keep businesses, factories and data centers running.
As data rates climb from 1G to 10G and beyond, and as Power over Ethernet (PoE) supports more devices, the performance of each RJ45 port or jack matters more than ever. A well-engineered RJ45 connector series combines robust mechanical design, consistent electrical performance and a wide range of options so you can build reliable links in office, industrial and harsh-environment applications.
In this article we’ll explore what defines a modern RJ45 connector series, the main product types you’ll find in a portfolio, and how to choose the right configuration for your next network design.
What Is an RJ45 Connector Series?
An RJ45 connector series is a family of compatible Ethernet jacks, plugs and cable assemblies based on the standard 8-position, 8-contact modular interface used in twisted-pair LAN cabling.
Within a single series you’ll typically find:
- Single-port and multi-port RJ45 receptacles
- Shielded and unshielded variants
- Magnetic jacks with integrated transformers for PoE and Gigabit Ethernet
- Keystone jacks for patch panels and wall plates
- Robust industrial or IP-rated versions for harsh environments
Using one consistent RJ45 connector series across your product range simplifies design reuse, qualification and sourcing.
10 Core Products in a Complete RJ45 Connector Series

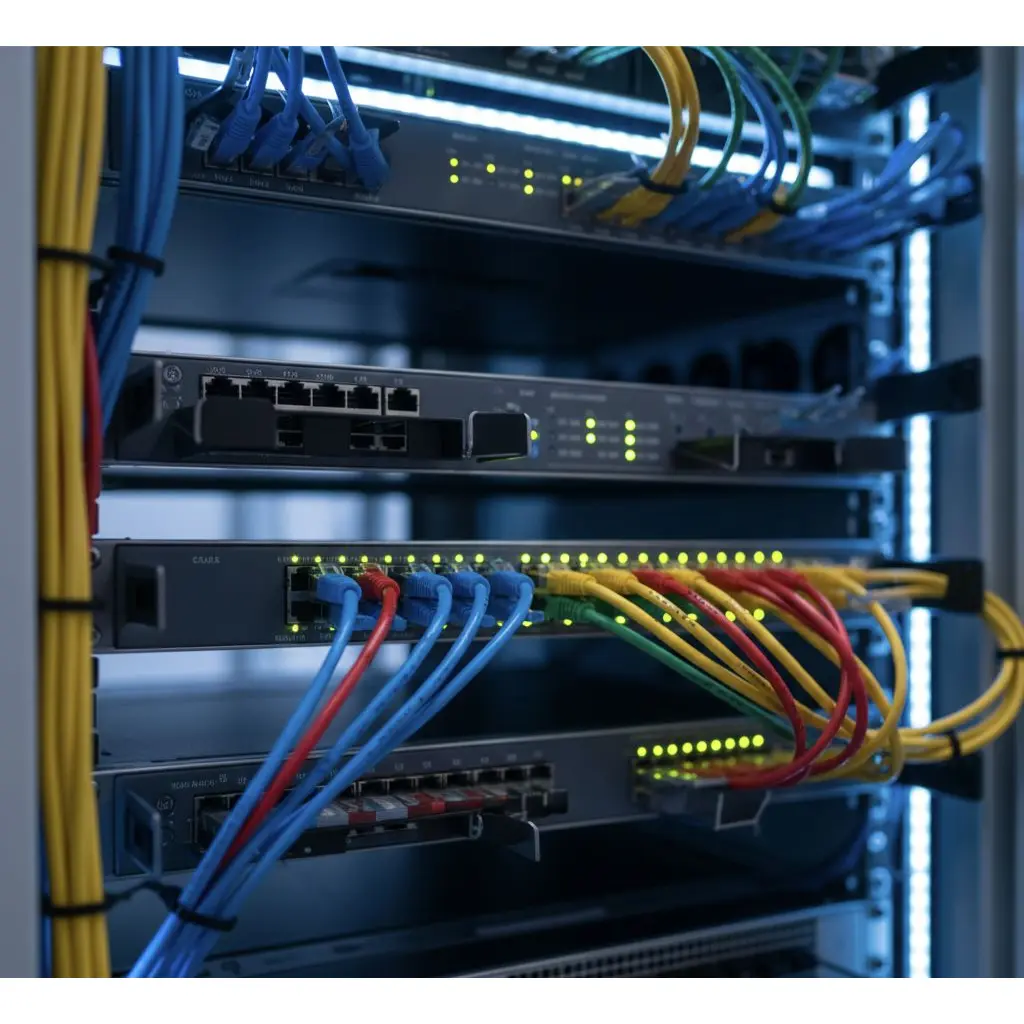

The image above shows a typical network rack with switches, patch panels and cables. Each link relies on at least one member of your RJ45 connector series. Here are ten core product groups you’ll usually work with.
1. Single-Port PCB RJ45 Jacks
These are the standard board-mounted connectors found on routers, switches and embedded boards. Leading portfolios from vendors such as Molex and Amphenol offer Cat5e to Cat6A performance, optional LEDs, tab-up/tab-down orientations and magnetics for PoE support.
2. Multi-Port and Stacked RJ45 Ports
To save panel space, RJ45 connector series include ganged and stacked jacks with two, four or more ports in a single housing. These are common on high-density switches and telecom equipment and can be specified with different shielding and LED options.
3. Shielded RJ45 Jacks
Shielded RJ45 connectors wrap the jack in metal to improve EMI/RFI immunity and maintain signal integrity at high data rates, especially for Cat6A and Cat7 cabling. They are essential in noisy environments such as industrial automation and data centers.
4. Unshielded (UTP) RJ45 Jacks
In typical office or residential settings with low electromagnetic interference, unshielded jacks provide a cost-effective solution and are quick to terminate and install. A robust RJ45 connector series offers both shielded and unshielded options with the same footprint.
5. RJ45 Keystone Jacks
Keystone jacks snap into patch panels, wall plates and surface-mount boxes to build structured cabling systems. FS, for example, offers Cat5e through Cat8 keystone jacks optimized for 1G to 40GBase-T applications in offices and data centers.
6. RJ45 Inline Couplers and Feed-Through Modules
Couplers allow you to extend cables or create modular patching without re-terminating wires. Feed-through keystones with RJ45 on both sides are popular in patch panels and floor boxes.
7. Magnetic RJ45 Jacks
Magnetic jacks integrate transformers and chokes inside the connector body, simplifying PCB layout and improving EMI performance for Fast Ethernet and Gigabit links. These are a key part of many advanced RJ45 connector series.
8. Rugged and IP-Rated RJ45 Connectors
Industrial RJ45 connector series include IP67 or IP68-rated plugs and receptacles that withstand dust, water, vibration and shock—perfect for outdoor base stations, robotics and process control.
9. High-Speed Cat6A / Cat7 / Cat8 Jacks
For 10G and even 25/40GBase-T, specialized jacks and keystones maintain strict crosstalk and return-loss performance. These high-bandwidth members of an RJ45 connector series are widely used in top-of-rack switches and data-center patching.
10. Patch Cords and RJ45 Cable Assemblies
Finally, every RJ45 connector series is completed by matching patch cords built with standardized plugs and boot designs. High-quality assemblies ensure that the full channel—jack, plug and cable—meets the target category rating.
Key Design Features of a High-Quality RJ45 Connector Series
When comparing different RJ45 connector series, consider these critical design factors.
Category Rating and Data Rate
Make sure the jacks and plugs are rated for the cable category you plan to deploy—Cat5e, Cat6, Cat6A, Cat7 or Cat8—and support the required data rate from 1G up to 10G or more.
Shielding and EMI Performance
For industrial plants, medical facilities or dense data centers, shielded connectors and cables help minimize crosstalk and external interference for reliable links.
PoE Capability
If you’re powering devices such as IP cameras, wireless access points or VoIP phones, choose an RJ45 connector series with jacks tested for PoE and PoE+ current levels, ideally using magnetic modules with integrated transformers.
Mechanical Durability and Environmental Rating
Look for connectors rated for hundreds to thousands of mating cycles plus suitable operating temperature ranges. In harsh environments, IP-sealed housings and corrosion-resistant materials are important.
Termination Style and Installation Ease
Tool-less keystones and field-terminable plugs can dramatically reduce installation time on site. Clear color-coded wiring diagrams and robust IDC contacts make consistent terminations easier for technicians.
Typical Applications for RJ45 Connector Series
Because Ethernet is everywhere, RJ45 connector series appear in a huge variety of projects:
- Enterprise and campus LAN switching
- Cloud and colocation data centers
- Industrial automation, IIoT and robotics
- Smart buildings and building management systems
- Security, CCTV and access-control networks
- Medical and test equipment with Ethernet interfaces
- Residential networking and SOHO equipment
By standardizing on one RJ45 connector series across these environments, you simplify spare-parts stocking, training and long-term support.
How to Choose the Right RJ45 Connector Series
When selecting a RJ45 connector series for your next design or cabling project, keep these questions in mind:
- Environment: Office, data center or harsh outdoor/industrial? This determines shielding, IP rating and material needs.
- Performance: What minimum category rating and data rate do you require—1G, 2.5G, 5G, 10G or higher?
- PoE Requirements: Are you deploying PoE, PoE+ or higher power profiles that demand specific connector specs?
- Density and Panel Space: Do you need multi-port stacked jacks or compact keystones to maximize rack units?
- Installation Model: Factory-terminated patch cords vs. field-termination with toolless jacks and plugs.
- Compliance and Certifications: Check for adherence to IEEE Ethernet and ISO/IEC cabling standards, plus any customer-specific approvals.
Best Practices for Deploying RJ45 Connector Series
To get the most from your RJ45 connector series, follow a few practical guidelines:
- Match shielded connectors with shielded cable and properly bonded grounding for maximum EMI protection.
- Keep bend radius and pull force within the recommendations of your cable and connector vendors.
- Maintain category-specific limits for channel length and insertion loss.
- Use dust caps in data-center and industrial environments to protect unused ports.
- Document labeling and patching schemes to simplify future moves, adds and changes.
Why Partner with Dragon Well for Your RJ45 Connector Series
Dragon Well Electronics focuses on cost-effective, reliable connectivity for OEM and ODM customers around the world. Our RJ45 connector series includes PCB-mount ports, keystone jacks, inline couplers and customized cable assemblies engineered to match your plating, packing and performance requirements.
You can reference global leaders such as Amphenol Socapex, Molex, Samtec, LP and FS for ecosystem ideas and interoperability, while relying on Dragon Well for flexible, cost-down alternatives and fast engineering support tailored to your exact bill of materials.
Order & RFQ
Need samples or a cost-down cross-reference for your RJ45 connector series project? Share your BOM or drawing and we’ll match plating and packing codes 1:1.
