Tactile switch 5×5 SMT designed for compact keypads and HMI inputs.

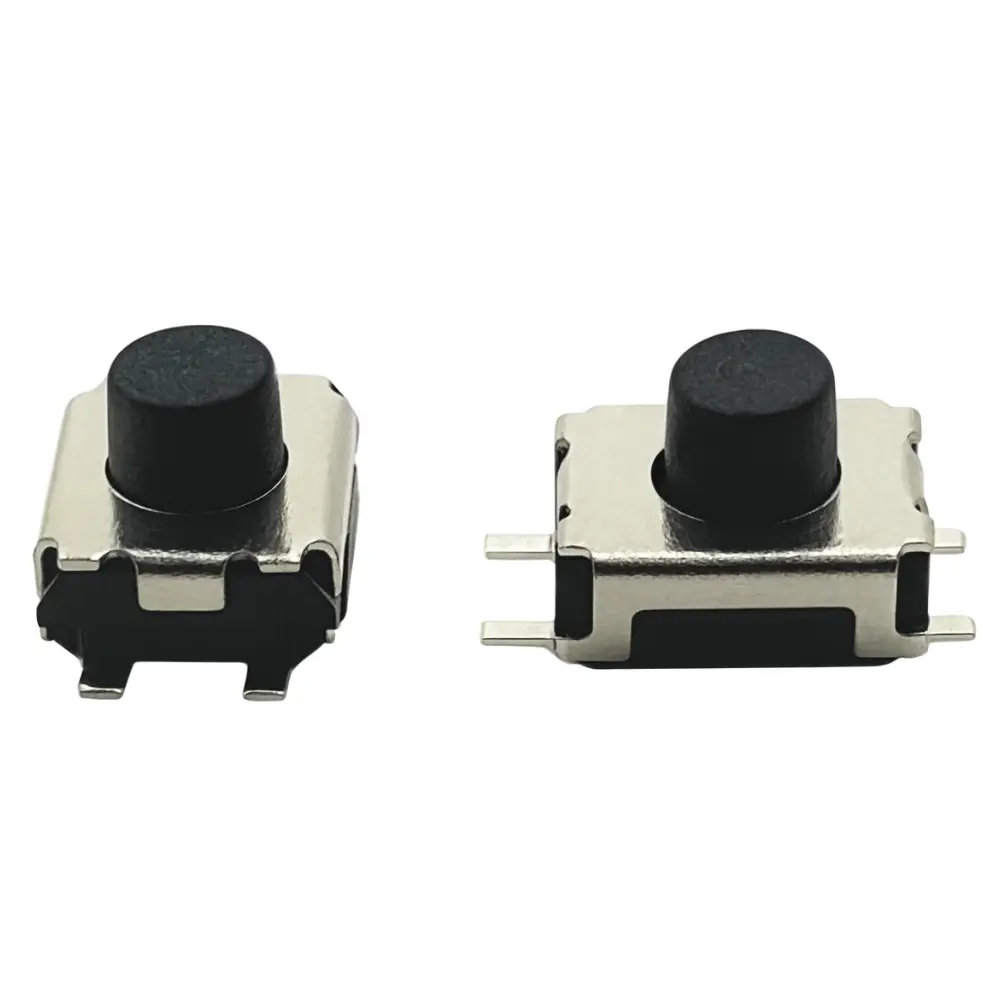

Dragon Well model DW-TS-S05570X-XXTR-01 is a surface-mount tactile switch for keypads and HMI inputs. It uses a top-actuated round plunger (Ø1.7 ± 0.2 mm), SMT gull-wing terminals, and a 5.0×5.0 mm body. A recommended PCB layout (top view) is given on the drawing. The product is RoHS compliant and supplied on Tape & Reel.
Why choose this tactile switch 5×5 smt
- Compact & low-profile for dense layouts.
- Two operating-force options: 160 ± 30 gf or 250 ± 50 gf to match the desired key feel.
- Consistent click from Ag-plated SUS301 dome.
- Durable: ≥70,000 cycles, −40 °C to +85 °C operating range.
Drawing-derived specifications
- Dimensions / footprint: body 5.0×5.0 mm; height H ± 0.2 mm with options ≈ 1.8 / 2.0 / 2.5 / 3.0 mm
- Actuator: top-press round plunger Ø1.7 ± 0.2 mm.
- Mounting: SMT gull-wing pads; low profile.
- Electrical rating: DC 12 V, 50 mA.
- Contact resistance: ≤ 100 mΩ.
- Insulation resistance: ≥ 100 MΩ.
- Dielectric withstand: AC 250 V / 1 minute.
- Operating force options: 160 ± 30 gf or 250 ± 50 gf.
- Travel (operating stroke): 0.15 ± 0.10 mm.
- Life requirement: 70,000 operations.
- Operating temperature: −40 °C to +85 °C.
- Recommended PCB layout (top view): pad 0.70 mm width, pad length 2.30 mm, pad-to-pad span 5.00 mm, row spacing 2.80 mm (per drawing).
- Compliance: RoHS; REACH SVHC / Low-Halogen on request.
- Packaging: TR = Tape & Reel.
Materials (per BOM)
- Cover / top plate: SUS304 stainless steel.Plunger (button): LCP, UL 94V-0, black.
- Base: LCP, UL 94V-0, black.
- Dome spring (contact): SUS301, Ag-plated.
- Latch/clip (contact piece): Ag plating.
- Dust seal: Polyurethane ring.
Applications & fit
Remote controls, wearables, IoT nodes, handheld instruments, consumer-electronics keypads, and small automotive accessories any design needing a 5×5 mm SMT tactile switch with selectable feel and a low profile.
Selection notes for tactile switch 5×5 smt:
Choose the operating force (160 gf vs. 250 gf) to match the user’s expected feel and the thickness of the keycap or overlay. The 160 gf option is suitable for light keypads in remote controls and wearables, while the 250 gf option resists accidental presses in handheld instruments or automotive accessories. Height options (≈1.8 / 2.0 / 2.5 / 3.0 mm) help you align the actuator with bezels or silicone keys without overtravel. For long service life, keep the stroke within 0.15 ± 0.10 mm and avoid side-loading the plunger. The silver-plated SUS301 dome provides a crisp click and stable contact resistance when used within the DC 12 V / 50 mA rating.
SMT tactile switch – selection notes
PCB & assembly notes
- Use the top-view land pattern from the drawing; keep paste volumes consistent on all four pads.
- Reflow per solder-paste spec; verify coplanarity and smooth actuator travel after reflow.
- Avoid side loads on the plunger during handling; check actuation force after assembly.
Assembly & reflow details:
Follow the top-view land pattern: pad width 0.70 mm, length 2.30 mm, pad-to-pad span 5.00 mm, and row spacing 2.80 mm. Use a 0.10–0.12 mm stencil and aim for even paste deposits on all four pads to keep the part level during reflow. Verify coplanarity before placement and avoid pushing on the plunger while the solder is molten. After reflow, inspect solder fillets and test several units for actuation feel. If cleaning is required, use a controlled process and avoid liquids that could wick into the plunger. Store tape-and-reel per MSL guidance to maintain consistent click force.
Quality & compliance
RoHS listed on the drawing. REACH SVHC and Low-Halogen declarations are available upon request. For document control, include the full part number with option codes on your PO so QA can match COC and labels.
Conclusion
Need a compact, reliable 5×5 mm SMT tactile switch with crisp feedback and force options? DW-TS-S05570X-XXTR-01 delivers repeatable feel, robust life, and easy SMT assembly.
CTA: Request samples or a quote via Contact / RFQ.
