This USB 2.0 Type A Dual Stacked Connector is optimized for right angle through hole assembly with a shielded shell.

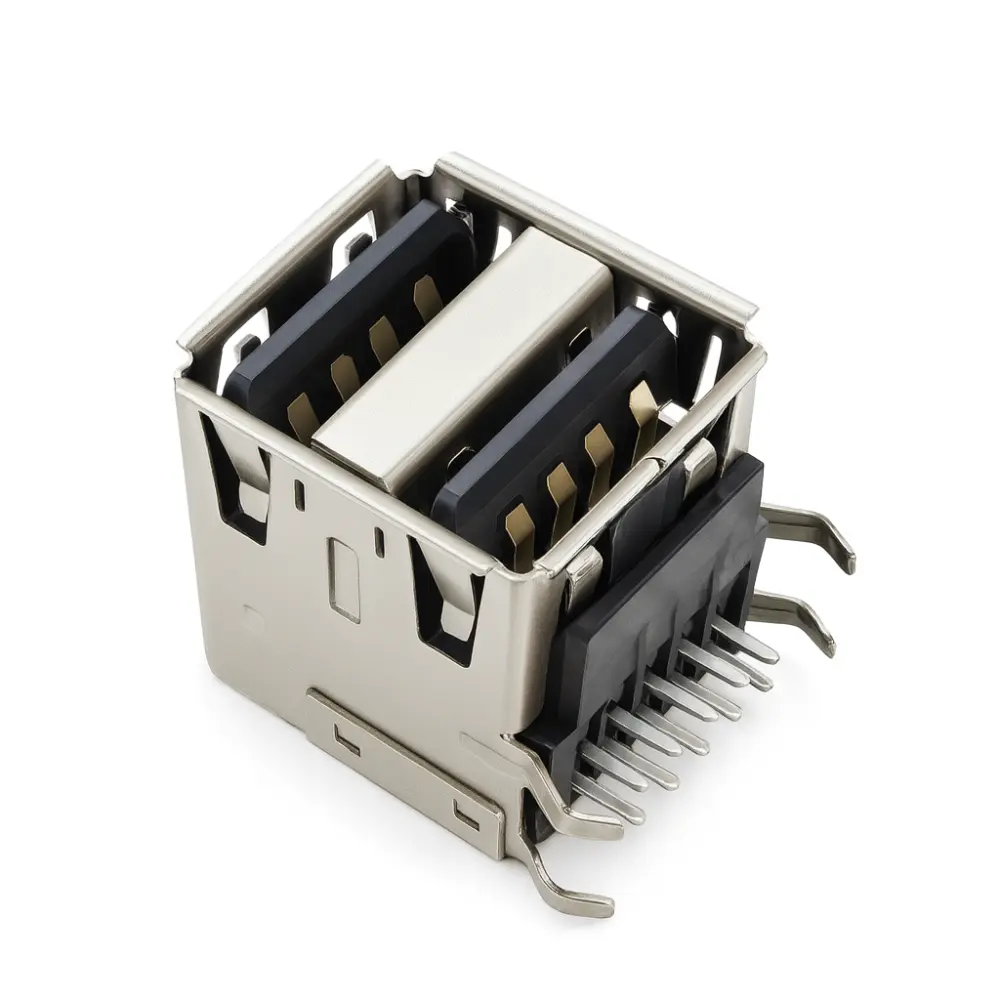

USB 2.0 Type A Dual Stacked Right Angle Through‑Hole Receptacle
The Dragon Well model DW‑U20‑DA803‑XXTP‑02 is a dual stacked USB Type A receptacle for board‑edge I/O. It uses a right‑angle through‑hole (THT) structure with an integrated metal shield and four signal pins per port. A recommended PCB layout (component‑side view) is provided on the drawing with signal pin holes and shield stakes for strong mechanical retention. The product is RoHS compliant and supplied in tray packing.
This USB 2.0 Type A Dual Stacked Connector is designed for board-edge I/O with right-angle through-hole strength and a fully shielded shell.
Why choose this USB 2.0 Type A Dual Stacked Connector
- Save panel & PCB space: dual stacked Type A in one footprint.
- Strong retention: through‑hole tails plus shield stakes handle insertion/withdrawal forces on the panel.
- Plating flexibility: multiple gold thickness options on the mating area (Gold Flash / 3 / 5 / 15 / 30 µin) to balance durability and cost.
- Wide operating range: −40 °C to +85 °C for consumer and industrial environments.
Internal link ideas: About / Capabilities · USB Connectors category · Contact / RFQ
Drawing‑derived specifications ( USB 2.0 Type A Dual Stacked Connector)
- Form factor: USB 2.0 Type A, dual stacked receptacle.
- Orientation / Mounting: Right‑angle, through‑hole (THT) with shield stakes.
- Key outline dimensions (from drawing): front width 14.70 mm; top width 13.10 mm; overall height 19.05 mm; board depth 17.35 mm; individual port window 12.50 ± 0.10 mm.
- Typical tail size: 0.60 ± 0.05 mm square posts (staggered insertion lengths per drawing).
- Electrical ratings: 0.5 A per contact; 30 V AC; contact resistance ≤ 30 mΩ; insulation resistance ≥ 1000 MΩ; dielectric withstand 750 V AC for 1 minute.
- Mechanical: contact retention ≥ 0.7 kgf; shielded shell for panelized use.
- Operating temperature: −40 °C to +85 °C.
- Materials:
- Insulator: PBT, UL 94V‑0, black.
- Contacts: copper alloy C2680; Au on mating area, Sn on solder tails, Ni underplate.
- Shell / shield & isolator parts: SPCC steel, nickel plated.
- Finish (per part code): contacts with gold on mating area (Gold Flash / 3 / 5 / 15 / 30 µin options); 60 µin min tin on solder tail area; ≥ 30 µin Ni underplating overall; shell ≥ 30 µin Ni underplating.
- Compliance: RoHS (REACH SVHC and Low‑Halogen declarations available on request).
- Packaging: TP = Tray Packing.
Recommended PCB layout: Provided on the drawing (component‑side view) with signal pin pattern and shield stakes for robust board retention.
PCB layout & footprint notes
For reliable assembly:
- Drill holes per drawing for signal pins and shield stakes; keep annular rings consistent for even wetting.
- Keep panel cutout aligned to the 14.70 mm front width and observe the stacked height when planning bezel openings.
- When wave or selective soldering, orient to minimize shadowing from the shield; verify solder fill around the 0.60 mm posts and the shield stakes.
Applications & fit
Ideal for PCs and USB hubs, set‑top boxes, gateways/routers, industrial controllers, and embedded boards—any design needing a compact dual Type A interface with right‑angle through‑hole robustness.
Explore related families in USB Connectors; for board‑mount receptacles with different orientations or speeds, see our USB 3.x and USB Type C options.
Design notes & selection guide
- Choose dual stacked when panel space is limited but two Type A ports are required.
- Select gold thickness based on usage cycles: higher µin for frequent mate/unmate or harsher environments; gold‑flash or 3–5 µin for cost‑sensitive, low‑cycle use.
- Confirm bezel and PCB keep‑outs against the listed outline dimensions (14.70 mm face width; 19.05 mm height; 17.35 mm board depth).
Assembly recommendations
- Inspect coplanarity of the tail tips before insertion. Ensure full seating against the PCB and chassis before soldering.
- Follow solder process guidelines to achieve full barrel fill on 0.60 mm posts and solid bonding on shield stakes.
- After solder, verify port alignment and latch feel with a standard USB Type A plug gauge.
Quality & compliance
Listed as RoHS compliant on the drawing. REACH SVHC and Low‑Halogen statements are available upon request. For document control, specify the full part number with plating code on your PO so QA can match certificates and labels.
Conclusion
Need two reliable USB‑A ports in minimal panel space? DW‑U20‑DA803‑XXTP‑02 delivers stacked density, through‑hole strength, and configurable gold plating.
CTA: Request samples or a quote via Contact / RFQ.
Ordering information
Order code: DW-U20-DA803-XXTP-02 (USB 2.0 Type A, dual stacked, right‑angle THT).
Plating options (XX): 01 = Gold Flash; 03 = 3 µin; 05 = 5 µin; 15 = 15 µin; 30 = 30 µin (gold on mating area; Sn on tails; Ni underplate).
Packaging code: TP = Tray Packing.
