0.5 mm vertical board-to-board socket designed for compact mezzanine interconnects between printed circuit boards. It features a vertical (180°) mating orientation with SMT mounting. Available in multiple pin counts from 80 to 220 positions (see series table on drawing)
Highlights: Fine-pitch 0.5 mm grid; vertical 180° mating; 6.0 mm stack height; selective Au/Ni plating options (Flash–30 µin); SMT, tape-and-reel; −40~+85 °C
Applications: Networking equipment, telecom modules, industrial automation controllers, servers & storage, laptops/tablets/handhelds.

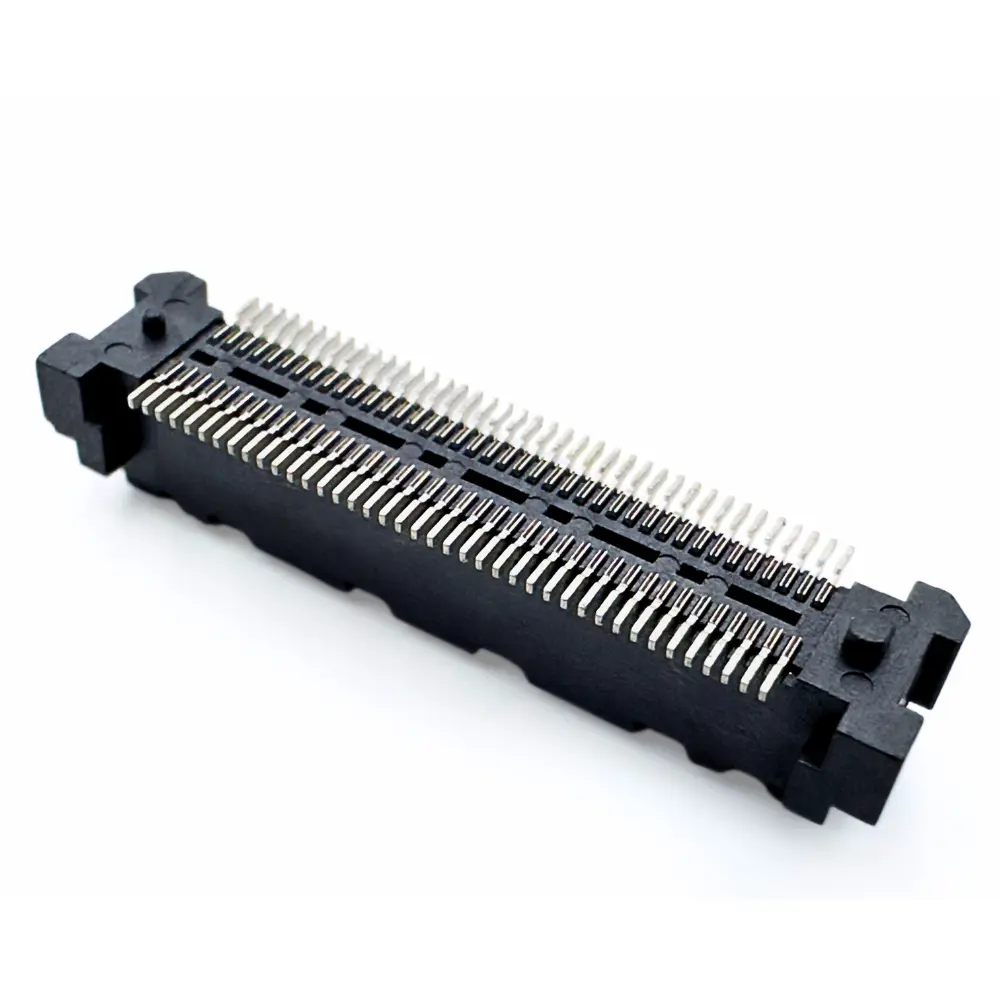

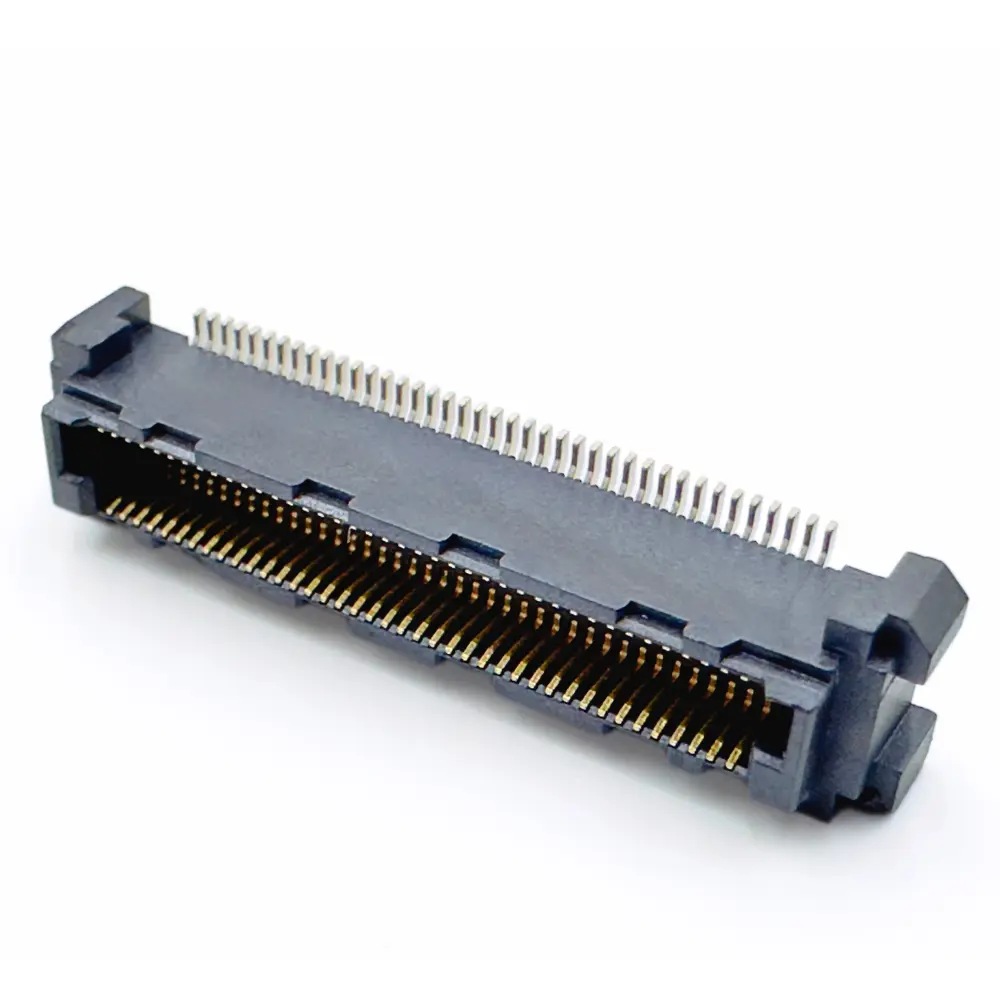

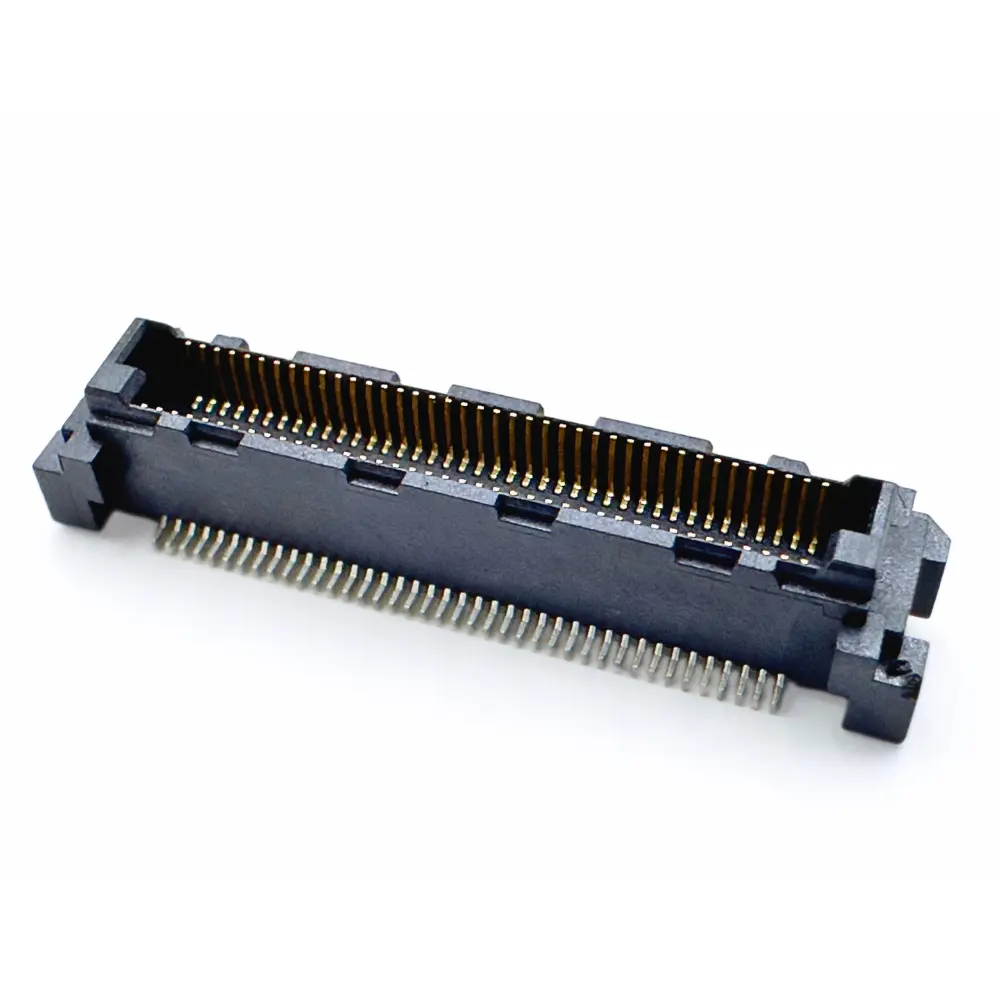

0.5 mm vertical board-to-board socket DW-BTB-F050151WV80P-01TR-01 is a fine-pitch mezzanine connector for compact electronics that need high pin density with dependable stacking. The series uses a 180° vertical mating orientation and SMT terminals supplied in tape-and-reel for high-speed placement
| 1. General | |||
| Status | Active | Category | Board-to-Board Connectors |
| Series | DW-BTB-F050151WnP-XXTR-01 | Description | 0.50 mm Pitch Board-to-Board Socket, Vertical (180°), SMT, Mated Height 6.00 mm, 80–220 Circuits |
| Comments | RoHS Compliant | Product Name | 0.5 mm Pitch Board to Board SOCKET H=6.0 |
| 2. Electrical | |||
| Current – Maximum per Contact | 0.5 A AC(rms)/DC | Voltage – Maximum | N/A |
| Contact Resistance (Max) | 55 mΩ (initial), 75 mΩ (after) | Insulation Resistance (Min) | 100 MΩ |
| Dielectric Withstanding Voltage | 200 V AC (rms) | ||
| 3. Physical | |||
| Actuator Type | N/A | Circuits (Loaded) | 80–220 |
| Color – Resin | N/A | Contact Position | N/A |
| Durability (mating cycles max) | 30 | Mated Height | 6.00 mm |
| Material – Metal | Copper Alloy | Material – Plating Mating | Gold (Flash–30 µin) over Nickel (options) |
| Material – Plating Termination | Tin over Nickel | Material – Resin | Thermoplastic, UL 94V-0 |
| Net Weight | N/A | Orientation | Vertical |
| Packaging Type | Tape & Reel (TR) | PCB Locator | Yes — positioning pegs (Ø1.40) |
| PCB Mounting | Surface Mount (SMT) | PCB Retention | SMT solder hold-downs |
| Pitch – Mating Interface | 0.50 mm | Polarized to PCB | Yes |
| Stackable | Yes | Temperature Range – Operating | −40 °C to +85 °C |
| Wire/Cable Type | N/A | Mating Force | 40.0 kgf Max |
| Unmating Force | 4.4 kgf Min | ||
