The 1.00mm dual row SMT pin header 24 pin DW-PH-2100833WV24P-01TR-01 is a vertical surface-mount PCB header with 24 contacts, 1.00 mm pitch, 0.75 A / 30 V rating, 0.30 mm square brass pins, gold-flash plating, and PA6T+30% UL 94V-0 insulation. It features a plastic pick-and-place cap, tape-and-reel packaging, 500-cycle durability, and RoHS-compliant construction.
Applications: Board-to-board interconnection, embedded control boards, communication equipment, industrial electronics, instrumentation, test equipment, compact electronic modules, and high-density PCB assemblies.
Highlights: 1.00 mm pitch; 24 pins; dual-row configuration; vertical SMT mounting; 1.00 mm base height; 0.30 mm square pins; 0.75 A current rating; 30 V voltage rating; ≤20 mΩ contact resistance; ≥1000 MΩ insulation resistance; 120 VAC/1 minute dielectric withstand; -55°C to +125°C operating range; 500-cycle durability; brass contacts; gold-flash plating; PA6T+30% UL 94V-0 insulator; 255–265°C reflow peak for 5–10 seconds; plastic pick-and-place cap; tape-and-reel packaging; RoHS compliant.

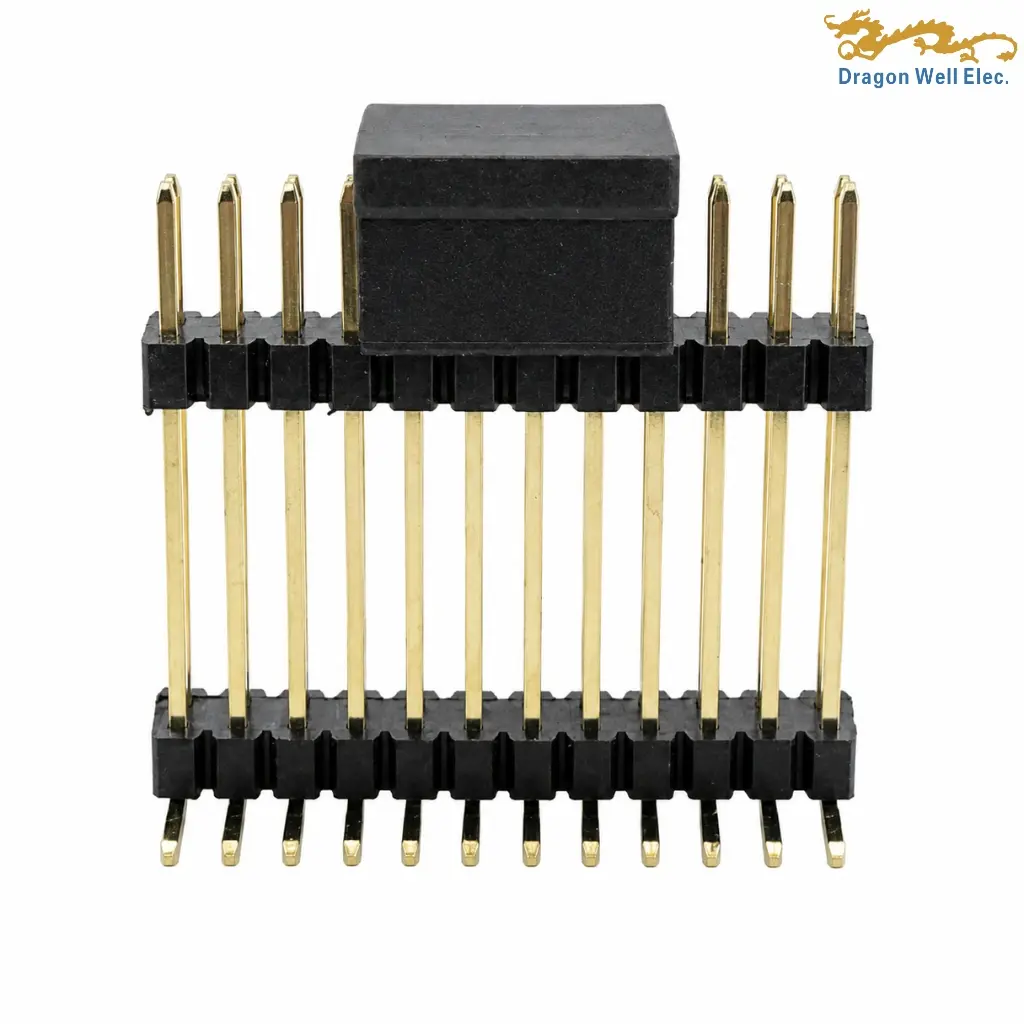

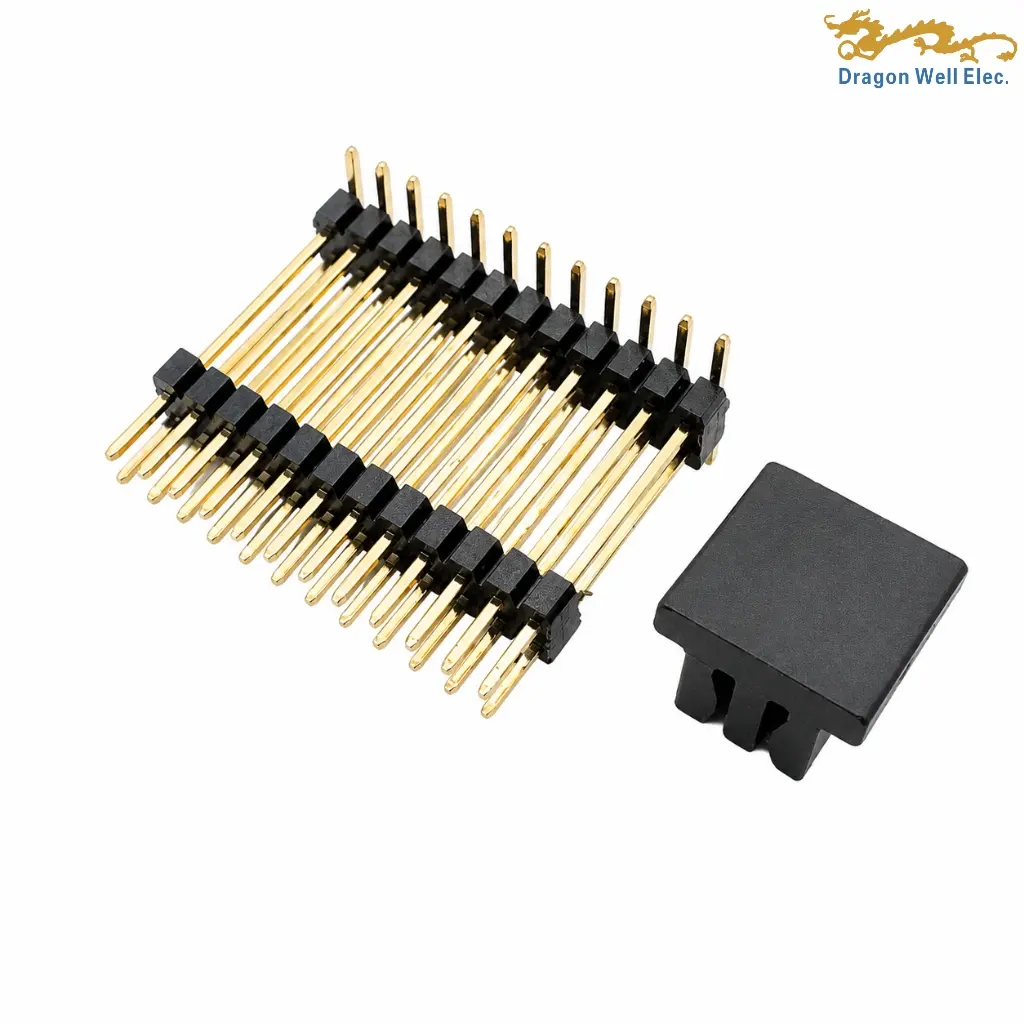

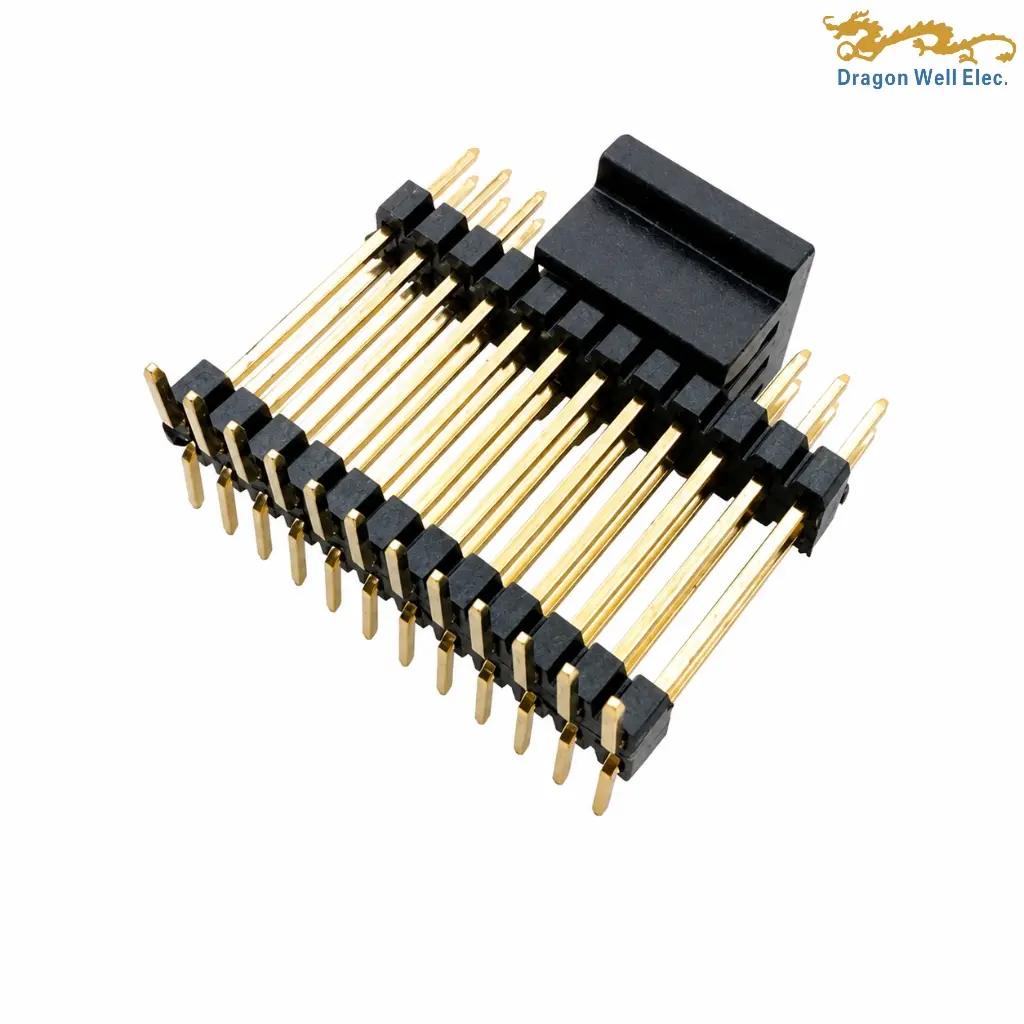

1.00mm dual row SMT pin header 24 pin DW-PH-2100833WV24P-01TR-01 is a compact vertical surface-mount PCB header designed for high-density board-level interconnection. The Dragon Well drawing confirms a 1.00 mm pitch, 24 total contacts in a dual-row arrangement, 0.30 mm square pins, and a 1.00 mm base height. A plastic pick-and-place cap is incorporated for automated SMT handling, while the TR code specifies tape-and-reel packaging.
The connector is rated at 0.75 A and 30 V. Electrical performance includes 20 mΩ maximum contact resistance, 1000 MΩ minimum insulation resistance, and 120 VAC dielectric withstand voltage for one minute. The specified operating temperature range is -55°C to +125°C, and durability is rated at 500 cycles.
This 1.00mm dual row SMT pin header 24 pin uses brass contacts and PA6T+30% insulation material rated UL 94V-0. For model DW-PH-2100833WV24P-01TR-01, plating code 01 identifies gold-flash plating. The drawing also specifies an IR reflow peak soldering temperature of 255°C to 265°C for 5–10 seconds. The recommended PCB footprint uses 1.00 mm contact spacing and 0.50 mm pad width.
The 1.00mm dual row SMT pin header 24 pin is suitable for compact board-to-board connections, embedded electronics, communication equipment, industrial controls, instrumentation, test equipment, and other high-density PCB assemblies. Molex and Samtec also use established terminology such as 1.00 mm pitch, dual-row, vertical, surface-mount PCB header/terminal strip for comparable connector families.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-PH-2100833WVnP-XXTR-01 | Description | 1.00 mm Pitch Pin Header, Dual Row, SMT Type, Base 1.00 mm |
| Application | Signal / Board-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount Header | Product Name | Pin Header CONN |
| Keywords | 1.00 Pin Header, Dual Row Pin Header, SMT Header, Surface Mount Header, Vertical Header | Contact Type | Pin |
| Electrical | |||
| Rated Voltage | 30 V | Current Rating | 0.75 A |
| Contact Resistance | 20 mΩ Max. | Insulation Resistance | 1000 MΩ Min. |
| Dielectric Withstand | 120 V AC for 1 minute | Norm | RoHS Compliant |
| Physical | |||
| Breakaway | N/A | Circuits / Number of Positions | Variable, nP |
| Circuits Maximum | N/A | Color – Housing | N/A |
| Durability / Mating Cycles | 500 cycles | Flammability | UL94V-0 |
| Glow-Wire Capable | N/A | Lock to Mating Part | N/A |
| Material – Metal | Brass | Material – Plating | See part number plating code |
| Material – Plating Solder | N/A | Material – Resin | PA6T +30%, UL94V-0 |
| Metal Shape and Form | SQ0.30 | Number of Rows | 2 |
| Connector Orientation | Vertical / 180° | Packaging Type | Tape Reel (TR), with plastic cap |
| PCB Locator | N/A | PCB Retention | N/A |
| PC Tail Length | N/A (SMT) | Pitch – Mating Interface | 1.00 mm |
| Plating Min – Mating | See part number code | Plating Min – Termination | N/A |
| Polarized to Mating Part | N/A | Polarized to PCB | N/A |
| Shrouded | No | Stackable | N/A |
| Operating Temperature | -55 °C to +125 °C | Termination Interface | Surface Mount |
| Square Terminal Post | SQ0.30 | PCB Mount Retention | N/A |
| PCB Mount Alignment | N/A | Connector Mounting | Surface Mount / SMT |
| PCB Thickness Recommended | N/A | Row-to-Row Pitch | 2.90 mm |
| Height of Connector | 7.75 ± 0.25 mm | Recommended PCB Hole Dia. | N/A (SMT) |
| Solder Process Data | |||
| Max-Cycle | N/A | Max-Duration | 10s Max |
| Lead-Free Process Compatible | Yes (RoHS Compliant) | Max-Temp | 260°C±5°C |
