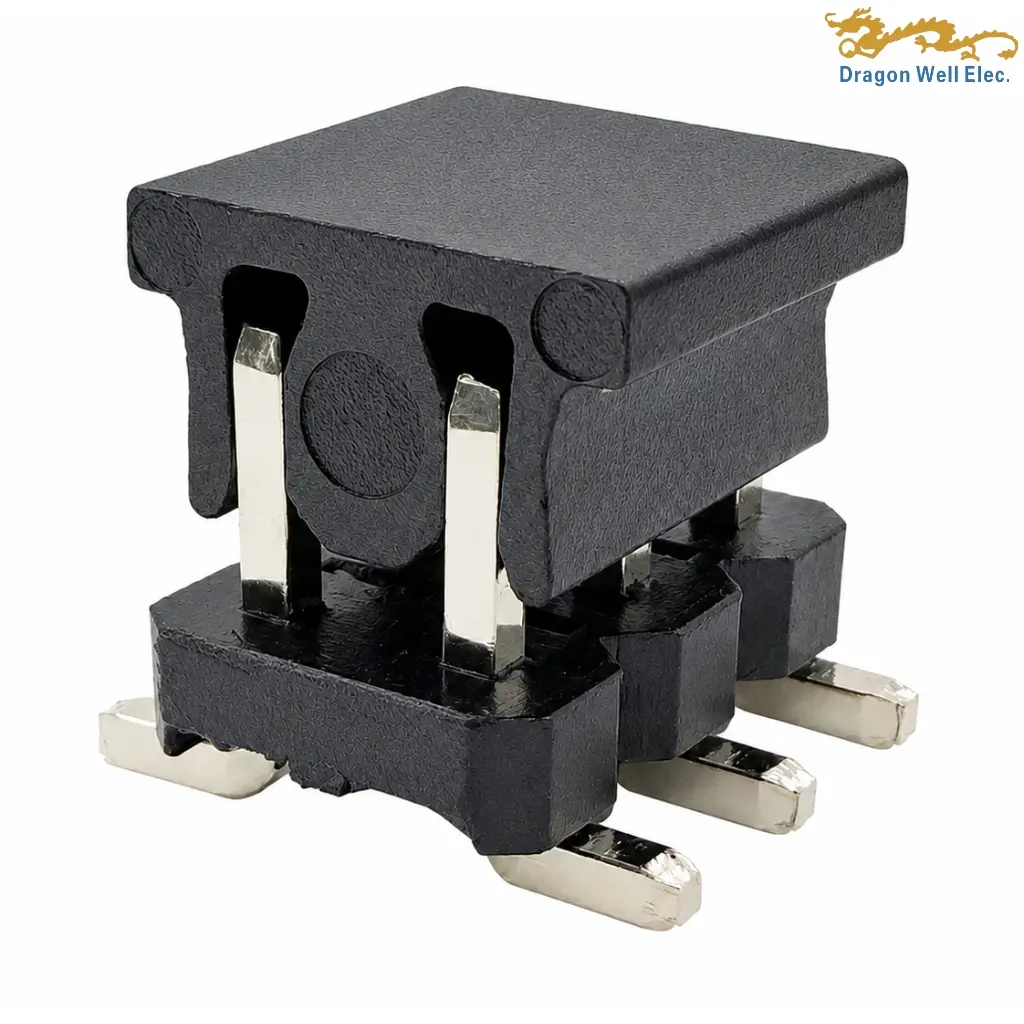

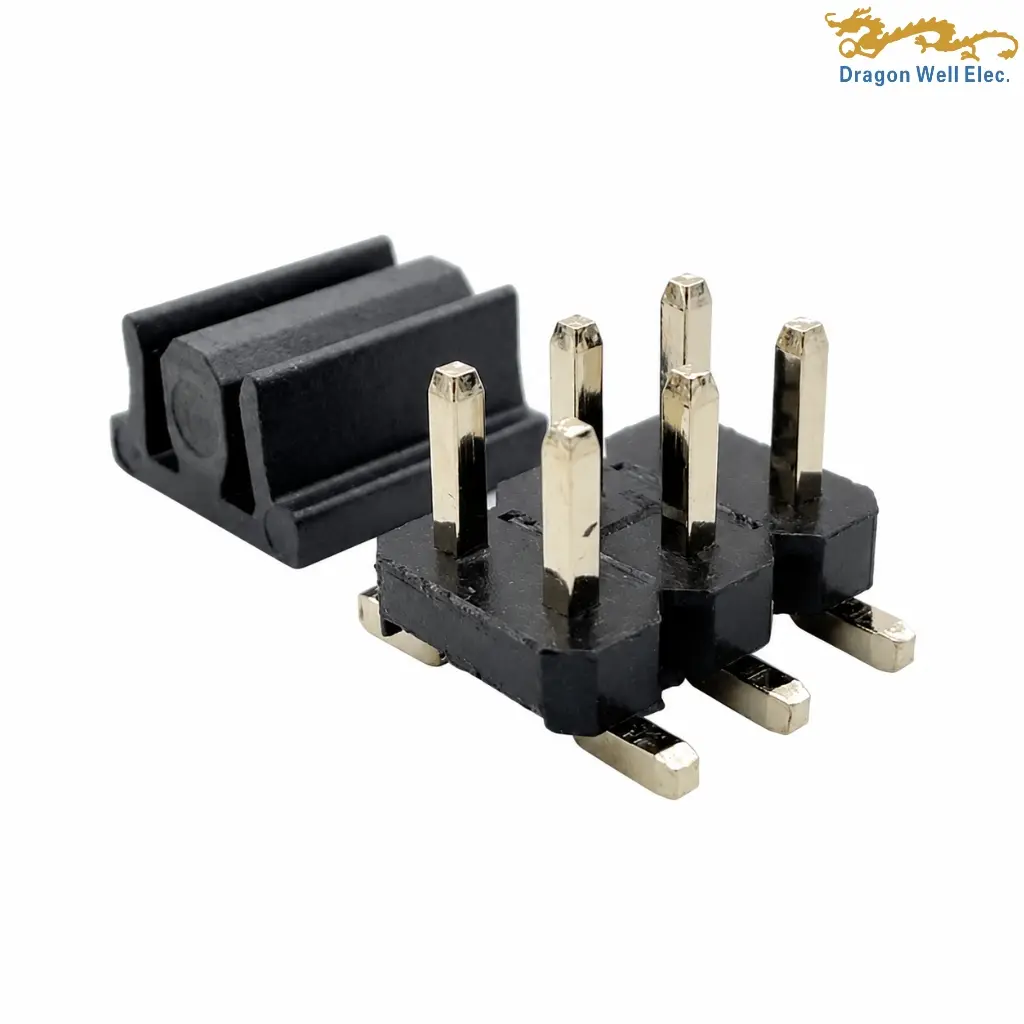

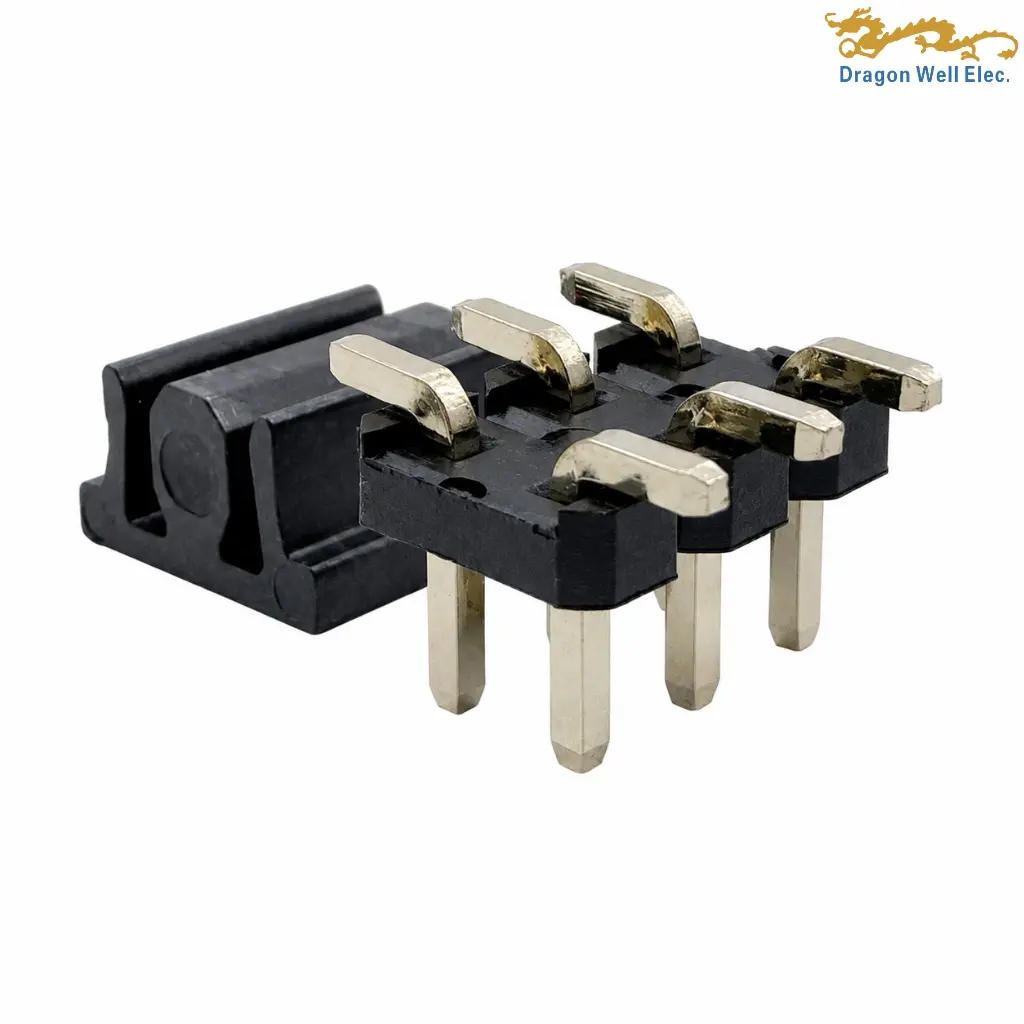

2.54mm Dual Row SMT Pin Header Connector with 6 positions and 1.50mm base height is designed for reliable PCB connections. It features a compact SMT structure, UL94V-0 polyester housing, brass contacts, and Au/Sn over Ni plating options for stable electrical performance.
2.54mm Dual Row SMT Pin Header Connector is a compact and reliable PCB interconnect solution designed for electronic equipment requiring stable board-level connections. The DW-PH-2254568WV06P-01TR-02 features a dual-row structure with a standard 2.54mm pitch and surface mount technology (SMT) design, providing efficient PCB assembly and dependable electrical performance.
This dual row SMT pin header connector is manufactured with a high-quality polyester (UL94V-0) insulator housing and brass contacts to ensure mechanical stability and reliable signal transmission. The connector supports gold or tin plating over nickel underplating options, improving contact performance, solderability, and long-term durability in different application environments.
With a rated current of 3.0A, maximum contact resistance of 20mΩ, insulation resistance of 1000MΩ minimum, and withstand voltage of 1000V AC/DC, this 2.54mm pin header connector provides dependable electrical characteristics for various electronic systems. The SMT mounting structure is suitable for automated PCB assembly processes and helps optimize manufacturing efficiency.
The compact 1.50mm base height design allows space-efficient integration into modern electronic assemblies. Its dual-row configuration provides increased connection density while maintaining compatibility with standard PCB layouts.
The DW-PH-2254568WV06P-01TR-02 is suitable for applications including industrial control equipment, communication devices, embedded systems, automation equipment, and consumer electronics. Dragon Well Electronics can provide customized pin header solutions with different pin counts, plating options, heights, and packaging methods to meet OEM and ODM requirements.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-PH-2254568WV06P-01TR-02 | Description | 2.54 mm pitch Pin Header, dual row, 6 positions, vertical 180°, SMT type, 1.50H base |
| Application | Signal / Board-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount Header | Product Name | Pin Header CONN |
| Keywords | 2.54 mm Pin Header, Dual Row Pin Header, Vertical SMT Header, 6 Pin Header | Contact Type | Pin |
| Electrical | |||
| Rated Voltage | N/A | Current Rating | 3.0 A |
| Contact Resistance | 20 mΩ Max. | Insulation Resistance | 1000 MΩ Min. |
| Dielectric Withstand | 1000 V AC/DC | Norm | N/A |
| Physical | |||
| Breakaway | N/A | Circuits (Number of Positions) | 6 |
| Circuits (Maximum) | N/A | Color – Housing | — |
| Durability (Mating Cycles) | N/A | Flammability | UL94V-0 |
| Glow-Wire Capable | N/A | Lock to Mating Part | N/A |
| Material – Metal | Brass | Material – Plating | Gold Flash over Ni (Plating Code 01) |
| Material – Plating Solder | N/A | Material – Resin | Polyester, UL94V-0; drawing separately lists PA6T as Standard |
| Metal Shape and Form | 0.64 mm terminal dimension shown | Number of Rows | 2 |
| Connector Orientation | Vertical 180° (WV) | Packaging Type | Tape Reel (TR) |
| PCB Locator | N/A | PCB Retention | N/A |
| PC Tail Length | 2.00 ± 0.15 mm | Pitch – Mating Interface | 2.54 mm |
| Plating Min – Mating | Gold Flash (Code 01) | Plating Min – Termination | N/A |
| Polarized to Mating | N/A | Polarized to PCB | N/A |
| Shrouded | No | Stackable | N/A |
| Operating Temperature | -40°C to +105°C | Termination Interface | Surface Mount |
| Square Terminal Post | 0.64 mm terminal dimension shown | PCB Mount Retention | N/A |
| PCB Mount Alignment | N/A | Connector Mounting | Surface Mount |
| PCB Thickness (Recommended) | N/A | Row-to-Row Pitch | 2.54 ± 0.10 mm |
| Height of Connector | 5.50 mm overall shown with CAP; base height 1.50 ± 0.15 mm | Recommended PCB Hole Dia. | N/A |
| Solder Process Data | |||
| Max-Cycle | N/A | Max-Duration | 5 s |
| Lead-Free Process Compatible | Yes (RoHS Compliant) | Max-Temp | 260°C ± 5°C |
