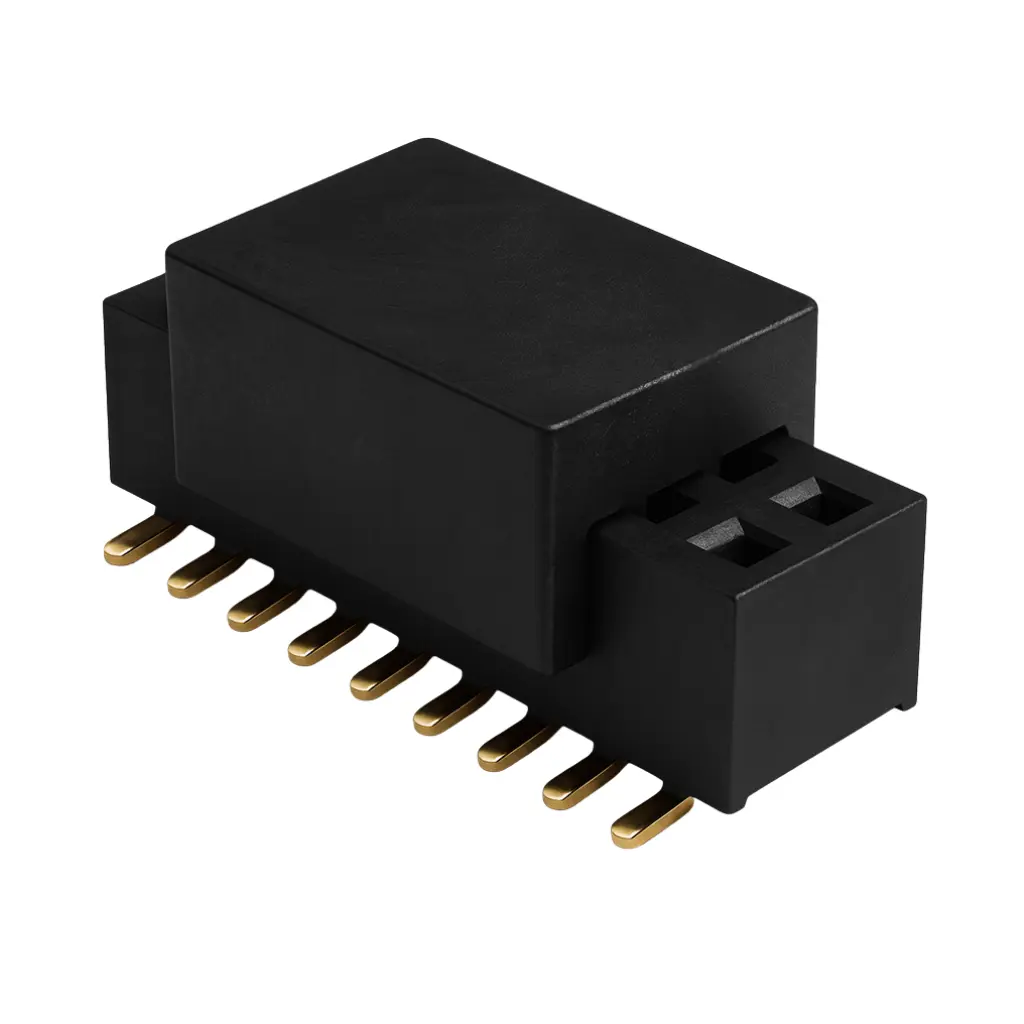

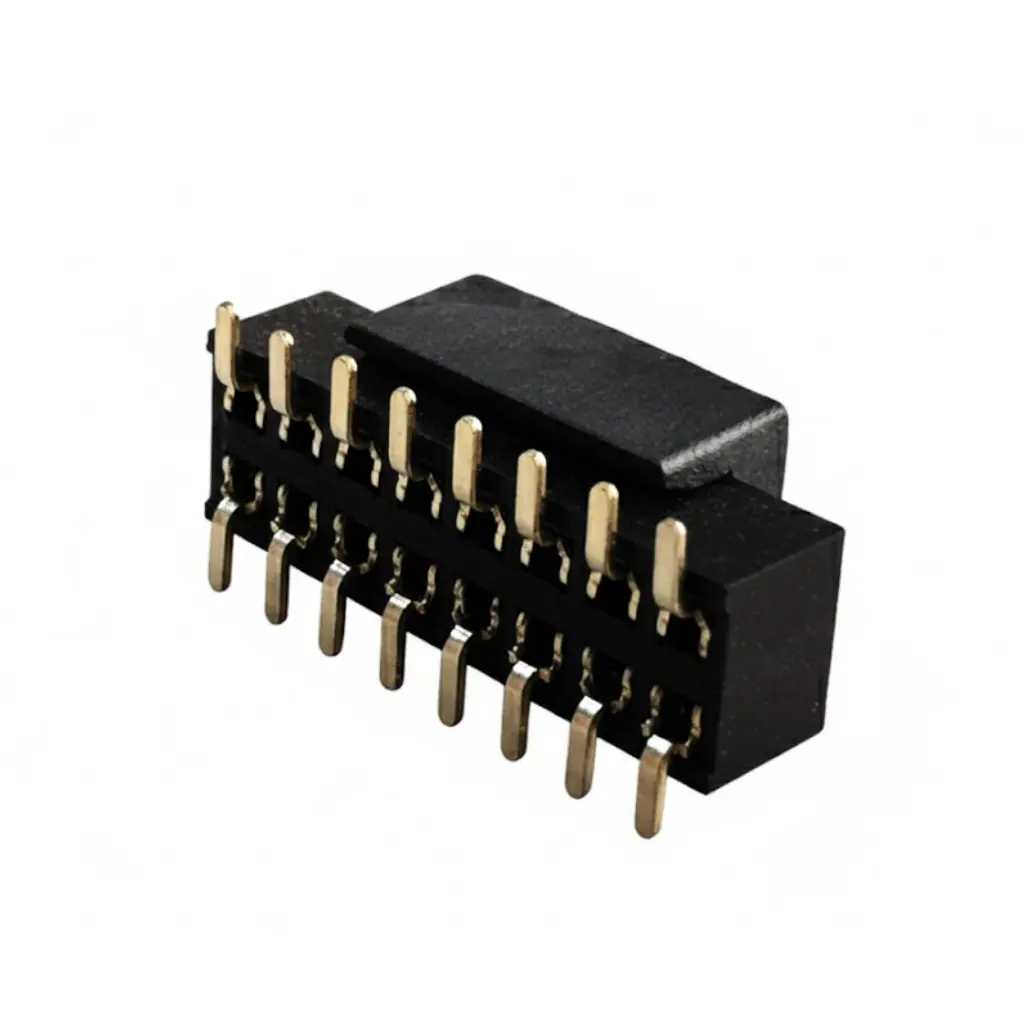

The 1.0mm SMT dual row female header is a low-profile 2.2mm-high, fine-pitch surface-mount socket featuring phosphor-copper gold-plated contacts, PA6T UL94V-0 housing and 0.75A per pin rating, ideal for dense, miniaturized PCB assemblies.
Applications:
Compact embedded systems and controller boards
IoT nodes, sensor modules and communication devices
Medical and wearable electronics with tight space budgets
Consumer gadgets requiring fine-pitch board-to-board or cable-to-board interfaces
Highlights:
1.0mm SMT dual row female header for high-density layouts
Fine-pitch 1.00mm grid with 0.30mm × 0.15mm contact terminals
Ultra-low profile: 2.2mm overall height, 1.80mm pin length
Rated 0.75A/contact, ≤20mΩ contact resistance, ≥1000MΩ insulation resistance
Withstands 120V AC/1 min, up to 500 mating cycles
Phosphor-copper contacts with nickel underplate and gold flash / 15–30μin Au options
PA6T UL94V-0 housing supports operation up to 120°C and reflow SMT processes
Supplied in tape-and-reel for automated pick-and-place assembly; RoHS and REACH compliant

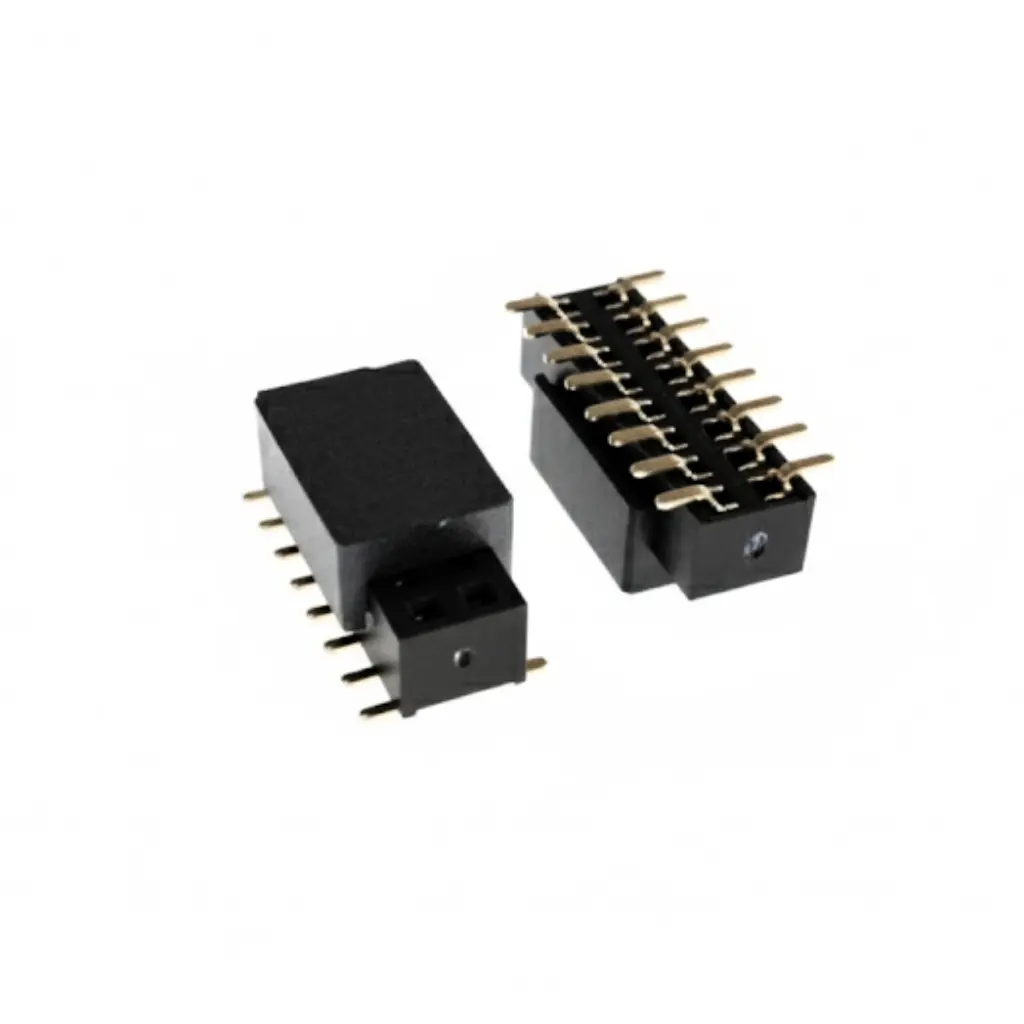

1.0mm SMT dual row female header is a fine-pitch surface-mount connector optimized for compact, high-density PCB interconnects. This 1.0mm SMT dual row female header provides two parallel rows of receptacles on a 1.00mm grid in both directions, enabling reliable mating with 1.0mm male headers or blade contacts in space-constrained embedded designs.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-FH-210026WV16P-01PE-01 | Description | 1.0mm Pitch Dual Row Female Header, SMT Type, Low Profile 2.05mm Height, Gold Plated Contacts, PE Bag Packaging |
| Application | Board-to-Board, Signal, Wire-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount connector | UPC | — |
| Keywords | Board-to-Board connector, PCB Connector, Female Header, SMT Pin Header, Header connector, Dual Row Pin Header, Low Profile Connector, Surface Mount Connector, Electronic Connector | Connector & Contact Terminates to | Printed Circuit Board |
| Electrical | |||
| Rated Voltage | 30V AC | Current Rating | 0.75A |
| Contact Resistance | ≤20mΩ Max | Insulation Resistance | ≥1000MΩ Min |
| Dielectric Withstanding Voltage | 120V AC / 1min | Norm | — |
| Physical | |||
| Breakaway | No | Circuits (Number of Positions) | 26 |
| Circuits (Maximum) | — | Color – Housing | Black |
| Durability (mating cycles max) | 500 | Flammability | UL94V-0 |
| Glow-Wire Capable | No | Lock to Mating Part | No |
| Material – Metal | Phosphor Copper | Material – Plating Mating | Gold (Au) 0.5~0.8μ over Ni |
| Material – Plating Soldering Area | Au/Ni | Material – Resin | PA6T UL94V-0 |
| Metal Shape & Form | Square Pin | Number of Rows | 2 |
| Connector Orientation | Vertical / Straight | Packaging Type | PE Bag |
| PCB Locator | No | PCB Retention | No |
| PC Tail Length | SMT pads only | Pitch – Mating Interface | 1.00mm |
| Plating min – Mating | 0.76μm (30μ”) | Plating min – Termination | 0.76μm |
| Polarized to Mating Part | No | Polarized to PCB | No |
| Shrouded | No | Stackable | No |
| Operating Temperature | -55° to +120°C | Termination Interface Style | Surface Mount |
| Square Terminal Post & Tail Dimension | Pin: 0.3×0.15mm | PCB Mount Retention | W/O |
| PCB Mount Alignment | W/O | Connector Mounting Type | PCB Mount |
| PCB Thickness (Recommended) | 1.57mm | Row-to-Row pitch | 1.00mm |
| Net Weight | — | Height of connector above PCB | 2.2mm |
| Solder Process Data | |||
| Max-Duration | 5~10 sec | Lead-Free Process Capability | IR-Reflow |
| Max-Cycle | 1 | Max-Temp | 260°C ±5°C |
