Original price was: $1.00.$0.01Current price is: $0.01.

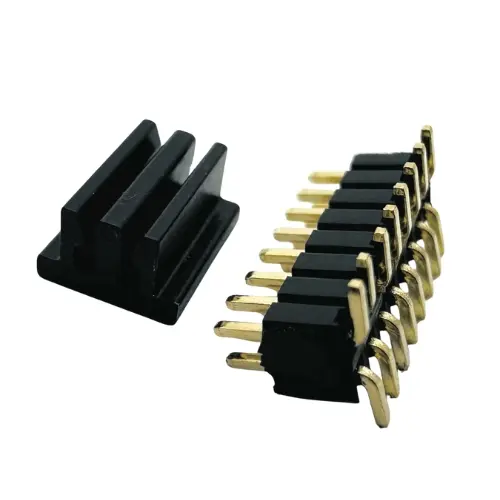

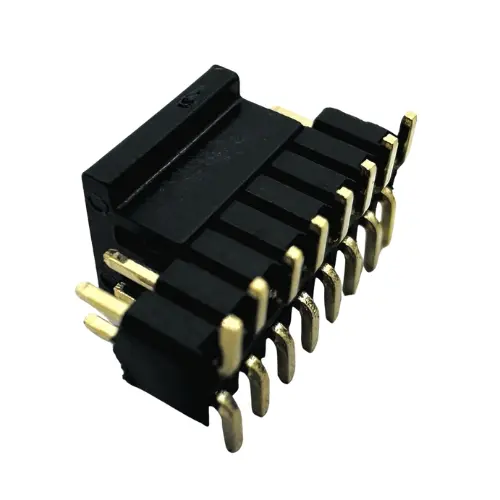

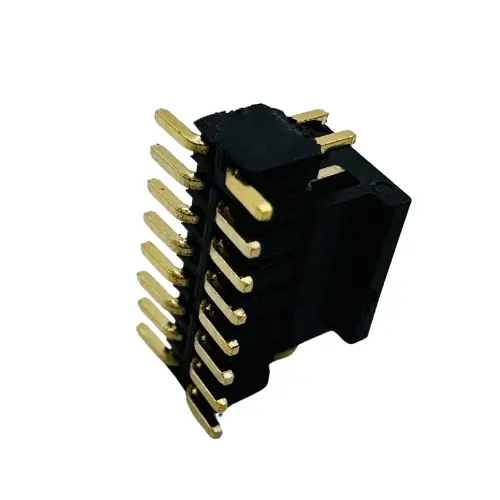

Board to board connector is a dual-row surface-mount pin header with a 1.27mm pitch and 2.54mm row spacing, designed for board-to-board signal connections.
The product offers a contact current rating of 2A, voltage resistance up to AC 500V, and operates within a wide temperature range of –40°C to +105°C.
Each contact is made of brass, plated with gold over nickel (Au 0.5µm / Ni 30µm) to ensure excellent corrosion resistance and conductivity.
The housing is made from LCP +30% GF (UL94V-0 flame retardant) material for thermal stability.
Standard layout follows a SQU 0.40 ±0.02mm pin width, with a total installed height of approx. 3.04mm.
This product is RoHS compliant and supports reflow soldering up to 260°C.
| Board to board connector | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-PH-2127288WV16P-01TR-03 | Description | 1.27mm (.05”) Pitch Dual Row Pin Header, SMT Type, 2.54mm Base Height, Gold Plated Contacts, Tape & Reel Packaging with CAP |
| Application | Board-to-Board, Signal, Wire-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount connector | UPC | 8536901100 |
| Keywords | Board-to-Board connector, PCB Mount Header, Pin Header, Header connector, SMT Pin Header, Dual Row Pin Header, Right Angle Pin Header, Electronic Connector,Circuit Board Headers,Male Pins | Connector & Contact Terminates to | Printed Circuit Board |
| Electrical | |||
| Current – Maximum per Contact | 2.0A | Voltage – Maximum | AC 500V |
| Physical | |||
| Breakaway | yes | Circuits (Number of Positions) | 16 |
| Circuits (Maximum) | 100 (series range) | Color – Housing | Black |
| Durability (mating cycles max) | 100 | Flammability | UL94V-0 |
| Glow-Wire Capable | No | Lock to Mating Part | No |
| Material – Metal | Brass | Material – Plating Mating | Gold (Au) 0.5~0.8μ over Ni |
| Material – Plating Soldering Area | Au/Ni | Material – Resin | LCP+30%GF, Thermoplastic |
| Metal Shape & From | Square | Number of Rows | 2 |
| Connector Orientation | Vertical / Straight | Packaging Type | Tape & Reel |
| PCB Locator | No | PCB Retention | No |
| PC Tail Length | 0 | Pitch – Mating Interface | 1.27mm |
| Plating min – Mating | Gold | Plating min – Termination | 0.5μm |
| Polarized to Mating Part | No | Polarized to PCB | No |
| Shrouded | Yes | Stackable | No |
| Operating Termperature | -40° to +105°C | Termination Interface Style | Surface Mount |
| Square Terminal Post & Tail Dimension | 0.64mm (.025in) | PCB Mount Retention | W/O |
| PCB Mount Alignment | W/O | Connector Mounting Type | PCB Mount |
| PCB Thickness (Recommended) | 1.57mm (.062 in) | Row-to-Row pitch | 1.27mm |
| Net Weight | Height of connector above PCB | 4.95mm | |
| Solder Process Data | |||
| Max-Duration | 5~10 sec | Lead-Free Process Capability | IR-Reflow |
| Max-Cycle | 1 | Max-Temp | 260°C ±5°C |
