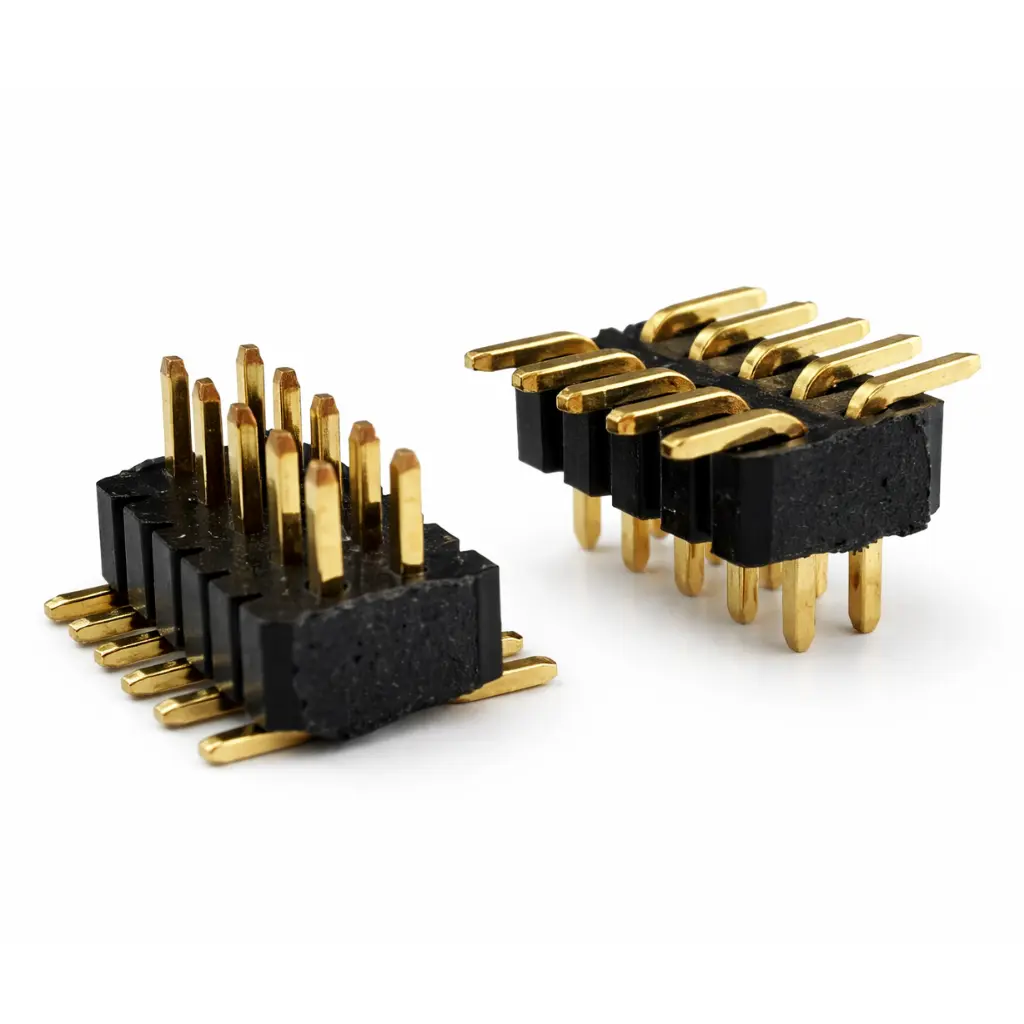

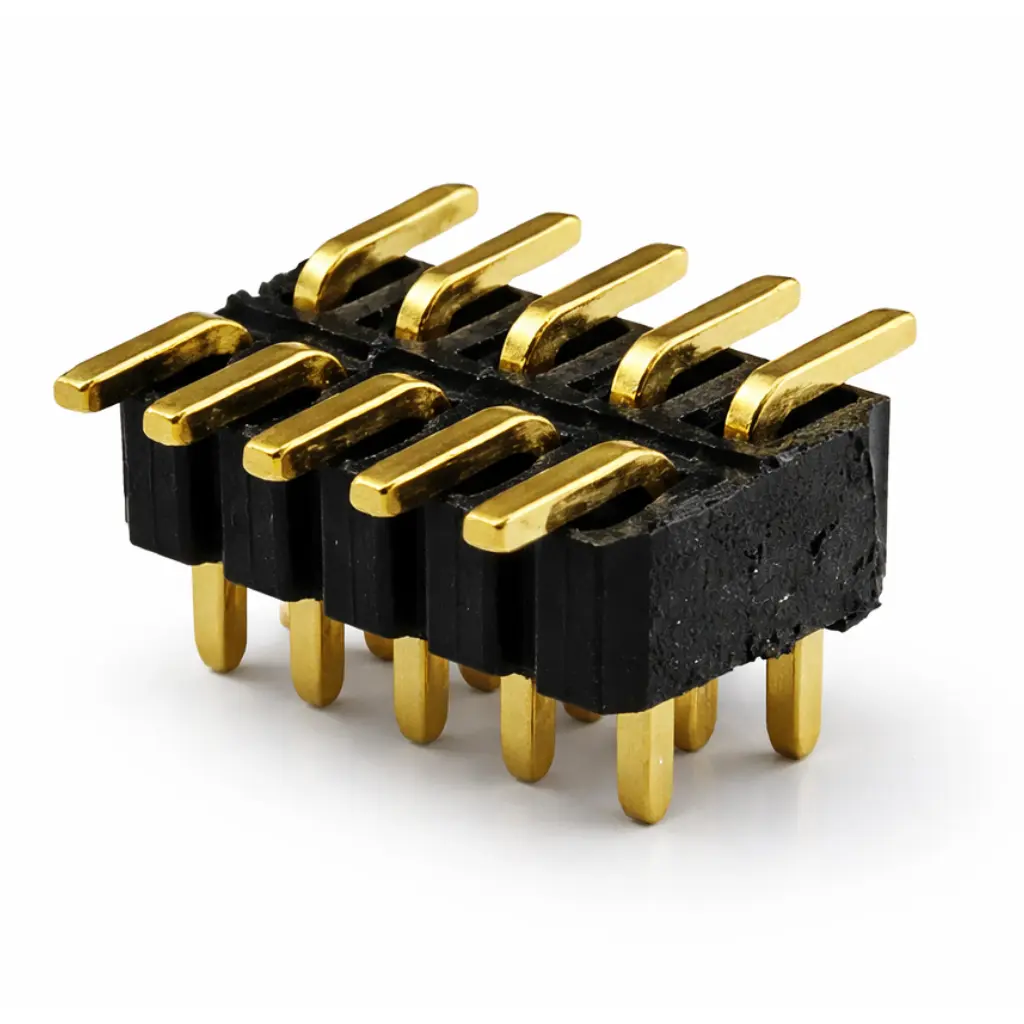

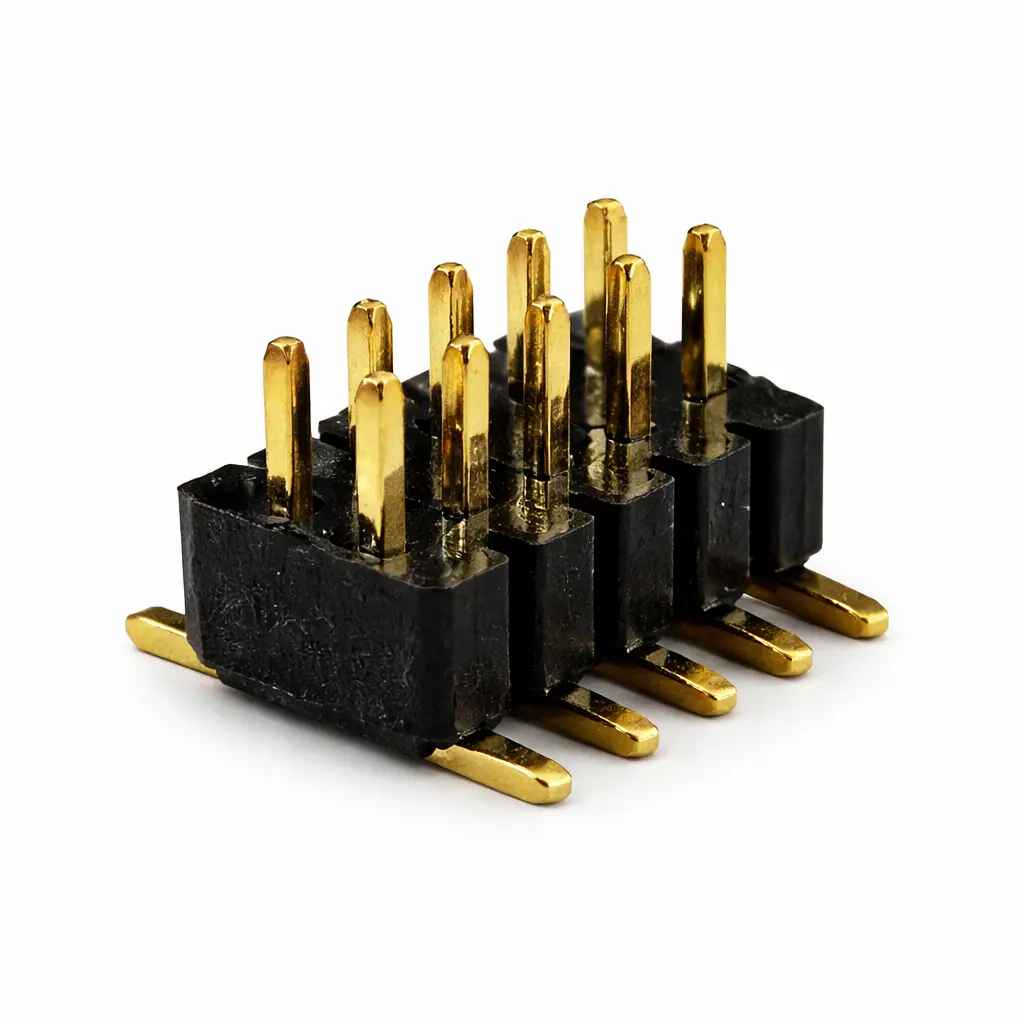

This 1.0mm SMT dual row pin header 1.50H is engineered for dense board layouts requiring reliable signal routing and stable solder joints in surface-mount assemblies. The drawing specifies 0.30mm square pins (SQ0.3 ±0.02) on a 1.0mm pitch dual-row configuration, supported by a PA6T + 30% GF, UL94V-0 insulator for dimensional stability across reflow and operating temperatures. Mechanical details include a 5.0 ±0.30mm base width, 1.8mm body height, and PCB footprint guidance with 2.4mm pad length and 0.5mm pad width (±0.05 tolerance). Electrical specifications support 1A per contact, ≤20mΩ contact resistance, ≥1000MΩ insulation resistance, and 500V AC dielectric withstand, with an operating range of -40°C to +105°C. Pin count (nP) and plating (XX) are configurable, and the series supports both Tape & Reel (TR) and Tube (TB) packaging for production lines.
High-density SMT interconnects on embedded controller boards
Compact modules in consumer electronics and portable devices
Sensor hubs, communication modules, and small form-factor PCBs
Board-to-board stacking interfaces with low profile constraints
Modular PCB routing where fine-pitch headers are required
1.0mm pitch, dual-row SMT header, 1.50H base low-profile design
0.30mm square brass pins (SQ0.3 ±0.02) for consistent mating
Electrical: 1A, ≤20mΩ, ≥1000MΩ, 500V AC withstand
Housing: PA6T + 30% GF, UL94V-0; -40°C to +105°C operation
PCB footprint guidance: 2.4mm pad length / 0.5mm pad width (±0.05)
Wide pin-count range supported (table shows 4–100 pins)
Plating options: Gold flash to 30u”, plus Sn/Ni codes; TR/TB packaging available
1.0mm SMT dual row pin header 1.50H is engineered for dense board layouts requiring reliable signal routing and stable solder joints in surface-mount assemblies.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-PH-2100295WV10P-XX-01 | Description | 1.00mm Pitch Pin Header, Dual Row, SMT Type, Base Height 1.50mm, Gold/Ni Plated |
| Application | Signal, Board-to-Board, Wire-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount Connector | UPC | N/A |
| Keywords | Pin Header, Dual Row Pin Header, SMT Pin Header, Straight Pin Header, PCB Mount Connector, Header Connector, Electronic Connector | Connector & Contact Terminates to | Printed Circuit Board |
| Electrical | |||
| Rated Voltage | 500V AC | Current Rating | 1.0A |
| Contact Resistance | ≤20mΩ Max | Insulation Resistance | ≥1000MΩ Min |
| Dielectric Withstanding Voltage | 500V AC | Norm | N/A |
| Physical | |||
| Breakaway | No | Circuits (Number of Positions) | 4 ~ 100 |
| Circuits (Maximum) | 100 | Color – Housing | Black |
| Durability (mating cycles max) | N/A | Flammability | UL 94V-0 |
| Glow-Wire Capable | No | Lock to Mating Part | No |
| Material – Metal | Brass | Material – Plating Mating | Gold Flash / 3μ” / 6μ” / 15μ” / 30μ” / Ni |
| Material – Plating Soldering Area | Same as Mating | Material – Resin | PA6T+30%GF (UL 94V-0) |
| Metal Shape & Form | Square Pin 0.30mm | Number of Rows | 2 |
| Connector Orientation | Vertical / Straight | Packaging Type | Tube / Tape & Reel |
| PCB Locator | No | PCB Retention | No |
| PC Tail Length | ~1.65mm | Pitch – Mating Interface | 1.00mm |
| Plating min – Mating | 1μ” ~ 30μ” / Ni | Plating min – Termination | Same |
| Polarized to Mating Part | Yes | Polarized to PCB | Yes |
| Shrouded | No | Stackable | No |
| Operating Temperature | -40°C to +105°C | Termination Interface Style | Surface Mount |
| Square Terminal Post & Tail Dimension | 0.30mm SQ | PCB Mount Retention | W/O |
| PCB Mount Alignment | W/O | Connector Mounting Type | SMT |
| PCB Thickness (Recommended) | 1.57mm | Row-to-Row pitch | 2.40mm |
| Height of connector above PCB | 3.4mm | ||
| Solder Process Data | |||
| Max-Cycle | N/A | Max-Duration | N/A |
| Lead-Free Process Capability | N/A | Max-Temp | N/A |
