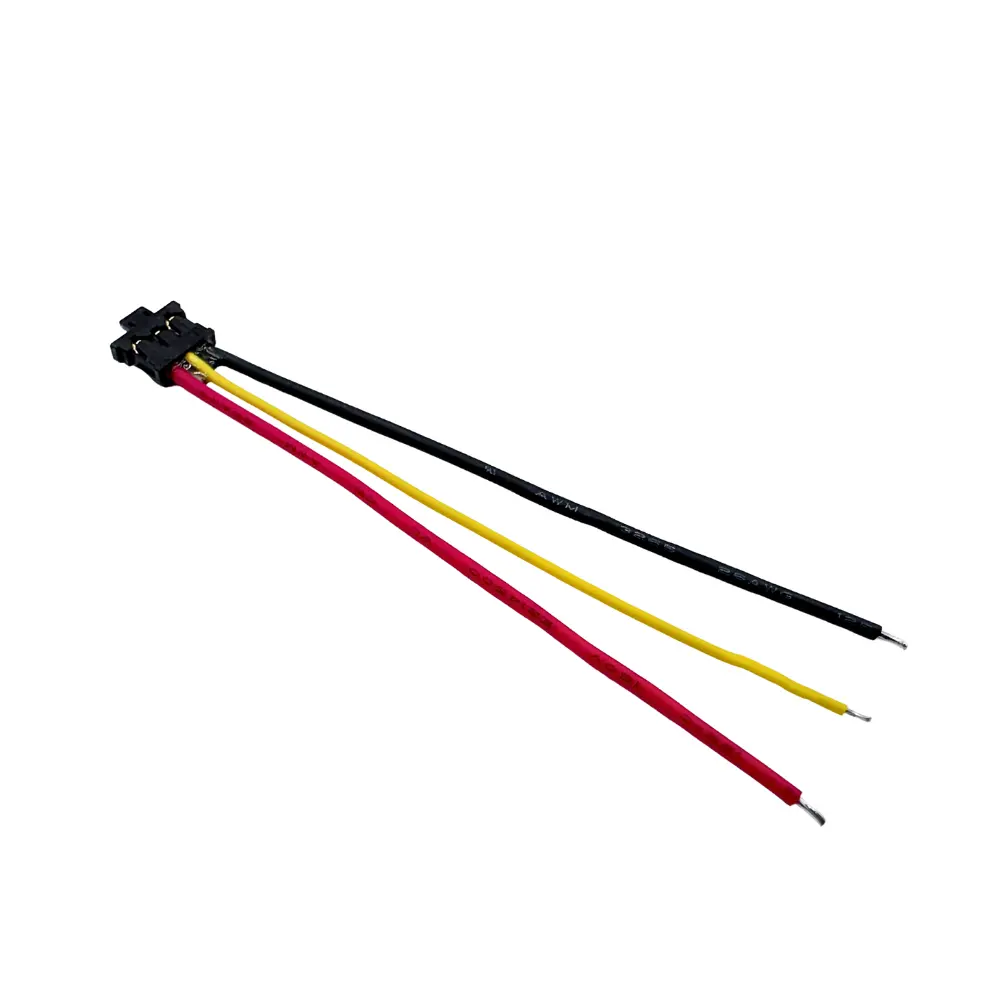

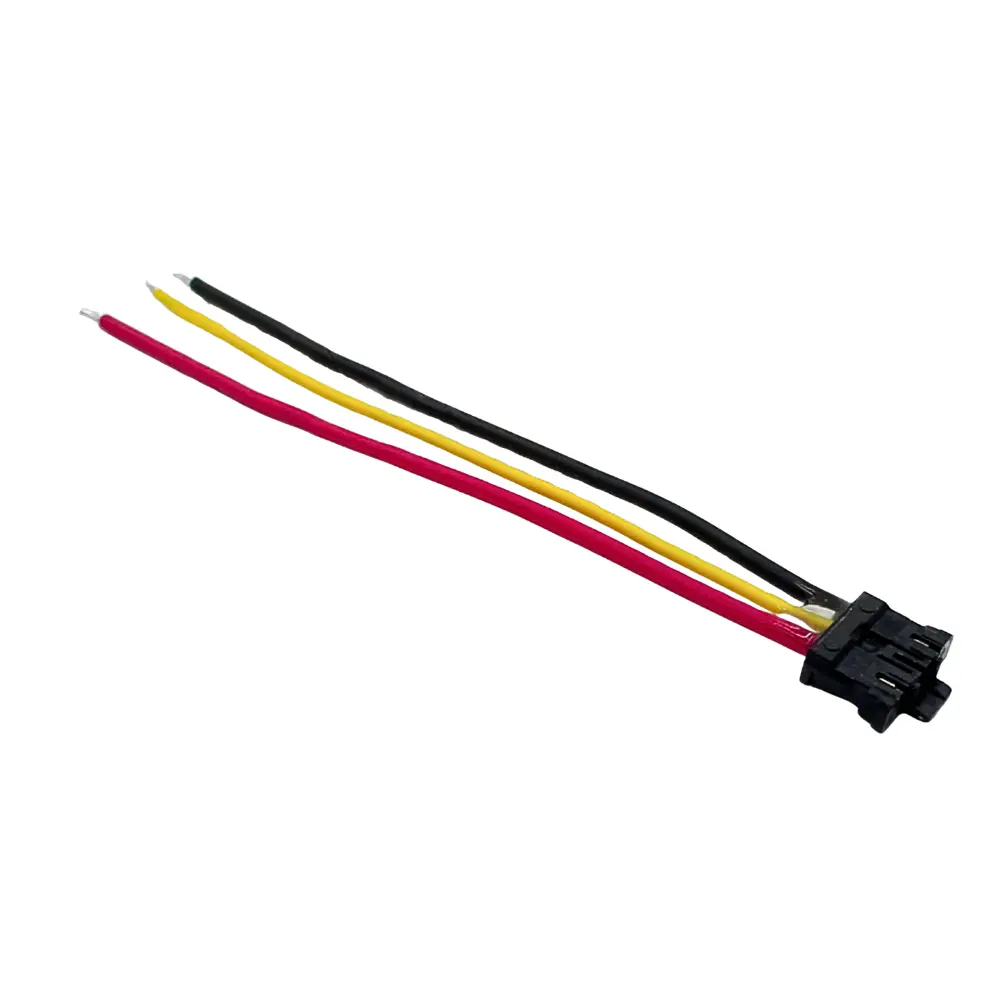

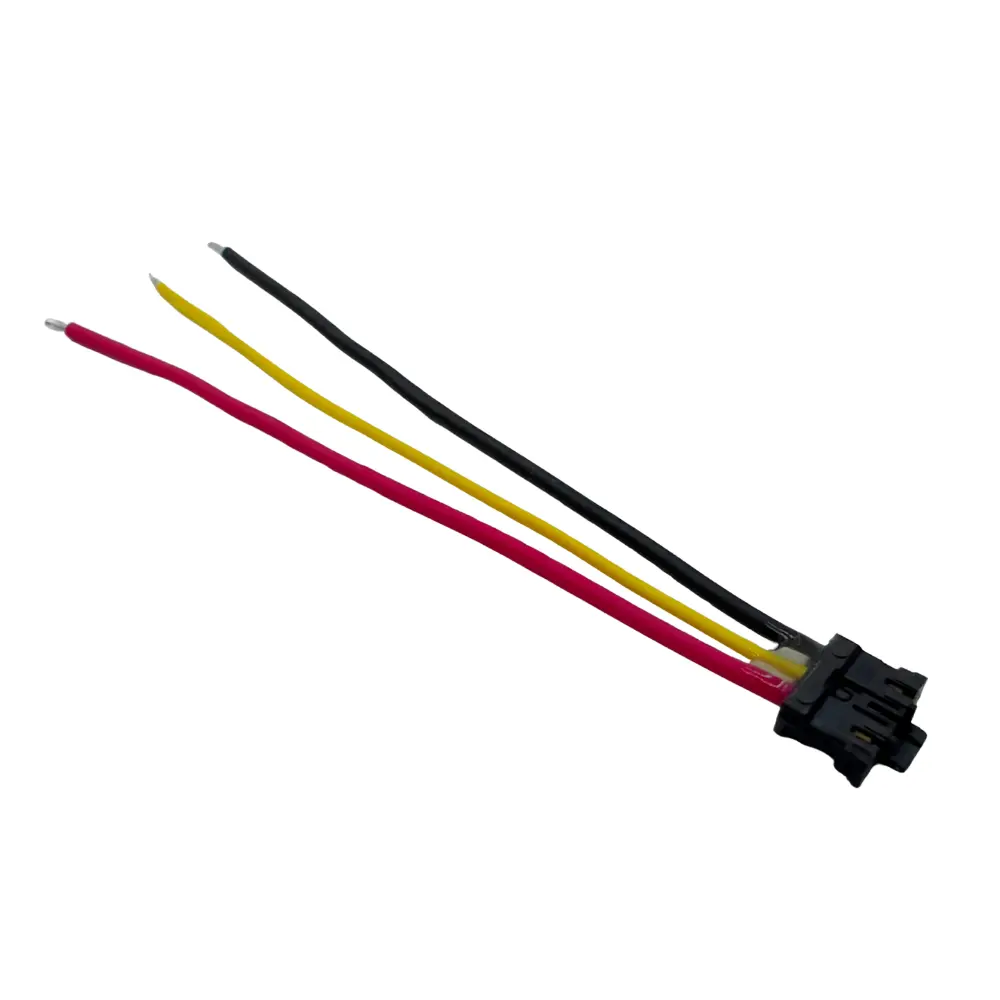

1.50 mm 3-Circuit Wire-to-Board Pigtail Cable (DW-CABPH150-3P000048528) designed for compact device interconnects. It features a 3-circuit crimp housing at P1 and open, tinned leads at the opposite end for direct soldering.
Highlights: 1.50 mm pitch, 3-circuit housing; 48 ± 5 mm length; tinned pigtail ends; color-coded Red/Yellow/Black conductors; UV-glued strain relief; UL3302/UL3265 wires; RoHS compliant.
Applications: Sensors and small modules, LED boards, development kits, embedded and IoT devices, quick prototyping and field service.
1.50 mm 3-Circuit Wire-to-Board Pigtail Cable DW-CABPH150-3P000048528 is a ready-to-use cable assembly for compact interconnects and quick prototypes. At P1 it uses a 3-position crimp housing with matched crimp terminals
| 1. General | |||
| Status | Active | Category | FPC Cable Assembly |
| Series | DW-CABPH150-3P000048528 | Description | 1.5mm Pitch FPC Cable Assembly with UL3302 AWG#30 (Yellow), UL3265 AWG#26 (Red, Black), Length 48±5mm, 3 Circuits, Tin Plated Terminals |
| Comments | Apply UV glue on one side | Product Name | FPC Cable Assembly |
| 2. Electrical | |||
| Current – Maximum per Contact | N/A | Voltage – Maximum | N/A |
| 3. Physical | |||
| Actuator Type | N/A | Circuits (Loaded) | 3 |
| Color – Resin | N/A | Contact Position | Open End (per wiring table) |
| Durability (Mating Cycles) | N/A | Mated Height | N/A |
| Material – Metal | Tin plated terminals | Material – Plating Mating | Tin |
| Material – Plating Term. | Tin | Material – Resin | N/A |
| Net Weight | N/A | Orientation | Straight |
| Packaging Type | N/A | PCB Locator | N/A |
| PCB Mounting | N/A | PCB Retention | N/A |
| Pitch – Mating Interface | 1.5mm | Polarized to PCB | N/A |
| Stackable | N/A | Temperature Range – Operating | N/A |
| Wire/Cable Type | UL3302 (AWG#30, Yellow), UL3265 (AWG#26, Red & Black) | Length | 48±5mm |
