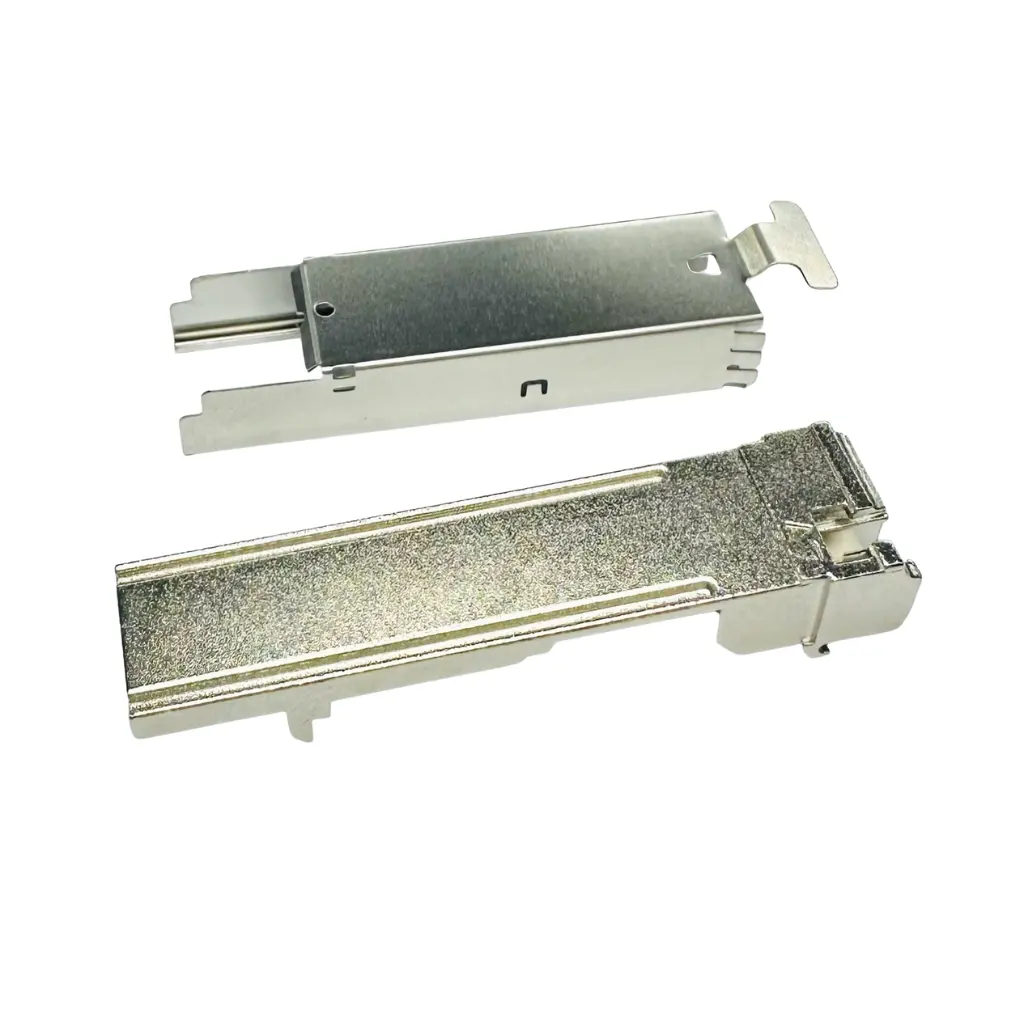

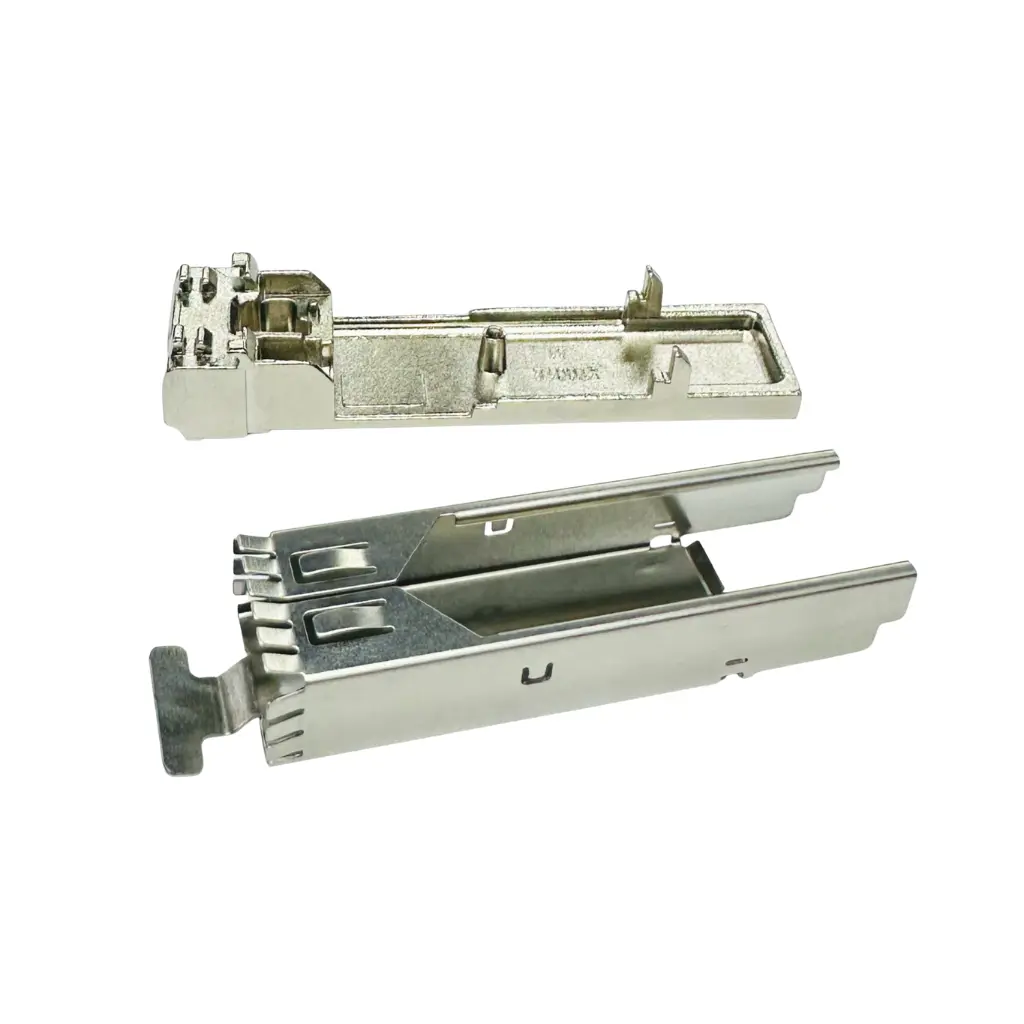

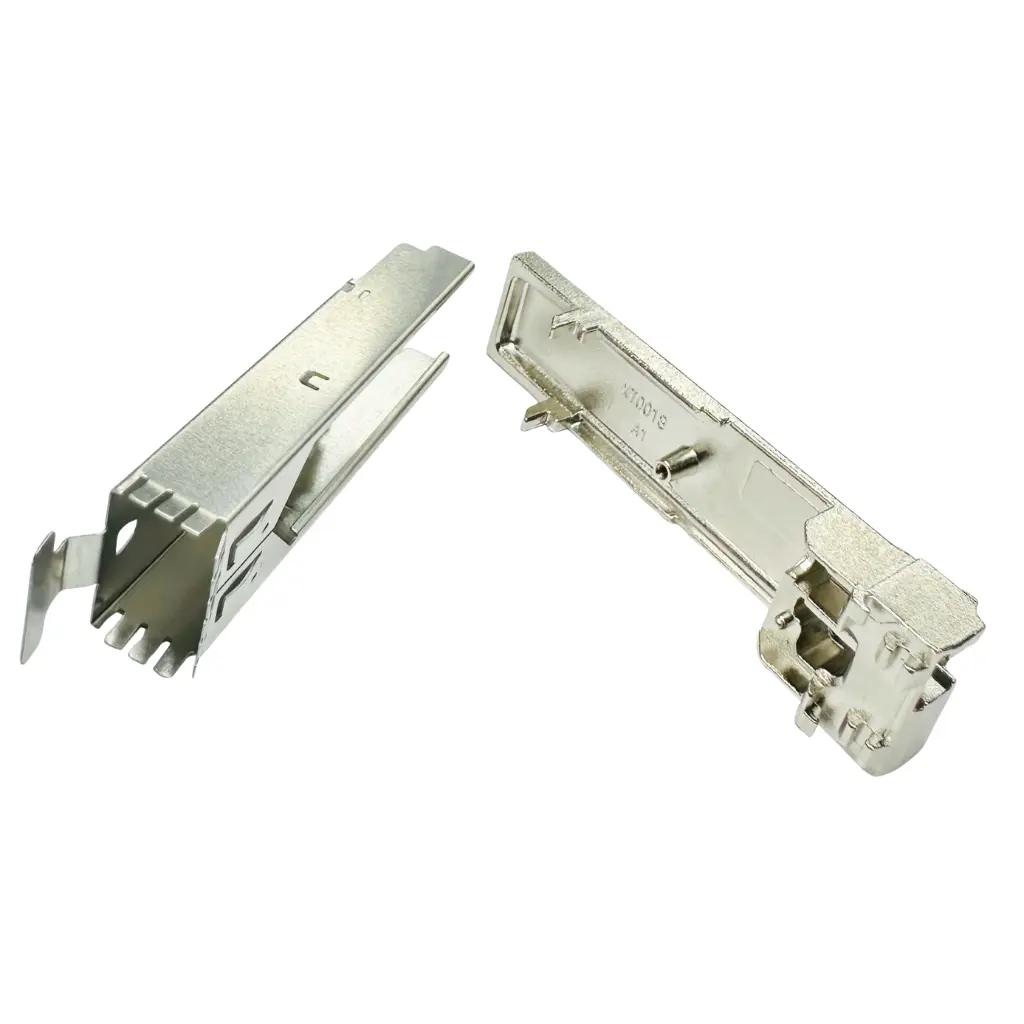

A rugged, single-port SFP+ cage kit with a positive pull-link lock and through-hole mounting for rock-solid retention. Matte-nickel plated zinc and SUS304 deliver durable EMI shielding; PC sleeves and a silicone seal add stability and protection. The kit includes every required piece cage, pull-link, release tab, briquetting, tube sleeve, metal plate, rubber seal, and M1.2×4 screws ready for fast assembly. RoHS compliant and light-pipe ready, it’s ideal for high-density 10 GbE/telecom gear running in –40 to +85 °C environments.
Key Features at a Glance
Single-port 1×1 SFP+ cage with pull-link locking mechanism
Thru-hole (DIP) mounting for strong board retention and ground path
Matte-nickel plated metalwork for robust EMI shielding

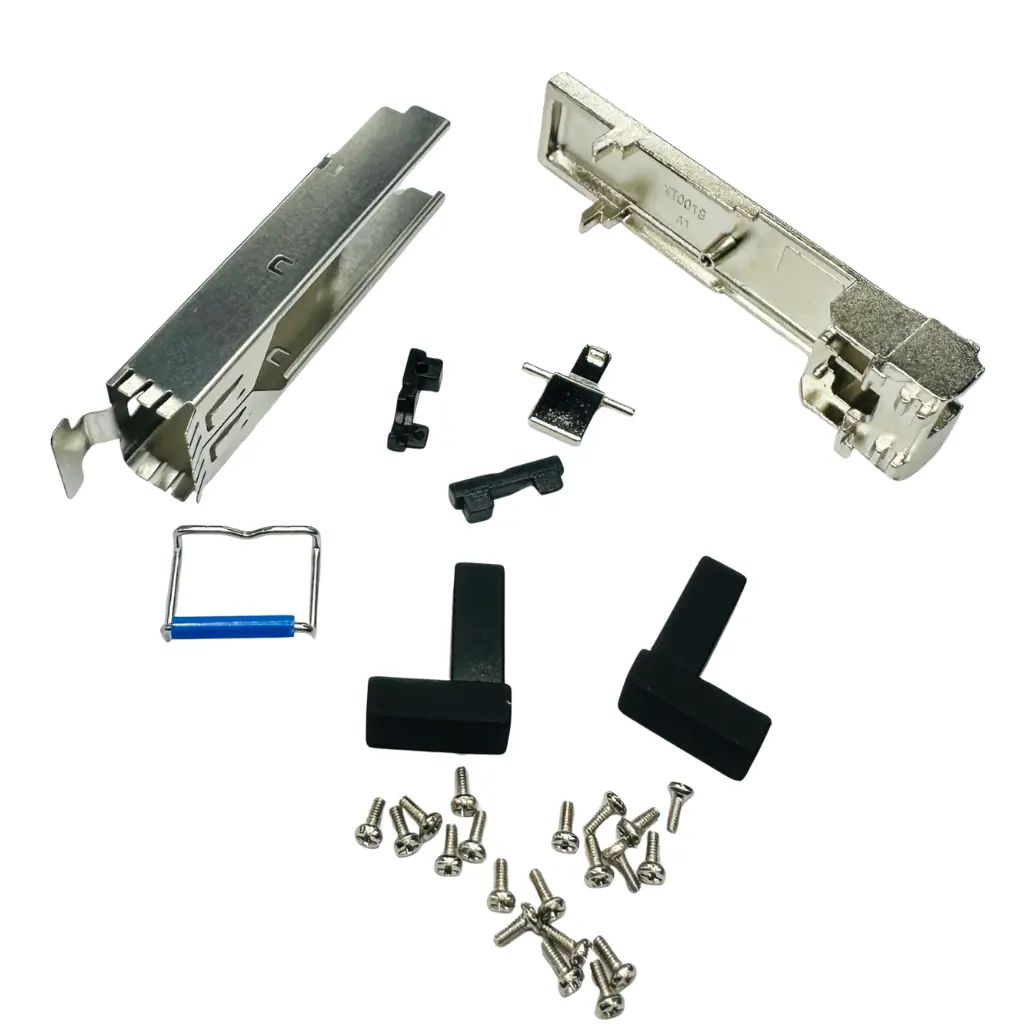

Complete hardware set (cage, pull-link, release tab, sleeves, seal, screws)
Light-pipe accommodation for clear front-panel LED indication
Heat/impact-resistant materials: Zinc, SUS304, PC, silicone rubber
–40 °C to +85 °C operating, RoHS/REACH compliant
Highlights
Secure hot-plug retention with a positive pull-link and stable EMI-shielded cage. Complete kit minimizes BOM risk and speeds assembly on high-speed I/O cards.
Applications
SFP/SFP+ optical modules and DACs
Ethernet switches, routers, access devices
Server NICs and storage controllers
Telecom/datacom line cards and aggregation platforms
SFP plus 1×1 cage kit with pull-link lock engineered for reliable SFP+ module retention in high-speed switches, routers, and telecom/datacom systems. This single-port cage uses a robust through-hole mechanical stack that anchors securely to the PCB while the matte-nickel plated metalwork delivers strong EMI shielding. The kit integrates the full mechanical set—base cage, pull-link, release tab, briquetting part, tube sleeve, metal plate, rubber seal, and M1.2×4 stainless screws
| GENERAL | |||
| Status | Active | Category | SFP Plug Assembly Kit |
| Series | DW-SFP-0018-01 | Description | Mechanical housing with pull-link, tube sleeve, briquetting plate, and rubber seal |
| Assembly Configuration | Plug Assembly | Connector to Connector | N/A |
| Product Name | SFP Plug Assembly | Type | Pluggable |
| UPC | N/A | Keywords | SFP Optical module, External Connector, SFP Cage |
| ELECTRICAL | |||
| Data Rate | Impedance | _ | |
| Not Applicable | Not Applicable | _ | |
| PHYSICAL | |||
| Cable Bundling | N/A | Cable Length | N/A |
| Circuits (Loaded) | N/A | Gender | Plug |
| Lock to Mating Part | Yes | Material – Metal | Zinc Alloy, SUS304 |
| Material – Plating Mating | Matte Nickel | Net Weight | N/A |
| Packaging Type | Kit | Release Style | Pull Tab |
| Single Ended | Yes | Wire/Cable Type | N/A |
| Wire Size (AWG) | N/A | _ | _ |
