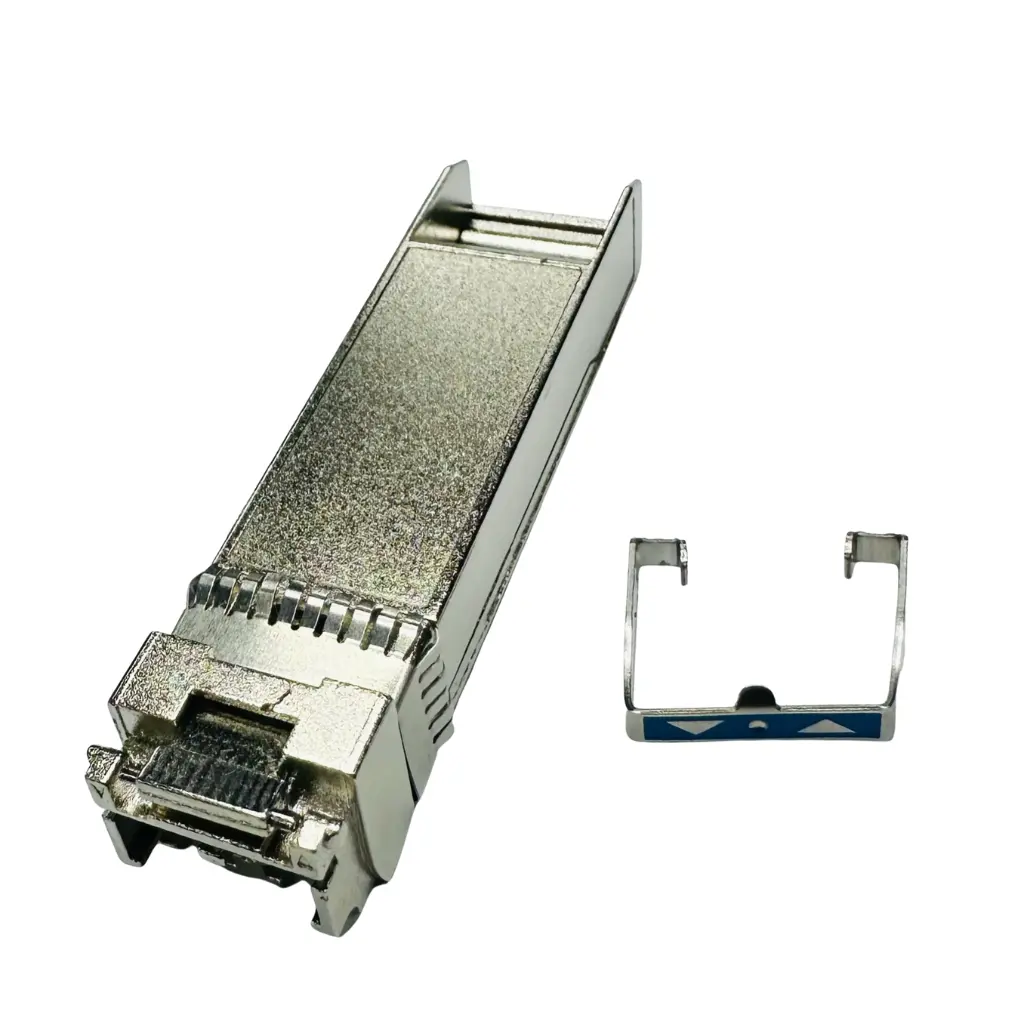

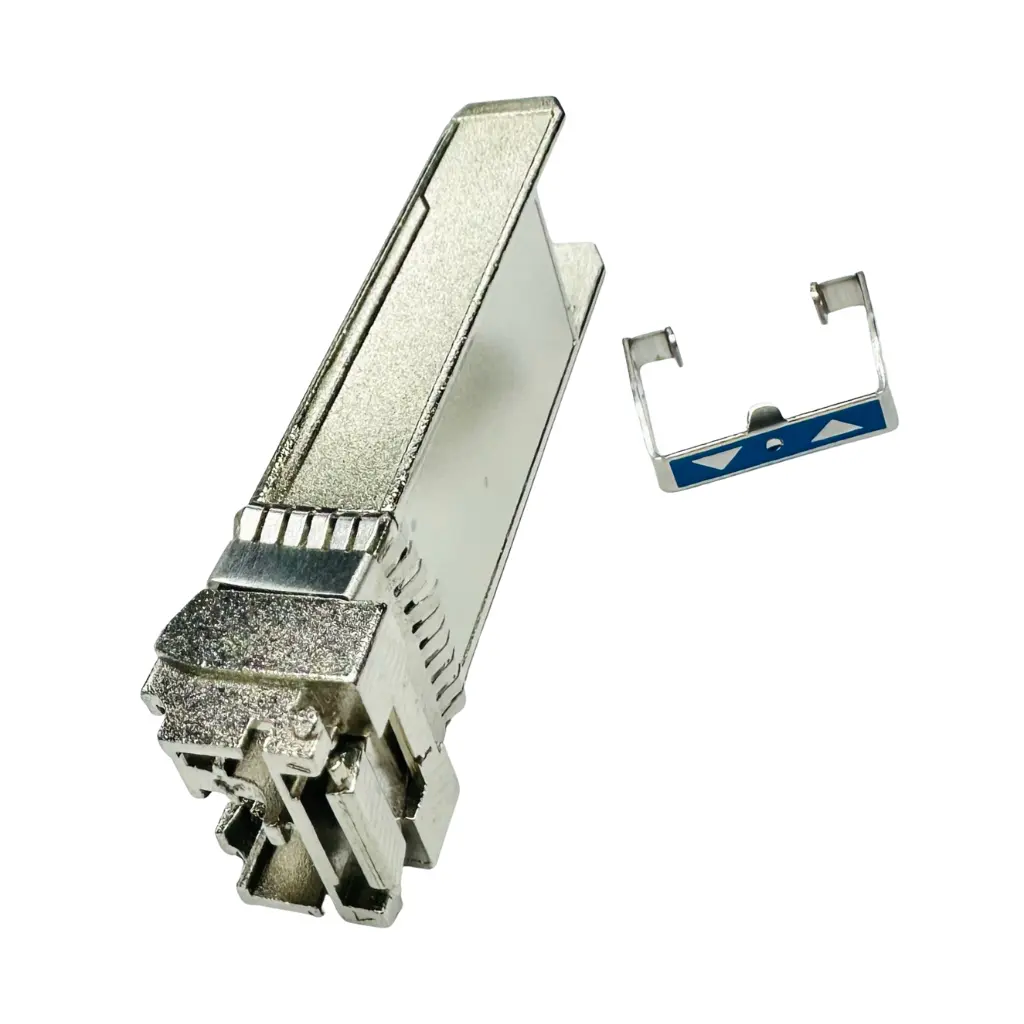

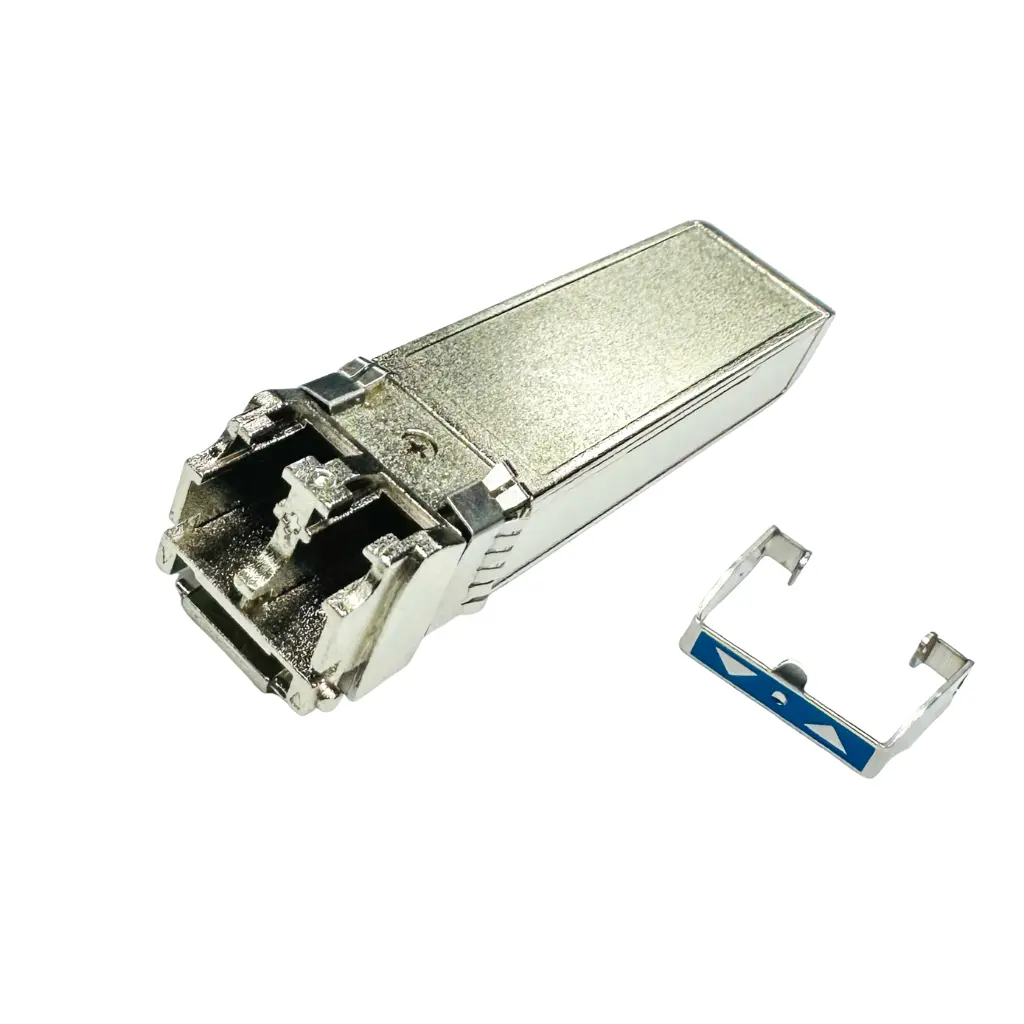

The 1×1 SFP+ cage kit with release piece is a compact, EMI-shielded single-port cage assembly for 10G SFP+ optical transceivers, featuring a full quick-release ejection mechanism, matte nickel zinc shell, and silicone rubber seal for vibration and dust protection in high-speed network equipment.
Applications:
SFP+ optical transceivers and cage assemblies
10G Ethernet switches and routers
Network interface cards and high-density line cards
Telecom access, transport and aggregation equipment
Data center servers and switching platforms
Highlights:
1×1 SFP+ cage kit with release piece for single-port designs
Matte nickel zinc shell for robust EMI shielding and grounding
Integrated pull-link and metal ejection plate for tool-free removal
Pre-mounted PCB interface to simplify host board connection
Stainless steel hardware and silicone rubber seal for vibration and dust resistance
Meets EU RoHS, REACH SVHC and low-halogen environmental requirements
1×1 SFP+ cage kit with release piece is a single-port SFP+ cage assembly engineered for hot-swappable optical transceivers in high-speed data and telecom equipment. This 1×1 SFP+ cage kit with release piece combines secure module retention, effective EMI shielding, and easy field service in a compact footprint suited for high-density line cards and network interfaces.
| GENERAL | |||
| Status | Active | Category | High-Speed EMI Cages |
| Part Number | DW-SFP-0085-01 | Description | SFP Cage Assembly Kit with Pull-link, Spring, Release Piece, PCB & Upper Cover |
| Application | Module-to-Board | Component Type | Cage Assembly |
| Product Name | SFP Cage Assembly | Sealable | Yes |
| Keywords | SFP Cage, External Connector | Features | SFP cage with enhanced locking components |
| Thermal Accessory Type Included | None | Lightpipe Style | Not Applicable |
| Number of Ports | 1 × 1 | ||
| ELECTRICAL | |||
| Data Rate | _ | _ | _ |
| Not applicable (Mechanical Assembly Kit) | _ | _ | _ |
| PHYSICAL | |||
| EMI shielding | Full Metal Enclosure (Zinc alloy + SUS304) | Pluggable I/O Applications | SFP |
| Cage Material | 3# Zinc Alloy, SUS304 Steel, Silicone Rubber | Orientation | Horizontal |
| Packaging Type | Kit with multiple components | Termination Interface Style | Mechanical Mounting |
| Rear Legs | None | Thermal Solutions | None |
| Thermal Height | N/A | Circuit Application | Mechanical Retention Only |
| Included Lightpipe | No | Light Pipes per Port | 0 |
| Heat Sink Compatible | No | Tail Length | N/A |
| Operating Temperature Range | 55~85°C (based on material spec) | PCB Thickness (Recommended) | N/A |
