2.00mm DIP straight pin header is a single-row through-hole connector designed for reliable board interfacing in compact electronics. Based on the drawing, it uses SQ0.50±0.02 brass pins on 2.00mm pitch, with a high-temperature PA6T+30%GF UL94V-0 housing for stable soldering and mechanical retention. Electrical performance follows EIA-364C, supporting 2A current rating, 30mΩ max contact resistance, 1000MΩ min insulation resistance, and AC 500V dielectric withstand across -40°C to +105°C. Pin finish supports Ni (30u”–50u”) + Au (0.5–0.8u”) (and other plating grades per code), and the connector withstands soldering heat 260°C ±5°C, 3s max.
Through-hole headers for embedded control boards and compact modules
Socket mating interfaces and jumper/debug headers
Industrial control, instrumentation, and general I/O pin headers
Board interconnect points where 2.00mm pitch saves PCB space vs 2.54mm
2.00mm pitch, single-row, straight (vertical) DIP pin header
SQ0.50±0.02 brass pins; recommended PCB hole Ø0.90
Electrical: 2A, 30mΩ max, 1000MΩ min, AC 500V
Housing: PA6T+30%GF UL94V-0, -40°C to +105°C
Plating: Ni (30u”–50u”) + Au (0.5–0.8u”) + optional plating grades
PE bag packaging (PE) option shown; pin count varies by nP table

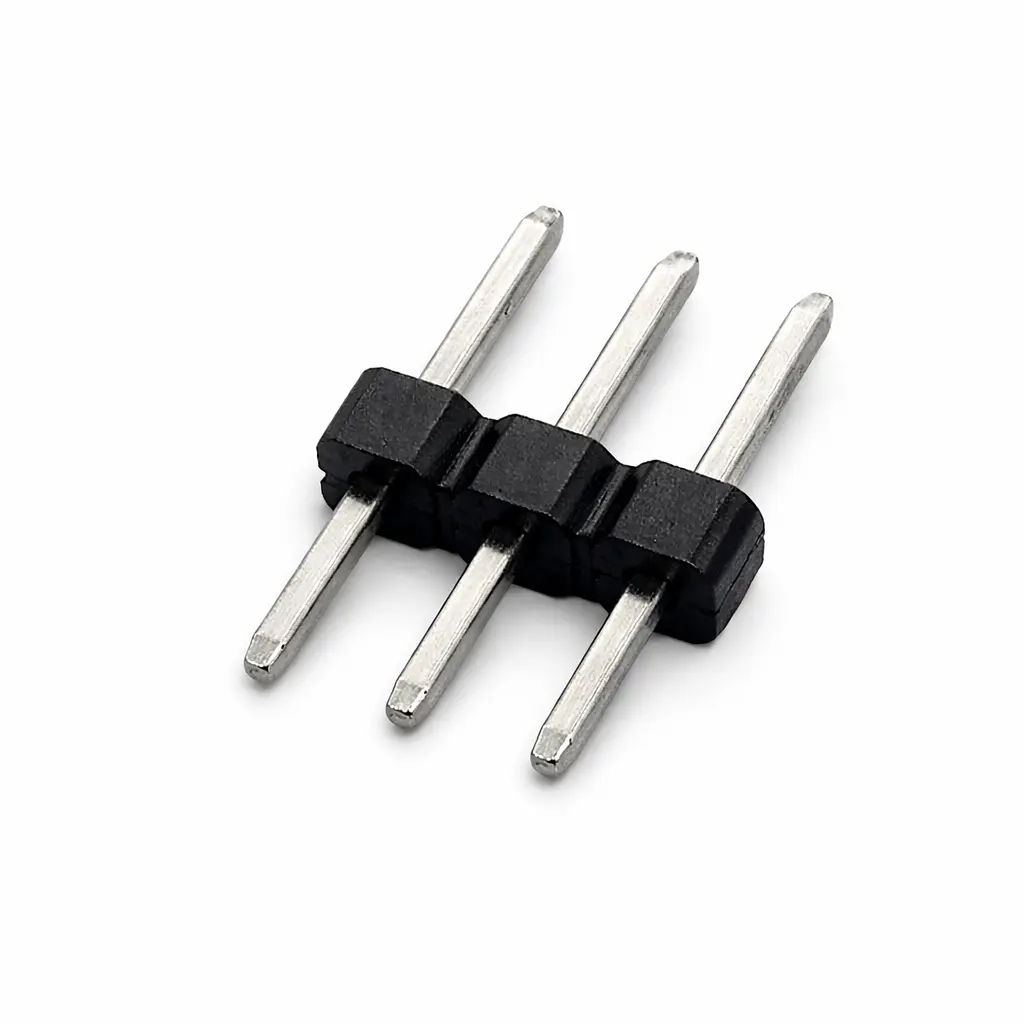

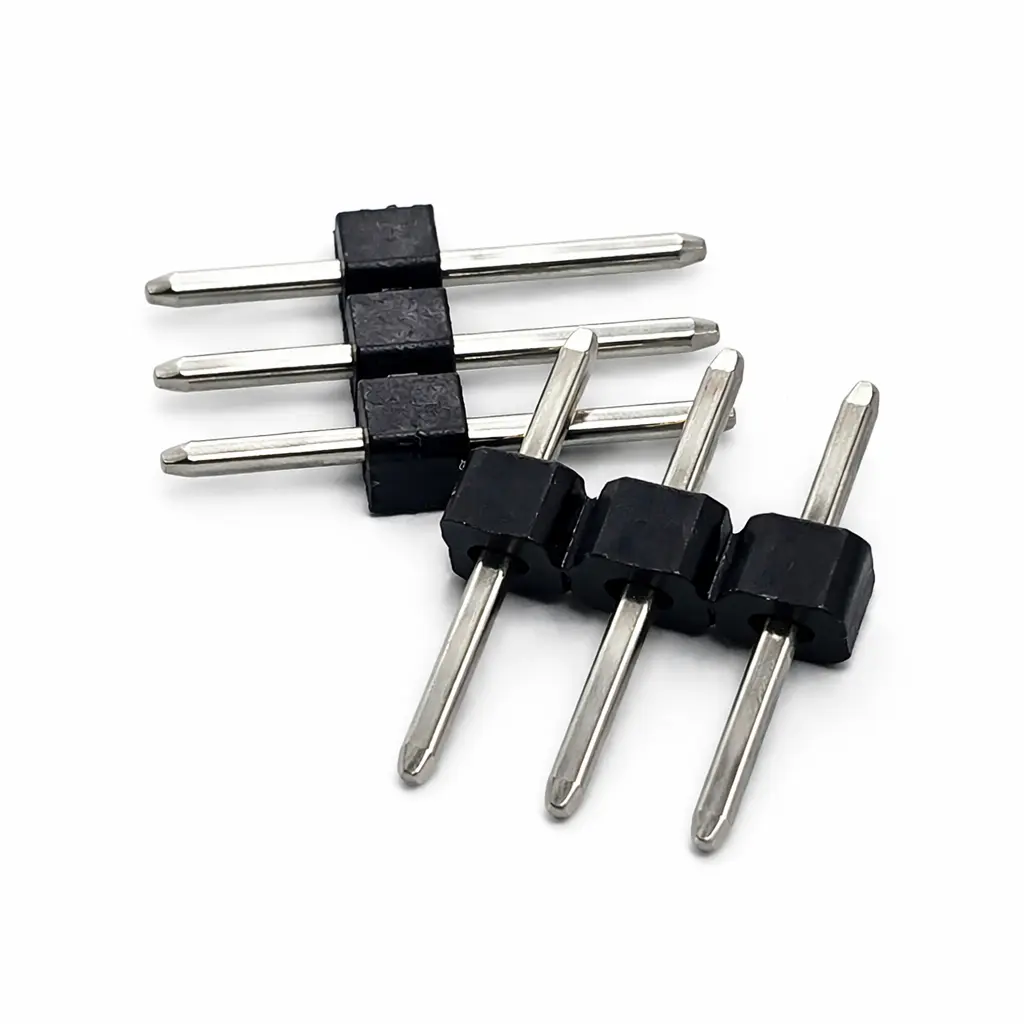

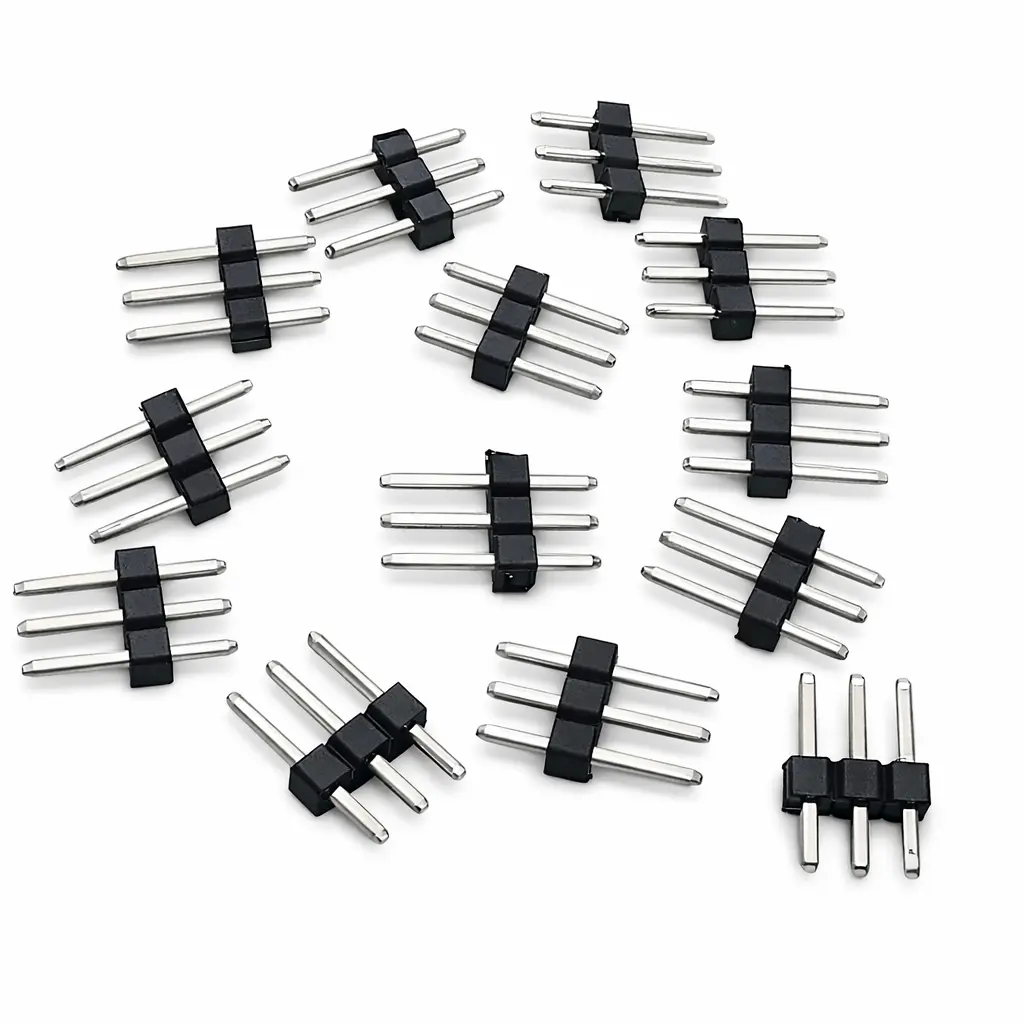

2.00mm DIP straight pin header (single row) with 0.50mm square brass pins and UL94V-0 PA6T+30%GF insulator, rated 2A for compact through-hole PCB interconnects and secure socket mating.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-PH-1200656WV03P-XXPE-02 | Description | 2.00mm Pitch Pin Header, Single Row, Through-Hole Type, PE Packaging, Gold/Ni Plated |
| Application | Signal, Board-to-Board, Wire-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount Connector | UPC | N/A |
| Keywords | Pin Header, Single Row Pin Header, Through-hole Pin Header, Straight Pin Header, PCB Mount Connector, Header Connector, Electronic Connector | Connector & Contact Terminates to | Printed Circuit Board |
| Electrical | |||
| Rated Voltage | AC 500V | Current Rating | 2.0A |
| Contact Resistance | ≤30mΩ Max | Insulation Resistance | ≥1000MΩ Min |
| Dielectric Withstanding Voltage | AC 500V | Norm | EIA-364C |
| Physical | |||
| Breakaway | No | Circuits (Number of Positions) | 2 ~ 40 |
| Circuits (Maximum) | 40 | Color – Housing | Black |
| Durability (mating cycles max) | N/A | Flammability | UL 94V-0 |
| Glow-Wire Capable | No | Lock to Mating Part | No |
| Material – Metal | Brass | Material – Plating Mating | Ni (30–50μ”) + Au (0.5–0.8μ”) |
| Material – Plating Soldering Area | Same as Mating | Material – Resin | PA6T+30%GF (UL 94V-0) |
| Metal Shape & Form | Square Pin 0.50mm | Number of Rows | 1 |
| Connector Orientation | Vertical / Straight | Packaging Type | PE Bag |
| PCB Locator | No | PCB Retention | No |
| PC Tail Length | 2.80mm ±0.35 | Pitch – Mating Interface | 2.00mm |
| Plating min – Mating | 0.50.8μ” Gold over 3050μ” Ni | Plating min – Termination | Same |
| Polarized to Mating Part | No | Polarized to PCB | No |
| Shrouded | No | Stackable | No |
| Operating Temperature | -40°C to +105°C | Termination Interface Style | Through Hole |
| Square Terminal Post & Tail Dimension | 0.50mm SQ | PCB Mount Retention | W/O |
| PCB Mount Alignment | W/O | Connector Mounting Type | Through Hole |
| PCB Thickness (Recommended) | 1.57mm | Row-to-Row pitch | N/A |
| Height of connector above PCB | 6.40mm ±0.35 | ||
| Solder Process Data | |||
| Max-Cycle | N/A | Max-Duration | 3–5 sec (derived from 35 MAX label) |
| Lead-Free Process Capability | Yes | Max-Temp | 260°C ±5°C |
