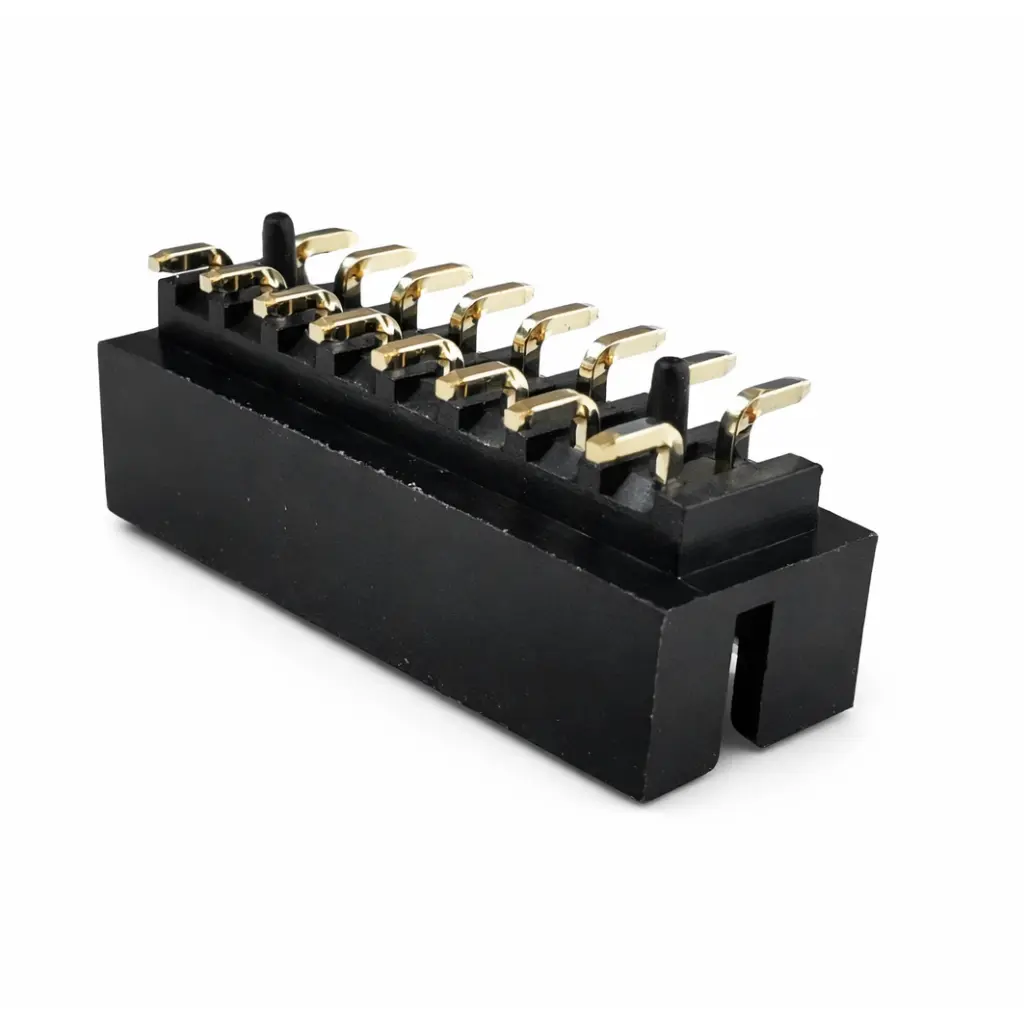

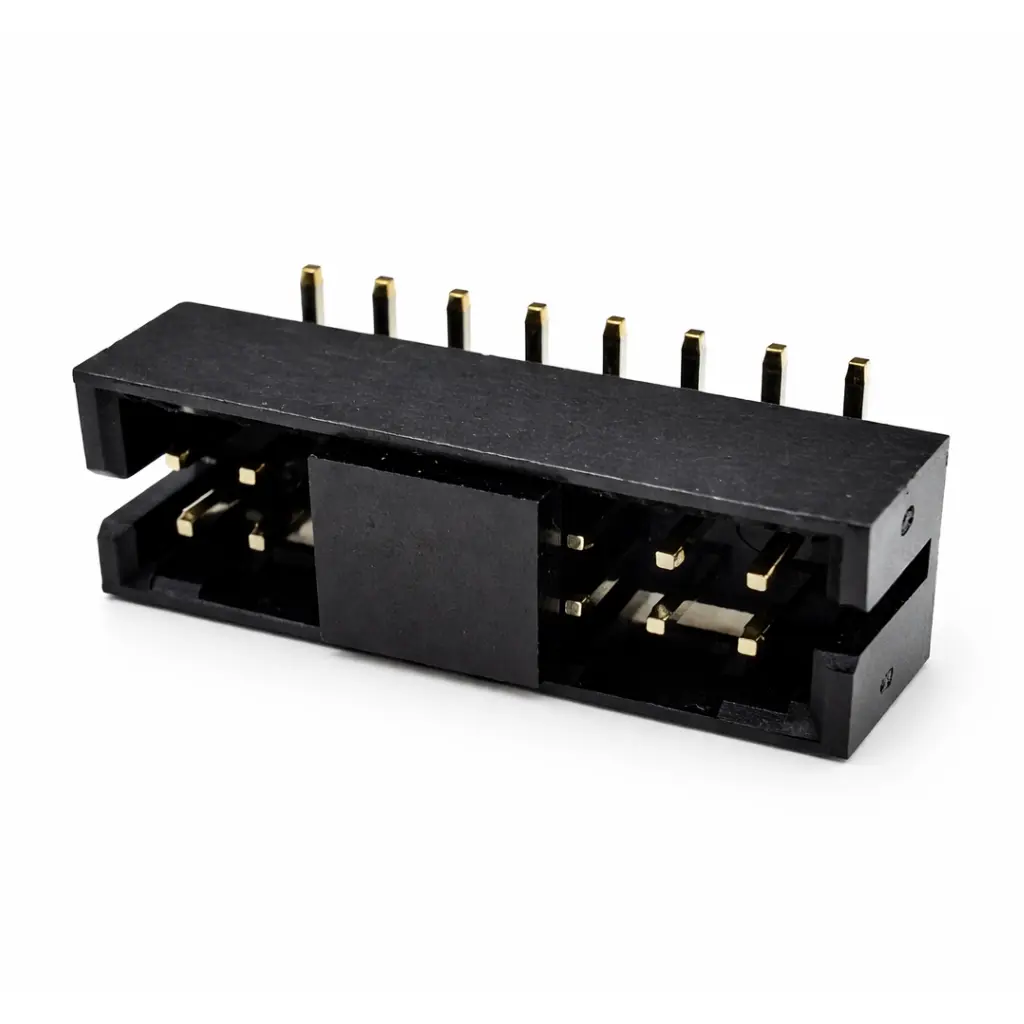

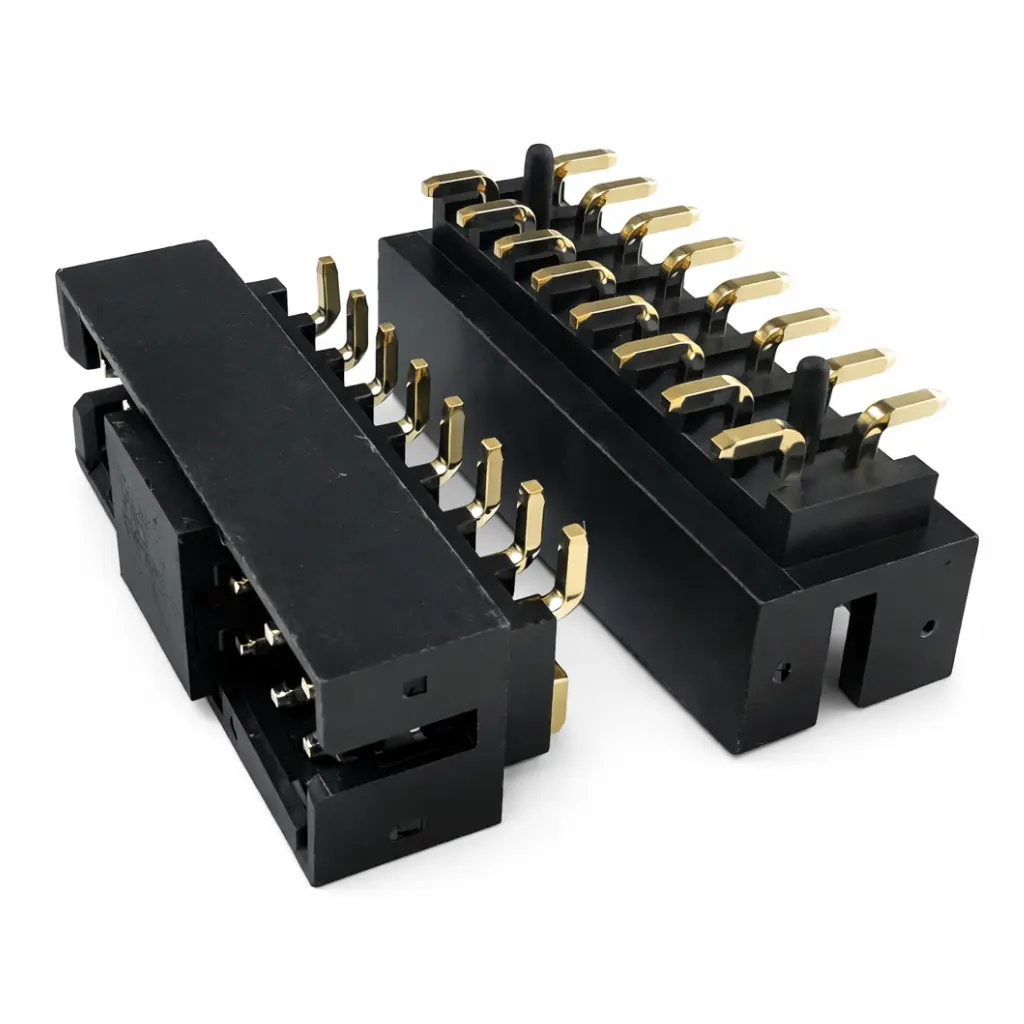

This 2.00mm dual row SMT box header provides a keyed, shrouded interface that helps prevent mismating while maintaining stable electrical performance in dense PCB layouts. Built with H65 contacts and a UL94V-0 PA6T + 30% housing, it supports 2A current rating, ≤20mΩ contact resistance, and ≥1000MΩ insulation resistance. The drawing title specifies a 6.40H base, and the series supports multiple pin counts (nP) with plating selected by the -XX- code, while TR packaging enables high-volume pick-and-place production and reflow processing up to 260°C ±5°C / 10s.
Communication modules and embedded interface boards
Compact industrial controllers and automation PCBs
Consumer electronics interconnect systems
Space-constrained PCB designs requiring keyed/shrouded mating protection
2.00mm pitch, dual-row boxed header with keying slot for polarity control
SMT terminals suitable for automated assembly; TR (Tape & Reel) packaging
Electrical: 2A, ≤20mΩ, ≥1000MΩ, AC 500V withstand
Housing: PA6T + 30%, UL94V-0; operating -40°C to +105°C
Soldering heat resistance: 260°C ±5°C, 10s max (per drawing)
nP pin count configurable (8–40 pins per table)
Plating per -XX- code (gold thickness options / Sn / Ni listed on drawing)
2.00mm pitch dual-row shrouded box header designed for compact board-to-board signal connections. RoHS compliant, rated 2A with AC 500V dielectric withstand, and supplied in Tape & Reel (TR) for automated SMT assembly.
| General | |||
| Status | Active | Series | DW-BH-220023WV16P |
| Category | PCB Headers / Box Header | Description | 2.00mm Dual Row Box Header, Vertical (180°), DIP Type, 6.40mm Base Height, Gold Flash |
| Application | Board-to-Board, Signal Transmission | PCB Connector Type | Box Header |
| Component Type | Header Connector | Keywords | Board-to-Board connector, PCB Connector, Through-hole Pin Header, Dual Row Pin Header, Pin Header |
| UPC | — | Connector & Contact Terminates to | Printed Circuit Board |
| Electrical | |||
| Rated Voltage | 500V AC | Current Rating | 2.0A |
| Contact Resistance | ≤20mΩ Max | Insulation Resistance | ≥1000MΩ Min |
| Dielectric Withstanding Voltage | 500V AC for 1 min | Operating Temperature | -40°C to +105°C |
| Physical | |||
| Pitch – Mating Interface | 2.00mm | No. of Rows | 2 |
| Material – Metal | H65 | Material – Plating | Gold Flash |
| Material – Insulator | PA6T+30% GF UL 94V-0 | Termination Style | Through-Hole |
| Contact Layout | Dual Inline | Socket Height | 6.40mm |
| Socket Width | 6.30mm | Terminal Pin Diameter | 0.90mm |
| Polarized | Yes | Stackable | No |
| Packaging Type | Tape & Reel | Mounting Type | DIP (Through Hole) |
| Operating Temp | -40°C to +105°C | Durability | ≥100 mating cycles |
| PCB Locator | No | PCB Retention | No |
| PC Tail Length | — | Plating min – Termination | 0.76μm |
| Plating min – Mating | 0.76μm (30μ”) | Row-to-Row Pitch | 2.00mm |
| Shrouded | Yes | Connector Orientation | Vertical / Straight |
| PCB Mount Alignment | W/O | PCB Thickness (Recommended) | 1.57mm |
| Square Terminal Post & Tail Dimension | 0.40mm × 0.40mm | Height of Connector above PCB | 6.40mm |
| Metal Shape & Form | Square Pin | ||
| Solder Process Data | |||
| Max-Duration | 10 seconds | Max-Cycle | 1 |
| Lead-Free Process Capability | Wave | Max-Temp | 260°C ±5°C |
