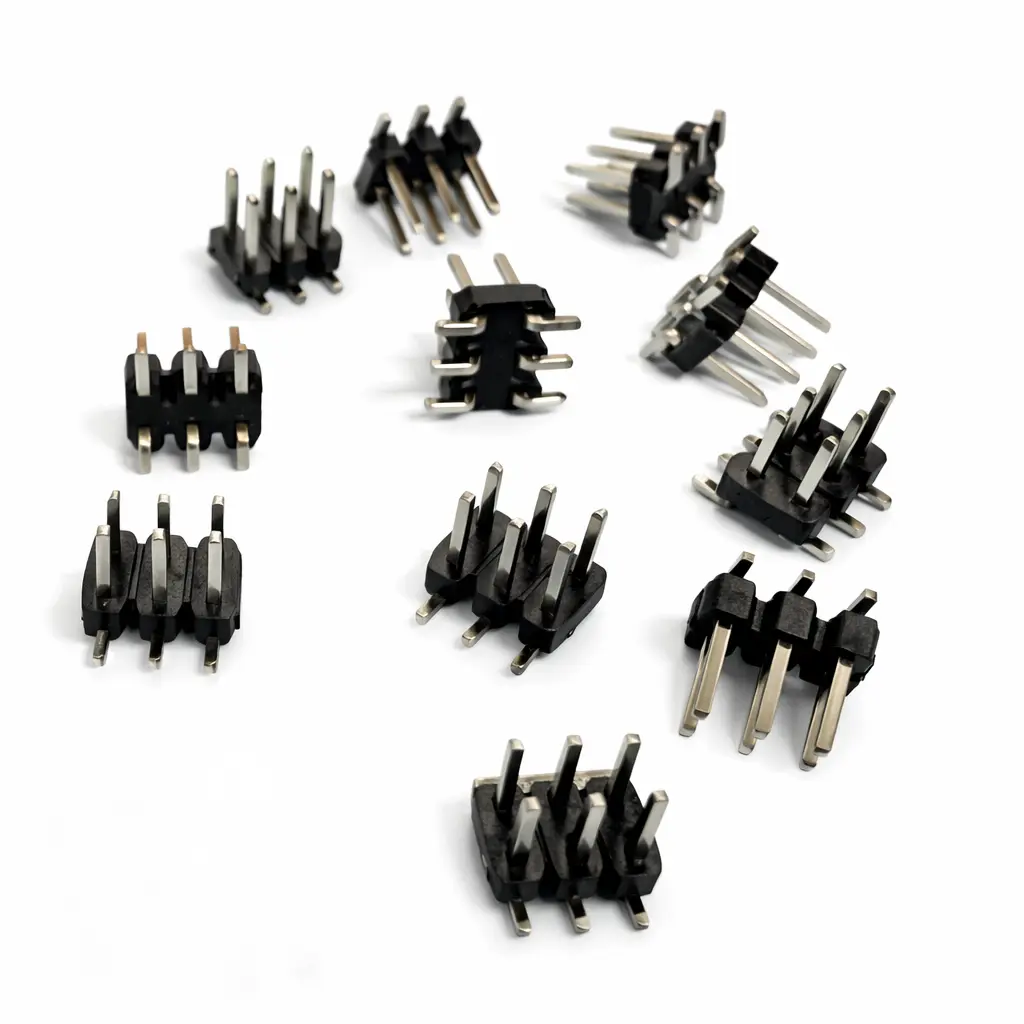

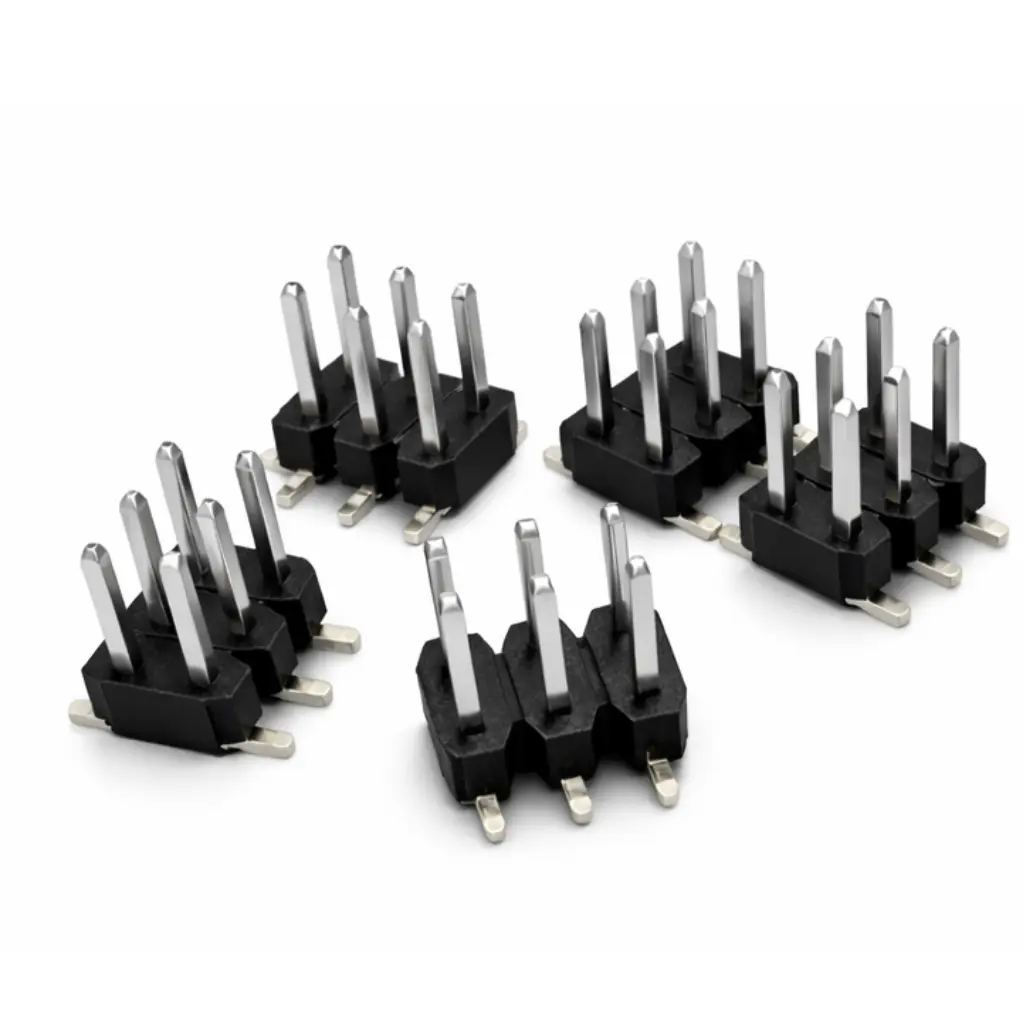

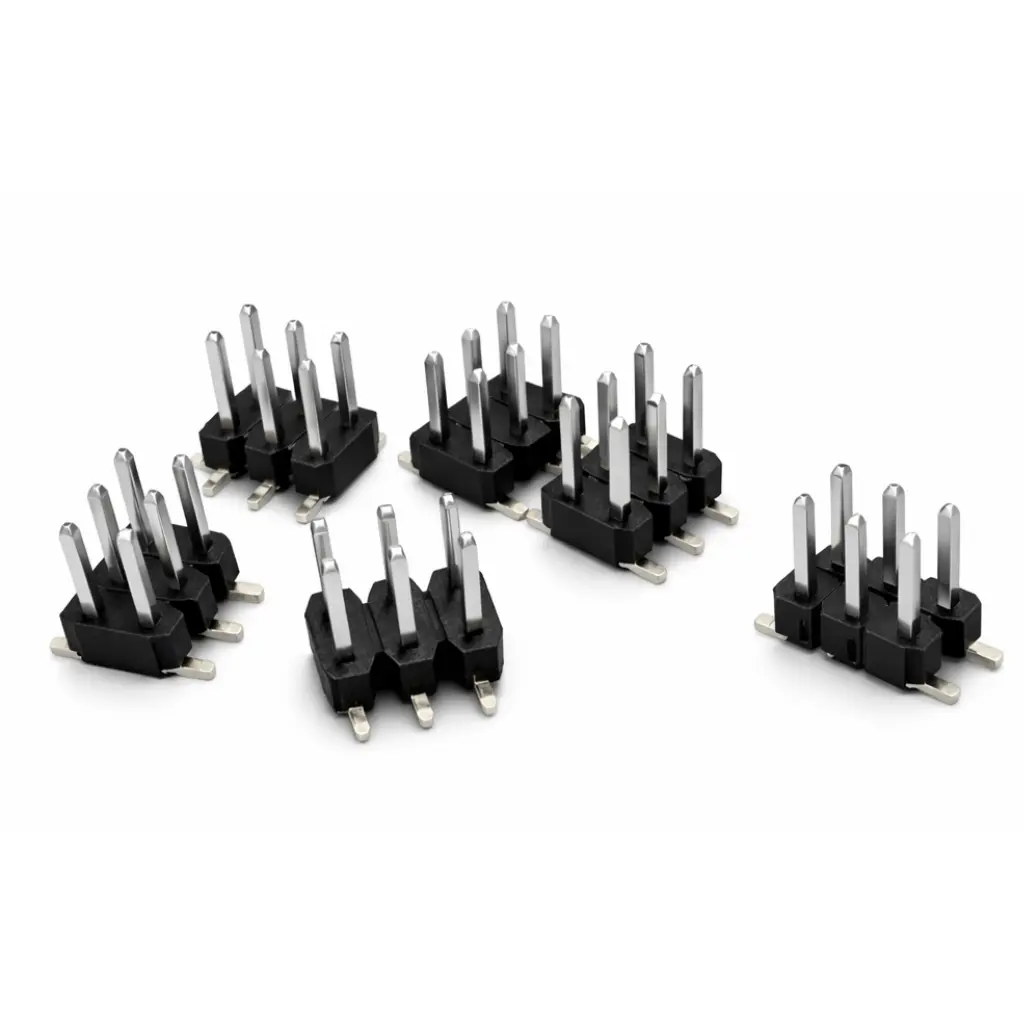

2.00mm dual row SMT pin header optimized for space-saving, high-density PCB layouts where reliable SMT termination and repeatable pin geometry are critical. Based on the drawing, it uses SQ0.50±0.02 copper-alloy contacts on a 2.00mm pitch with dual-row spacing 2.00±0.10, supported by a PA6T UL94V-0 insulator for thermal stability during SMT processing. Electrical performance follows EIA-364C with 2A current rating, ≤30mΩ contact resistance, ≥1000MΩ insulation resistance, and AC 500V dielectric withstand. The connector supports multiple plating codes including Ni(30u”–50u”) + Au(0.5–0.8u”) and is supplied in TR tape-and-reel for pick-and-place production. Soldering heat resistance is 260°C ±5°C for 10s max.
Board-to-board interconnects in compact embedded systems
Industrial control modules and interface boards
Communication equipment and dense I/O header arrays
Consumer electronics PCBs requiring automated SMT assembly
Mezzanine/stacking designs using fine-pitch dual-row headers
2.00mm pitch dual-row SMT header, WV vertical 180°, Base 2.00H
SQ0.50±0.02 copper-alloy pins for consistent mating and strength
Electrical: 2A, ≥1000MΩ, ≤30mΩ, AC 500V
PA6T UL94V-0 housing; operating -40°C to +105°C
260°C ±5°C / 10s max soldering heat resistance (SMT process support)
Plating codes: 01/03/06/15/30 Au, 31 Sn, 32 Ni
TR (Tape & Reel) packaging for automated assembly
Pin counts supported per table: 4–80 pins
2.00mm dual row SMT pin header designed for compact PCB interconnects with secure solder joints and consistent mating alignment. Built with SQ0.50 copper-alloy pins, PA6T UL94V-0 housing, and TR tape-and-reel packaging for automated SMT assembly. Ideal for board-to-board links, I/O headers, and dense control modules requiring 2A performance and stable operation -40°C to +105°C
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-PH-2200336WV06P-XXTR-01 | Description | 2.00mm Pitch Pin Header, Dual Row, SMT Type, Header 2.00mm, Gold/Ni Plated |
| Application | Signal, Board-to-Board, Wire-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount Connector | UPC | N/A |
| Keywords | Pin Header, Dual Row Pin Header, SMT Pin Header, Straight Pin Header, PCB Mount Connector, Header Connector, Electronic Connector | Connector & Contact Terminates to | Printed Circuit Board |
| Electrical | |||
| Rated Voltage | AC 500V | Current Rating | 2.0A |
| Contact Resistance | ≤30mΩ Max | Insulation Resistance | ≥1000MΩ Min |
| Dielectric Withstanding Voltage | AC 500V | Norm | EIA-364C |
| Physical | |||
| Breakaway | No | Circuits (Number of Positions) | 4 ~ 80 |
| Circuits (Maximum) | 80 | Color – Housing | Black |
| Durability (mating cycles max) | N/A | Flammability | UL 94V-0 |
| Glow-Wire Capable | No | Lock to Mating Part | Yes |
| Material – Metal | Copper Alloy | Material – Plating Mating | Ni (30~50μ”) + Au (0.5–0.8μ”) |
| Material – Plating Soldering Area | Same as Mating | Material – Resin | PA6T (UL 94V-0) |
| Metal Shape & Form | Square Pin 0.50mm | Number of Rows | 2 |
| Connector Orientation | Vertical / Straight | Packaging Type | Tape & Reel |
| PCB Locator | Yes (alignment slot) | PCB Retention | No |
| PC Tail Length | 2.50mm ±0.25 | Pitch – Mating Interface | 2.00mm |
| Plating min – Mating | 0.50.8μ” Gold over 3050μ” Ni | Plating min – Termination | Same |
| Polarized to Mating Part | Yes | Polarized to PCB | Yes |
| Shrouded | No | Stackable | No |
| Operating Temperature | -40°C to +105°C | Termination Interface Style | Surface Mount |
| Square Terminal Post & Tail Dimension | 0.50mm SQ | PCB Mount Retention | W/O |
| PCB Mount Alignment | W/O | Connector Mounting Type | SMT |
| PCB Thickness (Recommended) | 1.57mm | Row-to-Row pitch | 2.00mm |
| Height of connector above PCB | 5.90mm | ||
| Solder Process Data | |||
| Max-Cycle | N/A | Max-Duration | 10 sec MAX |
| Lead-Free Process Capability | Yes | Max-Temp | 260°C ±5°C |
