2.00mm Dual Row THT Pin Header

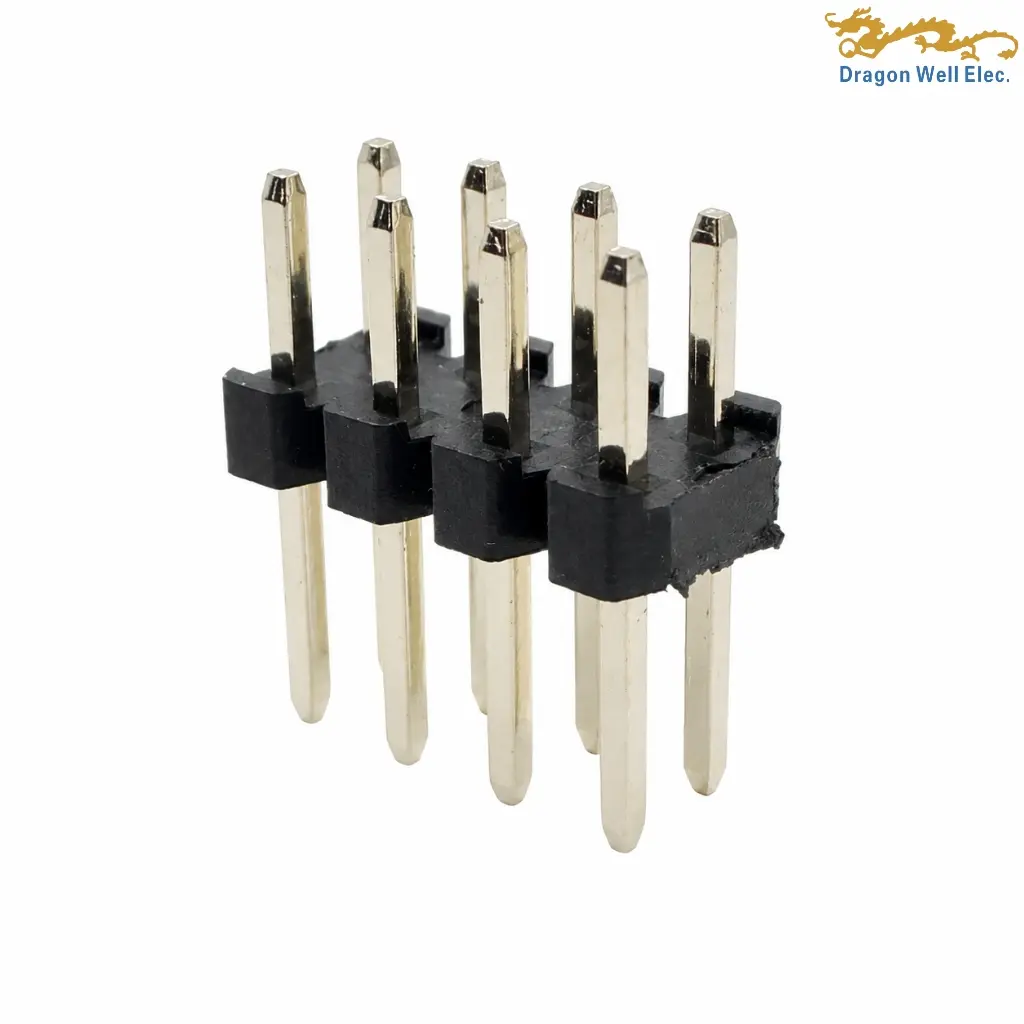

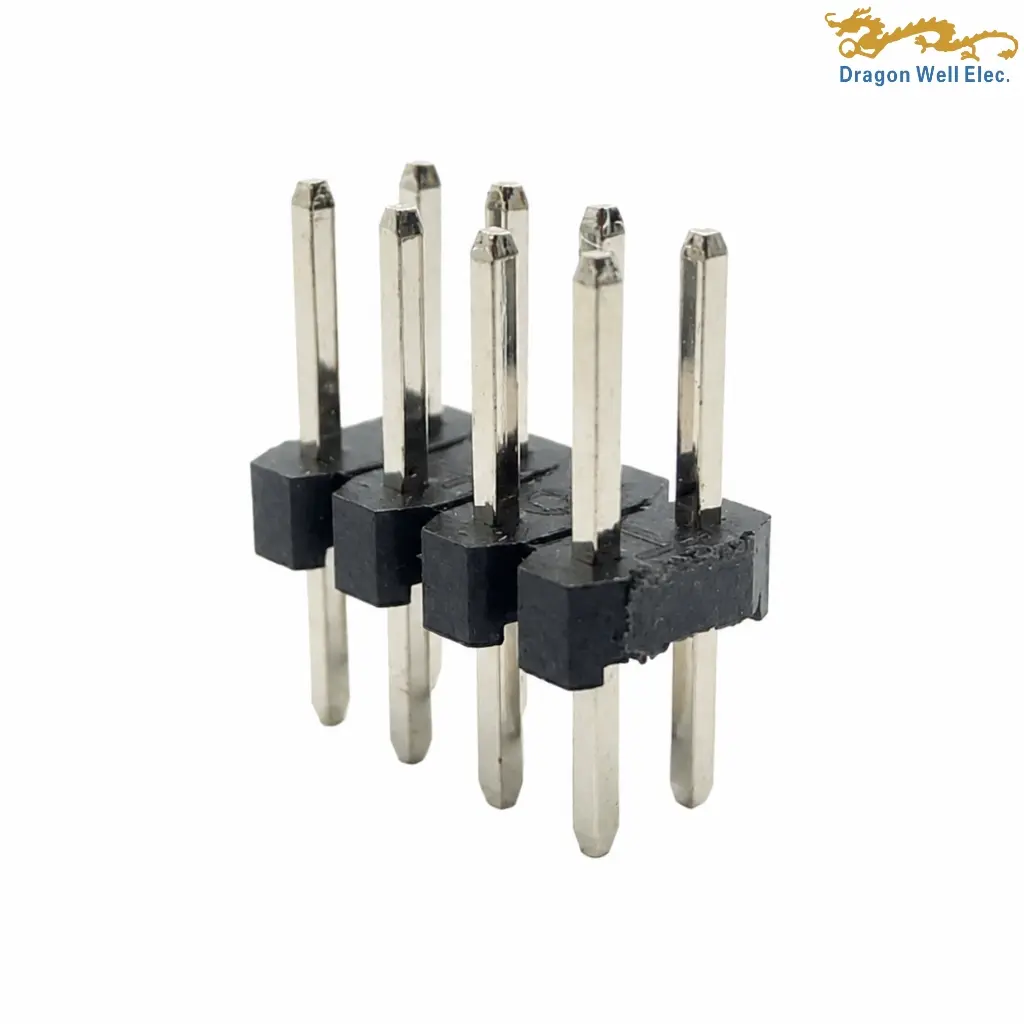

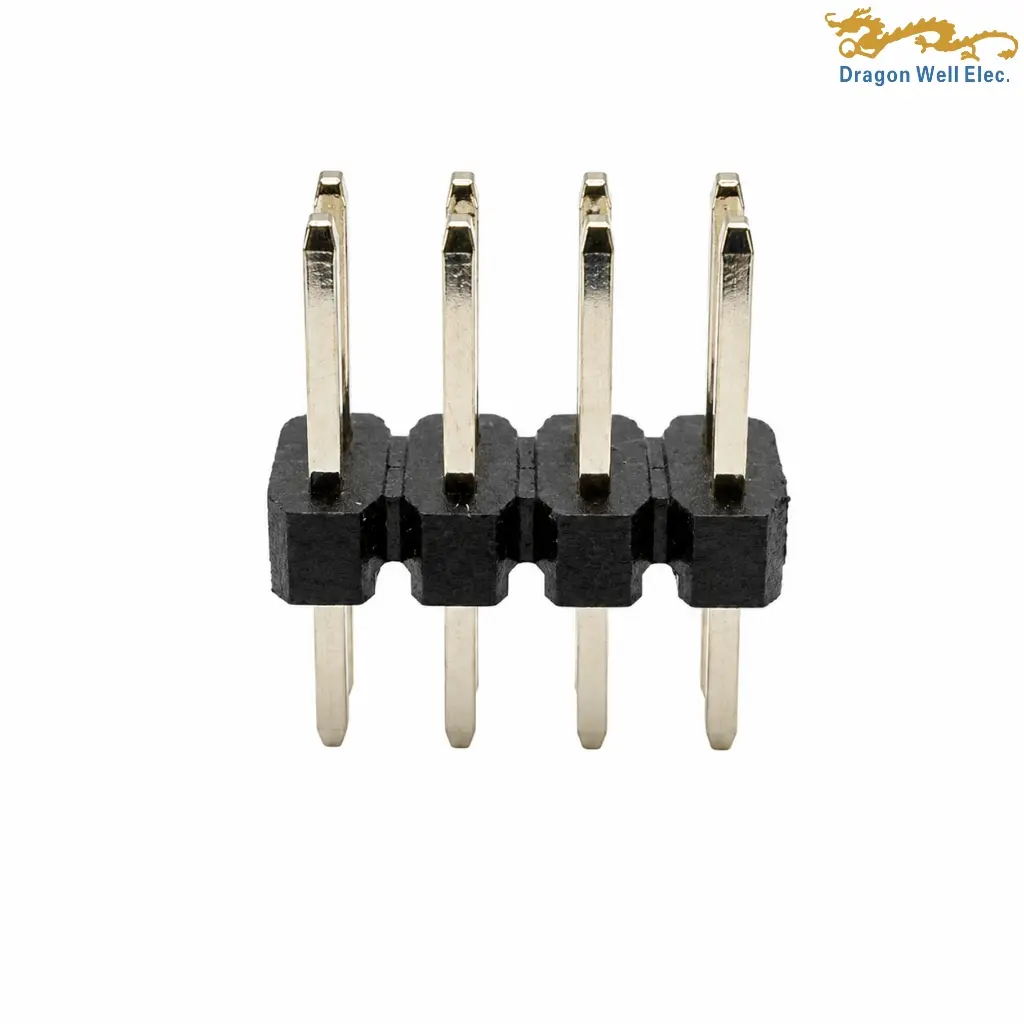

2.00mm dual row THT pin header DW-PH-2200886WVNP-01PE-01 is a vertical through-hole PCB connector designed for compact board-level electrical interconnection. The supplied Dragon Well drawing specifies a dual-row configuration with a 2.00 mm pitch between adjacent contacts and between the two rows, providing a compact alternative for PCB designs requiring reliable multi-circuit connections.

The connector uses 0.50 mm square copper-alloy contacts housed in a PA6T insulator rated UL94 V-0. Its base height is 1.50 mm, with a 4.40 mm contact extension above the housing and a 3.00 mm PCB tail below the housing. The recommended PCB footprint uses Ø0.80 mm through-holes arranged on a 2.00 mm grid.

Electrical characteristics of this 2.00mm dual row THT pin header include a 2.0 A current rating, 20 mΩ maximum contact resistance, 1000 MΩ minimum insulation resistance, and 500 VAC dielectric withstand voltage. The specified operating-temperature range is −40°C to +105°C, supporting use in a broad range of electronic and industrial PCB assemblies.

The DW-PH-2200886 family supports configurable even pin counts from 4 through 80 contacts. DIM A and DIM B increase according to the selected circuit count, allowing the same connector family to accommodate different board layouts.

For the supplied DW-PH-2200886WVNP-01PE-01 configuration, the WV designation specifies a vertical 180° orientation, plating code 01 specifies gold-flash plating, and PE specifies PE-bag packaging. The drawing also lists alternative gold, tin and nickel plating selections for other ordering configurations.

This 2.00mm dual row THT pin header is suitable for board-to-board and general PCB interconnection applications where a compact 2.00 mm pitch, vertical orientation and through-hole mechanical retention are required. Official Samtec, Molex and Amphenol product families use the same general 2.00 mm header terminology for compact PCB interconnection systems.
