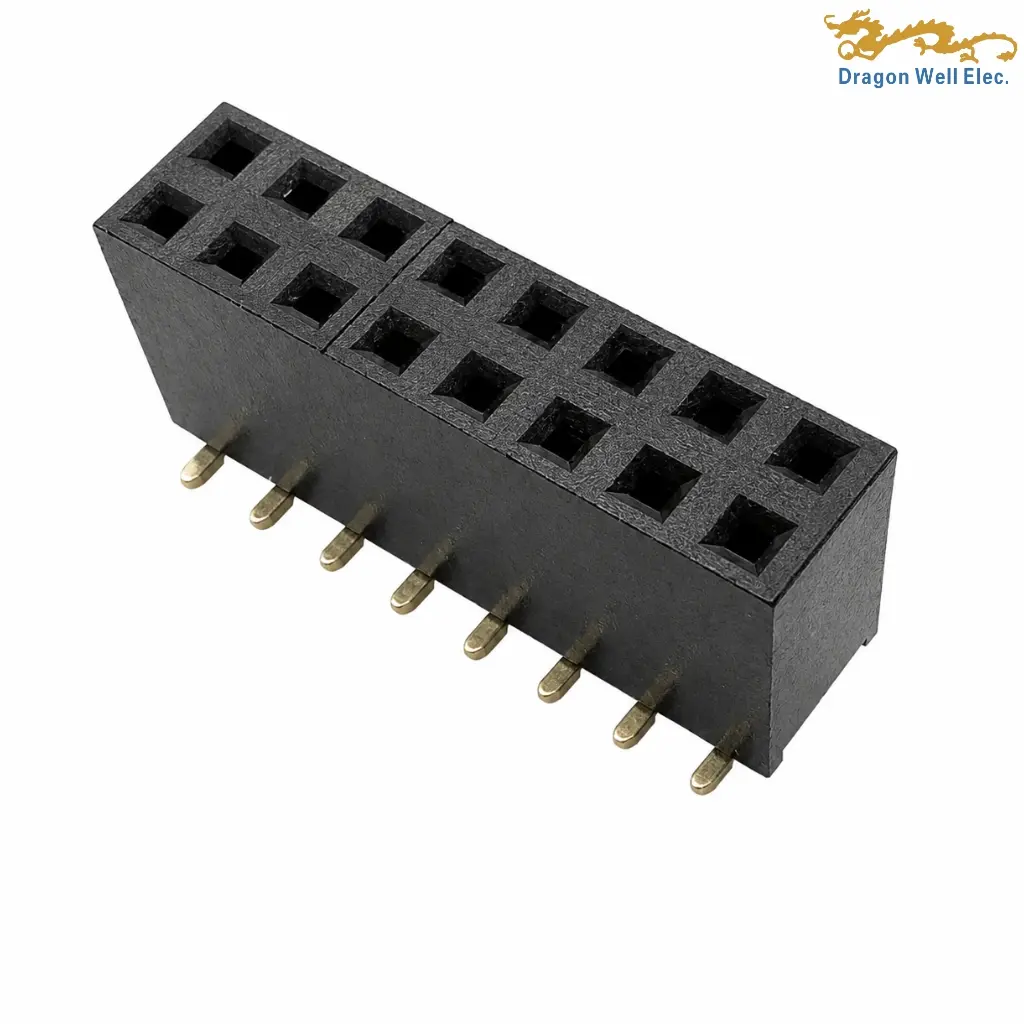

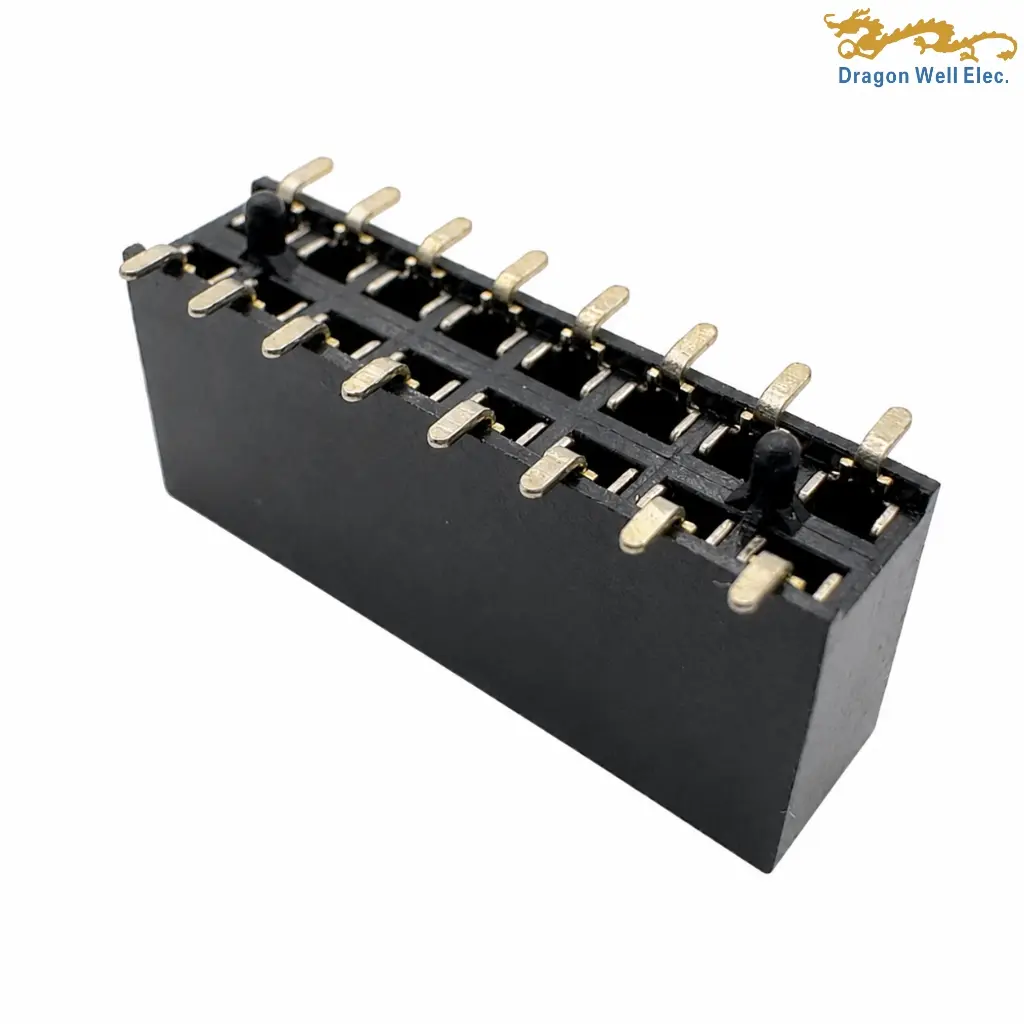

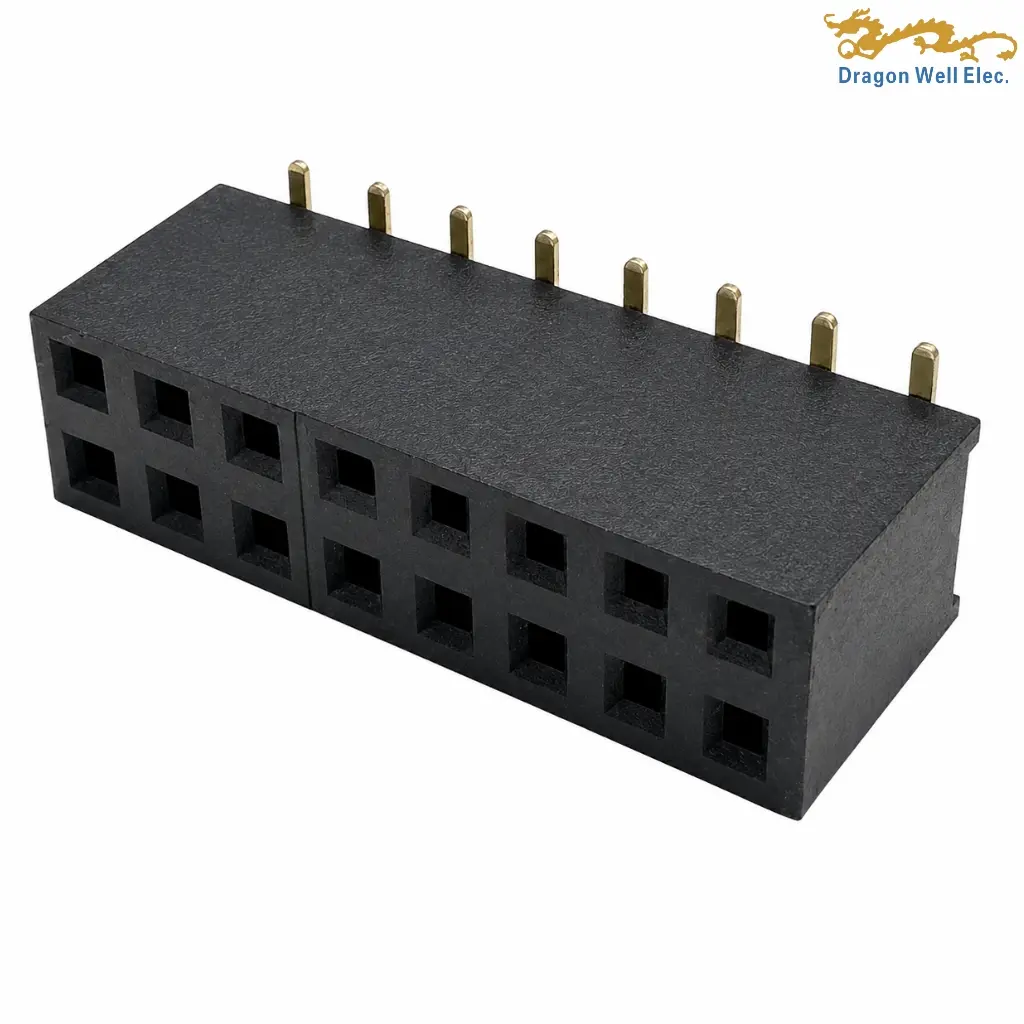

2.54mm dual row female header 16P DW-FH-2254588WV16P-01TR-01 is a vertical 180°, 2 × 8 position PCB receptacle rated at 3 A / 250 V AC/DC. It features copper-alloy contacts, gold flash over nickel plating, black Nylon 6T UL 94V-0 housing, plastic locating pegs, tape-and-reel packaging with pick-and-place cap, and RoHS-compliant construction.
Applications: Board-to-board PCB connections, embedded control boards, industrial electronics, communication equipment, instrumentation, test equipment, control systems, and compact electronic assemblies. Comparable 2.54 mm dual-row female receptacles are widely used for vertical PCB interconnection.
Highlights: 2.54 mm pitch; 16 positions; 2 × 8 dual-row configuration; vertical 180° orientation; 3.0 A AC/DC current rating; 250 V AC/DC voltage rating; ≤20 mΩ contact resistance; ≥1000 MΩ insulation resistance; 500 V AC/1 minute withstand voltage; -40°C to +105°C operating range; copper-alloy contacts; gold flash over ≥50 µin nickel; black Nylon 6T UL 94V-0 housing; A = 17.78 mm; B = 20.82 mm; 8.50 ±0.20 mm housing height; plastic locating pegs; tape-and-reel with plastic cap; RoHS compliant.
2.54mm dual row female header 16P DW-FH-2254588WV16P-01TR-01 is a vertical 180° PCB receptacle connector designed for compact board-level interconnection. The Dragon Well drawing specifies a 2.54 mm pitch, dual-row configuration, and 16 total positions arranged as 2 × 8 contacts.
The connector is rated at 3.0 A AC/DC and 250 V AC/DC. Electrical performance includes 20 mΩ maximum contact resistance, 1000 MΩ minimum insulation resistance, and 500 V AC for one minute withstand voltage. The specified operating temperature range is -40°C to +105°C.
This 2.54mm dual row female header 16P uses copper-alloy contacts and a black high-temperature Nylon 6T insulator rated UL 94V-0. The drawing specifies gold plating over a minimum 50 µin nickel underplate. For this particular model, plating code 01 identifies gold flash.
For the 16-position configuration, the dimension table gives A = 17.78 mm and B = 20.82 mm. The connector body width is 5.00 mm, while the nominal housing height is 8.50 ±0.20 mm. Model suffix 01 specifies the version with plastic locating pegs, and TR indicates tape-and-reel packaging with a plastic pick-and-place cap.
The 2.54mm dual row female header 16P is suitable for board-to-board interconnection, embedded control boards, industrial electronics, communication equipment, instrumentation, test systems, and other PCB assemblies requiring a compact dual-row female receptacle. Molex also offers 2.54 mm dual-row vertical female PCB receptacles with surface-mount termination, while Samtec classifies comparable 2.54 mm socket strips for vertical PCB interconnection.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-FH-2254588WVNP-XXTR-XX | Description | 2.54 mm Female Header, Dual Row, Vertical 180°, DIP Type, H=8.5 mm |
| Application | Board-to-Board, Signal/Power | Component Type | Female Header |
| Product Name | Female Header 2.54 mm Dual Row Vertical DIP | UPC | – |
| Electrical | |||
| Current – Maximum per Contact | 3.0 A | Voltage – Maximum | 250 V AC/DC |
| Contact Resistance | 20 mΩ Max. | Insulation Resistance | 1000 MΩ Min. |
| Physical | |||
| Circuits (Loaded) | 4–80 total positions (even counts, per NP) | Circuits (Maximum) | 80 |
| Color – Resin | Black | Flammability | UL94V-0 |
| Material – Metal | Copper Alloy | Material – Plating Mating | Bottom Ni 50 µ″ Min.; surface finish per XX plating code |
| Material – Plating Termination | Per XX code: 01 Gold Flash; 03 3 µ″ Gold; 06 6 µ″ Gold; 15 15 µ″ Gold; 30 30 µ″ Gold; 31 Sn; 32 Ni | Material – Resin | PA6T (Nylon 6T) or LCP, per suffix code; UL94V-0 |
| Net Weight | – | Number of Rows | Dual Row (2) |
| Orientation | Vertical / 180° (WV) | Packaging Type | Tape Reel (TR), with plastic cap |
| PC Tail Length | – | Pitch – Mating Interface | 2.54 mm |
| Plating min – Mating | Ni 50 µ″ Min. underplate; surface finish per XX code | Plating min – Termination | Not separately specified; per XX plating code |
| Polarized to PCB | Optional plastic pegs, suffix-dependent | Temperature Range – Operating | -40 °C to +105 °C |
| Termination Interface Style | Through Hole / DIP | ||
| Solder Process Data | |||
| Max-Duration | 5000 | Lead-Free Process Capability | Wave |
| Max-Cycle | 5000 | Max-Temp | 260 °C ±5 °C, 105 MAX |
