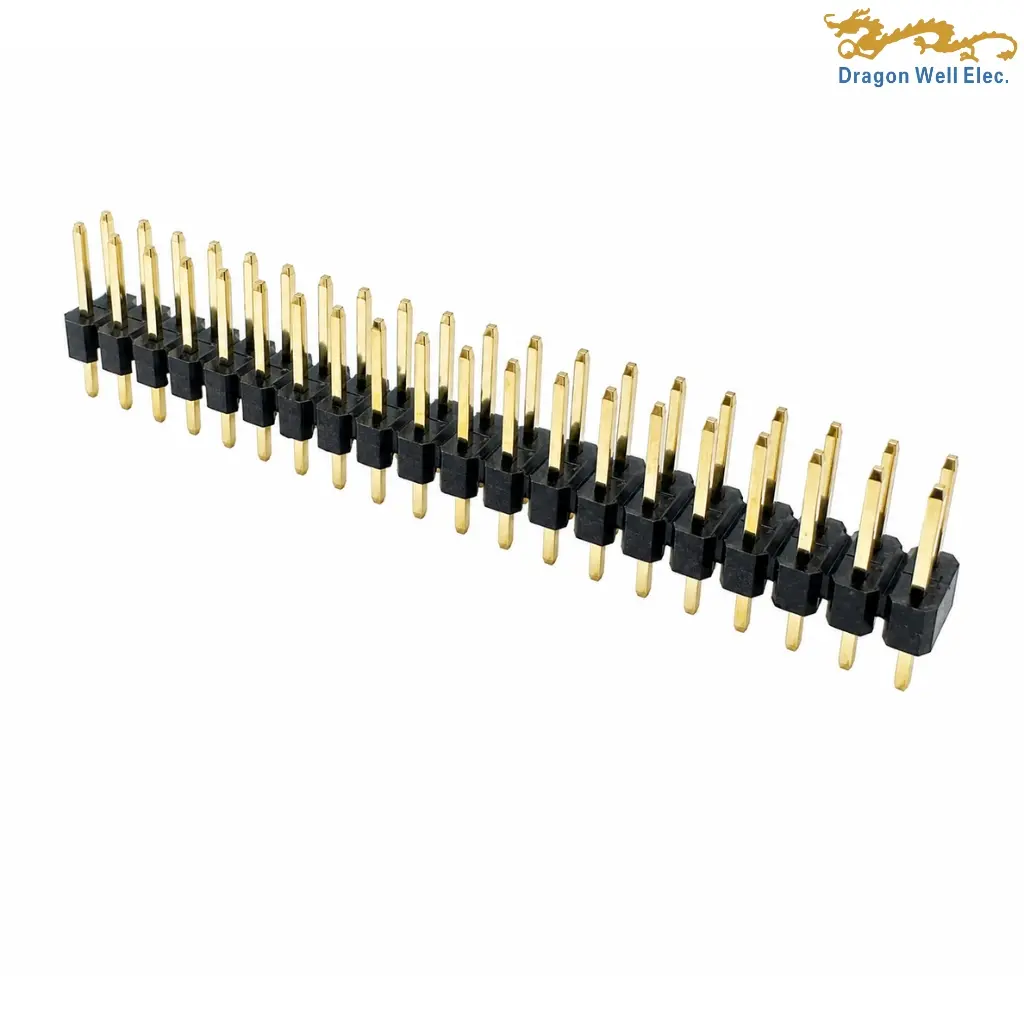

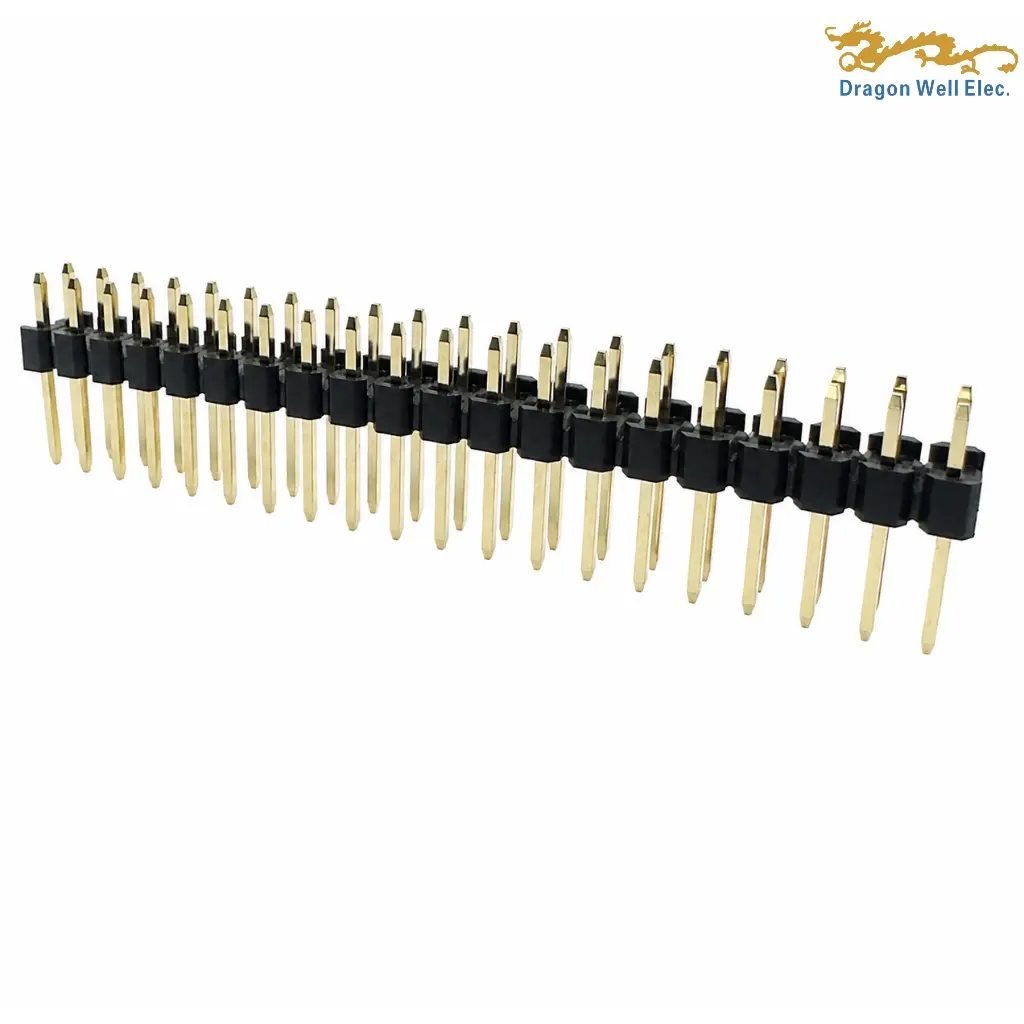

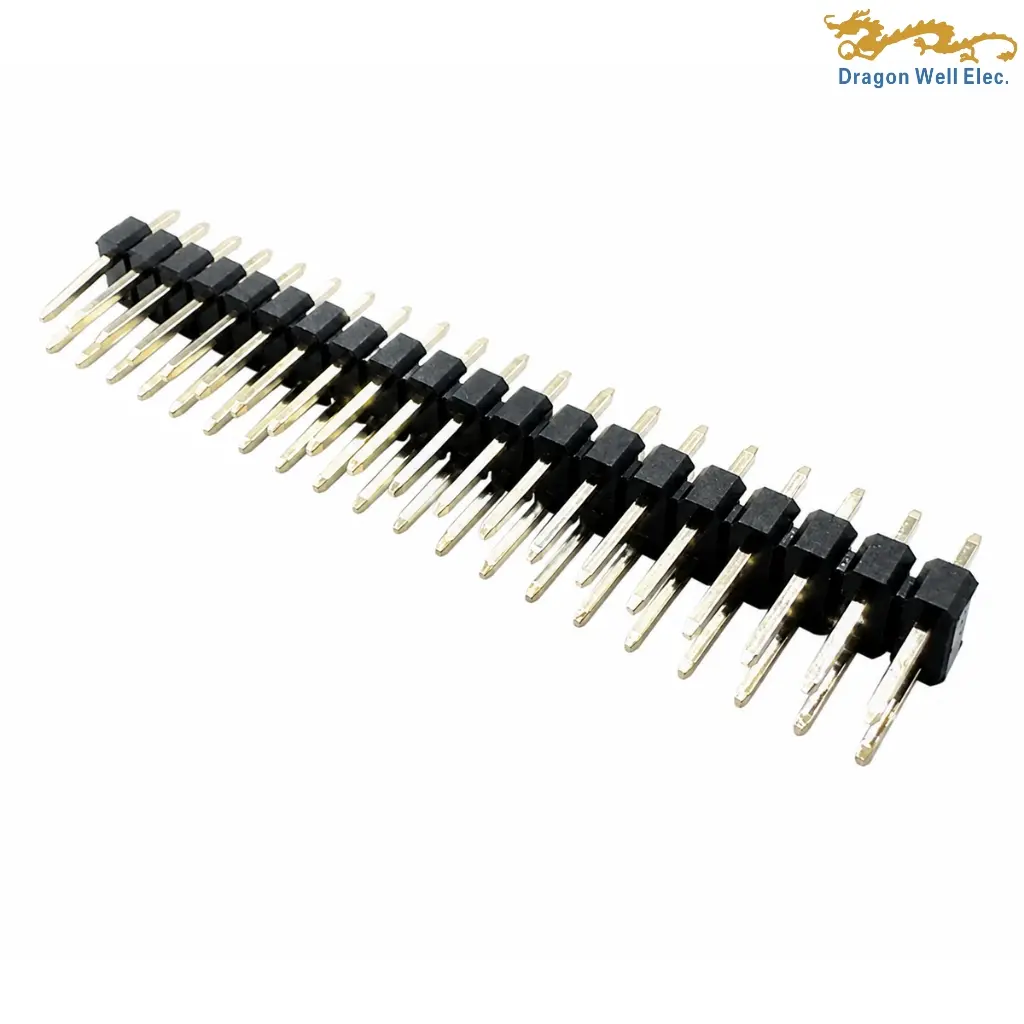

The 2.54mm Dual Row Pin Header 40 Pin DW-PH-2254798WV40P-01PE-01 is a vertical 2 × 20 through-hole PCB header with 2.54 mm pitch and 0.64 mm square copper-alloy pins. It features a 3 A current rating, gold-flash contact plating, UL 94V-0 insulation, PE-bag packaging, and RoHS-compliant construction.
Applications: Board-to-board interconnection, wire-to-board interfaces, industrial control boards, embedded electronics, communication equipment, instrumentation, test equipment, development boards, and general PCB assemblies.
Highlights: 2.54 mm pitch; 40 pins; 2 × 20 dual-row configuration; vertical DIP/through-hole mounting; 3 A rated current; ≤20 mΩ contact resistance; ≥1000 MΩ insulation resistance; 1000 V AC/DC dielectric withstand; -40°C to +105°C operating range; 0.64 mm square pins; copper-alloy contacts; gold-flash plating; Polyester/PA6T UL 94V-0 insulation; 6.0 ±0.2 mm mating pin; 3.0 ±0.2 mm PCB tail; A = 48.26 mm; B = 50.80 mm; Ø1.10 mm PCB holes; PE-bag packaging; RoHS compliant.
2.54mm Dual Row Pin Header 40 Pin DW-PH-2254798WV40P-01PE-01 is a vertical through-hole PCB connector designed with 40 contacts arranged in a 2 × 20 configuration. The Dragon Well drawing confirms a 2.54 mm pitch, 0.64 mm square pins, dual-row construction, and DIP/through-hole termination for secure PCB mounting.
This connector is rated at 3 A. Its electrical specifications include 20 mΩ maximum contact resistance, 1000 MΩ minimum insulation resistance, and 1000 V AC/DC dielectric withstand. The specified operating temperature range is -40°C to +105°C.
The 2.54mm Dual Row Pin Header 40 Pin uses copper-alloy contacts with gold-flash plating for this specific 01 plating configuration. The drawing lists the insulation material as Polyester / PA6T, UL 94V-0. Resistance to soldering heat is specified at 260°C ±5°C for up to 10 seconds.
For this 40-position model, the dimension table specifies A = 48.26 mm and B = 50.80 mm. The mating pin length is 6.0 ±0.2 mm, the PCB tail length is 3.0 ±0.2 mm, and the insulator height is 2.50 ±0.10 mm. The recommended PCB layout uses Ø1.10 mm holes on a 2.54 mm × 2.54 mm grid. Packaging code PE identifies PE-bag packaging.
The 2.54mm Dual Row Pin Header 40 Pin is suitable for board-to-board connections, wire-to-board interfaces, industrial control boards, embedded electronics, communication equipment, instrumentation, test equipment, and general PCB interconnection. Molex, Samtec, and Amphenol use the same established terminology for comparable 2.54 mm, 40-position, dual-row, vertical through-hole PCB headers.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-PH-2200850WVnP-XXTR-01 | Description | 2.00 mm Pitch Pin Header, Dual Row, Vertical 180°, SMT Type, Base 2.00 mm, 4–80 Pins |
| Application | Signal / Board-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount Header | Product Name | Pin Header CONN |
| Keywords | 2.00 Pin Header, Dual Row Pin Header, SMT Header, Surface Mount Header, Vertical Header | Contact Type | Pin |
| Electrical | |||
| Rated Voltage | 250 V | Current Rating | 3.0 A |
| Contact Resistance | 20 mΩ Max. | Insulation Resistance | 1000 MΩ Min. |
| Dielectric Withstand | 500 V AC for 1 minute | Norm | RoHS Compliant |
| Physical | |||
| Breakaway | N/A | Circuits / Number of Positions | 4–80 positions, even counts |
| Circuits Maximum | 80 | Color – Housing | N/A |
| Durability / Mating Cycles | 30 cycles | Flammability | UL94V-0 |
| Glow-Wire Capable | N/A | Lock to Mating Part | N/A |
| Material – Metal | Brass | Material – Plating | See part number plating code |
| Material – Plating Solder | N/A | Material – Resin | PA6T, UL94V-0 |
| Metal Shape and Form | SQ0.50 ± 0.03 | Number of Rows | 2 |
| Connector Orientation | Vertical / 180° | Packaging Type | Tape Reel (TR), with plastic cap |
| PCB Locator | N/A | PCB Retention | N/A |
| PC Tail Length | N/A (SMT) | Pitch – Mating Interface | 2.00 mm |
| Plating Min – Mating | See part number code | Plating Min – Termination | N/A |
| Polarized to Mating Part | N/A | Polarized to PCB | N/A |
| Shrouded | No | Stackable | N/A |
| Operating Temperature | -55 °C to +125 °C | Termination Interface | Surface Mount |
| Square Terminal Post | SQ0.50 ± 0.03 | PCB Mount Retention | N/A |
| PCB Mount Alignment | N/A | Connector Mounting | Surface Mount / SMT |
| PCB Thickness Recommended | N/A | Row-to-Row Pitch | 7.50 mm |
| Height of Connector | 15.50 mm | Recommended PCB Hole Dia. | N/A (SMT) |
| Solder Process Data | |||
| Max-Cycle | N/A | Max-Duration | 10s Max |
| Lead-Free Process Compatible | Yes (RoHS Compliant) | Max-Temp | 260°C±5°C |
