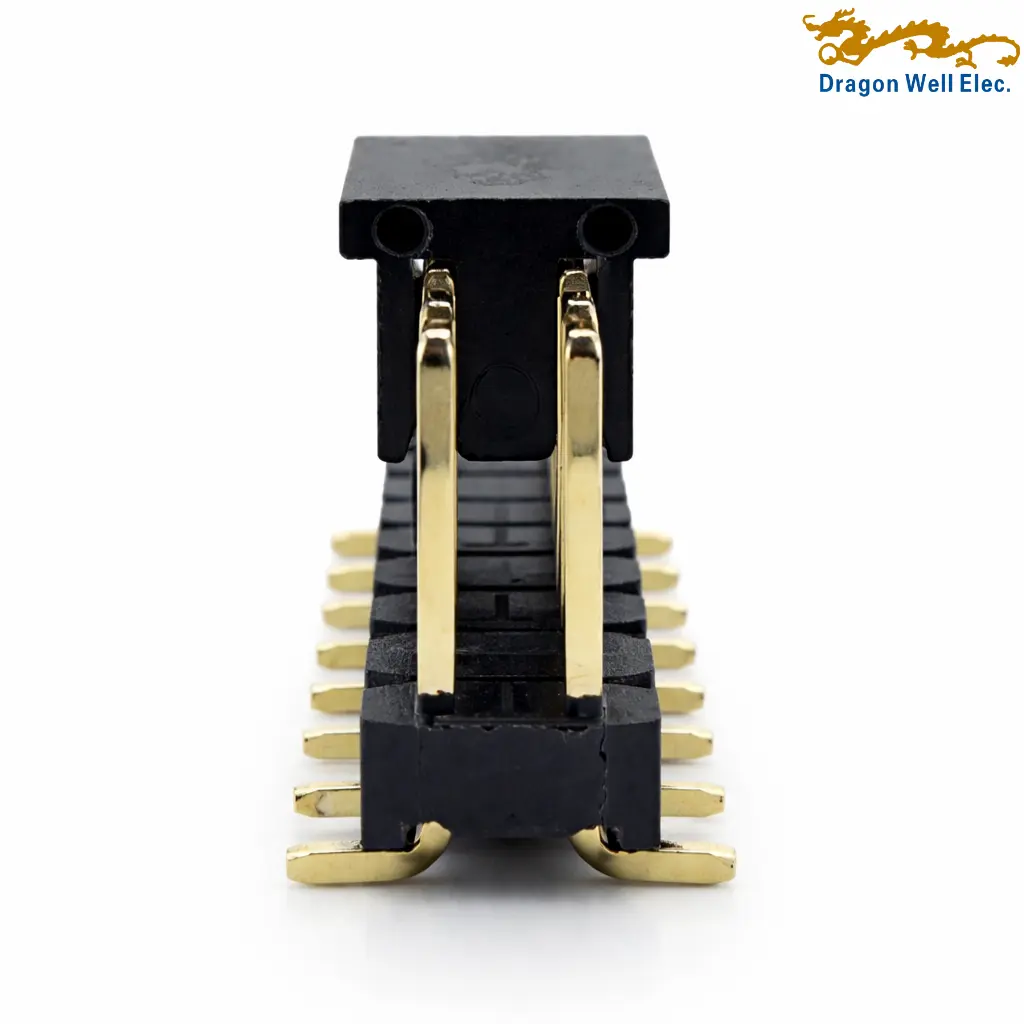

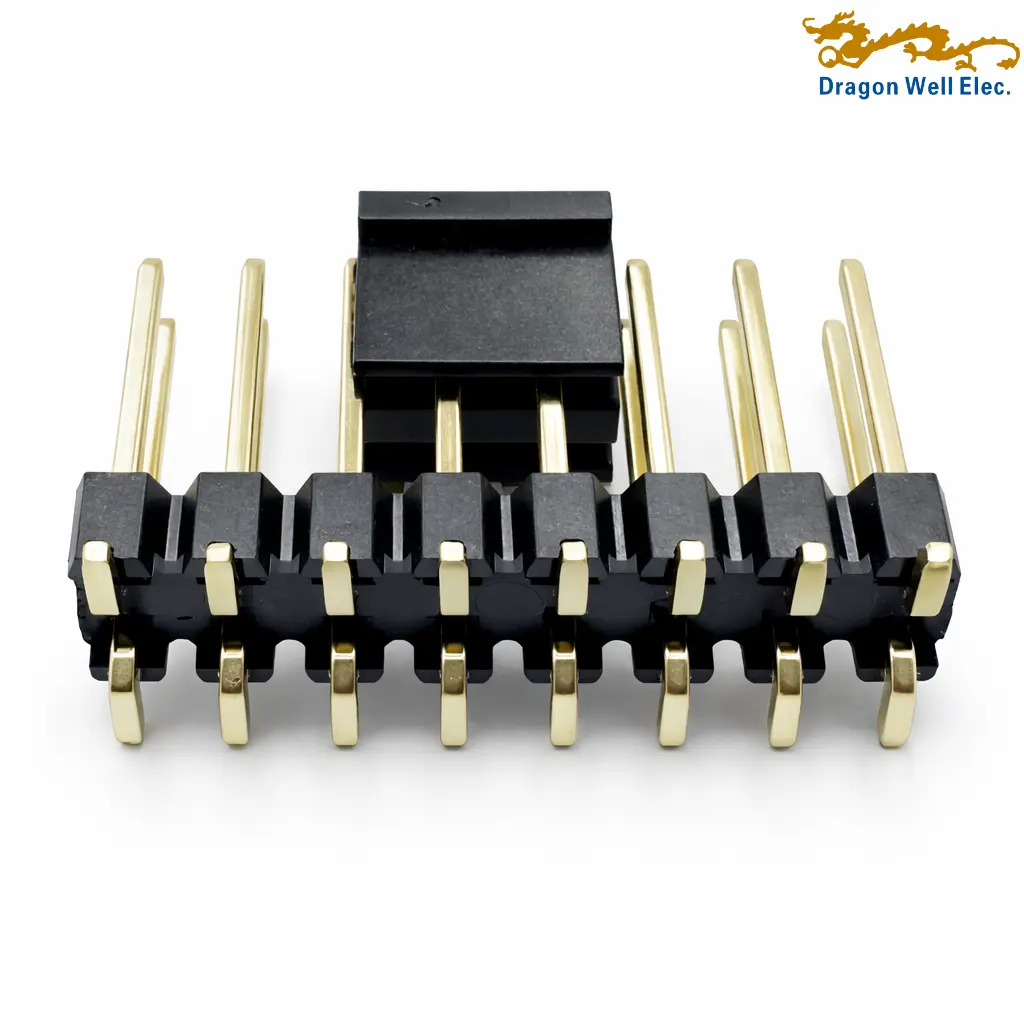

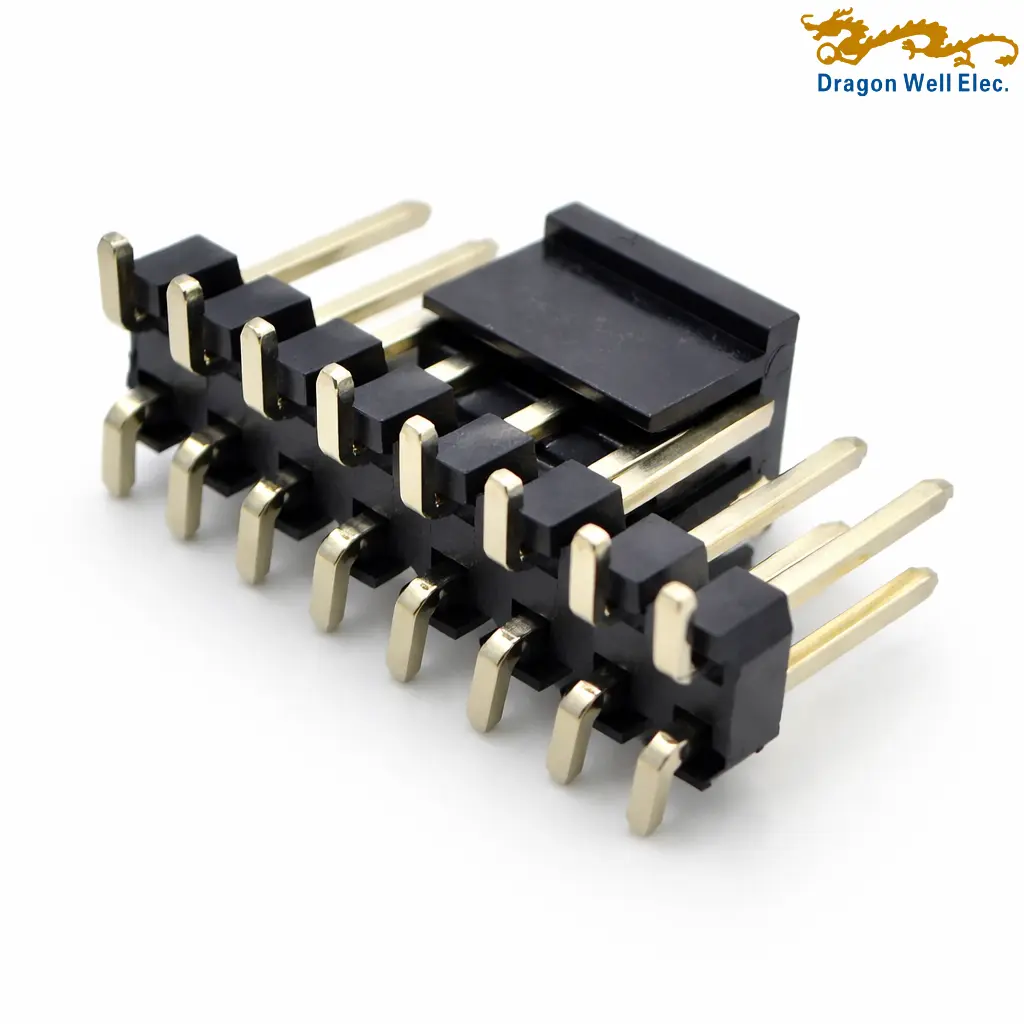

2.00mm dual row SMT pin header with vertical male connector design, surface mount termination, 0.50 mm square pins, brass contacts, Au or Sn over Ni plating, UL94V-0 insulator, 2.0A current rating, 500V AC withstand voltage, and tape reel packaging for board-to-board signal PCB applications.
Applications:
• Board-to-board signal connection
• PCB signal interface modules
• Industrial control boards
• Communication equipment
• Embedded electronic systems
• Automation control devices
• Consumer electronic PCB assemblies
• Compact surface mount PCB designs
• Instrumentation and control boards
Highlights:
• 2.00mm pitch dual row SMT pin header
• Vertical 180° male connector design
• Surface mount termination
• 0.50 mm square pin structure
• Variable total pin count
• Brass contact material
• Au or Sn over Ni plating options
• Polyester UL94V-0 insulator material
• PA6T standard material noted in drawing
• Rated current: 2.0A
• Contact resistance: 20mΩ max.
• Insulation resistance: 1000MΩ min.
• Withstanding voltage: 500V AC
• Operating temperature: -40°C to +105°C
• Soldering temperature: 260°C ±5°C for 5 seconds
• Tape reel packaging
• RoHS compliant
2.00mm dual row SMT pin header is a vertical male PCB connector designed for reliable signal and board-to-board connection in compact electronic assemblies. Based on the drawing, this connector features a 2.00mm pitch, dual-row structure, surface mount termination, and vertical 180° orientation. It is suitable for PCB layouts that require stable pin alignment, compact spacing, and efficient automated SMT assembly.
The product model is DW-PH-2200855WVnP-XXTR-01. The part number structure identifies it as a Dragon Well pin header series with dual-row layout, 2.00mm pitch, vertical 180° orientation, variable total pin count, selectable plating option, and tape reel packaging. The drawing shows a 0.50 mm square male pin design and a recommended top-side PCB layout for surface mount soldering. With RoHS compliance, vertical SMT design, dual-row construction, and tape reel packaging, this connector is suitable for automated production and high-density PCB applications. It can be used in board-to-board signal interfaces, industrial control modules, communication equipment, embedded electronics, and compact electronic devices requiring dependable surface mount male header connection.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-PH-2200855WVnP-XXTR-01 | Description | 2.00mm dual row SMT pin header, male, vertical type |
| Application | Signal / Board-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount Header | Product Name | Pin Header CONN |
| Keywords | 2.00mm Pin Header, Dual Row, SMT Header, Surface Mount | Contact Type | Pin |
| Electrical | |||
| Rated Voltage | 500V AC | Current Rating | 2.0A |
| Contact Resistance | 20mΩ Max | Insulation Resistance | 1000MΩ Min |
| Dielectric Withstand | 500V | Norm | N/A |
| Operation Temperature | -40°C to +105°C | ||
| Physical | |||
| Breakaway | N/A | Circuits / Number of Positions | Variable (Npin) |
| Circuits Maximum | N/A | Color – Housing | Black |
| Durability / Mating Cycles | N/A | Flammability | UL94V-0 |
| Glow-Wire Capable | N/A | Lock to Mating Part | N/A |
| Material – Metal | Brass | Material – Plating | Au or Sn over Ni |
| Material – Plating Solder | N/A | Material – Resin | PA6T, UL94V-0 |
| Metal Shape and Form | Rectangular | Number of Rows | 2 |
| Connector Orientation | Vertical / 180° | Packaging Type | Tape Reel |
| PCB Locator | N/A | PCB Retention | N/A |
| PC Tail Length | 2.00mm | Pitch – Mating Interface | 2.00mm |
| Plating Min – Mating | See part number code | Plating Min – Termination | N/A |
| Polarized to Mating Part | N/A | Polarized to PCB | N/A |
| Shrouded | N/A | Stackable | N/A |
| Termination Interface | Surface Mount | PCB Mount Retention | N/A |
| Connector Mounting | Surface Mount | Row-to-Row Pitch | 2.00mm |
| Height of Connector | 6.00mm | Recommended PCB Hole Dia. | N/A |
| Soldering Temperature | 260°C ±5s | ||
| Solder Process Data | |||
| Max-Cycle | N/A | Max-Duration | N/A |
| Lead-Free Process | N/A | Max-Temp | 260°C ±5s |
