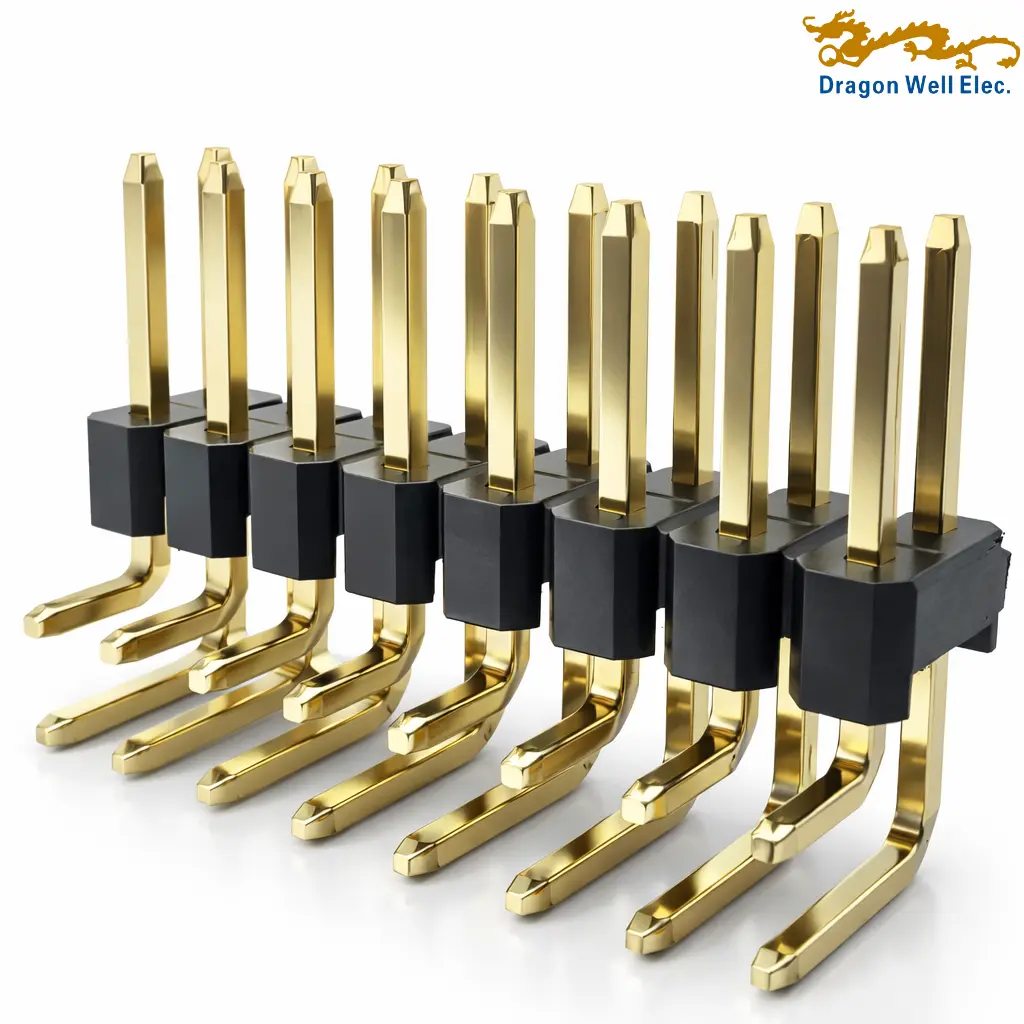

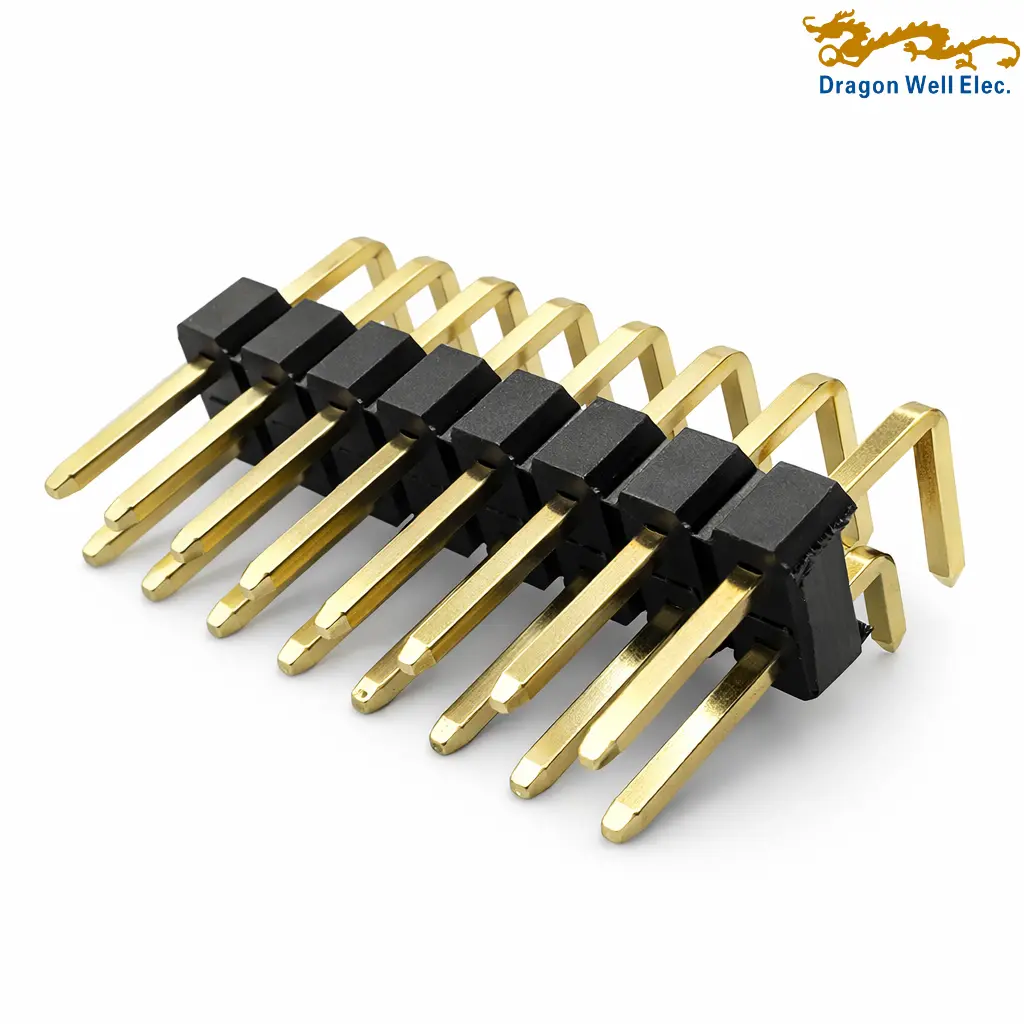

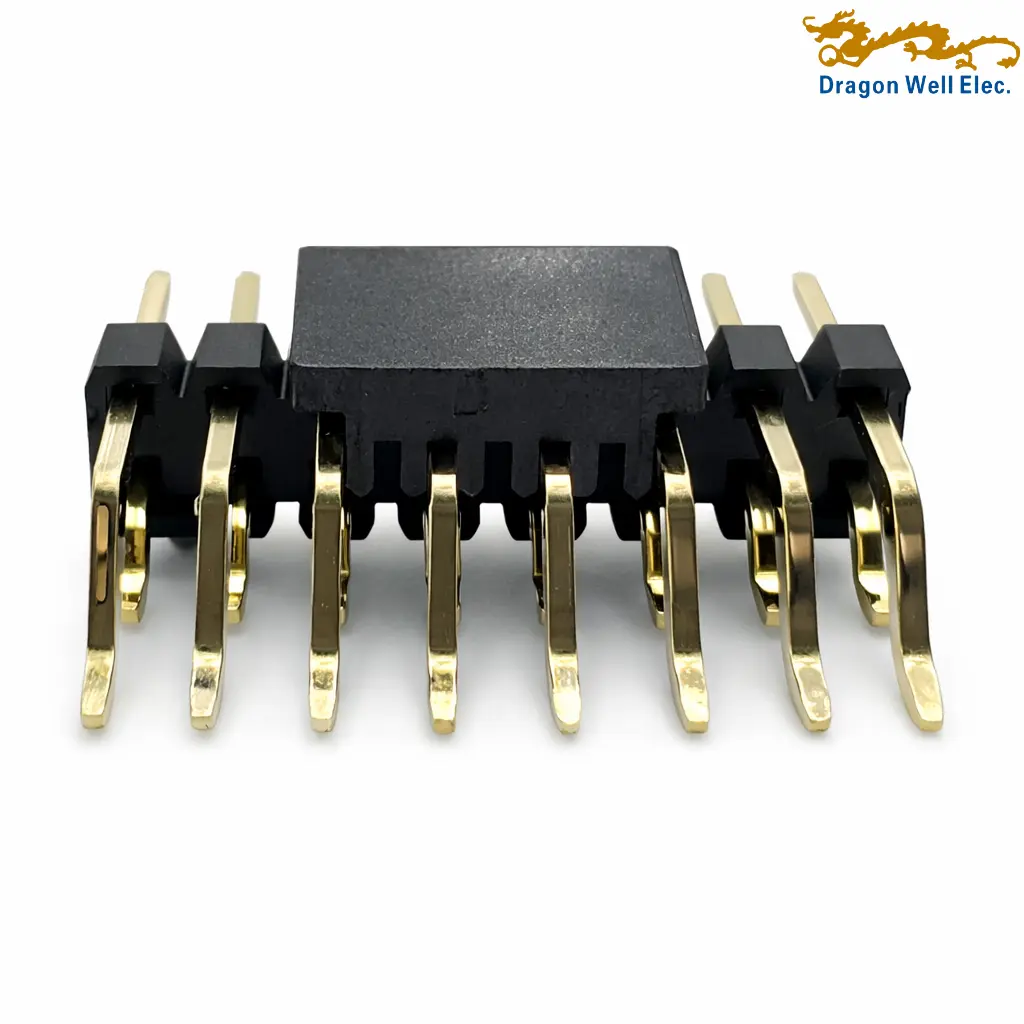

2.54mm pitch dual row right angle pin header 16 pin 2.54mm insulator height for PCB interconnection, designed with a dual row 90° right angle structure, through-hole/DIP mounting, and a 16-pin configuration shown in the drawing. Based on the drawing, this pin header supports 3AMP current rating, AC 500V withstand voltage, and uses a PA6T+30%GF UL94V-0 insulator for reliable performance in industrial and electronic applications.
• Applications: Industrial control boards, embedded systems, instrumentation, communication equipment, PCB interconnect modules, automation electronics, internal board-to-board connection, general electronic assemblies.
• Highlights: 2.54mm pitch pin header; dual row layout; right angle 90° type; through-hole/DIP mounting; 16-pin version shown; 3AMP current rating; 20mΩ max contact resistance; 1000MΩ min insulator resistance; AC 500V withstand voltage; PA6T+30%GF UL94V-0 insulator; RoHS compliant.
2.54mm pitch dual row right angle pin header 16 pin 2.54mm insulator height is a board-level connector designed for reliable PCB interconnection in industrial electronics, control boards, embedded modules, and general electronic assemblies. Based on the drawing, this product is a 2.54mm pitch pin header with a dual row layout, right angle 90° structure, and a 16-pin version shown. The drawing title also identifies it as a DIP type design with 2.54mm base/insulator height, making it suitable for standard through-hole PCB mounting.
This 2.54mm pitch dual row right angle pin header 16 pin 2.54mm insulator height is designed for dependable electrical and mechanical performance. According to the technical parameters in the drawing, the connector follows EIA-364C related requirements and provides a current rating of 3AMP, insulator resistance of 1000MΩ min, contact resistance of 20mΩ max, and withstand voltage of AC 500V. The operating temperature range is listed as -40°C to +105°C, supporting stable use in a broad range of electronic applications.
With its 2.54mm pitch, dual row arrangement, right angle through-hole form, and standard PCB layout, this pin header connector is suitable for board-to-board connection, daughter card interfaces, control systems, instrumentation, and embedded electronics where secure mating and dependable PCB retention are required. The drawing also confirms RoHS compliance.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-PH-2254339WR16P-XXXX-01 | Description | 2.54mm Pin Header Dual Rows DIP Type Base 2.54H |
| Application | Signal / Board-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount Header | Product Name | Pin Header CONN |
| Keywords | 2.54 Pin Header, Dual Row Pin Header, Right Angle Pin Header | Contact Type | Pin |
| Electrical | |||
| Rated Voltage | N/A | Current Rating | 3.0A |
| Contact Resistance | 20mΩ Max. | Insulation Resistance | 1000MΩ Min. |
| Dielectric Withstand | AC 500V | Norm | EIA-364C |
| Physical | |||
| Breakaway | N/A | Circuits (Number of Positions) | 4–80 |
| Circuits (Maximum) | 80 | Color – Housing | N/A |
| Durability (Mating Cycles) | N/A | Flammability | UL94V-0 |
| Glow-Wire Capable | N/A | Lock to Mating Part | N/A |
| Material – Metal | Brass | Material – Plating | Ni (30–50u”) + Au (0.5–0.8u”) |
| Material – Plating Solder | N/A | Material – Resin | PA6T+30%GF, UL94V-0 |
| Metal Shape and Form | SQ0.64±0.05 | Number of Rows | 2 |
| Connector Orientation | Right Angle | Packaging Type | TP / TB / PE |
| PCB Locator | N/A | PCB Retention | N/A |
| PC Tail Length | 2.54±0.15mm | Pitch – Mating Interface | 2.54mm |
| Plating Min – Mating | Au 0.5–0.8u” | Plating Min – Termination | N/A |
| Polarized to Mating | N/A | Polarized to PCB | N/A |
| Shrouded | No | Stackable | N/A |
| Operating Temperature | -40°C to +105°C | Termination Interface | Through Hole |
| Square Terminal Post | 0.64±0.05mm | PCB Mount Retention | N/A |
| PCB Mount Alignment | N/A | Connector Mounting | Through Hole |
| PCB Thickness (Recommended) | N/A | Row-to-Row Pitch | 2.54mm |
| Height of Connector | 2.54±0.15mm | Recommended PCB Hole Dia. | Ø1.10mm |
| Solder Process Data | |||
| Max-Cycle | N/A | Max-Duration | 10s Max |
| Lead-Free Process Compatible | Yes (RoHS Compliant) | Max-Temp | 260°C ±5°C |
