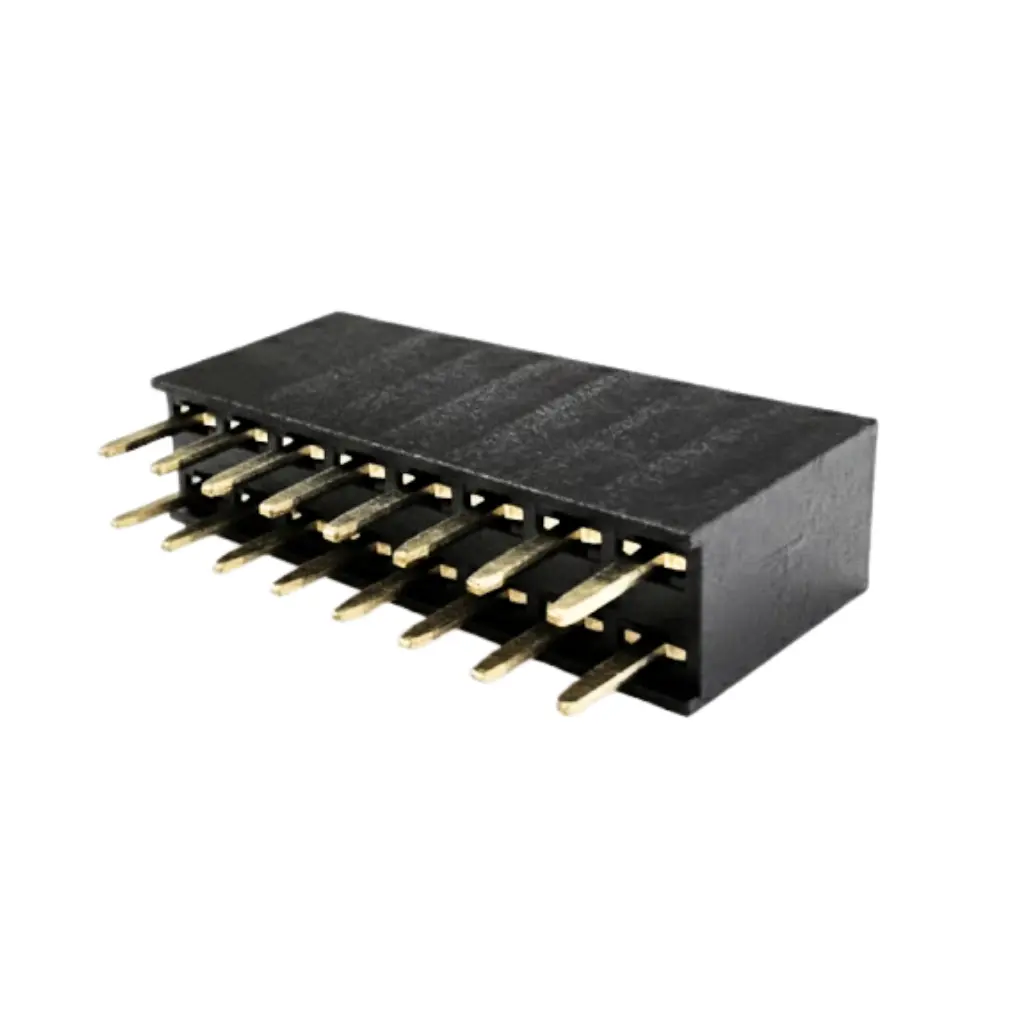

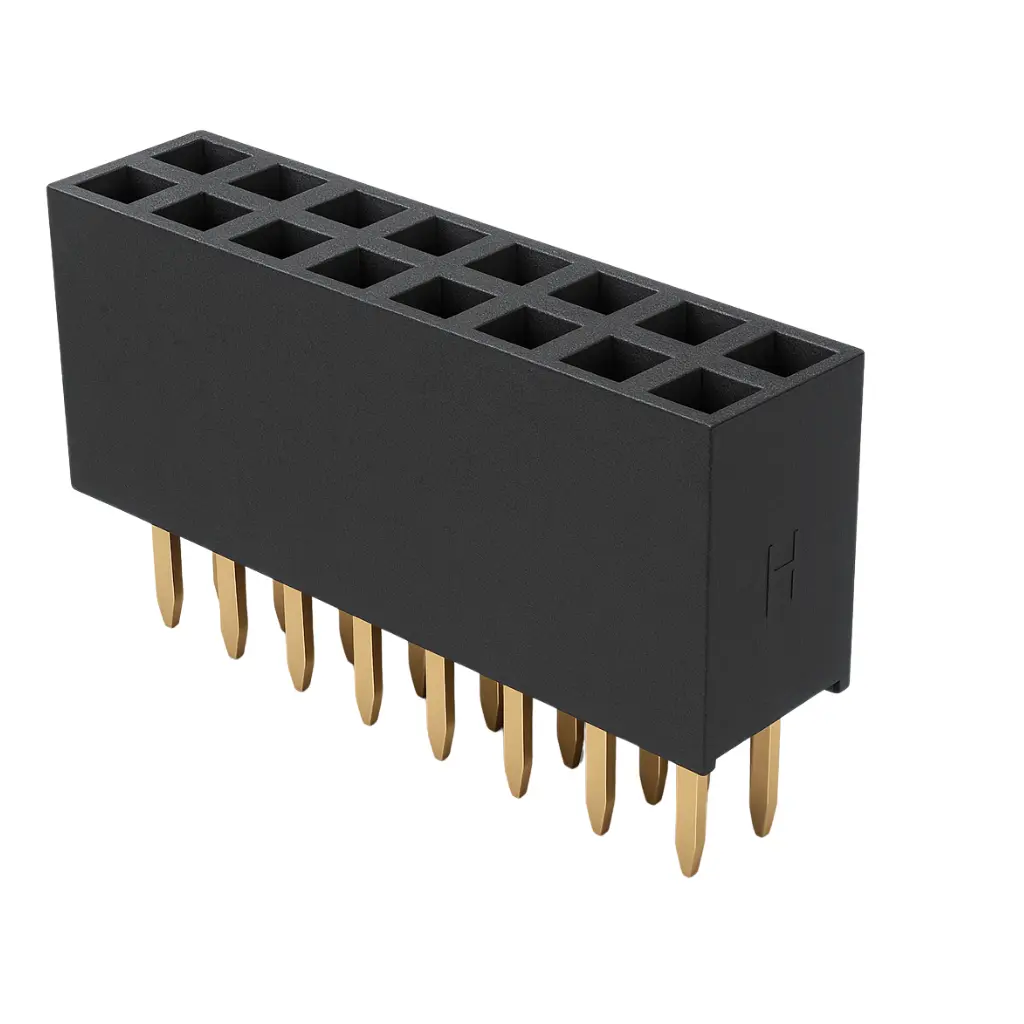

The 2.54mm right angle 16P female header is a dual-row through-hole socket with gold-over-nickel brass contacts and a UL94V-0 PA6T + 30% GF housing, providing 3A per pin, AC 500V rating and secure right-angle mating for 2.54mm PCB header connections.
Applications:
Embedded control and interface boards
Power distribution and module interconnects
Consumer and industrial electronics with right-angle I/O
Wave-soldered PCBs where vertical height is constrained
Highlights:
2.54mm right angle 16P female header with dual-row structure for higher pin density
Brass contacts with 0.5–0.8µm gold over 30–50µm nickel for stable conductivity
3A per contact, AC 500V rating and ≥1000MΩ insulation resistance
PA6T + 30% glass fiber UL94V-0 housing for flame resistance and thermal stability
Through-hole design optimized for wave soldering up to 260°C
RoHS, REACH SVHC and low-halogen compliant for modern PCB designs
2.54mm right angle 16P female header is a dual-row, through-hole socket connector designed for horizontal board-to-board or wire-to-board connections in space-constrained electronic assemblies. This 2.54mm right angle 16P female header uses 2.54mm (.100″) pitch between contacts and rows, with Ø0.64mm plated through holes to ensure secure mating with matching pin headers over a wide range of position counts from 4 to 80 pins.
| General | |||
| Status | Active | Category | PCB Headers and Receptacles |
| Series | DW-FH-225423WV16P-01TP-01 | Description | 2.54mm Pitch Dual Row Female Header, DIP Type, 8.5mm Height, Gold Plated Contacts, Tray Packaging |
| Application | Board-to-Board, Signal, Wire-to-Board | Component Type | Connector Assembly |
| PCB Connector Type | PCB Mount connector | UPC | — |
| Keywords | Board-to-Board connector, PCB Connector, Female Header, Header connector, DIP Pin Header, Dual Row Pin Header, Straight Pin Header, Through-hole Pin Header, Electronic Connector | Connector & Contact Terminates to | Printed Circuit Board |
| Electrical | |||
| Rated Voltage | AC 500V | Current Rating | 3.0A |
| Contact Resistance | ≤30mΩ Max | Insulation Resistance | ≥1000MΩ Min |
| Dielectric Withstanding Voltage | AC 500V | Norm | EIA-364C |
| Physical | |||
| Breakaway | No | Circuits (Number of Positions) | 16 |
| Circuits (Maximum) | 40 (series option) | Color – Housing | Black |
| Durability (mating cycles max) | 100 | Flammability | UL94V-0 |
| Glow-Wire Capable | No | Lock to Mating Part | No |
| Material – Metal | Brass | Material – Plating Mating | Gold (Au) 0.5~0.8μ over Ni |
| Material – Plating Soldering Area | Au/Ni | Material – Resin | PA6T+30%GF |
| Metal Shape & Form | Square Pin | Number of Rows | 2 |
| Connector Orientation | Vertical / Straight | Packaging Type | Tray |
| PCB Locator | No | PCB Retention | No |
| PC Tail Length | 3.00mm ±0.30 | Pitch – Mating Interface | 2.54mm |
| Plating min – Mating | 0.76μm (30μ”) | Plating min – Termination | 0.76μm |
| Polarized to Mating Part | No | Polarized to PCB | No |
| Shrouded | No | Stackable | No |
| Operating Temperature | -40° to +105°C | Termination Interface Style | Through Hole |
| Square Terminal Post & Tail Dimension | 0.64mm (.025in) | PCB Mount Retention | W/O |
| PCB Mount Alignment | W/O | Connector Mounting Type | PCB Mount |
| PCB Thickness (Recommended) | 1.57mm (.062in) | Row-to-Row pitch | 2.54mm |
| Net Weight | — | Height of connector above PCB | 8.5mm |
| Solder Process Data | |||
| Max-Duration | 5~10 sec | Lead-Free Process Capability | Wave |
| Max-Cycle | 1 | Max-Temp | 260°C ±5°C |
