$0.03

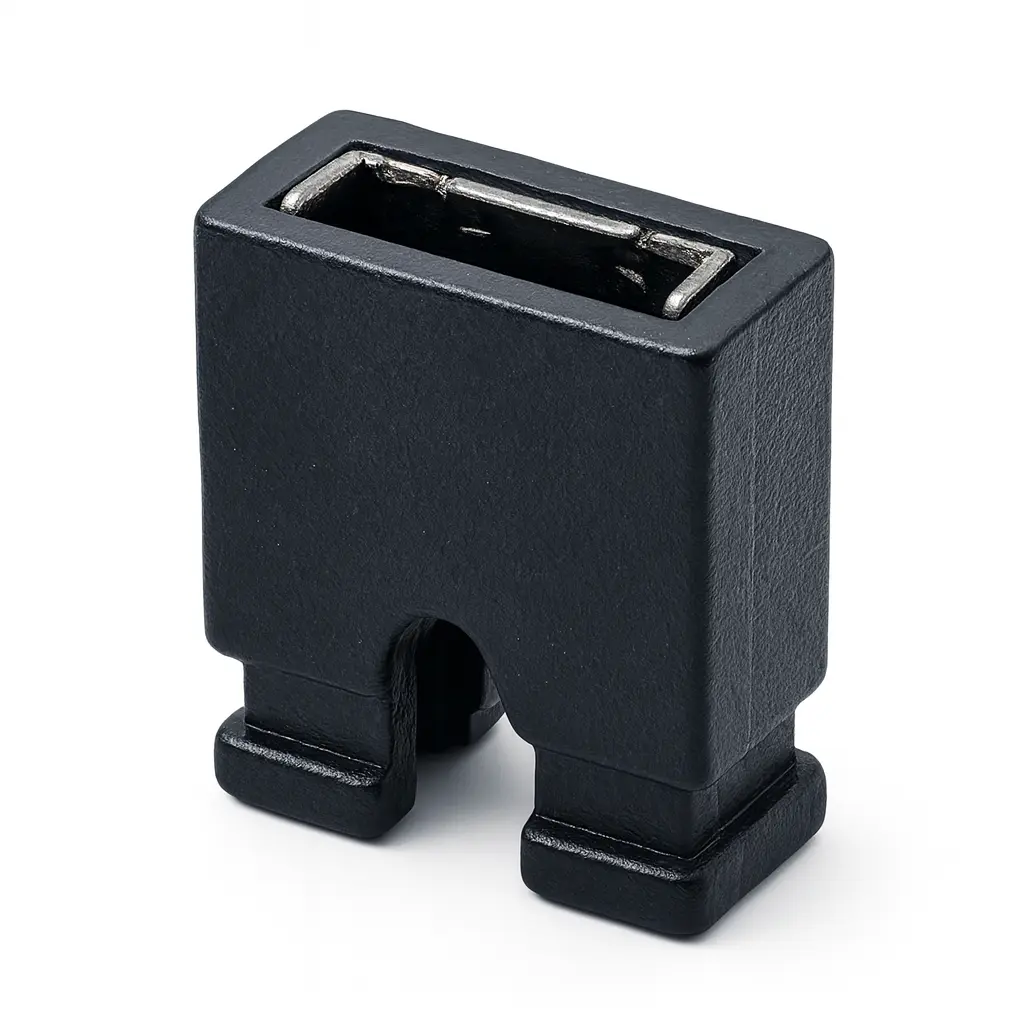

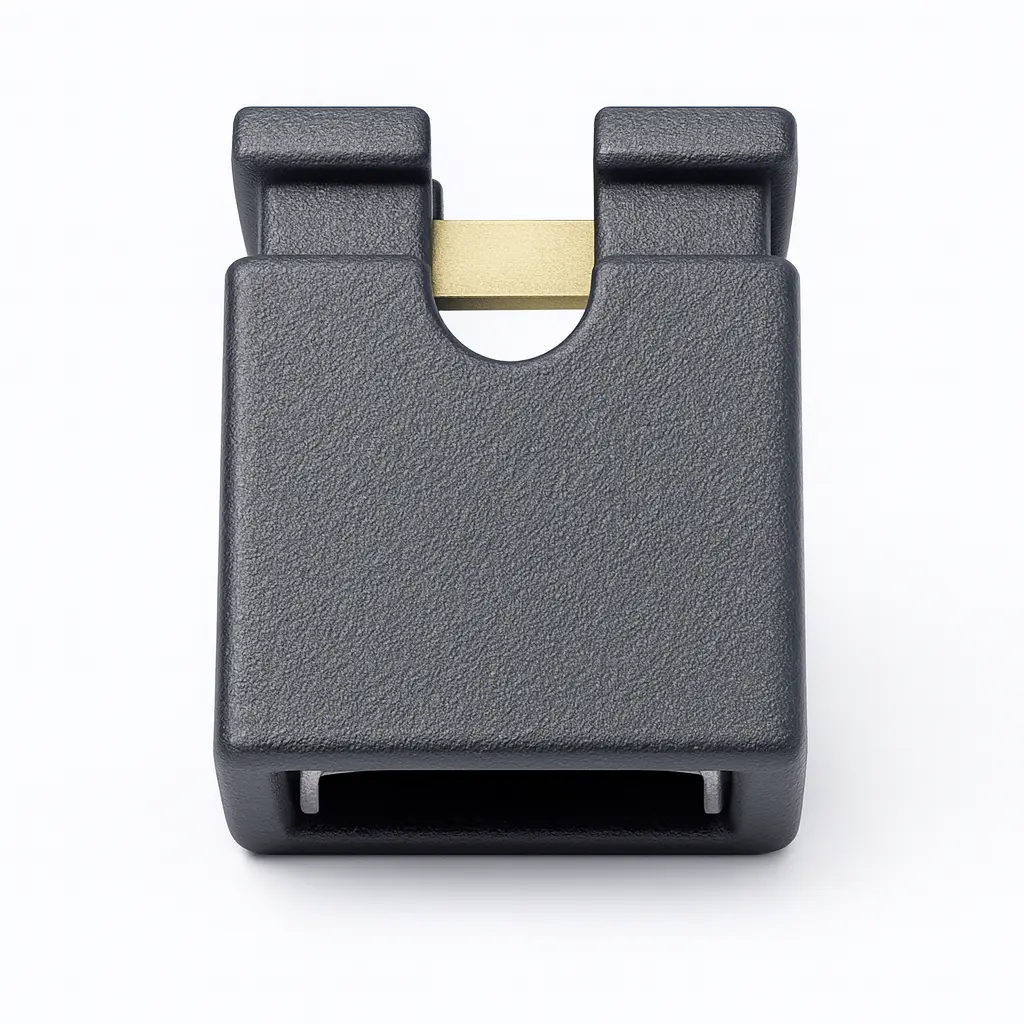

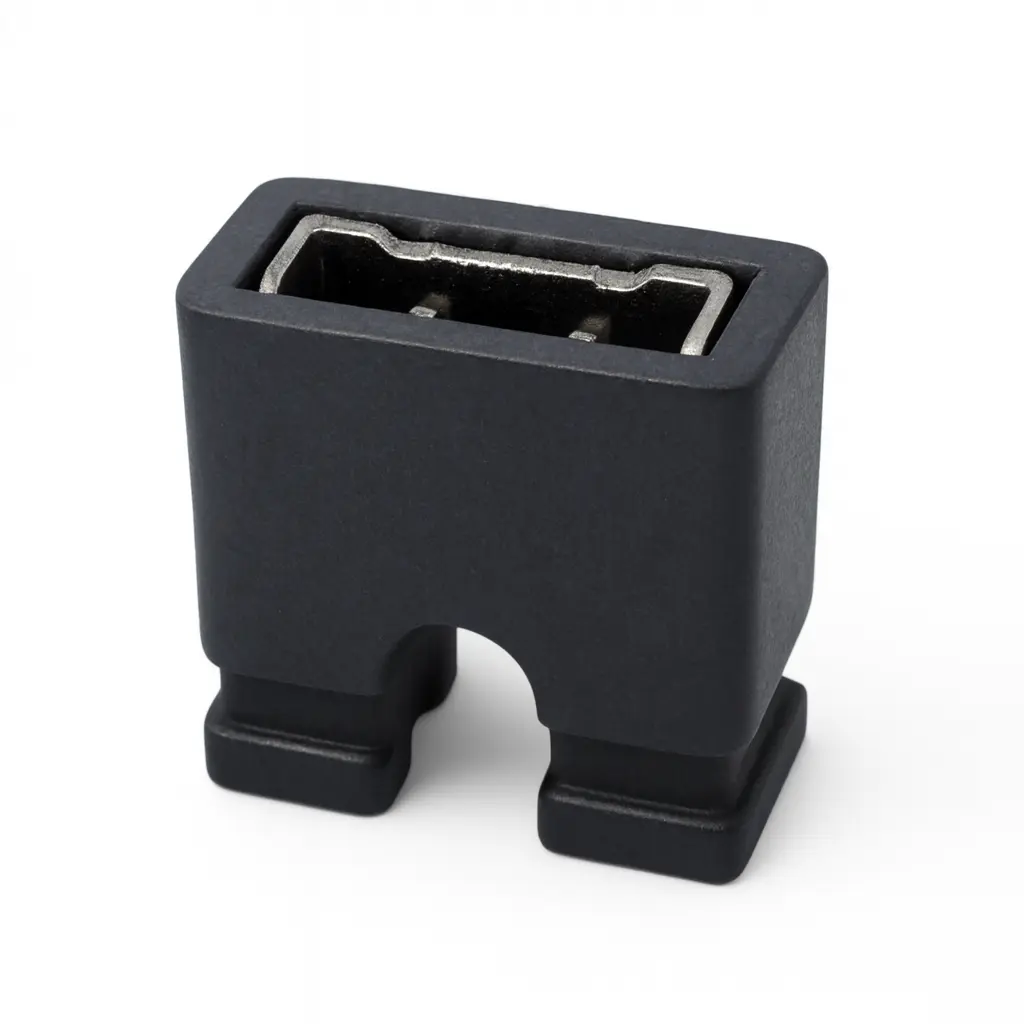

2.54mm Vertical Female Header Precision Single-Row 2P THT bronze contacts with Au over Ni finish, PBT UL94V-0 housing, 3 A rating, AC 500 V withstand, and −40~+105 °C operation—ideal for durable board interconnects.
Key Features at a Glance:
Standard 2.54 mm pitch, single-row 2P socket
Vertical (180°) THT for strong solder joints
Bronze contacts; Ni 30–50 µin + Au 0.5–0.8 µin (other options available)
PBT, glass-filled, UL94V-0 insulator
Ratings: 3 A, ≤20 mΩ, ≥1000 MΩ, AC 500 V
Temperature: −40~+105 °C; RoHS/REACH compliant
Highlights:
Compact 5.00 × 2.40 mm body with 6.00 ±0.25 mm height; universal 2.54 mm grid; rugged THT construction; selectable plating for cost/performance tuning.
Applications:
Telecom and networking gear, industrial automation modules, consumer appliances, dev boards, and embedded controllers requiring a compact, reliable 2.54 mm socket.
2.54mm vertical female header for compact board-to-board links where reliable through-hole soldering and stable retention are required. This single-row, 2-position socket uses a standard 2.54 mm pitch to match common pin headers and jumpers, simplifying layout and sourcing.
| 1.General | |||
| Status | Active | Category | PCB Connector, Female Header, Through-Hole |
| Series | DW-FH-1254365WV02P-01PE-01 | Description | 2.54 mm Female Header, Single Row, Vertical (WV 180°), 2 Circuits |
| Application | Board-to-board or wire-to-board up to 3 A/contact | Component Type | Female Header |
| Product Name | Female Header 2.54 mm Single Row | UPC | Not specified |
| 2.Electrical | |||
| Current – Maximum per Contact | 3:00 AM | Voltage – Maximum | Dielectric Withstanding Voltage: AC 500 V (1 min) |
| Contact Resistance | 20 mΩ Max. | Insulation Resistance | 1000 MΩ Min. |
| 3.Physical | |||
| Circuits (Loaded) | 2 | Circuits (Maximum) | 2 |
| Color – Resin | Not specified | Flammability | UL94V-0 |
| Glow-Wire Capable | Not specified | Lock to Mating Part | Not specified |
| Material – Metal | Bronze | Material – Plating Mating | Au 0.5–0.8 µin over Ni 30–50 µin |
| Material – Plating Termination | 31: Sn / 32: Ni | Material – Resin | PBT G.F UL94V-0 |
| Net Weight | _ | Number of Rows | Single Row |
| Orientation | Vertical (WV 180°) | Packaging Type | PE Bag (PE) |
| PCB Locator | _ | PCB Retention | _ |
| PC Tail Length | _ | Pitch – Mating Interface | 2.54 mm |
| Plating min – Mating | 0.5–0.8 µin Au | Plating min – Termination | Per option code (31/32) |
| Polarized to PCB | Not specified | Temperature Range – Operating | −40 °C ~ +105 °C |
| Termination Interface Style | Through Hole | ||
| 4.Solder Process Data | |||
| Field | Value | Field | Value |
| Max-Duration | 10 s | Lead-Free Process Capability | Yes (RoHS Compliant) |
| Max-Cycle | Not specified | Max-Temp | 260 °C ±5 °C |
