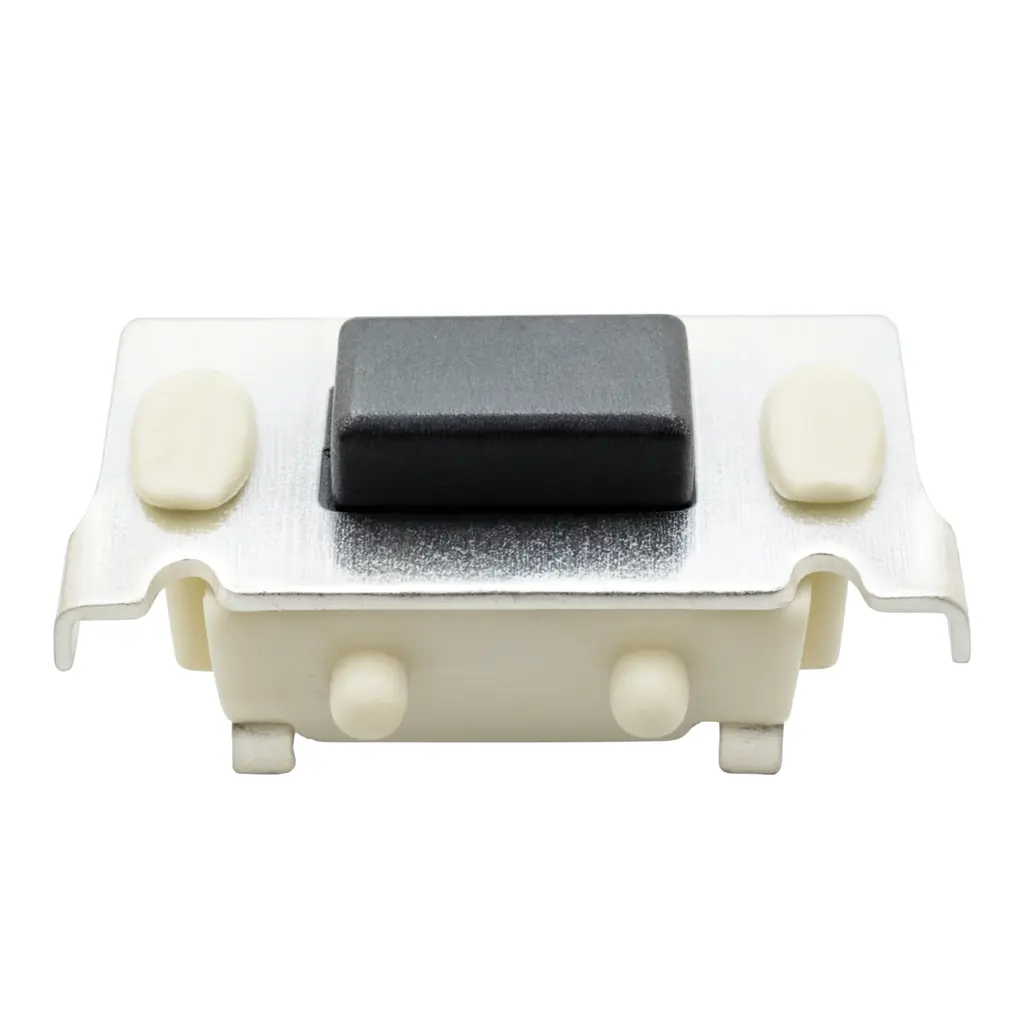

The 7.0×3.5mm THT tactile switch – Reliable Top-Actuated combines a compact outline with the security of through-hole solder joints. Ø0.7 mm leads and a proven land pattern (Ø1.0 mm holes, 5.95 mm span) make assembly dependable, while silver-plated H62Y contacts keep resistance low. Rated 12 V / 0.05 A with 250 gf actuation and 30k cycle life, it provides a crisp feel for everyday user interfaces. Delivered on tape-and-reel for automated insertion and built from UL-grade plastics and stainless steel, it’s a practical choice for remotes, consumer keypads, and portable devices.
Key Features at a Glance
7.0 × 3.5 mm body; through-hole (THT) construction
SPST-NO, top-actuated; 250 ±50 gf tactile force
Leads Ø0.7 mm on 2.3 mm spacing
PCB layout: Ø1.0 mm holes, 3.2 mm center spacing, 5.95 mm outer span
Electrical: 12 V / 0.05 A, ≤30 mΩ contact, ≥100 MΩ insulation
Materials: PLC housing, LCP stem, SUS spring, Ag-plated H62Y cover/terminals
Tape-and-reel packaging; RoHS compliant
Highlights
Strong THT retention with crisp tactile response; silver-plated contact system for low resistance; automation-friendly packaging.
Applications
Remote controls • Consumer keypads • Handheld instruments • IoT devices • Small appliances
7.0×3.5mm THT tactile switch – Reliable Top-Actuated for reliable, through-hole key inputs in compact electronics. This SPST-NO, top-actuated part has a 7.0 ±0.15 × 3.5 ±0.1 mm body within an overall width of 7.8 mm. Robust Ø0.7 ±0.05 mm leads on 2.3 mm spacing secure strong solder barrels during wave processes.
| 1.General | |||
| Part Number | TS-1112E | Product Name | Tact switch |
| Description | SMD tactile switch, top-actuated; body length 7.8 mm | Manufacturer | Dragon Well Electronics Co., Ltd |
| RoHS Compliant | Yes | Packaging | TR: Tape Reel |
| Series | Tactial Switch | Revision / Date | A-0: 2015.03.03 (NEW) |
| 2. Electrical | |||
| Field | Value | Field | Value |
| Operating Voltage | DC 12V | Rated Current | 0.05 A |
| Contact Resistance | ≤30 mΩ | Insulation Resistance | ≥100 MΩ |
| Withstand Voltage | _ | Life Requirement | 250±50 gf, 30,000 cycles |
| Contact Current Rating _ | Switch Contact Plating | Ag plating | |
| Contact Base Material | H62Y (terminal/contact) | ||
| 3. Physical | |||
| Actuator Force | 250±50 gf | Travel Distance | _ |
| Actuator Material | LCP (stem) | Actuator Color | _ |
| Cover Material | H62Y (Ag plating) | Case Material | PLC (housing) |
| Case Color | White | Base Material | _ |
| Spring Material | SUS | Low Profile | Yes |
| Process Sealed | _ | Dimensions | Top width 7.0±0.15 mm; body height 3.5±0.1 mm; base width 7.8 mm |
| Height (H) Options | _ | H Tolerance | _ |
| Body Length (Top View) | 7.0±0.15 mm | Side Dimension | _ |
| Vertical Dims (Side) | 2.7±0.1 mm; 3.5±0.1 mm | Mounting Length | _ |
| Actuator Ø | Thickness (T) | _ | |
| Pad Spacing (PCB) | Hole Ø1.0 mm; inner spacing 3.2 mm | Footprint Spacing | 8.1 mm overall; 6.9 mm between outers; 5.95 mm inner span |
| Operating Temp Range | |||
| 4. Solder Process Data | |||
| Field | Value | Field | Value |
| Termination Method | Through Hole (per Ø1.0 mm holes in PCB layout) | Recommended PCB Layout | Top View (All tolerances ±0.05) |
