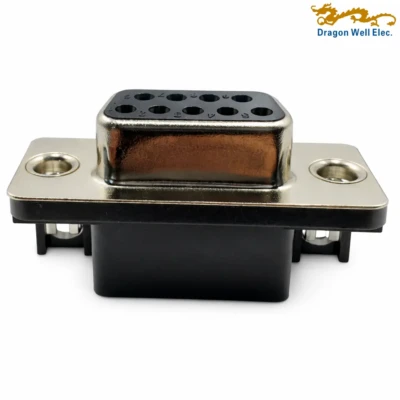

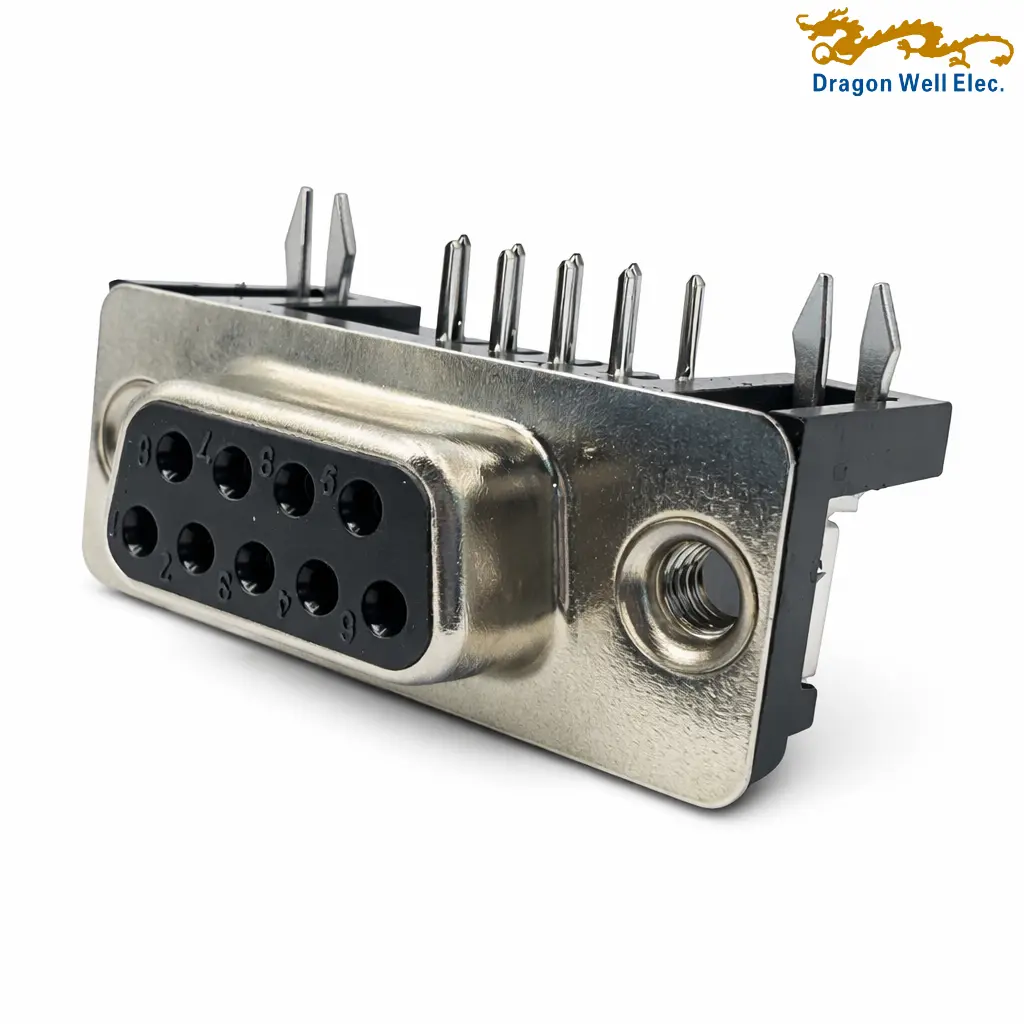

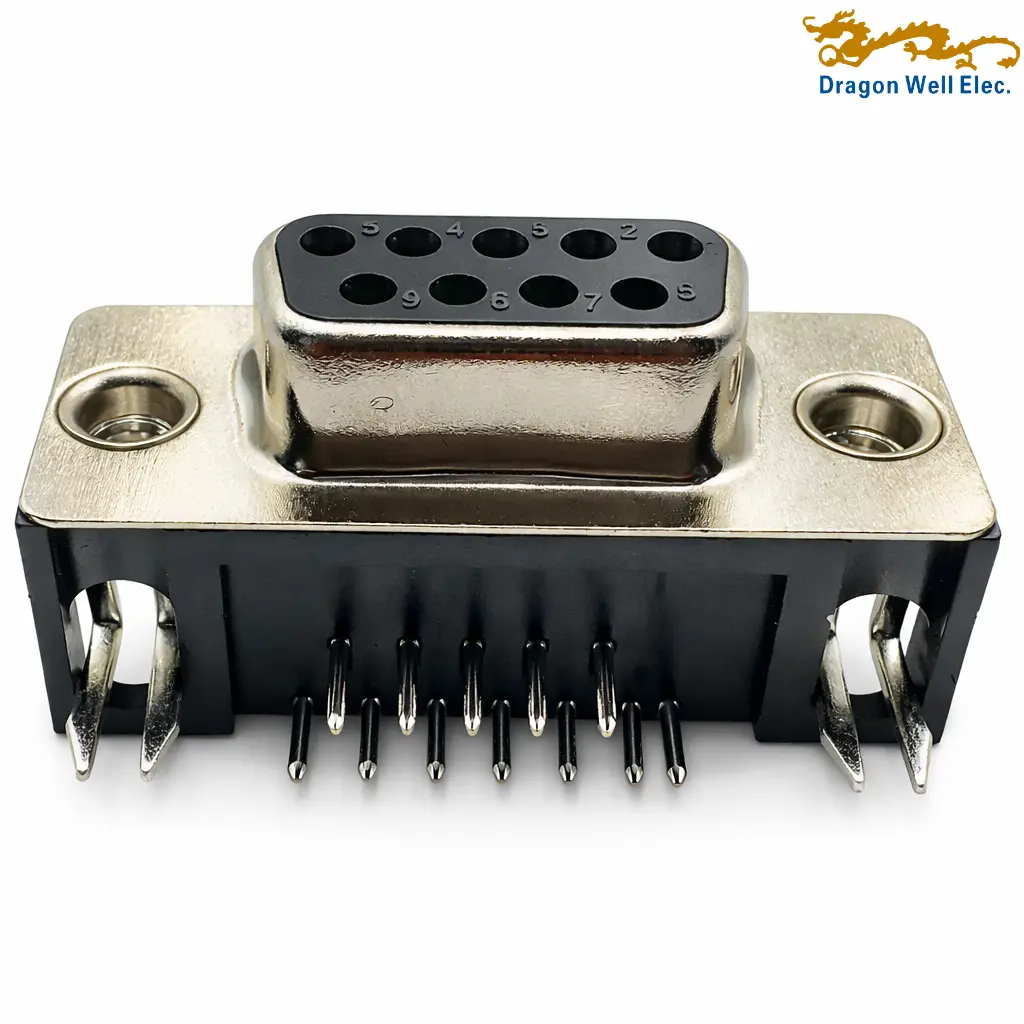

Compact D-Sub 9 pin female right angle through hole connector for PCB mount applications with brass contacts, SPCC shell, and black PBT UL94V-0 housing.
Product Applications
Industrial control boards, communication equipment, interface modules, embedded systems, serial communication devices, board-to-board signal connection, wire-to-board interface assemblies
Product Highlights
9 pin female D-Sub connector, right angle orientation, through hole PCB mount, 2 row design, 2.77mm mating pitch, 2.84mm row spacing, 30.80±0.38mm length, 9.5±0.30mm depth, brass contacts, SPCC shell, PBT + 30% glass filled UL94V-0 black housing, 3 AMP current rating, operating temperature -55°C to +105°C, tray packin
D-Sub 9 pin female right angle through hole connector is built for stable PCB mounting and dependable signal transmission in industrial and communication equipment. This DB9 female right angle connector features a compact right angle design that helps save board space while keeping the connection secure and reliable. As a 9 pin D-sub female connector, it is suitable for interface modules, control boards, data equipment, and embedded systems that require consistent electrical performance and strong mechanical retention.
This right angle D-sub receptacle is designed for PCB applications that need a dependable through hole DB9 female connector with firm soldering and long-term durability. It works well as a PCB mount D-sub 9 female connector in board-level assemblies where a rugged signal interface is required. The structure also supports board-edge installation, making it a practical board edge D-sub female connector for space-conscious designs.
As a D-sub 9 pin receptacle, this connector uses brass contacts, an SPCC shell, and a PBT + 30% glass filled UL94V-0 black housing for strength and insulation reliability. The contact system is gold plated on the mating area and tin plated on the solder tails with nickel underplating, helping this female D-sub connector right angle deliver stable conductivity and durable performance. Based on the drawing, it has 9 loaded circuits, 2 rows, 2.77mm mating pitch, 2.84mm row spacing, right angle orientation, and through hole termination, making it a reliable solution for PCB-mounted signal connection applications.
| General | |||
| Status | Active | Category | D-Sub Connectors |
| Part Number | DW-HDR-DF090105-XXTP-01 | Component Type | Connector |
| Application | Industrial control boards, communication equipment, interface modules, embedded systems | Type | Receptacle |
| Product Name | D-Sub | Model No. | DW-HDR-DF090105-XXTP-01 |
| Title | DR 8.08 half gold fork black rubber case | RoHS | Compliant |
| Electrical | |||
| Current – Maximum per Contact | 3 AMP | Contact Resistance | 30mΩ Max. 10 sec. |
| Insulation Resistance | 1000MΩ Min. at 500V DC | Dielectric Withstanding Voltage (V) | 1000V per minute |
| Operating Temperature Range | -55°C to +105°C | ||
| Physical | Number of Rows | 2 | |
| Circuits (Loaded) | 9 | Orientation | Right Angle |
| Gender | Female | Pitch – Mating Interface | 2.77mm |
| Termination Style | Through Hole | Hole Diameter | Ø1.00mm |
| Row Spacing | 2.84mm | Material – Contact | Brass |
| Material – Housing | PBT + 30% Glass Filled, UL 94V-0, Black Color | Material – Grounding | SPCC |
| Material – Shell | SPCC | Plating – Shell | Nickel Underplating Over All |
| Plating – Contact | Gold Plated on Contact Area, Tin Plated on Solder Tails, Nickel Underplating Over All | Plating – Square Rivet | Nickel Plating Over All |
| Plating – Grounding | Nickel Plated All, Tin Plated on Solder Tails Over All | PCB Mount | Yes |
| Color – Resin | Black | Length | 9.5±0.30mm |
| Width | 30.80±0.38mm | ||
| Height | 18.3mm |
