$1.05

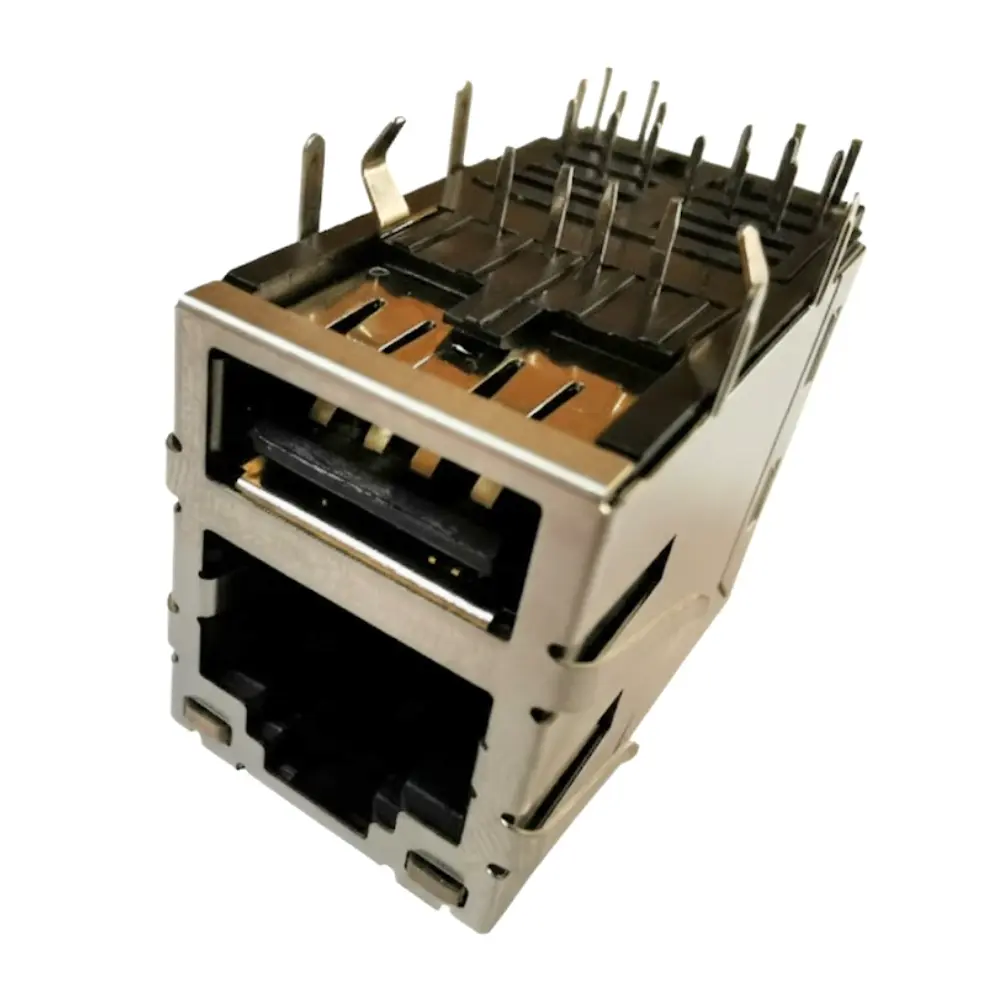

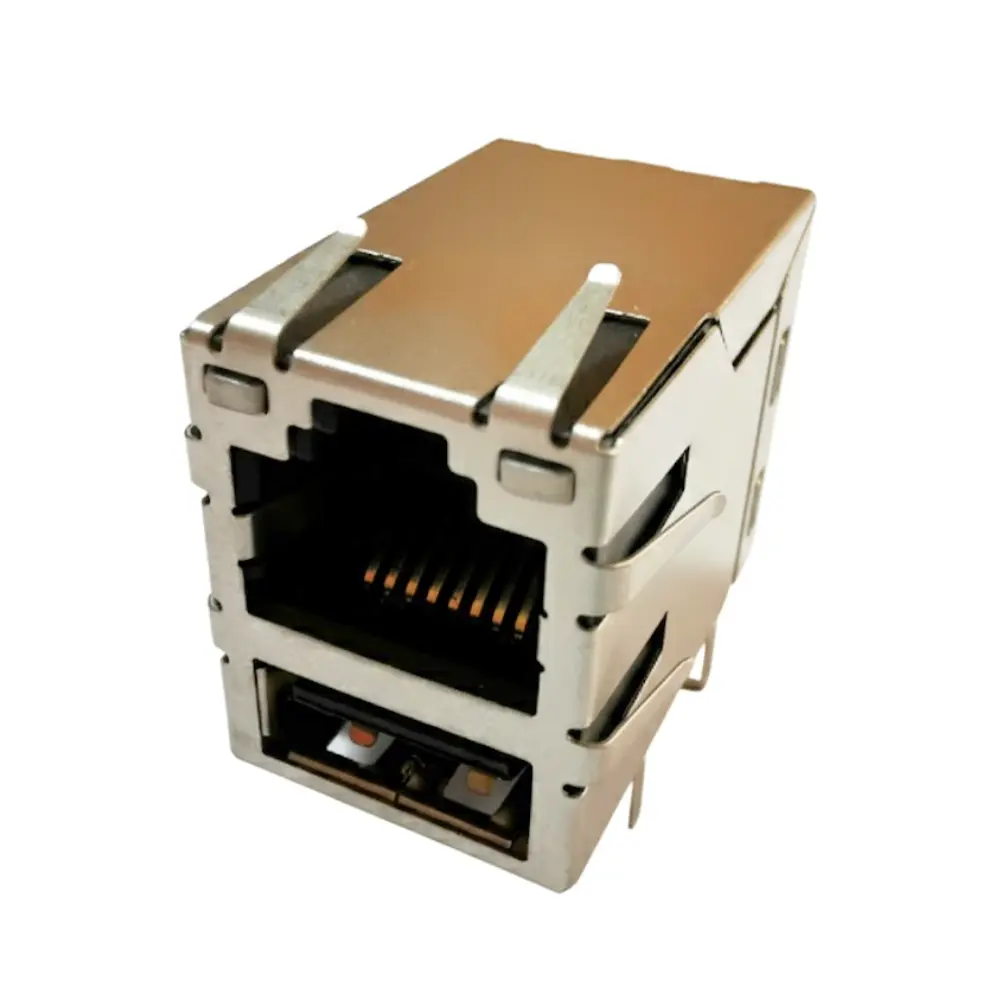

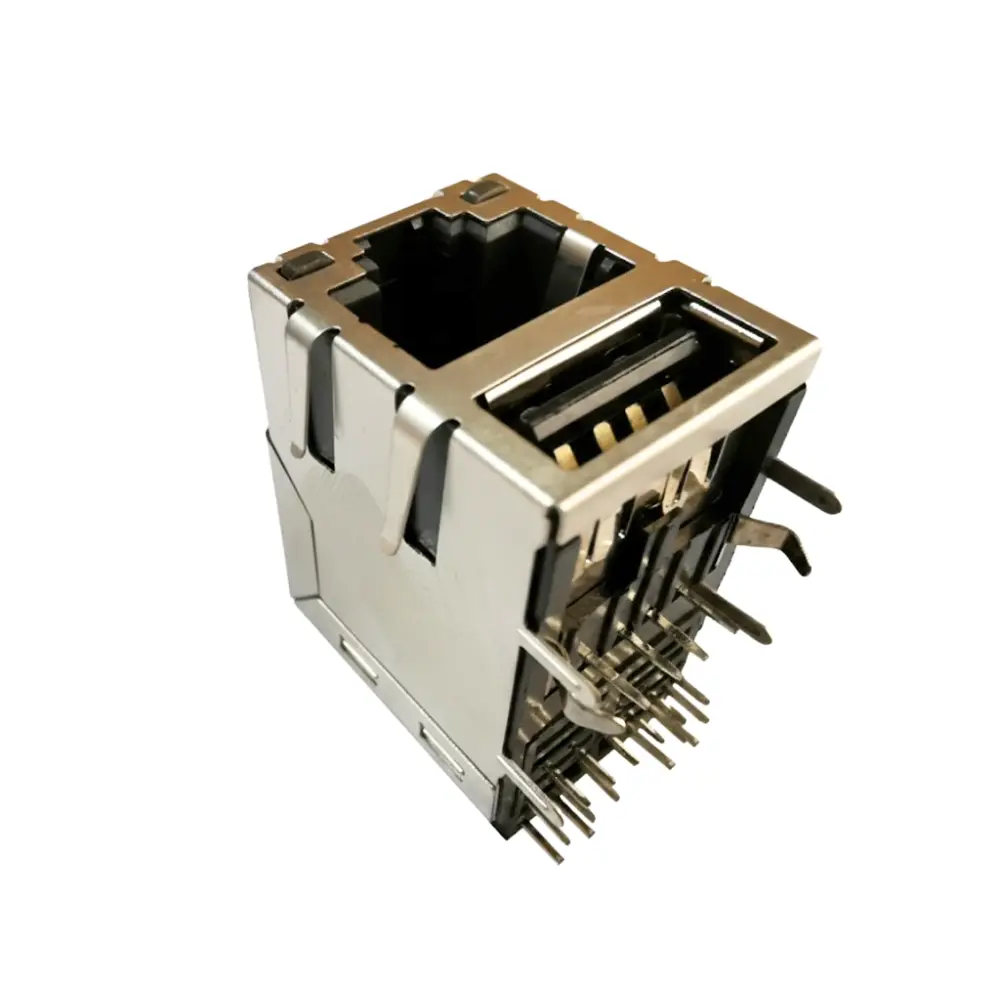

Magnetic RJ45 100BASE with USB Dual-Port Stacked Connector- Integrates Ethernet and USB in one compact, through-hole module ideal for networking and IoT systems.
Key Features at a Glance:
2-in-1 stacked design: Combines RJ45 and USB 2.0 interfaces in a compact footprint.
Built-in magnetics: Ensures stable 100BASE-T signal transmission with isolation ≥1500V AC.
PoE ready: Fully compliant with IEEE 802.3af for power sourcing and powered devices.
Enhanced EMI protection: Nickel-plated copper alloy shield minimizes interference.
Integrated LEDs: Dual-color indicators (green/yellow/orange) for quick link diagnostics.
Highlights:Magnetic RJ45 100BASE + USB2.0 stacked port, shielded, LED indicators, PoE compliant, gold contacts, and space-saving layout.
Applications: Routers, modems, VoIP systems, POS terminals, industrial controllers, IoT gateways, and network switches requiring PoE and USB interfaces.
Magnetic RJ45 100BASE with USB Dual-Port Stacked Connector is a high-performance, space-saving networking solution that integrates an RJ45 Ethernet port with built-in magnetics and a USB 2.0 interface in one compact module.
| 1. Basic Information | |||
| Status | Active | Category | RJ45 Jack |
| Part Number | DW-RJ45-CM0260-01TP-01 | Description | Magnetic Jack, 10/100Base, 1×1 port, with Shielded and EMI, with USB 2.0, with LED (Green/Yellow), 8P12C, Tab-Down, DIP Type |
| Product Name | Magnetic RJ45 + USB 2.0 | Magnetic | Yes |
| Component Type | PCB Jack | Lead time | 7~15 days |
| Type | Socket | Height | 21.08 mm |
| Width | 16.20 mm | Installed height | 23.4 mm |
| Length | 29.00 mm | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface contact area top layer) | Gold Plating | Material (Metal surface soldering area top layer) | Gold |
| Material (Metal surface soldering area) | Nickel | PCB Retention | Yes |
| Mating Force | 23N Max | Country of origin | CN |
| Customs tariff number | 85366930 | ||
| 2. Product Properties / Physical | Orientation | Right Angle | |
| Color – Housing | Black | Lightpipes/LEDs | Yes (Green/Orange & Yellow), Single Color |
| Positions / Loaded Contacts | 8P12C | Termination Interface | DIP |
| Packaging | Tray | Inverted / Top Latch | No |
| Port Configuration | 1×1 | Material – Resin | PBT UL94V-0 |
| Durability (mating cycles max) | 750 | Material – Metal | Phosphor Bronze |
| Jack Height | 21.08 mm | PCB Retention | Yes |
| Material – Plating Termination | Tin | Pitch – Mating Interface | 2.00 mm |
| Net Weight | – | Key Words | RJ45 JACK, Magnetic Jack, Through-Hole RJ45 Connector, RJ45 Connector with LED, Right Angle RJ45 Jack, Single port RJ45 Jack, PoE (Power over Ethernet) RJ45 Connector, Shielded RJ45 Connector |
| PCB Thickness – Recommended | 1.60 mm | POE+ | Yes |
| Pitch – Termination Interface | 2.00 mm | Latch / Tab orientation | Tab-Down |
| EMI | No | ||
| 3. Electrical | |||
| Current – Maximum per Contact | 0.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| HI pot | 1500V AC & 2250V DC | Operating Temperature | -40°C to +85°C |
| Insulation resistance | Storage Temperature | -40°C to +85°C | |
| Lead-Free Process Capability | WAVE | Classification temperature, T₍C₎ | 260°C |
Space-saving MagJack + dual USB stack for compact gateways.
Integrated 100BASE-TX magnetics, shielded housing, and LEDs—board-validated for low EMI, robust isolation, and drop-in compatibility with mainstream LAN PHYs and USB 2.0 hosts.
