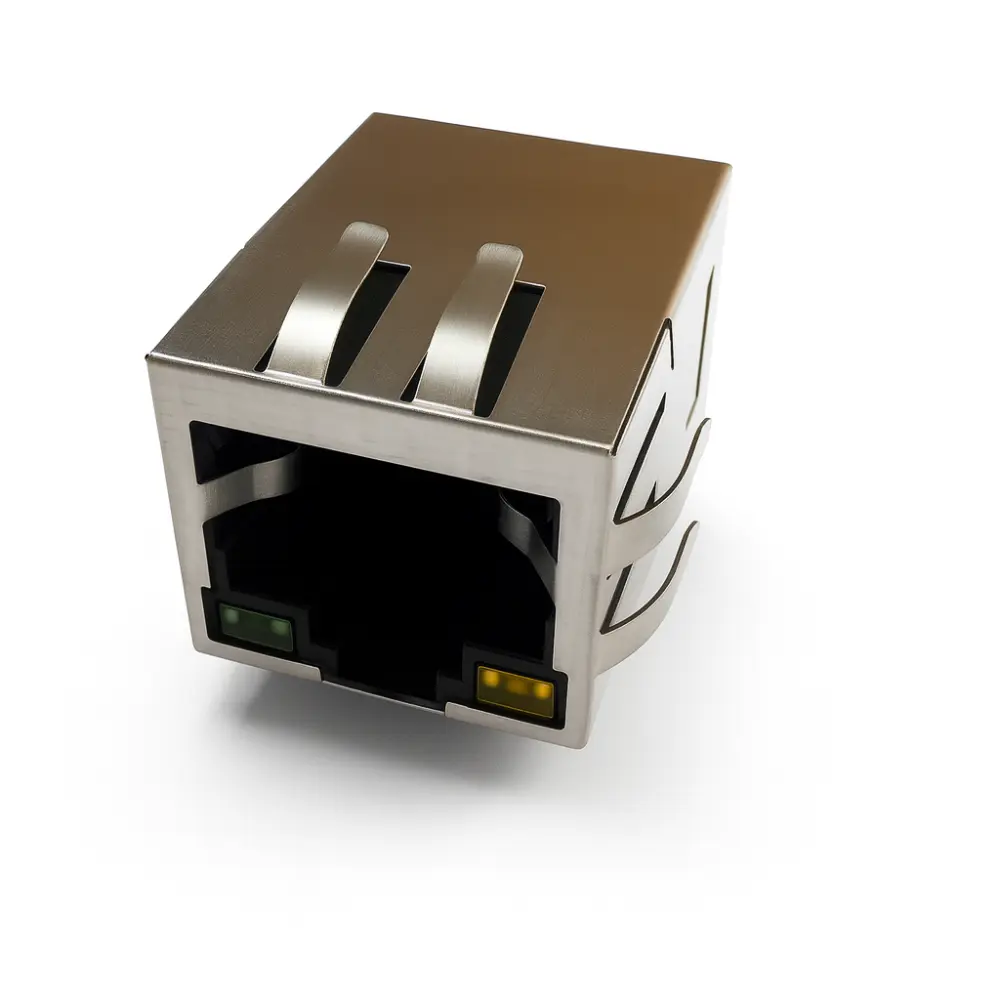

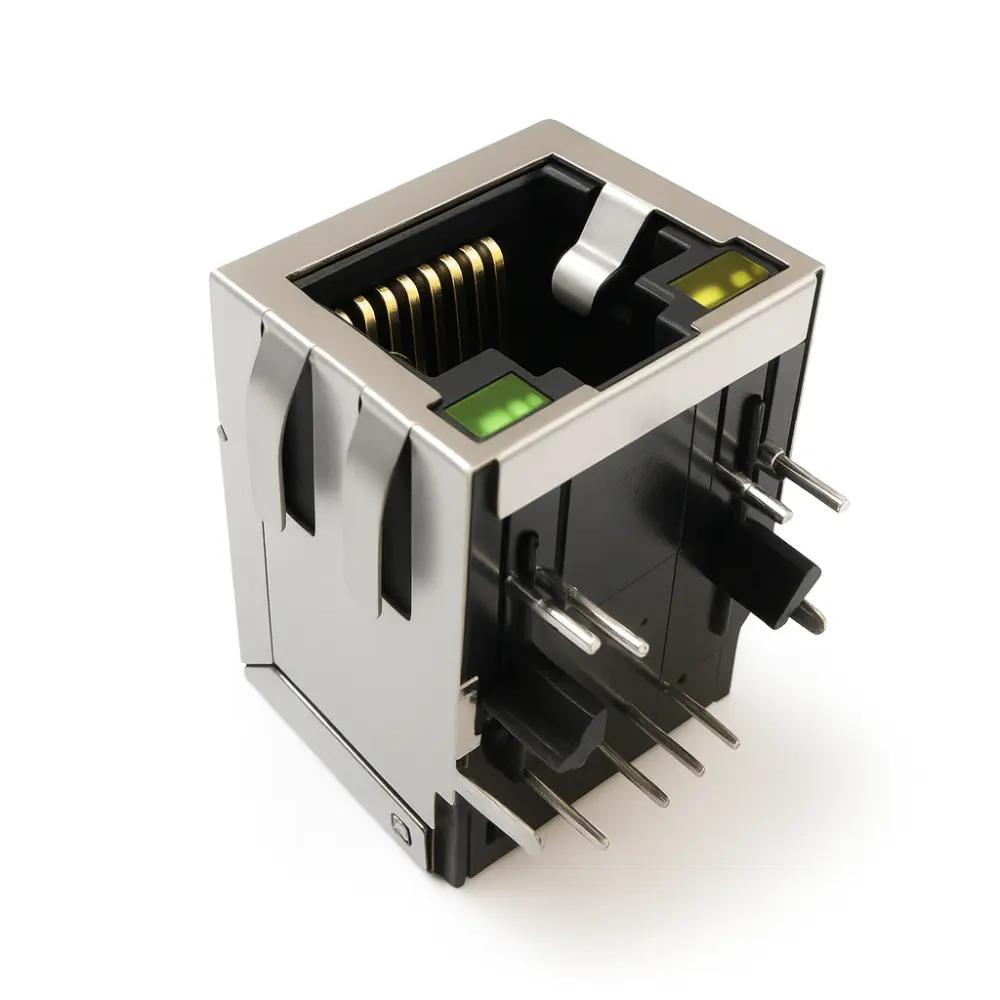

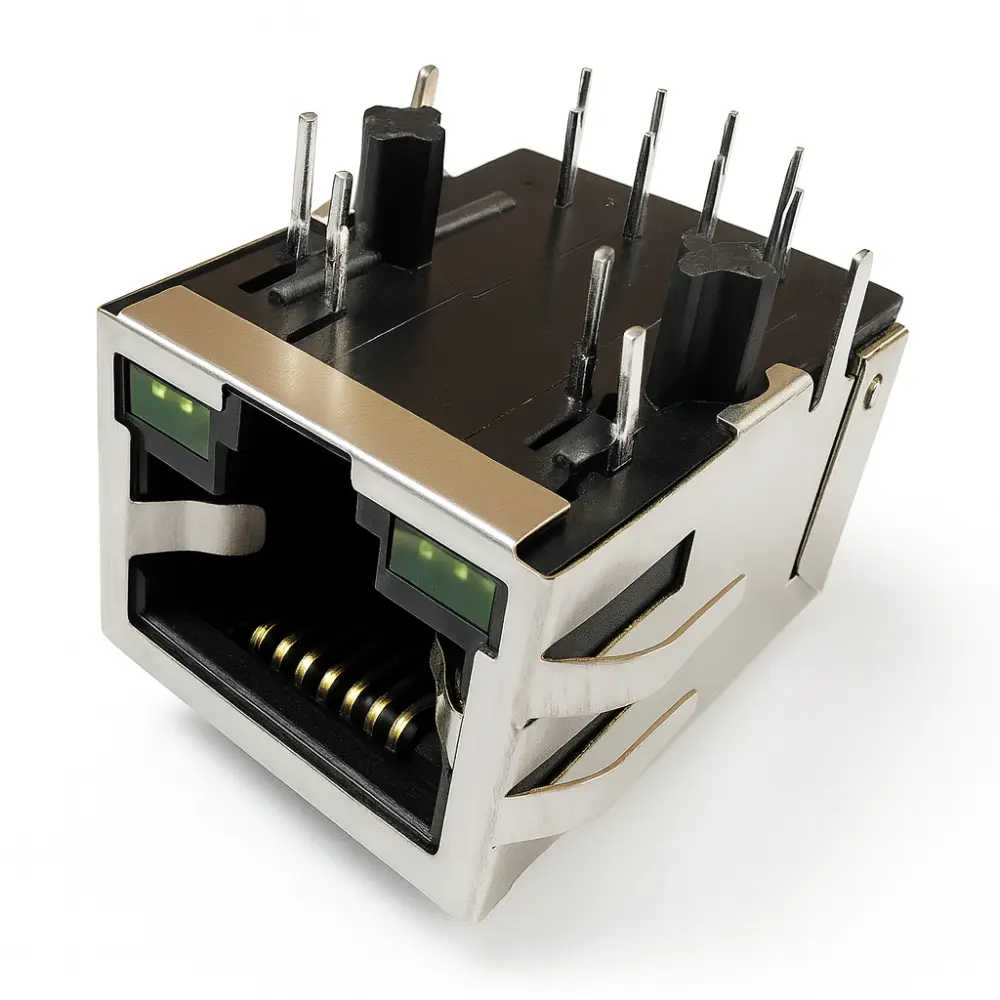

Magnetic RJ45 1×1 Tab-Down Jack – Pro-Grade 100BASE-T DIP with LEDs nickel-plated shield, UL94V-0 housing, phosphor-bronze contacts with 6/15/30 µin Au options; 100BASE-T performance, 1500 VAC isolation, DIP tails for wave soldering.
Key Features at a Glance:
1×1 RJ45 8P8C, tab-down, through-hole DIP
Integrated magnetics (transformer + CMC) for 100BASE-T
Dual green/yellow LEDs for link/activity
Nickel-plated shield; UL94V-0 thermoplastic housing
Phosphor-bronze contacts; 6/15/30 µin Au and gold-flash options
Electrical: OCL ≥350 µH, ≤ −1.0 dB insertion loss, ≥ −16 dB return loss, 1500 VAC Hi-Pot, −40 dB crosstalk (typ.)
Durability ≥750 mating cycles; RoHS / low-halogen
Highlights:
Compact tab-down layout for vertical cards; integrated magnetics reduce BOM and improve EMI; LED diagnostics simplify test; robust shielding and plating for long service life.
Applications:
Telecom gateways, smart routers, embedded Ethernet modules, industrial controllers, PLCs, and IoT devices requiring reliable 100BASE-T connectivity with LEDs and DIP mounting.
Magnetic RJ45 1×1 Tab-Down Jack for 100BASE-T Ethernet with integrated transformer and common-mode choke to ensure isolation and low EMI. The compact tab-down form fits vertical layouts, while through-hole DIP tails simplify wave soldering and rework. Dual status LEDs (left/right) support green and yellow options per series, providing instant link/activity feedback without extra board space.
| 1. Basic Information | |||
| Status | Active | Category | Magnatic RJ45 Jack |
| Part Number | DW-RJ45-DM01128-01TP-01 | Description | Magnetic Jack, 10/100Base, 1×1 port, with Shielded and EMI and LED, 8P8C, Tab-Down |
| Product Name | RJ45 Magnetic 10/100 Base Jack | Magnetic | Yes |
| Component Type | PCB Jack | Lead time | 7~15 days |
| Type | Socket | Height | 13.30 mm |
| Width | 15.94 mm | Installed height | 14.90 mm |
| Length | 21.05 mm | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface contact area top layer) | Gold Flash | Material (Metal surface soldering area top layer) | Gold |
| Material (Metal surface soldering area) | Nickel | Retention Strength | – |
| Mating Force | Country of origin | CN | |
| Customs tariff number | 85366930 | ||
| 2. Product Properties / Physical | |||
| Color – Housing | PBT Black | Orientation | Right Angle (THT) |
| Positions / Loaded Contacts | 8P8C | Lightpipes/LEDs | Yes (Green & Yellow) |
| Packaging | Tray | Termination Interface | DIP |
| Port Configuration | 1×1 | Inverted / Top Latch | No |
| Durability (mating cycles max) | 750 | Material – Resin | PBT UL94V-0 |
| Jack Height | 13.30 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Gold | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.27 mm |
| PCB Thickness – Recommended | 1.6 mm | Key Words | RJ45 Connector, Magnetic RJ45 Connector, Shielded RJ45 Connector, RJ45 with LED, 10/100 Base RJ45 Connector, DIP Type RJ45 Connector, Ethernet RJ45 Connector, Vertical RJ45 Jack |
| Pitch – Termination Interface | 1.27 mm | POE+ | No |
| EMI | Yes | Latch / Tab orientation | Tab-Down |
| 3. Electrical | |||
| Current – Maximum per Contact | 0.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC | Operating Temperature | -40°C to +85°C |
| Insulation resistance | ≥1000MΩ | Storage Temperature | _ |
| Lead-Free Process Capability | WAVE | Classification temperature, T₍c₎ | 260°C |
Pro-grade Magnetic RJ45, 1×1 tab-down, 100BASE-T.
Shielded DIP with integrated magnetics + LEDs low EMI, 1500 Vrms isolation, and plug-and-play IEEE 802.3u PHY compatibility.
