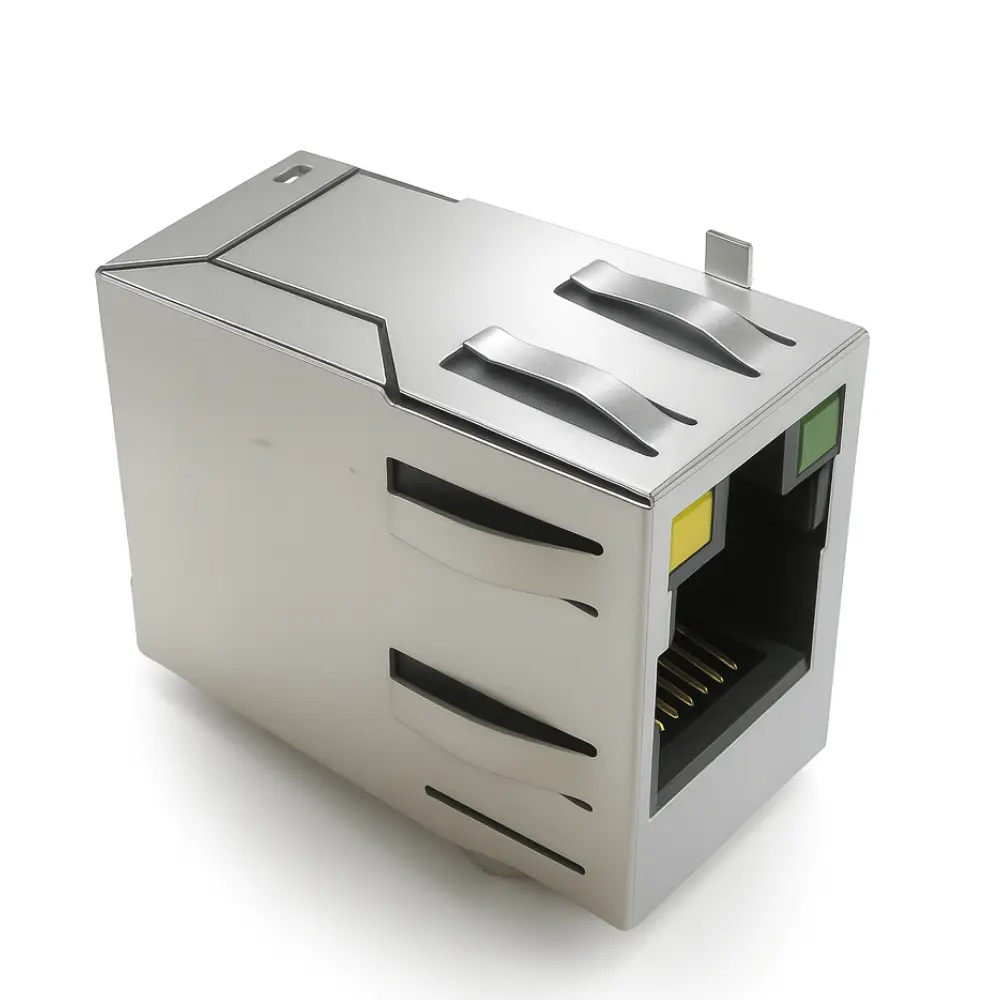

Magnetic RJ45 1×1 tab-up 10/100BASE DIP single-port RJ45 Magnetic Jack with integrated transformer circuitry for 10/100BASE-T Ethernet applications. Featuring a tab-up configuration and through-hole DIP mount, this connector includes built-in green and yellow LEDs for link and activity status.
Highlights: Integrated magnetics (1CT:1CT) for 10/100BASE-T; tab-up orientation; DIP/THT mounting; LEDs (green/yellow); nickel-plated shield; Au-over-Ni contacts; 1200 Vrms isolation; –40~+85 °C; RoHS.
Applications: Routers/modems, NICs, IP cameras, switches & hubs, IoT gateways, industrial controllers.

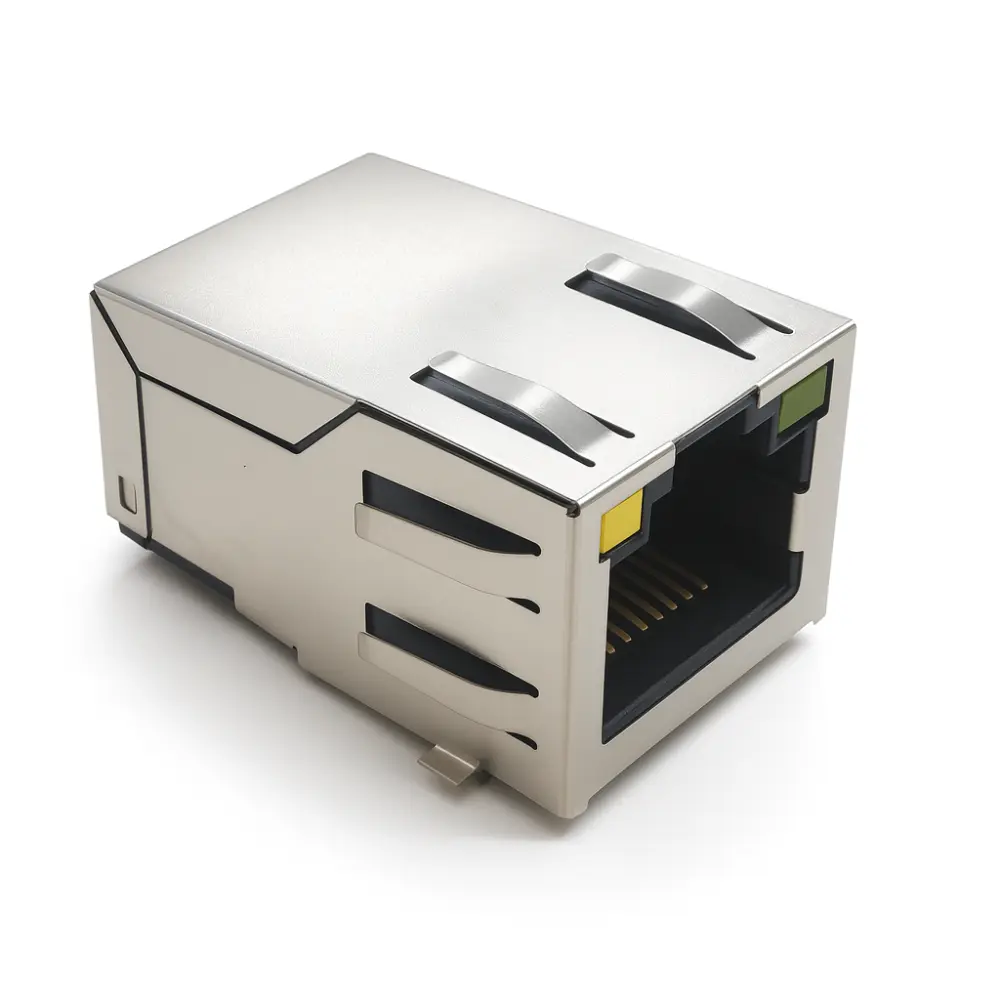

Magnetic RJ45 1×1 tab-up 10/100BASE DIP DW-RJ45-SM01205-XXXX-XX is a single-port Ethernet jack with integrated magnetics for IEEE 802.3 10/100BASE-T. The built-in 1CT:1CT transformer and common-mode chokes deliver high reliability while reducing BOM and PCB area. A tab-up latch orientation supports top-entry panels, and the DIP/THT footprint gives strong board retention for wave soldering. Status LEDs (left: yellow, right: green) are included for intuitive link/activity indication.
| 1. Basic Information | |||
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-SM01205-XXXX-XX | Description | RJ45 Jack, 1×1 port, with Integrated Magnetics, Shielded, 8P8C, Tab-Up, DIP Type, with LED (Green/Yellow), 10/100BASE-T Ethernet Compliant |
| Product Name | RJ45 1-Port Magnetic Tab-Up | Magnetic | Yes |
| Component Type | PCB Jack | Power over Ethernet (PoE) | Not Specified |
| Type | Socket | Lead time | 7~15 days |
| Width | Height | 25.40 mm | |
| Length | 16.10 mm | Installed height | 27 mm |
| Material (Metal surface contact area top layer) | Gold Flash | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface soldering area) | Tin | Material (Metal surface soldering area top layer) | Gold |
| Mating Force | ≤ 25N | PCB Retention | Yes |
| Customs tariff number | 85366930 | Country of origin | CN |
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation | Vertical |
| Positions / Loaded Contacts | 8P8C | Lightpipes/LEDs | Yes (LED1: Yellow, LED2: Green) |
| Packaging | Tape Reel | Termination Interface | DIP |
| Port Configuration | 1×1 | Inverted / Top Latch | No |
| Durability (mating cycles max) | 5000 cycles | Material – Resin | LCP UL94V-0 |
| Jack Height | 25.40 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Gold/Tin | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.02 mm |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 JACK, Magnetic RJ45 10/100 Base, Vertical RJ45 Jack, Through-Hole RJ45 Connector, Shielded |
| Pitch – Termination Interface | 1.02 mm | POE+ | No |
| EMI | Not Indicated | Latch / Tab orientation | Tab-Up |
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 150V AC | Operating Temperature | -40°C to +85°C |
| Insulation resistance | ≥500MΩ | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | Yes (RoHS) | Classification temperature, T₍C₎ | Not specified |
