$0.60

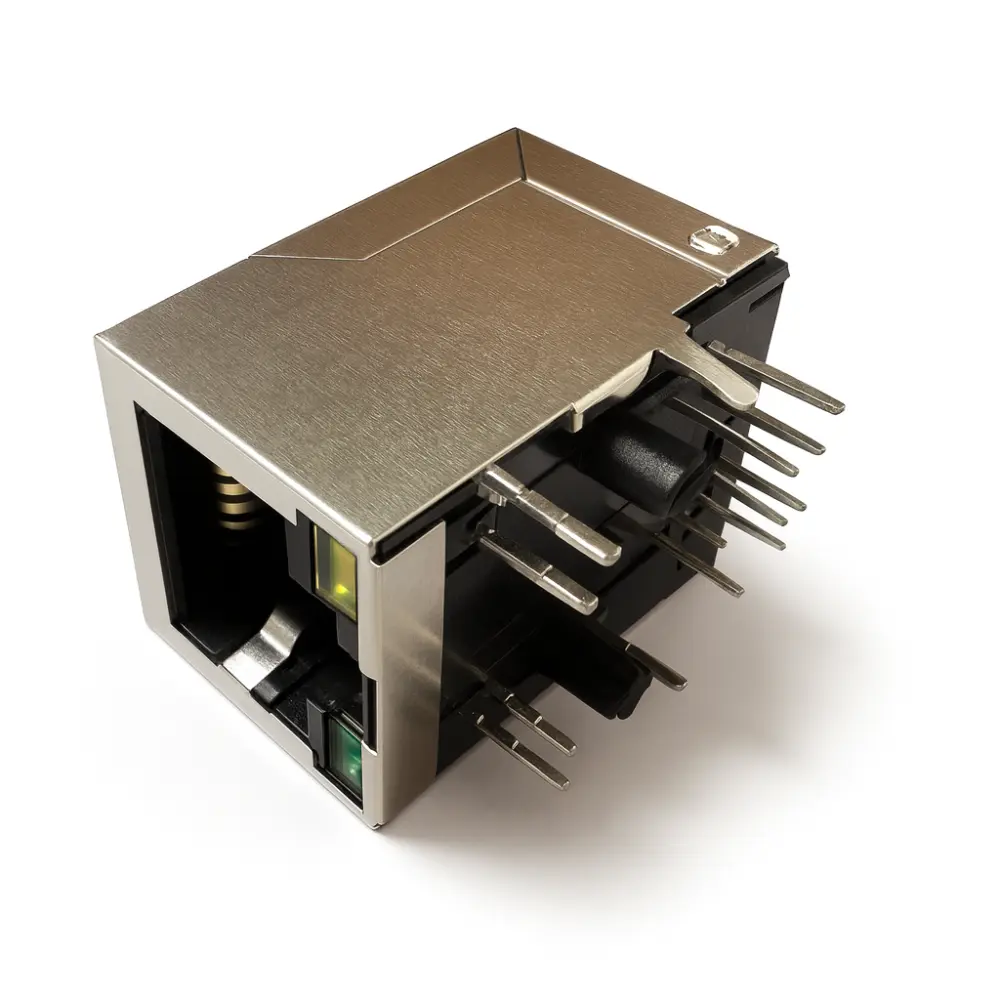

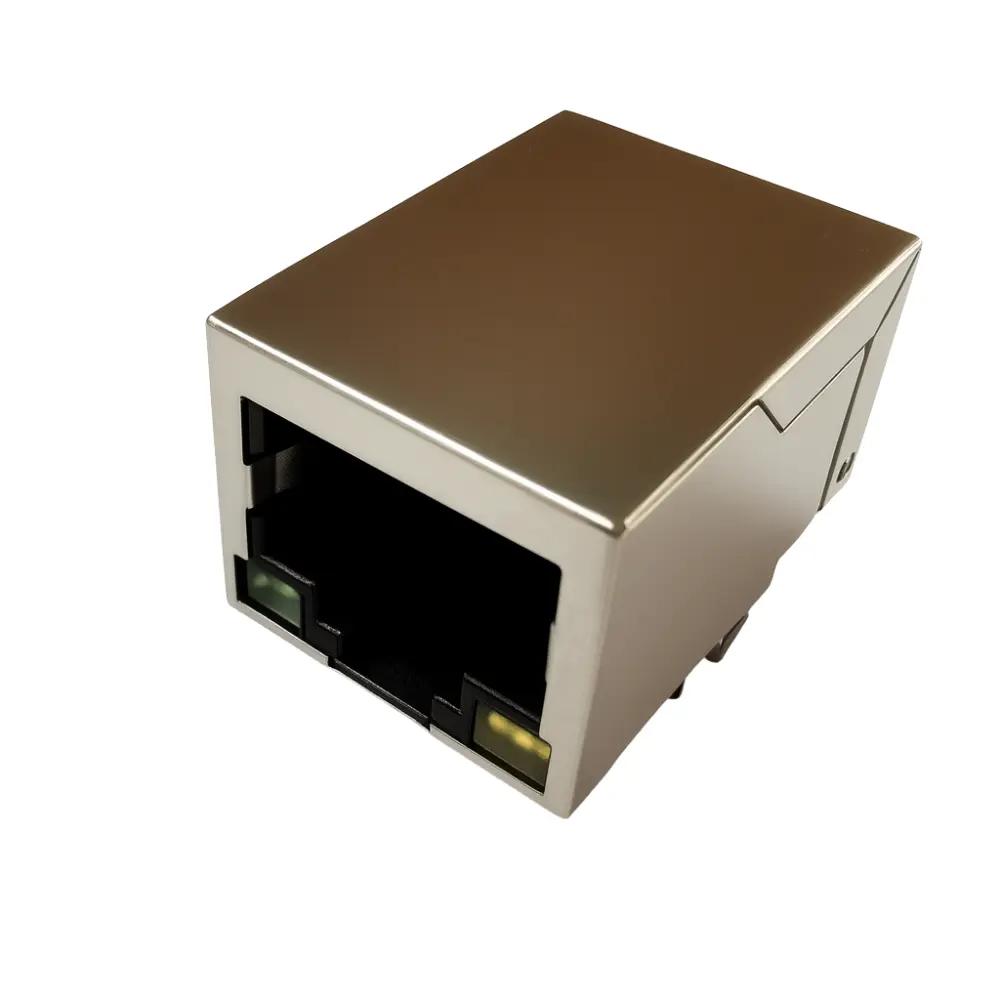

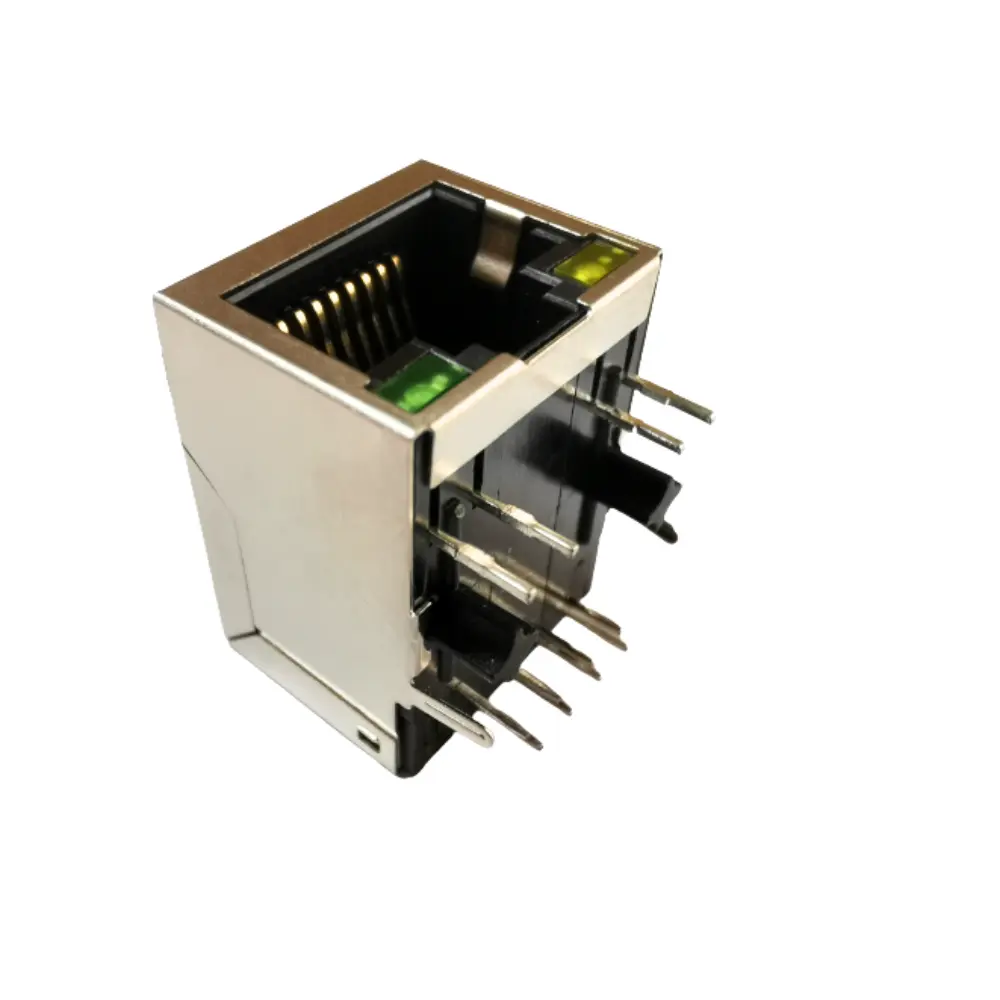

Magnetic RJ45 Jack, 1×1 Tab-Down, 100BASE-T, Shielded DIP with LEDs Built-in transformers/chokes deliver Ethernet isolation and EMI suppression, while THT/DIP pins provide strong board retention. Dual LEDs on the face enable rapid link/activity checks. With a nickel-plated shield, PBT UL94V-0 housing, phosphor-bronze contacts, and selectable gold (6/15/30 µin), this jack streamlines high-reliability designs in routers, switches, industrial controllers, and embedded modules.
Applications
Routers and small switches; industrial Ethernet controllers; access-control and security devices; embedded Ethernet modules; video-over-IP and data-acquisition systems.
Product Highlights
Integrated magnetics for 100BASE-T; shielded metal housing; tab-down orientation for neat cable runs; robust THT/DIP mounting; LEDs for instant status; OCL ≥350 µH, CMR ≥–35 dB, IL ≤–1.0 dB; Hi-Pot 1500 VAC; RoHS/REACH, low-halogen.
Magnetic RJ45 Jack, 1×1 Tab-Down, 100BASE-T, Shielded DIP with LEDs designed for 100BASE-T Ethernet, where isolation, EMI control, and quick status are essential. This 1×1 tab-down modular jack integrates Ethernet transformers and common-mode chokes to meet IEEE 802.3 requirements, simplifying layout while improving signal integrity. A nickel-plated metal shield provides robust EMI suppression and a low-impedance path to chassis ground; the housing is high-temperature PBT UL94V-0 (black) and contacts are phosphor bronze (t≈0.35 mm) with selectable gold on the mating area (6/15/30 µin, with series codes supporting 01 flash, 03 3 µin, 06 6 µin, 15 15 µin, 30 30 µin).
| 1. Basic Information | |||
| Status | Active | Category | RJ45 Jack |
| Part Number | DW-RJ45-DM01126-01TP-01 | Description | Magnetic Jack, 100Base, 1×1 port, Shielded with EMI, with LED (Green/Yellow), 8P8C, DIP, Tab-Down |
| Product Name | Magnetic RJ45 Jack 1×1 Tab-Down | Magnetic | Yes |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 15.94 mm | Height | 13.30 mm |
| Length | 21.05 mm | Installed height | 14.90 mm |
| Material (Metal surface contact area top layer) | Gold | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface soldering area) | Nickel | Material (Metal surface soldering area top layer) | Tin |
| Mating Force | ≤30N | PCB Retention | Yes |
| Customs tariff number | 85366930 | Country of origin | CN |
| 2. Product Properties / Physical | |||
| Field | Value | Field | Value |
| Color – Housing | PBT Black | Orientation | Right Angle |
| Positions / Loaded Contacts | 8P8C | Lightpipes/LEDs | Yes (Green & Yellow), Single Color |
| Packaging | Tray | Termination Interface | DIP |
| Port Configuration | 1×1 | Inverted / Top Latch | No |
| Durability (mating cycles max) | 750 | Material – Resin | PBT UL94V-0 |
| Jack Height | 13.30 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Tin over Nickel | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.27 mm |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 JACK, Magnetic Jack, Through-Hole RJ45 Connector, RJ45 with LED, Right-Angle RJ45, Single Port, Shielded, 10/100Base-T |
| Pitch – Termination Interface | 2.54 mm | POE+ | No |
| EMI | Yes | Latch / Tab orientation | Tab-Down |
| 3. Electrical | |||
| Field | Value | Field | Value |
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC RMS | Operating Temperature | -40°C to +85°C |
| Insulation resistance | ≥500 MΩ @ 500 VDC | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | WAVE | Classification temperature, T(C) | 260°C |
| Dielectric Withstanding | 1000 VAC RMS, 1 min | ||
Magnetic RJ45 Jack, 1×1 Tab-Down, 100BASE-T, Shielded DIP with LEDs Built-in transformers/chokes deliver Ethernet isolation and EMI suppression, while THT/DIP pins provide strong board retention. Dual LEDs on the face enable rapid link/activity checks. With a nickel-plated shield, PBT UL94V-0 housing, phosphor-bronze contacts, and selectable gold (6/15/30 µin), this jack streamlines high-reliability designs in routers, switches, industrial controllers, and embedded modules.
Applications
Routers and small switches; industrial Ethernet controllers; access-control and security devices; embedded Ethernet modules; video-over-IP and data-acquisition systems.
Product Highlights
Integrated magnetics for 100BASE-T; shielded metal housing; tab-down orientation for neat cable runs; robust THT/DIP mounting; LEDs for instant status; OCL ≥350 µH, CMR ≥–35 dB, IL ≤–1.0 dB; Hi-Pot 1500 VAC; RoHS/REACH, low-halogen.
