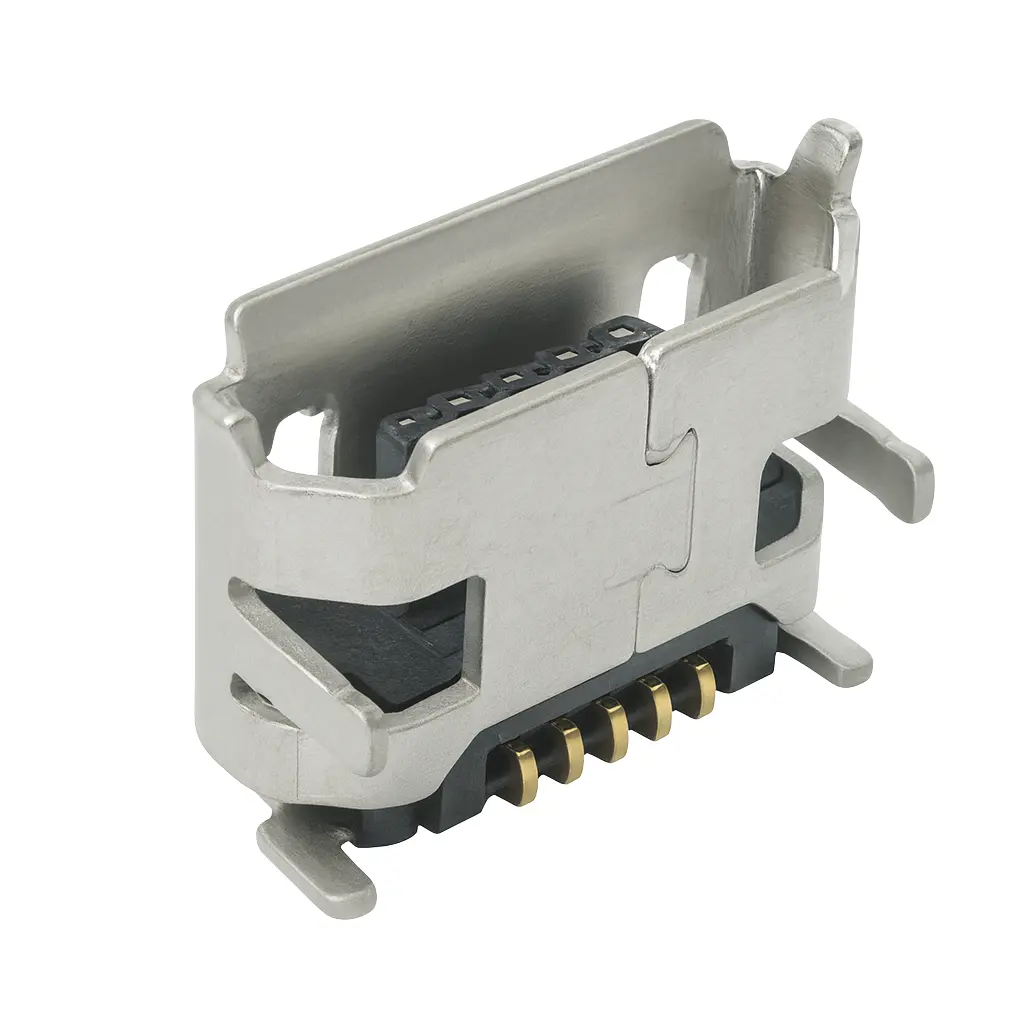

Micro USB B 5-pin female connector combines fine-pitch SMT leads with through-hole shell stakes to deliver a compact jack that survives everyday cable stress. A 7.2 mm body simplifies front-panel fit, while the nickel-plated shield and gold-finished contacts maintain low resistance through 10k insertions. Rated 1 A / 30 V with 100 V AC dielectric strength, it’s an easy drop-in for rechargeable wearables, portable instruments, and power accessories where rugged PCB anchoring and Micro-B compatibility matter.
Key Features at a Glance
Hybrid SMT + DIP Micro-B receptacle; 0.65 mm pitch
Compact 7.2 mm width; reinforced shell ground tabs
Electrical: 1.0 A, 30 V, 100 V AC/1 min withstand
Contact resistance: ≤30 mΩ initial, ≤40 mΩ after life
≥10,000 cycles durability; mate ≤35 N, unmate ≥10 N (initial)
Materials: LCP UL94V-0 housing; Au-over-Ni contacts; SUS304 nickel-plated shell
Operating −30~+80 °C; RoHS/REACH; TR = Tape & Reel
Highlights
Rugged board anchoring from SMT + posts, stable low-resistance contacts, small front profile for dense handheld designs.
Applications
Mobile/handheld devices • Wearables • Portable medical gear • Power banks • GPS units • Compact consumer electronics.

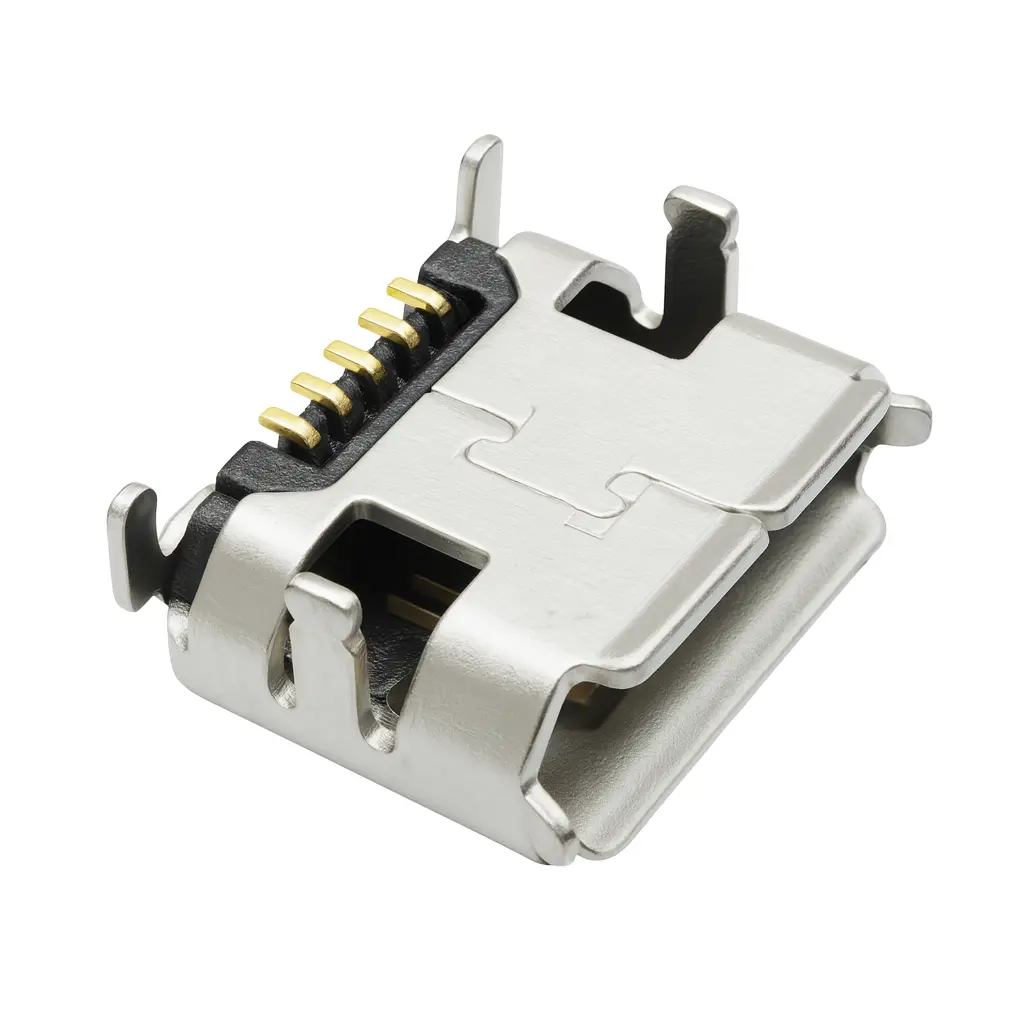

Micro USB B 5-pin female connector for compact board-edge I/O that demands strong retention and proven Micro-B interoperability. This right-angle receptacle uses a hybrid SMT + DIP structure: fine-pitch 0.65 mm surface pads carry signals while large through-hole shell stakes and ground tabs lock the connector to the PCB, resisting peel and cable loads.
| 1. General | |||
| Status | Active | Category | USB Connector |
| Part number | DW-MCB-CB591-05TR-01 | Description | Micro USB B Receptacle, 5PIN, SMT + DIP Type, Hybrid Mount, Height 5.4mm |
| Application | Wire-to-Board /Cable-to-Board | Comments | RoHS Compliant |
| Component Type | Receptacle | Product Name | Micro USB |
| USB Version | USB 2.0 | Type | Type-B |
| Keywords | Micro USB, USB 2.0, USB TYPE, I/O Connector, Hybrid Mount, Sealed Connector | Circuit Application | Power & Signal |
| 2. Electrical | |||
| Current – Maximum | 1.0A | Grounding to Panel | Yes |
| Shielded | Yes | Shield Type | SUS304, Nickel Plated |
| Voltage – Maximum | 30V DC | Contact Resistance | ≤30mΩ Initial, ≤40mΩ After 10K Cycles |
| Insulation Resistance | ≥100MΩ @ 100V AC | Dielectric Withstanding Voltage | 100V AC for 1 Minute |
| 3. Physical | |||
| Circuits (Loaded) | 5 | Circuits (Maximum) | 5P |
| Color – Housing | Black | Durability (Mating Cycles Max) | 10,000 Cycles |
| Keying to Mating Part | Yes | Gender | Female / Receptacle |
| Material – Contact | C2680R-H, Au/Ni Plated | Plating on soldering area | Gold |
| Material – Housing | LCP UL94V-0 | Connector Mounting Type | SMT + DIP |
| Mounting Style | Hybrid Mount | Net Weight | – |
| Packaging Type | Tape & Reel | Orientation | Right Angle |
| PCB Retention | Yes | Vacuum Pick-up Cap | – |
| Polarized to Mating Part | Yes | Temperature Range – Operating | -30°C to +80°C |
| Waterproof / Dustproof | No | Number of Mount legs | 4 |
| Pitch – Termination Interface | 0.65 mm | Ports | 1 |
| Termination Interface Style | Right Angle | PCB Thickness (Recommended) | 0.8mm |
| 4. Classification Reflow Soldering Profile | |||
| Preheat Temperature Min | Ts(min) = 150°C | Preheat Temperature Max | Ts(max) = 200°C |
| Preheat Time (Ts min to max) | ts = 60–120 seconds | Ramp-up Rate (Ts to Tp) | 3°C/second max. |
| Liquidous Temperature | TL = 217°C | Time Above TL | tL = 60–150 seconds |
| Peak Package Body Temp | Tp ≤ 260°C | Time within 5°C of Tp | tp = 20–30 seconds |
| Ramp-down Rate (Tp to TL) | 6°C/second max. | Time 25°C to Peak Temp | 8 minutes max. |
| 5. Package Classification Reflow Temperature (TC) | |||
| Properties | Volume mm³ <350 | Volume mm³ 350–2000 | Volume mm³ >2000 |
| PB-Free Assembly — Package Thickness < 1.6 mm | 260°C | 260°C | 250°C |
| PB-Free Assembly — Package Thickness 1.6–2.5 mm | 260°C | 250°C | 245°C |
| PB-Free Assembly — Package Thickness > 2.5 mm | 250°C | 245°C | 245°C |
