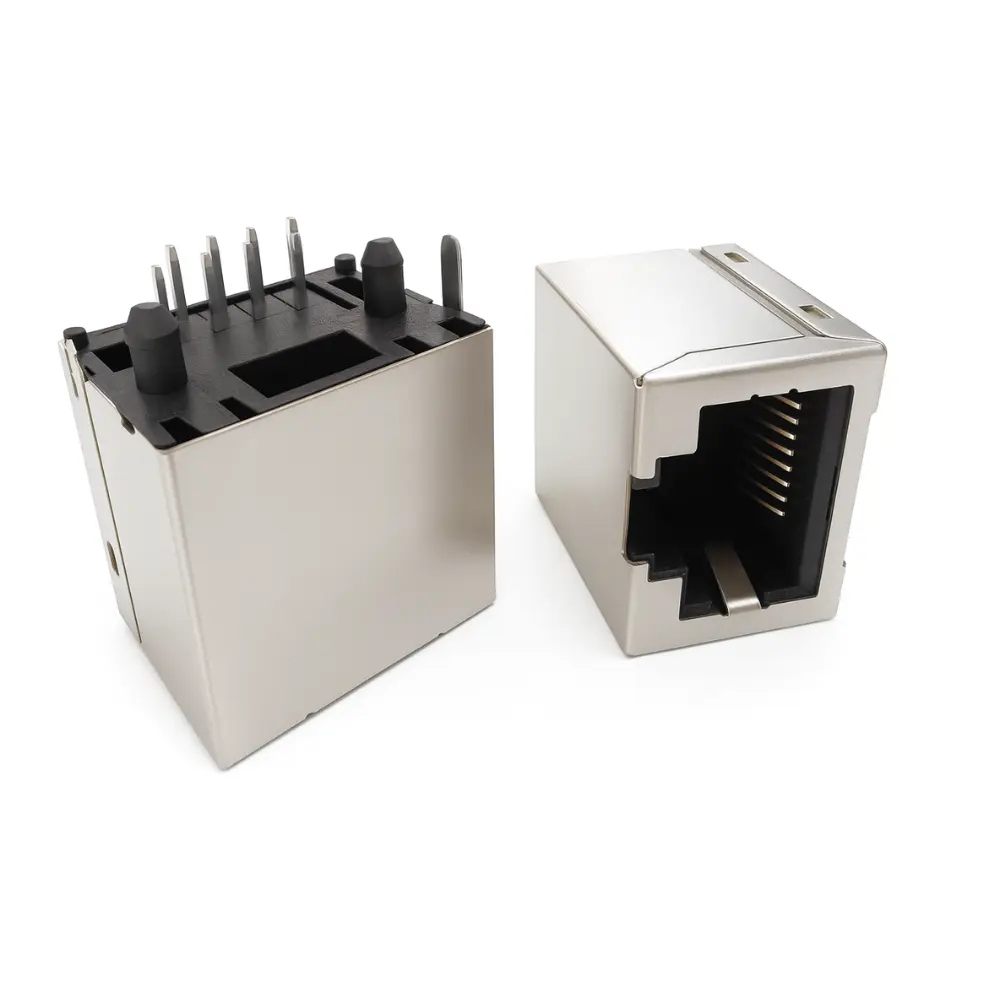

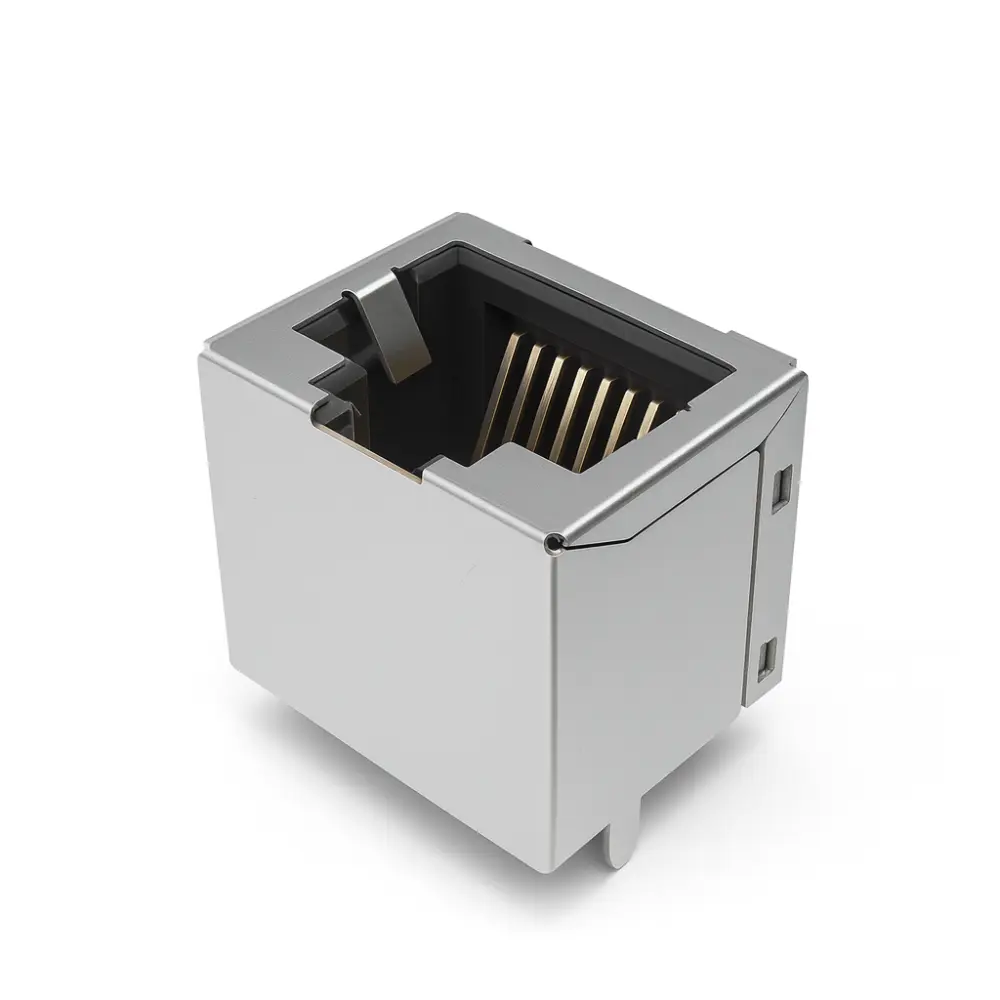

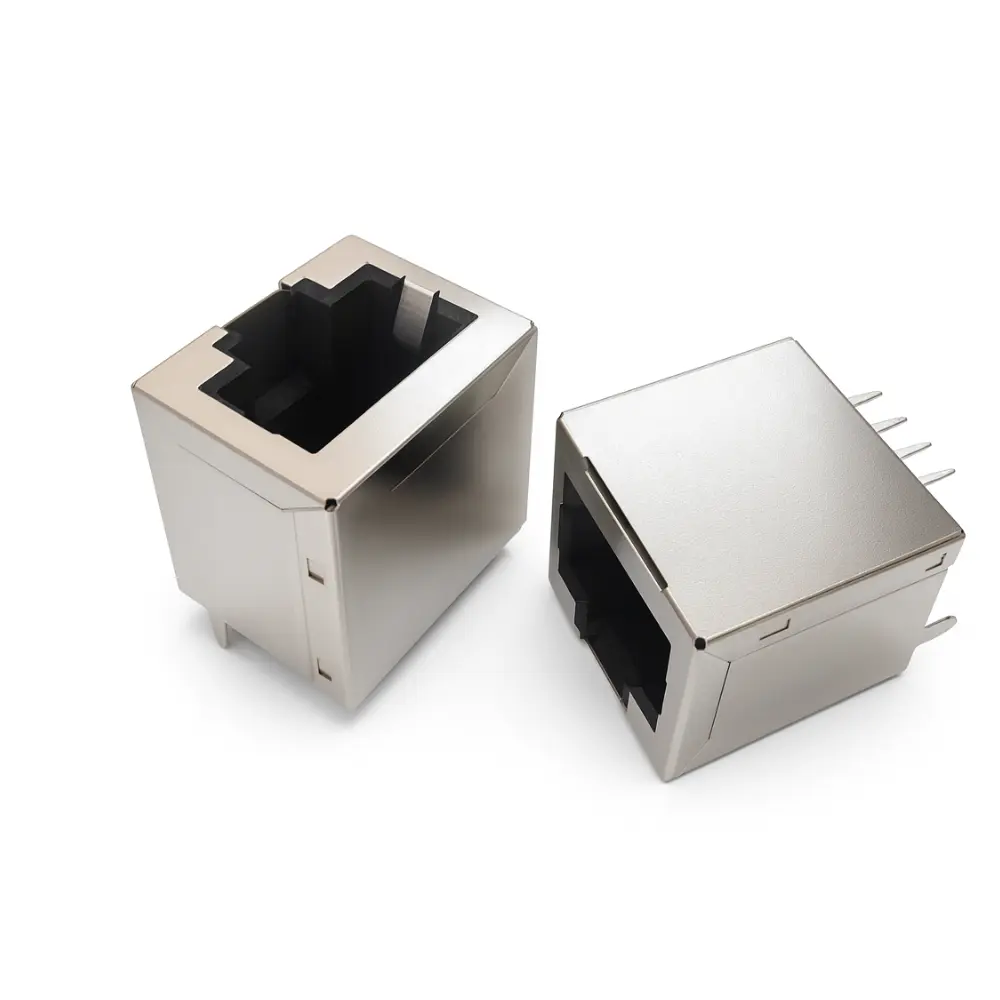

Modular RJ45 1 Port Vertical 8P8C DIP This is a single-port RJ45 modular jack (8P8C) with a tab-down orientation and DIP through-hole mounting. It features a compact profile with an overall depth of 15.95mm and pitch spacing of 1.02mm.
Highlights: Shielded 1×1 tab-down 8P8C; DIP/THT tails for robust retention; Ni-plated brass shell; Au-plated phosphor-bronze contacts; 125 V / 1.5 A, 1.02 mm pitch; –40~+80 °C; RoHS.
Applications: Routers, switches, NICs, telecom/IoT modules, smart meters, industrial controllers, embedded boards.
Modular RJ45 1 Port Vertical 8P8C DIP DW-RJ45-D001309 is a single-port through-hole Ethernet jack for board-edge I/O on routers, switches, and embedded systems. The tab-down orientation supports low-profile panels while the DIP/THT tails deliver strong mechanical retention and easy wave-solder processing.
| 1. Basic Information | |||
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-D001309-XXTP-01 | Description | RJ45 Jack, 1×1 port, 8P8C, vertical, Shielded, DIP Type, without LEDs, 125V AC Rated, with Nickel-Plated Brass Shell |
| Product Name | RJ45 1-Port Tab-Up Shielded | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 16.20 mm | Height | 16.25 mm |
| Length | 15.95 mm | Installed height | 17.85 mm |
| Material (Metal surface contact area top layer) | Gold | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface soldering area) | Nickel | Material (Metal surface soldering area top layer) | Gold |
| Mating Force | ≤ 25N | PCB Retention | Yes |
| Customs tariff number | 85366930 | Country of origin | CN |
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation | Vertical (Top Entry) |
| Positions / Loaded Contacts | 8P8C | Lightpipes/LEDs | None |
| Packaging | Tray | Termination Interface | DIP |
| Port Configuration | 1×1 | Inverted / Top Latch | Yes |
| Durability (mating cycles max) | 5000 | Material – Resin | NY9T UL94V-0 |
| Jack Height | 16.25 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Tin | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.02 mm |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 JACK, Modular Jack, Shielded RJ45 Connector, Through-Hole RJ45 Connector, Single Port RJ45 Jack, Vertical RJ45 Jack |
| Pitch – Termination Interface | 2.54 mm | POE+ | No |
| EMI | No | Latch / Tab orientation | Tab-Up |
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC | Operating Temperature | -40°C to +80°C |
| Insulation resistance | ≥500MΩ | Storage Temperature | -40°C to +80°C |
| Lead-Free Process Capability | WAVE | Classification temperature, T₍C₎ | 260°C |
