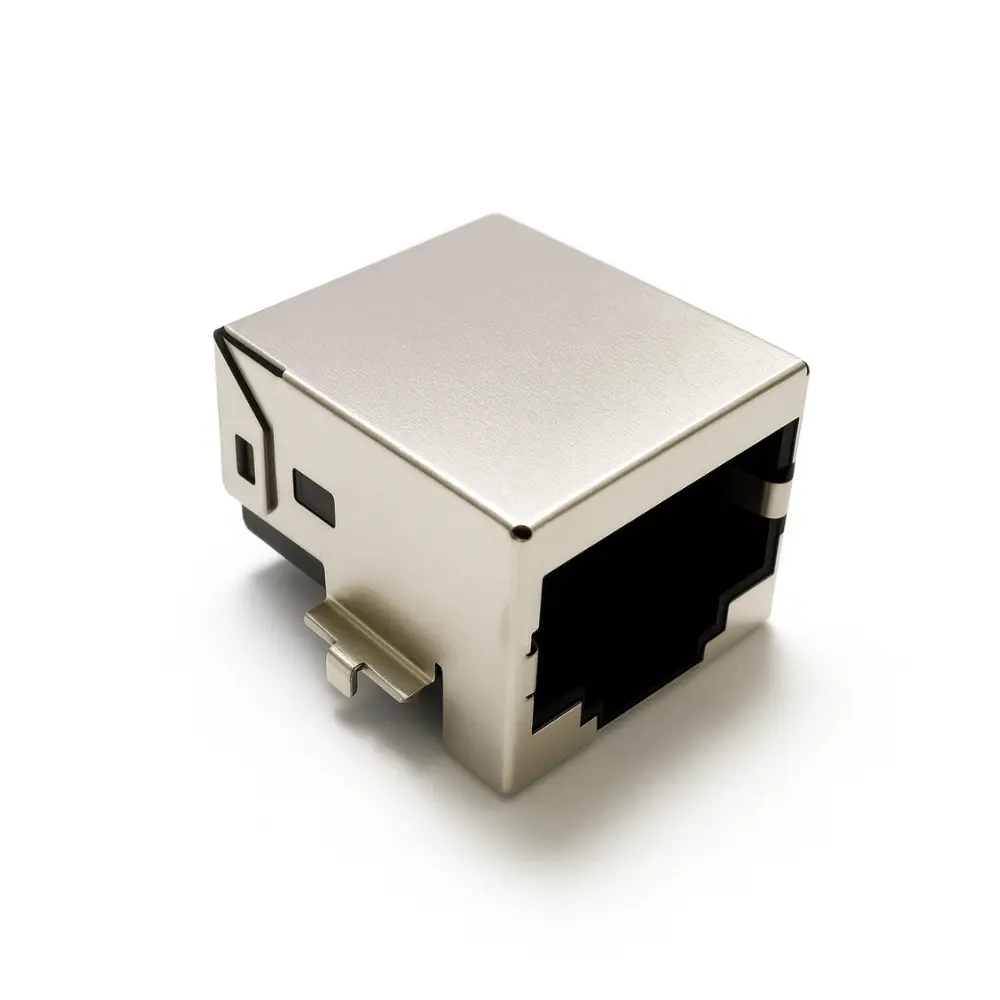

Modular RJ45 Connector 8P8C 8.65 mm SMT designed for Surface Mount Technology (SMT) applications.
Highlights: Low-profile SMT 8P8C; ~8.65 mm frontal/stack height; shielded nickel-plated shell (T=0.20 mm); LCP UL94V-0 housing; phosphor-bronze contacts (T=0.30 mm); selective-gold 0/3/5/15/30 µin; 125 VAC/1.5 A; ≤50 mΩ contact R; ≥500 MΩ insulation R; 500 VAC withstand; ≥750 cycles; tape-and-reel; RoHS/REACH.
Applications: Network equipment, IP cameras/NVRs, industrial controllers, embedded/communication terminals requiring a compact, reflow-solderable RJ45.

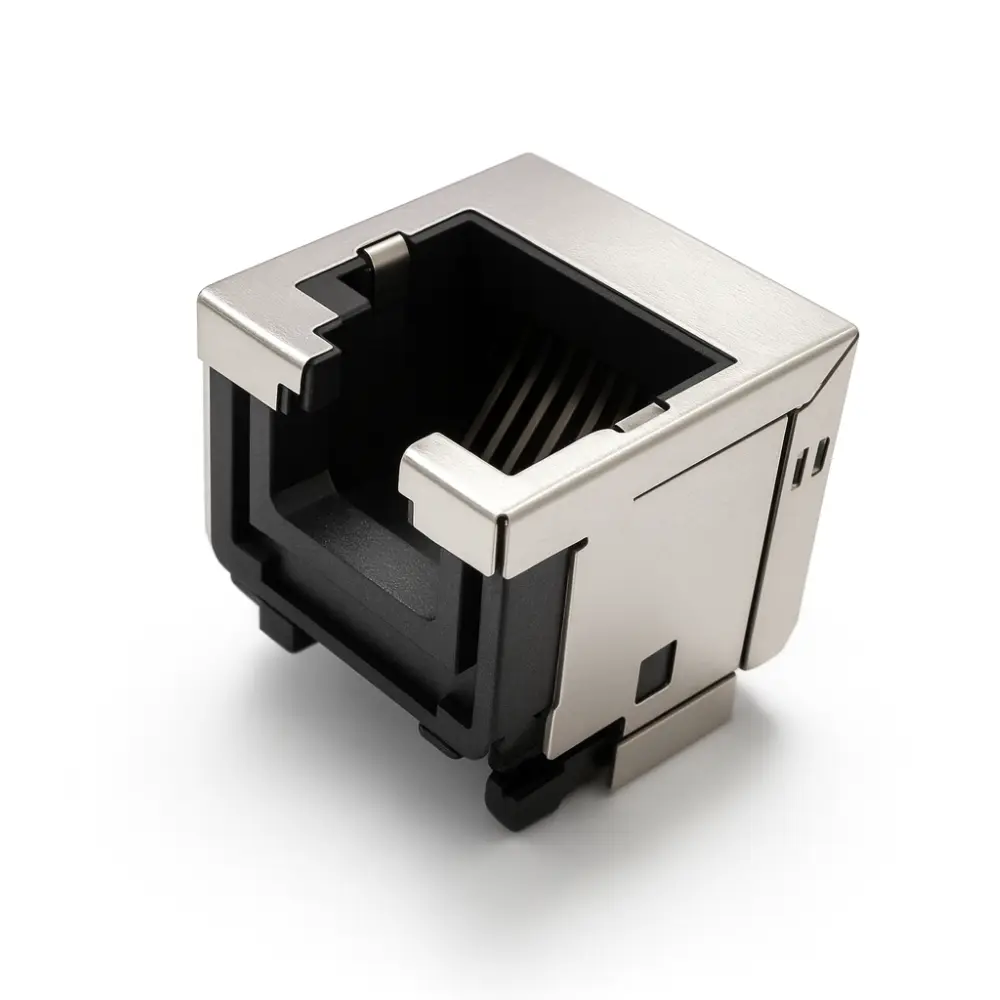

Modular RJ45 Connector 8P8C 8.65 mm SMT is a low-profile, surface-mount single-port jack engineered for automated reflow assembly and compact Ethernet I/O.
| 1. Basic Information | |||
| Status | Active | Category | Modular Jack |
| Part Number | DW-RJ45-S001119-01TR-01 | Description | RJ45 Jack, 1×1 port, with Shielded and EMI, 8P8C, Tab-Down, Mid-mount, 6.5mm Installed Height. |
| Product Name | RJ45 Mid-mount W/O LED | Magnetic | No |
| Component Type | PCB Jack | Power over Ethernet (PoE) | N/A |
| Type | Socket | Lead time | 7~15 days |
| Width | 13.80 mm | Height | 11.80 mm |
| Length | 14.55 mm | Installed height | 8.65 mm |
| Material (Metal surface contact area top layer) | Gold | Material (Metal surface contact area middle layer) | Nickel |
| Material (Metal surface soldering area) | Nickel | Material (Metal surface soldering area top layer) | Gold |
| Mating Force | ≤30N | PCB Retention | Yes |
| Customs tariff number | 85366930 | Country of origin | CN |
| 2. Product Properties / Physical | |||
| Color – Housing | Black | Orientation | Right Angle |
| Positions / Loaded Contacts | 8P8C | Lightpipes/LEDs | None |
| Packaging | Tape | Termination Interface | SMT |
| Port Configuration | 1×1 | Inverted / Top Latch | No |
| Durability (mating cycles max) | 750 | Material – Resin | LCP UL94V-0 |
| Jack Height | 11.50 mm | Material – Metal | Phosphor Bronze |
| Material – Plating Termination | Gold | PCB Retention | Yes |
| Net Weight | – | Pitch – Mating Interface | 1.02 mm |
| PCB Thickness – Recommended | 1.60 mm | Key Words | RJ45 JACK, Shielded RJ45 Connector, SMT RJ45 Jack, Right Angle RJ45 Connector, Modular Jack, High Durability RJ45 Jack |
| Pitch – Termination Interface | 1.02 mm | POE+ | No |
| EMI | Yes | Latch / Tab orientation | Tab-Down |
| 3. Electrical | |||
| Current – Maximum per Contact | 1.5A Max | Grounding to Panel | Yes |
| Grounding to PCB | Yes | Shielded | Yes |
| Voltage – Maximum | 125V AC | Operating Temperature | -40°C to +85°C |
| Insulation resistance | ≥500MΩ @ 500 VDC | Storage Temperature | -40°C to +85°C |
| Lead-Free Process Capability | REFLOW | Classification temperature, T(C) | 265°C |
| Dielectric Withstanding | 500 VAC RMS, 50 Hz, 1 min | ||
